Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

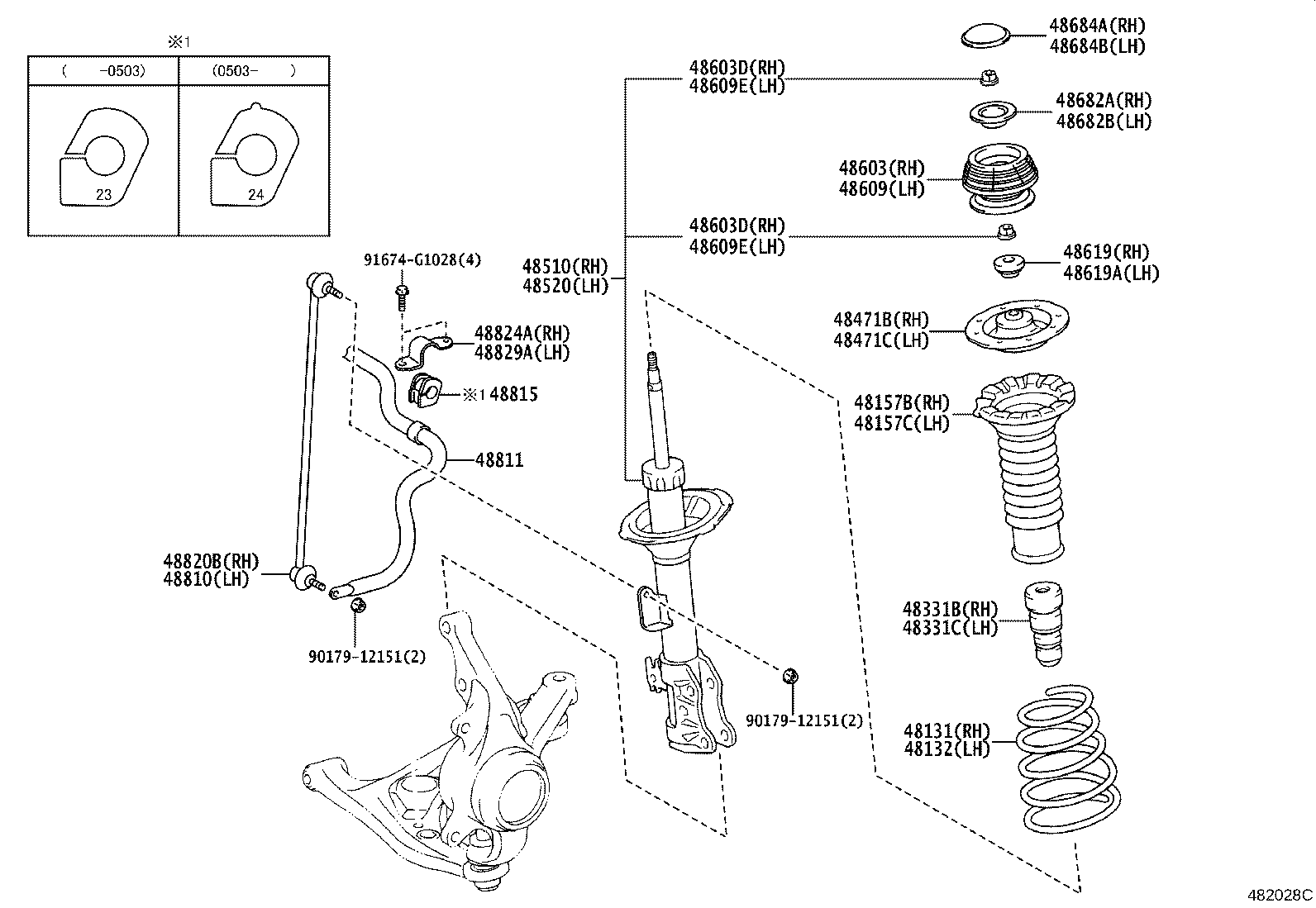

Exploded illustration 482028C 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (13 parts) 48811 — BAR, STABILIZER, FRONT (13 parts) 9017912151 — not listed in this catalogue 9017912151 — not listed in this catalogue 91674G1028 — not listed in this catalogue 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (4 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (4 parts) 48682A — SUPPORT, FRONT SUSPENSION, NO.2 RH (5 parts) 48682B — SUPPORT, FRONT SUSPENSION, NO.2 LH (5 parts) 48619 — BEARING, STRUT MOUNTING, RH (5 parts) 48619A — BEARING, STRUT MOUNTING, LH (5 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (4 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (4 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (4 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (4 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (13 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (13 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (7 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (7 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (7 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (7 parts) 48331B — BUMPER, FRONT SPRING, RH (6 parts) 48331C — BUMPER, FRONT SPRING, LH (6 parts) 48131 — SPRING, FRONT COIL, RH (21 parts) 48132 — SPRING, FRONT COIL, LH (21 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (4 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (4 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (4 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (4 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (4 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (4 parts)
482028C · 28 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
194 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-52A30 note Spring, Front Coil, RH
2005-04 → 2007-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, RH
2005-01 → 2007-08 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥7,800
48131-52A60 Spring, Front Coil, RH
2005-01 → 2007-08 ended
NCP91 RS ¥7,800
48131-52B10 Spring, Front Coil, RH
2005-01 → 2007-08 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, RH
2005-01 → 2007-08 ended
NCP95 ILL,U ¥8,400
48131-52B20 note Spring, Front Coil, RH
2005-01 → 2007-08 ended
NCP95 F ¥8,400
48131-52A30 note Spring, Front Coil, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, RH
2007-08 → 2008-08 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, RH
2007-08 → 2008-08 ended
NCP91,SCP90 F,ILL,U ¥7,800
48131-52A60 Spring, Front Coil, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,800
48131-52B10 Spring, Front Coil, RH
2007-08 → 2008-08 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, RH
2007-08 → 2008-08 ended
NCP95 ILL,U ¥8,400
48131-52B20 note Spring, Front Coil, RH
2007-08 → 2008-08 ended
NCP95 F ¥8,400
48131-52A30 note Spring, Front Coil, RH
2008-08 → 2010-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, RH
2008-08 → 2010-12 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, RH
2008-08 → 2010-12 ended
NCP91,SCP90 F,ILL,U ¥7,800
48131-52A60 Spring, Front Coil, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,800
48131-52B10 Spring, Front Coil, RH
2008-08 → 2010-12 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, RH
2008-08 → 2010-12 ended
NCP95 ILL,U ¥8,400
48131-52B20 note Spring, Front Coil, RH
2008-08 → 2010-12 ended
NCP95 F ¥8,400
48132 — Spring, Front Coil, LH
48131-52A30 note Spring, Front Coil, LH
2005-04 → 2007-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, LH
2005-01 → 2007-08 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥7,800
48131-52A60 Spring, Front Coil, LH
2005-01 → 2007-08 ended
NCP91 RS ¥7,800
48131-52B10 Spring, Front Coil, LH
2005-01 → 2007-08 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, LH
2005-01 → 2007-08 ended
NCP95 ILL,U ¥8,400
48131-52B20 note Spring, Front Coil, LH
2005-01 → 2007-08 ended
NCP95 F ¥8,400
48131-52A30 note Spring, Front Coil, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, LH
2007-08 → 2008-08 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, LH
2007-08 → 2008-08 ended
NCP91,SCP90 F,ILL,U ¥7,800
48131-52A60 Spring, Front Coil, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,800
48131-52B10 Spring, Front Coil, LH
2007-08 → 2008-08 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, LH
2007-08 → 2008-08 ended
NCP95 ILL,U ¥8,400
48131-52B20 note Spring, Front Coil, LH
2007-08 → 2008-08 ended
NCP95 F ¥8,400
48131-52A30 note Spring, Front Coil, LH
2008-08 → 2010-08 ended
KSP90 B,F ¥7,000
48131-52A40 Spring, Front Coil, LH
2008-08 → 2010-12 ended
KSP90 ¥7,800
48131-52A50 Spring, Front Coil, LH
2008-08 → 2010-12 ended
NCP91,SCP90 F,ILL,U ¥7,800
48131-52A60 Spring, Front Coil, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,800
48131-52B10 Spring, Front Coil, LH
2008-08 → 2010-12 ended
NCP95 F ¥8,400
48131-52B20 note Spring, Front Coil, LH
2008-08 → 2010-12 ended
NCP95 F ¥8,400
48131-52B20 Spring, Front Coil, LH
2008-08 → 2010-12 ended
NCP95 ILL,U ¥8,400
48157B — Insulator, Front Coil Spring, Upper RH
48157-52030 Insulator, Front Coil Spring, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,280
48157C — Insulator, Front Coil Spring, Upper LH
48157-52030 Insulator, Front Coil Spring, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,280
48157-52030 Insulator, Front Coil Spring, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,280
48331B — Bumper, Front Spring, RH
48331-52080 Bumper, Front Spring, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,250
48331-52100 Bumper, Front Spring, RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,260
48331-52080 Bumper, Front Spring, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,250
48331-52100 Bumper, Front Spring, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,260
48331-52080 Bumper, Front Spring, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,250
48331-52100 Bumper, Front Spring, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,260
48331C — Bumper, Front Spring, LH
48331-52080 Bumper, Front Spring, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,250
48331-52100 Bumper, Front Spring, LH
2005-01 → 2007-08 ended
NCP91 RS ¥1,260
48331-52080 Bumper, Front Spring, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,250
48331-52100 Bumper, Front Spring, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,260
48331-52080 Bumper, Front Spring, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,250
48331-52100 Bumper, Front Spring, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,260
48471B — Seat, Front Coil Spring, Upper RH
48471-52030 Seat, Front Coil Spring, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,610
48471-52030 Seat, Front Coil Spring, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,610
48471-52030 Seat, Front Coil Spring, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,610
48471-52030 Seat, Front Coil Spring, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,610
48471C — Seat, Front Coil Spring, Upper LH
48471-52030 Seat, Front Coil Spring, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,610
48471-52030 Seat, Front Coil Spring, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,610
48471-52030 Seat, Front Coil Spring, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,610
48471-52030 Seat, Front Coil Spring, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,610
48510 — Absorber Assy, Shock, Front RH
48510-80189 note Absorber Assy, Shock, Front RH
2005-04 → 2007-08 ended
KSP90 B,F ¥25,500
48510-80194 note Absorber Assy, Shock, Front RH
2005-01 → 2007-08 ended
NCP91 RS ¥25,600
48510-80197 note Absorber Assy, Shock, Front RH
2005-01 → 2007-08 ended
NCP95 ¥26,500
48510-80294 note Absorber Assy, Shock, Front RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥25,500
48510-80189 note Absorber Assy, Shock, Front RH
2007-08 → 2008-08 ended
KSP90 B,F ¥25,500
48510-80197 note Absorber Assy, Shock, Front RH
2007-08 → 2008-08 ended
NCP95 ¥26,500
48510-80294 note Absorber Assy, Shock, Front RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,500
48510-80398 note Absorber Assy, Shock, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥25,600
48510-80189 note Absorber Assy, Shock, Front RH
2008-08 → 2010-08 ended
KSP90 B,F ¥25,500
48510-80197 note Absorber Assy, Shock, Front RH
2008-08 → 2010-12 ended
NCP95 ¥26,500
48510-80294 note Absorber Assy, Shock, Front RH
2008-08 → 2009-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,500
48510-80398 note Absorber Assy, Shock, Front RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥25,600
48510-80516 note Absorber Assy, Shock, Front RH
2009-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,600
48520 — Absorber Assy, Shock, Front LH
48520-59125 note Absorber Assy, Shock, Front LH
2005-04 → 2007-08 ended
KSP90 B,F ¥25,500
48520-59175 note Absorber Assy, Shock, Front LH
2005-01 → 2007-08 ended
NCP91 RS ¥25,600
48520-59205 note Absorber Assy, Shock, Front LH
2005-01 → 2007-08 ended
NCP95 ¥26,500
48520-59365 note Absorber Assy, Shock, Front LH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥25,500
48520-59125 note Absorber Assy, Shock, Front LH
2007-08 → 2008-08 ended
KSP90 B,F ¥25,500
48520-59205 note Absorber Assy, Shock, Front LH
2007-08 → 2008-08 ended
NCP95 ¥26,500
48520-59365 note Absorber Assy, Shock, Front LH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,500
48520-59465 note Absorber Assy, Shock, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥25,600
48520-59125 note Absorber Assy, Shock, Front LH
2008-08 → 2010-08 ended
KSP90 B,F ¥25,500
48520-59205 note Absorber Assy, Shock, Front LH
2008-08 → 2010-12 ended
NCP95 ¥26,500
48520-59365 note Absorber Assy, Shock, Front LH
2008-08 → 2009-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,500
48520-59465 note Absorber Assy, Shock, Front LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥25,600
48520-80246 note Absorber Assy, Shock, Front LH
2009-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥25,600
48603 — Support Sub-assy, Front Suspension, RH
48609-52100 Support Sub-assy, Front Suspension, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,680
48609-52100 Support Sub-assy, Front Suspension, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,680
48609-52100 Support Sub-assy, Front Suspension, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,680
48609-52100 Support Sub-assy, Front Suspension, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,680
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
48609 — Support Sub-assy, Front Suspension, LH
48609-52100 Support Sub-assy, Front Suspension, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,680
48609-52100 Support Sub-assy, Front Suspension, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,680
48609-52100 Support Sub-assy, Front Suspension, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,680
48609-52100 Support Sub-assy, Front Suspension, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,680
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
90179-12145 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
48619 — Bearing, Strut Mounting, RH
48619-0D010 Bearing, Strut Mounting, RH
2005-01 → 2007-02 ended
KSP90,NCP9#,SCP90 ¥940
48619-0D011 Bearing, Strut Mounting, RH
2007-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥780
48619-0D011 Bearing, Strut Mounting, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥780
48619-0D011 Bearing, Strut Mounting, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥780
48619-0D011 Bearing, Strut Mounting, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥780
48619A — Bearing, Strut Mounting, LH
48619-0D010 Bearing, Strut Mounting, LH
2005-01 → 2007-02 ended
KSP90,NCP9#,SCP90 ¥940
48619-0D011 Bearing, Strut Mounting, LH
2007-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥780
48619-0D011 Bearing, Strut Mounting, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥780
48619-0D011 Bearing, Strut Mounting, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥780
48619-0D011 Bearing, Strut Mounting, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥780
48682A — Support, Front Suspension, NO.2 RH
48682-52020 Support, Front Suspension, NO.2 RH
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 ¥680
48682-52040 Support, Front Suspension, NO.2 RH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥410
48682-52040 Support, Front Suspension, NO.2 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥410
48682-52040 Support, Front Suspension, NO.2 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥410
48682-52040 Support, Front Suspension, NO.2 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥410
48682B — Support, Front Suspension, NO.2 LH
48682-52020 Support, Front Suspension, NO.2 LH
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 ¥680
48682-52040 Support, Front Suspension, NO.2 LH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥410
48682-52040 Support, Front Suspension, NO.2 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥410
48682-52040 Support, Front Suspension, NO.2 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥410
48682-52040 Support, Front Suspension, NO.2 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥410
48684A — Cover, Front Suspension Support Dust, RH
48684-52020 Cover, Front Suspension Support Dust, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥500
48684-52020 Cover, Front Suspension Support Dust, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥500
48684-52020 Cover, Front Suspension Support Dust, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
48684-52020 Cover, Front Suspension Support Dust, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥500
48684B — Cover, Front Suspension Support Dust, LH
48684-52020 Cover, Front Suspension Support Dust, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥500
48684-52020 Cover, Front Suspension Support Dust, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥500
48684-52020 Cover, Front Suspension Support Dust, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
48684-52020 Cover, Front Suspension Support Dust, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥500
48810 — Link Assy, Front Stabilizer, LH
48820-52030 Link Assy, Front Stabilizer, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,350
48820-52030 note Link Assy, Front Stabilizer, LH
2005-01 → 2007-08 ended
KSP90 B,F ¥4,350
48820-52030 Link Assy, Front Stabilizer, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,350
48820-52030 note Link Assy, Front Stabilizer, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥4,350
48820-52030 Link Assy, Front Stabilizer, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,350
48820-52030 note Link Assy, Front Stabilizer, LH
2008-08 → 2010-12 ended
KSP90 B,F ¥4,350
48820-52030 Link Assy, Front Stabilizer, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,350
48811 — Bar, Stabilizer, Front
48811-52160 Bar, Stabilizer, Front
2005-01 → 2005-03 ended
KSP90,NCP91,SCP90 B,F,U,X ¥8,500
48811-52160 note Bar, Stabilizer, Front
2005-01 → 2005-03 ended
KSP90 ¥8,500
48811-52170 Bar, Stabilizer, Front
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ILL,RS ¥8,700
48811-52170 Bar, Stabilizer, Front
2005-03 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥8,700
48811-52170 note Bar, Stabilizer, Front
2005-03 → 2007-08 ended
KSP90 B,F ¥8,700
48811-52180 Bar, Stabilizer, Front
2005-01 → 2007-08 ended
NCP95 ¥8,200
48811-52170 Bar, Stabilizer, Front
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥8,700
48811-52170 note Bar, Stabilizer, Front
2007-08 → 2008-08 ended
KSP90 B,F ¥8,700
48811-52170 Bar, Stabilizer, Front
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,700
48811-52180 Bar, Stabilizer, Front
2007-08 → 2008-08 ended
NCP95 ¥8,200
48811-52170 Bar, Stabilizer, Front
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥8,700
48811-52170 note Bar, Stabilizer, Front
2008-08 → 2010-12 ended
KSP90 B,F ¥8,700
48811-52180 Bar, Stabilizer, Front
2008-08 → 2010-12 ended
NCP95 ¥8,200
48815 — Bush, Front Stabilizer Bar, NO.1
48815-52080 Bush, Front Stabilizer Bar, NO.1
2005-01 → 2005-03 ended
KSP90,NCP91,SCP90 B,F,U,X ¥580
48815-52080 note Bush, Front Stabilizer Bar, NO.1
2005-01 → 2005-03 ended
KSP90 ¥580
48815-52080 Bush, Front Stabilizer Bar, NO.1
2005-01 → 2007-08 ended
NCP95 ¥580
48815-52090 Bush, Front Stabilizer Bar, NO.1
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ILL,RS ¥550
48815-52090 Bush, Front Stabilizer Bar, NO.1
2005-03 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥550
48815-52090 note Bush, Front Stabilizer Bar, NO.1
2005-03 → 2007-08 ended
KSP90 B,F ¥550
48815-52080 Bush, Front Stabilizer Bar, NO.1
2007-08 → 2008-08 ended
NCP95 ¥580
48815-52090 Bush, Front Stabilizer Bar, NO.1
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥550
48815-52090 note Bush, Front Stabilizer Bar, NO.1
2007-08 → 2008-08 ended
KSP90 B,F ¥550
48815-52090 Bush, Front Stabilizer Bar, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥550
48815-52080 Bush, Front Stabilizer Bar, NO.1
2008-08 → 2010-12 ended
NCP95 ¥580
48815-52090 note Bush, Front Stabilizer Bar, NO.1
2008-08 → 2010-12 ended
KSP90 B,F ¥550
48815-52090 Bush, Front Stabilizer Bar, NO.1
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥550
48820B — Link Assy, Front Stabilizer, RH
48820-52030 Link Assy, Front Stabilizer, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,350
48820-52030 note Link Assy, Front Stabilizer, RH
2005-01 → 2007-08 ended
KSP90 B,F ¥4,350
48820-52030 Link Assy, Front Stabilizer, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,350
48820-52030 note Link Assy, Front Stabilizer, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥4,350
48820-52030 Link Assy, Front Stabilizer, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,350
48820-52030 Link Assy, Front Stabilizer, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,350
48820-52030 note Link Assy, Front Stabilizer, RH
2008-08 → 2010-12 ended
KSP90 B,F ¥4,350
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-52060 Bracket, Front Stabilizer, NO.1 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 RH
2005-01 → 2007-08 ended
KSP90 B,F ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 RH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 RH
2008-08 → 2010-12 ended
KSP90 B,F ¥1,050
48829A — Bracket, Front Stabilizer, NO.1 LH
48824-52060 Bracket, Front Stabilizer, NO.1 LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 LH
2005-01 → 2007-08 ended
KSP90 B,F ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 LH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,050
48824-52060 Bracket, Front Stabilizer, NO.1 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,050
48824-52060 note Bracket, Front Stabilizer, NO.1 LH
2008-08 → 2010-12 ended
KSP90 B,F ¥1,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
