Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

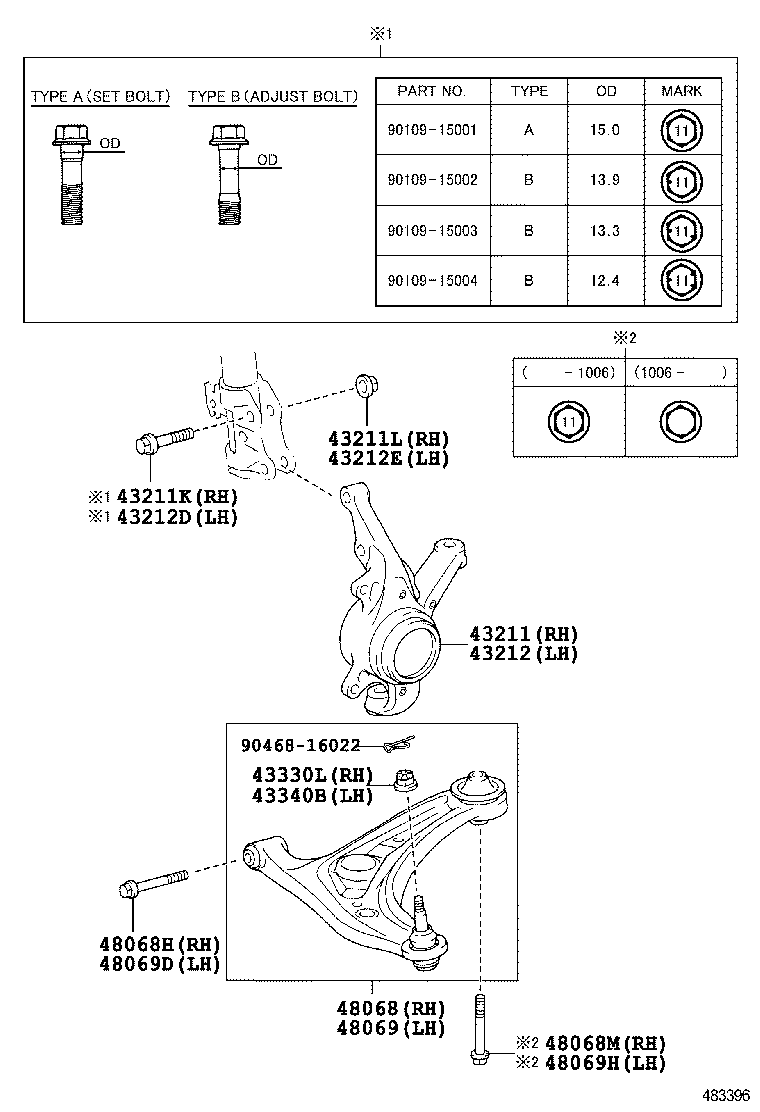

Exploded illustration 483396 9046816022 — not listed in this catalogue 43211L — NUT (FOR STEERING KNUCKLE RH) (4 parts) 43212E — NUT (FOR STEERING KNUCKLE LH) (4 parts) 43211K — BOLT (FOR STEERING KNUCKLE RH) (16 parts) 43212D — BOLT (FOR STEERING KNUCKLE LH) (16 parts) 43211 — KNUCKLE, STEERING, RH (4 parts) 43212 — KNUCKLE, STEERING, LH (4 parts) 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (7 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (7 parts) 43330L — NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) (4 parts) 43340B — NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) (4 parts) 48068M — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) (9 parts) 48069H — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) (9 parts) 48068H — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) (4 parts) 48069D — BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) (4 parts)
483396 · 14 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
43211 — Knuckle, Steering, RH
43211-52050 Knuckle, Steering, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,200
43211-52050 Knuckle, Steering, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,200
43211-52050 Knuckle, Steering, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,200
43211-52050 Knuckle, Steering, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,200
43211K — Bolt (FOR STEERING KNUCKLE RH)
90109-15001 note Bolt (FOR STEERING KNUCKLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15001 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥270
90109-15001 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15002 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15001 note Bolt (FOR STEERING KNUCKLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
43211L — Nut (FOR STEERING KNUCKLE RH)
90179-15004 Nut (FOR STEERING KNUCKLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥90
90179-15004 Nut (FOR STEERING KNUCKLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
90179-15004 Nut (FOR STEERING KNUCKLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥90
90179-15004 Nut (FOR STEERING KNUCKLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥90
43212 — Knuckle, Steering, LH
43212-52050 Knuckle, Steering, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,200
43212-52050 Knuckle, Steering, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,200
43212-52050 Knuckle, Steering, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,200
43212-52050 Knuckle, Steering, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,200
43212D — Bolt (FOR STEERING KNUCKLE LH)
90109-15001 note Bolt (FOR STEERING KNUCKLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90109-15001 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥270
90109-15001 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15002 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90109-15001 note Bolt (FOR STEERING KNUCKLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥270
90109-15002 note Bolt (FOR STEERING KNUCKLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
90109-15003 note Bolt (FOR STEERING KNUCKLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
90109-15004 note Bolt (FOR STEERING KNUCKLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
43212E — Nut (FOR STEERING KNUCKLE LH)
90179-15004 Nut (FOR STEERING KNUCKLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥90
90179-15004 Nut (FOR STEERING KNUCKLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
90179-15004 Nut (FOR STEERING KNUCKLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥90
90179-15004 Nut (FOR STEERING KNUCKLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥90
43330L — Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥110
43340B — Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥110
90171-12007 Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥110
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-59095 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥26,300
48068-59095 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥26,300
48068-59095 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥26,300
48068-59095 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2008-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥26,300
48068-59095 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2008-08 → 2008-10 ended
NCP91,SCP90 RS ¥26,300
48068-59135 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2008-10 → 2010-09 ended
KSP90,NCP9#,SCP90 ¥26,300
48068-59145 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥18,200
48068H — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥310
48068M — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2005-01 → 2007-08 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥590
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2007-08 → 2008-08 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥590
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2008-08 → 2010-06 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2008-08 → 2010-06 ended
KSP90,NCP91,SCP90 ¥590
90119-14144 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2010-06 → 2010-12 ended
KSP90,NCP91,SCP90 ¥400
90119-14145 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
2010-06 → 2010-12 ended
NCP95 ¥680
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-59095 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥26,300
48069-59095 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥26,300
48069-59095 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥26,300
48069-59095 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2008-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥26,300
48069-59095 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2008-08 → 2008-10 ended
NCP91,SCP90 RS ¥26,300
48069-59125 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2008-10 → 2010-09 ended
KSP90,NCP9#,SCP90 ¥26,300
48069-59135 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥18,200
48069D — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥310
90119-14086 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥310
48069H — Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2005-01 → 2007-08 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥590
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2007-08 → 2008-08 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥590
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
90119-14123 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2008-08 → 2010-06 ended
NCP95 ¥470
90119-14126 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2008-08 → 2010-06 ended
KSP90,NCP91,SCP90 ¥590
90119-14144 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2010-06 → 2010-12 ended
KSP90,NCP91,SCP90 ¥400
90119-14145 Bolt(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
2010-06 → 2010-12 ended
NCP95 ¥680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
