Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

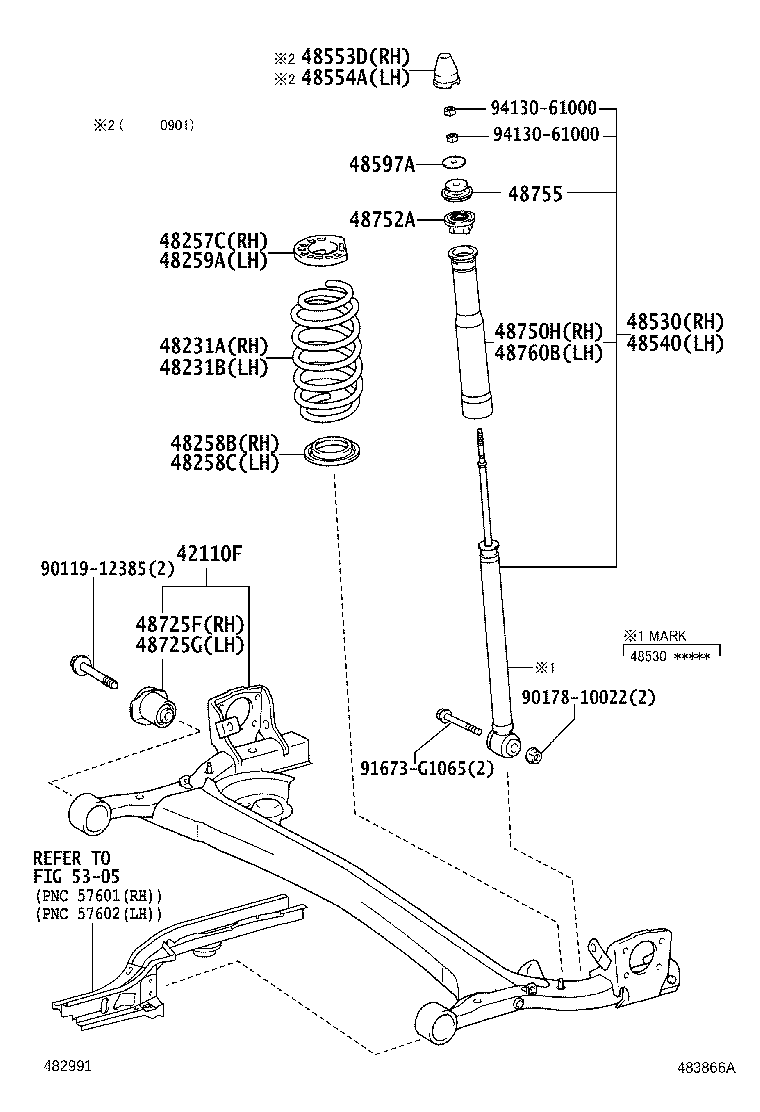

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42110F — Beam Assy, Rear Axle | ||||
| 42110-52250 note |
Beam Assy, Rear Axle
2005-04 → 2006-05
ended
|
KSP90 B,F | ¥75,900 | |
| 42110-52260 |
Beam Assy, Rear Axle
2005-01 → 2006-05
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥75,900 | |
| 42110-52270 |
Beam Assy, Rear Axle
2005-01 → 2006-01
ended
|
NCP91 RS | ¥75,900 | |
| 42110-52280 |
Beam Assy, Rear Axle
2005-01 → 2005-08
ended
|
NCP95 | ¥75,900 | |
| 42110-52281 |
Beam Assy, Rear Axle
2005-09 → 2007-08
ended
|
NCP95 | ¥47,900 | |
| 42110-52331 |
Beam Assy, Rear Axle
2006-06 → 2007-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥76,100 | |
| 42110-52340 |
Beam Assy, Rear Axle
2006-01 → 2006-05
ended
|
NCP91 RS | ¥75,900 | |
| 42110-52341 |
Beam Assy, Rear Axle
2006-06 → 2007-08
ended
|
NCP91 RS | ¥76,000 | |
| 42110-52351 note |
Beam Assy, Rear Axle
2006-06 → 2007-08
ended
|
KSP90 B,F | ¥76,100 | |
| 42110-52281 |
Beam Assy, Rear Axle
2007-08 → 2008-08
ended
|
NCP95 | ¥47,900 | |
| 42110-52331 |
Beam Assy, Rear Axle
2007-08 → 2008-09
ended
|
SCP90;KSP90,NCP91 B,F,ILL,U | ¥76,100 | |
| 42110-52341 |
Beam Assy, Rear Axle
2007-08 → 2008-09
ended
|
NCP91 RS | ¥76,000 | |
| 42110-52351 note |
Beam Assy, Rear Axle
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥76,100 | |
| 42110-52281 |
Beam Assy, Rear Axle
2008-08 → 2010-12
ended
|
NCP95 | ¥47,900 | |
| 42110-52331 |
Beam Assy, Rear Axle
2008-08 → 2010-05
ended
|
SCP90;KSP90,NCP91 B,F,ILL,U | ¥76,100 | |
| 42110-52332 |
Beam Assy, Rear Axle
2010-06 → 2010-12
ended
|
SCP90;KSP90,NCP91 B,F,ILL,U | ¥52,700 | |
| 42110-52341 |
Beam Assy, Rear Axle
2008-09 → 2010-12
ended
|
NCP91 RS | ¥76,000 | |
| 42110-52351 note |
Beam Assy, Rear Axle
2008-08 → 2010-05
ended
|
KSP90 B,F | ¥76,100 | |
| 42110-52352 note |
Beam Assy, Rear Axle
2010-06 → 2010-08
ended
|
KSP90 B,F | ¥63,300 | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-52890 note |
Spring, Coil, Rear RH
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear RH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear RH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear RH
2005-01 → 2007-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear RH
2005-01 → 2007-08
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear RH
2005-01 → 2007-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52890 note |
Spring, Coil, Rear RH
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear RH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear RH
2007-08 → 2008-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear RH
2007-08 → 2008-08
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear RH
2007-08 → 2008-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52890 note |
Spring, Coil, Rear RH
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear RH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear RH
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear RH
2008-08 → 2010-12
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear RH
2008-08 → 2010-12
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear RH
2008-08 → 2010-12
ended
|
NCP95 F | ¥10,200 | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-52890 note |
Spring, Coil, Rear LH
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear LH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear LH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear LH
2005-01 → 2007-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear LH
2005-01 → 2007-08
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear LH
2005-01 → 2007-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52890 note |
Spring, Coil, Rear LH
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear LH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear LH
2007-08 → 2008-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear LH
2007-08 → 2008-08
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear LH
2007-08 → 2008-08
ended
|
NCP95 F | ¥10,200 | |
| 48231-52890 note |
Spring, Coil, Rear LH
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥7,500 | |
| 48231-52A00 |
Spring, Coil, Rear LH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥9,000 | |
| 48231-52A10 |
Spring, Coil, Rear LH
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥9,300 | |
| 48231-52A60 |
Spring, Coil, Rear LH
2008-08 → 2010-12
ended
|
NCP95 F | ¥10,200 | |
| 48231-52A70 |
Spring, Coil, Rear LH
2008-08 → 2010-12
ended
|
NCP95 ILL,U | ¥10,200 | |
| 48231-52A70 note |
Spring, Coil, Rear LH
2008-08 → 2010-12
ended
|
NCP95 F | ¥10,200 | |
| 48257C — Insulator, Rear Coil Spring, Upper RH | ||||
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 48258B — Insulator, Rear Coil Spring, Lower RH | ||||
| 48258-52030 |
Insulator, Rear Coil Spring, Lower RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥370 | |
| 48258C — Insulator, Rear Coil Spring, Lower LH | ||||
| 48258-52030 |
Insulator, Rear Coil Spring, Lower LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥370 | |
| 48258-52030 |
Insulator, Rear Coil Spring, Lower LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥370 | |
| 48259A — Insulator, Rear Coil Spring, Upper LH | ||||
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥350 | |
| 48257-52010 |
Insulator, Rear Coil Spring, Upper LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-80220 note |
Absorber Assy, Shock, Rear RH
2005-01 → 2007-08
ended
|
NCP95 | ¥8,100 | |
| 48530-80301 note |
Absorber Assy, Shock, Rear RH
2005-01 → 2005-03
ended
|
KSP90,NCP91,SCP90 B,F,U,X | ¥8,200 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear RH
2005-01 → 2007-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear RH
2005-03 → 2007-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥8,100 | |
| 48530-80339 note |
Absorber Assy, Shock, Rear RH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥8,200 | |
| 48530-80220 note |
Absorber Assy, Shock, Rear RH
2007-08 → 2008-08
ended
|
NCP95 | ¥8,100 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear RH
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear RH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48530-80462 note |
Absorber Assy, Shock, Rear RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥8,100 | |
| 48530-80220 note |
Absorber Assy, Shock, Rear RH
2008-08 → 2010-12
ended
|
NCP95 | ¥8,100 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear RH
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear RH
2008-08 → 2009-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48530-80462 note |
Absorber Assy, Shock, Rear RH
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥8,100 | |
| 48530-80554 note |
Absorber Assy, Shock, Rear RH
2009-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-80220 note |
Absorber Assy, Shock, Rear LH
2005-01 → 2007-08
ended
|
NCP95 | ¥8,100 | |
| 48530-80301 note |
Absorber Assy, Shock, Rear LH
2005-01 → 2005-03
ended
|
KSP90,NCP91,SCP90 B,F,U,X | ¥8,200 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear LH
2005-01 → 2007-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear LH
2005-03 → 2007-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U,X | ¥8,100 | |
| 48530-80339 note |
Absorber Assy, Shock, Rear LH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥8,200 | |
| 48530-80220 note |
Absorber Assy, Shock, Rear LH
2007-08 → 2008-08
ended
|
NCP95 | ¥8,100 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear LH
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear LH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48530-80462 note |
Absorber Assy, Shock, Rear LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥8,100 | |
| 48530-80220 note |
Absorber Assy, Shock, Rear LH
2008-08 → 2010-12
ended
|
NCP95 | ¥8,100 | |
| 48530-80302 note |
Absorber Assy, Shock, Rear LH
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥8,100 | |
| 48530-80324 note |
Absorber Assy, Shock, Rear LH
2008-08 → 2009-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48530-80462 note |
Absorber Assy, Shock, Rear LH
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥8,100 | |
| 48530-80554 note |
Absorber Assy, Shock, Rear LH
2009-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥8,100 | |
| 48553D — Cap, Rear Shock Absorber, RH | ||||
| 48553-52010 |
Cap, Rear Shock Absorber, RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, RH
2008-08 → 2009-01
ended
|
KSP90,NCP9#,SCP90 | ¥440 | |
| 48554A — Cap, Rear Shock Absorber, LH | ||||
| 48553-52010 |
Cap, Rear Shock Absorber, LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥440 | |
| 48553-52010 |
Cap, Rear Shock Absorber, LH
2008-08 → 2009-01
ended
|
KSP90,NCP9#,SCP90 | ¥440 | |
| 48597A — Retainer, Rear Shock Absorber Cushion | ||||
| 90201-10320 |
Retainer, Rear Shock Absorber Cushion
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥410 | |
| 90201-10320 |
Retainer, Rear Shock Absorber Cushion
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥410 | |
| 90201-10320 |
Retainer, Rear Shock Absorber Cushion
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥410 | |
| 90201-10320 |
Retainer, Rear Shock Absorber Cushion
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥410 | |
| 48725F — Bush, Rear Axle Carrier, RH | ||||
| 48725-52060 |
Bush, Rear Axle Carrier, RH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, RH
2005-01 → 2007-08
ended
|
NCP95 | ¥3,560 | |
| 48725-52060 |
Bush, Rear Axle Carrier, RH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥2,910 | |
| 48725-52060 |
Bush, Rear Axle Carrier, RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, RH
2007-08 → 2008-08
ended
|
NCP95 | ¥3,560 | |
| 48725-52060 |
Bush, Rear Axle Carrier, RH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, RH
2008-08 → 2010-12
ended
|
NCP95 | ¥3,560 | |
| 48725G — Bush, Rear Axle Carrier, LH | ||||
| 48725-52060 |
Bush, Rear Axle Carrier, LH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, LH
2005-01 → 2007-08
ended
|
NCP95 | ¥3,560 | |
| 48725-52060 |
Bush, Rear Axle Carrier, LH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥2,910 | |
| 48725-52060 |
Bush, Rear Axle Carrier, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, LH
2007-08 → 2008-08
ended
|
NCP95 | ¥3,560 | |
| 48725-52060 |
Bush, Rear Axle Carrier, LH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥2,910 | |
| 48725-52090 |
Bush, Rear Axle Carrier, LH
2008-08 → 2010-12
ended
|
NCP95 | ¥3,560 | |
| 48750H — Support Assy, Rear Suspension, RH | ||||
| 48750-52100 |
Support Assy, Rear Suspension, RH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥2,170 | |
| 48750-52110 |
Support Assy, Rear Suspension, RH
2005-01 → 2007-08
ended
|
NCP95 | ¥2,840 | |
| 48750-52100 |
Support Assy, Rear Suspension, RH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥2,170 | |
| 48750-52100 |
Support Assy, Rear Suspension, RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,170 | |
| 48750-52110 |
Support Assy, Rear Suspension, RH
2007-08 → 2008-08
ended
|
NCP95 | ¥2,840 | |
| 48750-52100 |
Support Assy, Rear Suspension, RH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥2,170 | |
| 48750-52110 |
Support Assy, Rear Suspension, RH
2008-08 → 2010-12
ended
|
NCP95 | ¥2,840 | |
| 48752A — Stopper, Rear Suspension Support | ||||
| 48752-52010 |
Stopper, Rear Suspension Support
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥380 | |
| 48752-52020 |
Stopper, Rear Suspension Support
2005-01 → 2007-08
ended
|
NCP95 | ¥770 | |
| 48752-52010 |
Stopper, Rear Suspension Support
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥380 | |
| 48752-52010 |
Stopper, Rear Suspension Support
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥380 | |
| 48752-52020 |
Stopper, Rear Suspension Support
2007-08 → 2008-08
ended
|
NCP95 | ¥770 | |
| 48752-52010 |
Stopper, Rear Suspension Support
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥380 | |
| 48752-52020 |
Stopper, Rear Suspension Support
2008-08 → 2010-12
ended
|
NCP95 | ¥770 | |
| 48755 — Support, Rear Suspension | ||||
| 48755-52010 |
Support, Rear Suspension
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥570 | |
| 48755-52010 |
Support, Rear Suspension
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥570 | |
| 48755-52010 |
Support, Rear Suspension
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥570 | |
| 48755-52010 |
Support, Rear Suspension
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥570 | |
| 48760B — Support Assy Rear Suspension, LH | ||||
| 48750-52100 |
Support Assy Rear Suspension, LH
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥2,170 | |
| 48750-52110 |
Support Assy Rear Suspension, LH
2005-01 → 2007-08
ended
|
NCP95 | ¥2,840 | |
| 48750-52100 |
Support Assy Rear Suspension, LH
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥2,170 | |
| 48750-52100 |
Support Assy Rear Suspension, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,170 | |
| 48750-52110 |
Support Assy Rear Suspension, LH
2007-08 → 2008-08
ended
|
NCP95 | ¥2,840 | |
| 48750-52100 |
Support Assy Rear Suspension, LH
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥2,170 | |
| 48750-52110 |
Support Assy Rear Suspension, LH
2008-08 → 2010-12
ended
|
NCP95 | ¥2,840 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
