Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

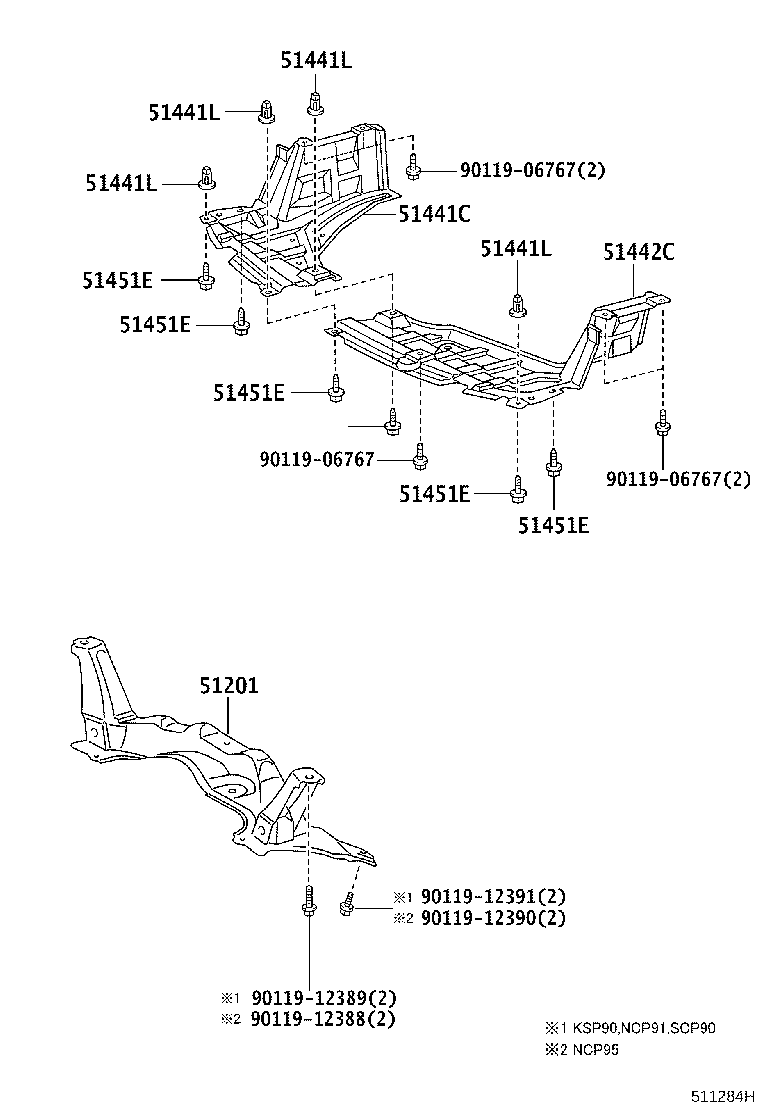

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51201 — Crossmember Sub-assy, Front Suspension | ||||
| 51201-52080 |
Crossmember Sub-assy, Front Suspension
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥61,400 | |
| 51201-52100 |
Crossmember Sub-assy, Front Suspension
2005-01 → 2007-08
ended
|
NCP95 | ¥72,200 | |
| 51201-52080 |
Crossmember Sub-assy, Front Suspension
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥61,400 | |
| 51201-52080 |
Crossmember Sub-assy, Front Suspension
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥61,400 | |
| 51201-52100 |
Crossmember Sub-assy, Front Suspension
2007-08 → 2008-08
ended
|
NCP95 | ¥72,200 | |
| 51201-52080 |
Crossmember Sub-assy, Front Suspension
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥61,400 | |
| 51201-52100 |
Crossmember Sub-assy, Front Suspension
2008-08 → 2010-12
ended
|
NCP95 | ¥72,200 | |
| 51441C — Cover, Engine Under, RH | ||||
| 51441-52130 |
Cover, Engine Under, RH
2005-01 → 2006-12
ended
|
KSP90,SCP90 | ¥6,800 | |
| 51441-52131 |
Cover, Engine Under, RH
2007-01 → 2007-08
ended
|
KSP90,SCP90 | ¥6,800 | |
| 51441-52140 |
Cover, Engine Under, RH
2005-01 → 2006-12
ended
|
NCP9# | ¥6,000 | |
| 51441-52141 |
Cover, Engine Under, RH
2007-01 → 2007-08
ended
|
NCP9# | ¥6,000 | |
| 51441-52131 |
Cover, Engine Under, RH
2007-08 → 2008-08
ended
|
KSP90,SCP90 | ¥6,800 | |
| 51441-52141 |
Cover, Engine Under, RH
2007-08 → 2008-08
ended
|
NCP9# | ¥6,000 | |
| 51441-52240 |
Cover, Engine Under, RH
2008-08 → 2008-09
ended
|
SCP90 RS | ¥6,000 | |
| 51441-52250 |
Cover, Engine Under, RH
2008-08 → 2008-09
ended
|
NCP91 RS | ¥5,100 | |
| 51441-52240 |
Cover, Engine Under, RH
2008-08 → 2010-12
ended
|
KSP90,SCP90 | ¥6,000 | |
| 51441-52250 |
Cover, Engine Under, RH
2008-08 → 2010-11
ended
|
NCP9# | ¥5,100 | |
| 51441L — Grommet, NO.2(FOR ENGINE UNDER COVER) | ||||
| 90189-06076 |
Grommet, NO.2(FOR ENGINE UNDER COVER)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥80 | |
| 90189-06076 |
Grommet, NO.2(FOR ENGINE UNDER COVER)
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥80 | |
| 90189-06076 |
Grommet, NO.2(FOR ENGINE UNDER COVER)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥80 | |
| 51442C — Cover, Engine Under, LH | ||||
| 51442-52080 |
Cover, Engine Under, LH
2005-01 → 2006-08
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 51442-52081 |
Cover, Engine Under, LH
2006-09 → 2006-12
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 51442-52082 |
Cover, Engine Under, LH
2007-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥8,500 | |
| 51442-52082 |
Cover, Engine Under, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 | ¥8,500 | |
| 51442-52110 |
Cover, Engine Under, LH
2008-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥7,700 | |
| 51442-52110 |
Cover, Engine Under, LH
2008-08 → 2010-11
ended
|
NCP9# ATM | ¥7,700 | |
| 51442-52110 |
Cover, Engine Under, LH
2008-08 → 2010-12
ended
|
NCP91 5F;KSP90,SCP90 | ¥7,700 | |
| 51451E — Screw, NO.2 | ||||
| 90159-60383 |
Screw, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥70 | |
| 90159-60383 |
Screw, NO.2
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥70 | |
| 90159-60383 |
Screw, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥70 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
