Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

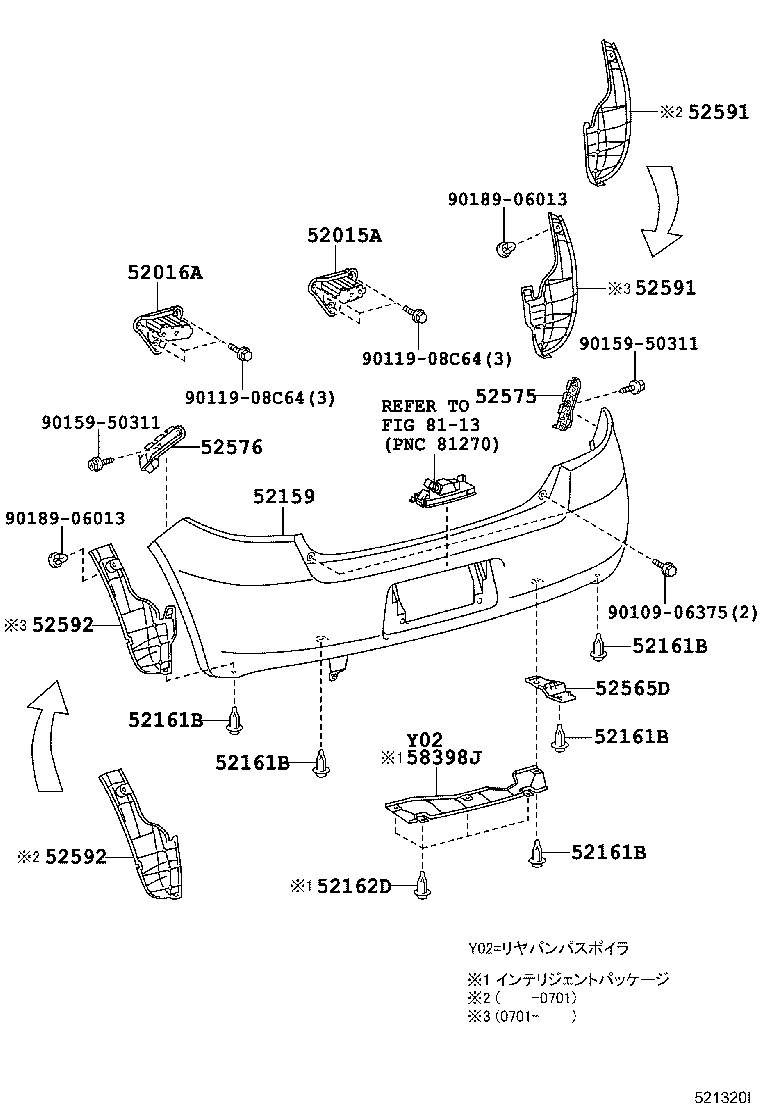

Exploded illustration 521320I 52015A — ARM SUB-ASSY, REAR BUMPER, RH (6 parts) 52016A — ARM SUB-ASSY, REAR BUMPER, LH (6 parts) 52159 — COVER, REAR BUMPER (69 parts) 52161B — PIECE, REAR BUMPER (6 parts) 52161B — PIECE, REAR BUMPER (6 parts) 52575 — RETAINER, REAR BUMPER SIDE, RH (3 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (3 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (8 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (8 parts) 9010906375 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9018906013 — not listed in this catalogue 9018906013 — not listed in this catalogue 9011908C64 — not listed in this catalogue 9011908C64 — not listed in this catalogue 52592 — SEAL, REAR BUMPER SIDE, LH (8 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (8 parts) 52161B — PIECE, REAR BUMPER (6 parts) 52161B — PIECE, REAR BUMPER (6 parts) 52161B — PIECE, REAR BUMPER (6 parts) 52162D — PIECE, REAR BUMPER (3 parts) 52565D — RETAINER, REAR BUMPER, LOWER RH (1 parts) 58398J — COVER, FLOOR UNDER, NO.1 (3 parts) 8113 — not listed in this catalogue
521320I · 17 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-52030 Arm Sub-assy, Rear Bumper, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥4,540
52015-52030 Arm Sub-assy, Rear Bumper, RH
2006-02 → 2007-08 ended
NCP91 RS ¥4,540
52015-52030 Arm Sub-assy, Rear Bumper, RH
2005-01 → 2005-08 ended
NCP91 RS ¥4,540
52015-52030 Arm Sub-assy, Rear Bumper, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,540
52015-52030 Arm Sub-assy, Rear Bumper, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,540
52015-52030 Arm Sub-assy, Rear Bumper, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,540
52016A — Arm Sub-assy, Rear Bumper, LH
52016-52030 Arm Sub-assy, Rear Bumper, LH
2005-01 → 2005-08 ended
NCP91 RS ¥4,540
52016-52030 Arm Sub-assy, Rear Bumper, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥4,540
52016-52030 Arm Sub-assy, Rear Bumper, LH
2006-02 → 2007-08 ended
NCP91 RS ¥4,540
52016-52030 Arm Sub-assy, Rear Bumper, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,540
52016-52030 Arm Sub-assy, Rear Bumper, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,540
52016-52030 Arm Sub-assy, Rear Bumper, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,540
52159 — Cover, Rear Bumper
52159-52490-A0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-B0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-B1 note Cover, Rear Bumper
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥41,800
52159-52490-C0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-D0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-D1 note Cover, Rear Bumper
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥41,800
52159-52490-D2 note Cover, Rear Bumper
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-E0 note Cover, Rear Bumper
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥37,900
52159-52490-E1 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥41,800
52159-52490-G0 note Cover, Rear Bumper
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥37,900
52159-52490-G1 note Cover, Rear Bumper
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-G2 note Cover, Rear Bumper
2007-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥41,800
52159-52490-J0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-J1 note Cover, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥41,800
52159-52490-J2 note Cover, Rear Bumper
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥41,800
52159-52490-J3 note Cover, Rear Bumper
2007-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥41,800
52159-52490-K0 note Cover, Rear Bumper
2005-01 → 2006-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥37,900
52159-52520-A0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-B0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-B1 note Cover, Rear Bumper
2007-01 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-C0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-D0 note Cover, Rear Bumper
2005-01 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-G0 note Cover, Rear Bumper
2005-01 → 2005-12 ended
NCP91 RS ¥40,100
52159-52520-J0 note Cover, Rear Bumper
2005-12 → 2007-08 ended
NCP91 RS ¥44,100
52159-52520-A0 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52520-B0 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52520-B1 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52520-C0 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52520-D0 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52520-J0 note Cover, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,100
52159-52670-A0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-A1 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥47,700
52159-52670-B0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-B1 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥47,700
52159-52670-C0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-D0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-D1 note Cover, Rear Bumper
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥47,700
52159-52670-E0 note Cover, Rear Bumper
2007-08 → 2008-03 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-G0 note Cover, Rear Bumper
2007-08 → 2008-07 ended
NCP9#,SCP90 ILL ¥47,700
52159-52670-H0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-J0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-J1 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-J2 note Cover, Rear Bumper
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥47,700
52159-52670-K0 note Cover, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-A0 note Cover, Rear Bumper
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-A1 note Cover, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥47,700
52159-52670-A2 note Cover, Rear Bumper
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-B0 note Cover, Rear Bumper
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-B1 note Cover, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥47,700
52159-52670-B2 note Cover, Rear Bumper
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-C0 note Cover, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-D0 note Cover, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-D1 note Cover, Rear Bumper
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 B,F,ILL ¥47,700
52159-52670-D2 note Cover, Rear Bumper
2009-07 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥47,700
52159-52670-F0 note Cover, Rear Bumper
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-F1 note Cover, Rear Bumper
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥47,700
52159-52670-H0 note Cover, Rear Bumper
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-H1 note Cover, Rear Bumper
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥47,700
52159-52670-J0 note Cover, Rear Bumper
2008-08 → 2009-07 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52670-J1 note Cover, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥47,700
52159-52670-J2 note Cover, Rear Bumper
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥47,700
52159-52670-K0 note Cover, Rear Bumper
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 B,F,U ¥47,700
52159-52690-A0 note Cover, Rear Bumper
2008-09 → 2010-08 ended
NCP91,SCP90 RS ¥48,600
52159-52690-A2 note Cover, Rear Bumper
2010-08 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52159-52690-B1 note Cover, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52159-52690-B2 note Cover, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52159-52690-C0 note Cover, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52159-52690-D0 note Cover, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52159-52690-J0 note Cover, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥48,600
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥120
52161-16010 Piece, Rear Bumper
2005-01 → 2007-08 ended
NCP91 RS ¥120
52161-16010 Piece, Rear Bumper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
52161-16010 Piece, Rear Bumper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
52161-16010 Piece, Rear Bumper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
52161-16010 Piece, Rear Bumper
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥120
52162D — Piece, Rear Bumper
52161-16010 note Piece, Rear Bumper
2005-04 → 2007-08 ended
KSP90 B,F ¥120
52161-16010 note Piece, Rear Bumper
2007-08 → 2008-08 ended
KSP90 B,F ¥120
52161-16010 note Piece, Rear Bumper
2008-08 → 2010-08 ended
KSP90 B,F ¥120
52565D — Retainer, Rear Bumper, Lower RH
52565-52030 Retainer, Rear Bumper, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥580
52575 — Retainer, Rear Bumper Side, RH
52575-52110 Retainer, Rear Bumper Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,070
52575-52111 Retainer, Rear Bumper Side, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥2,910
52575-52111 Retainer, Rear Bumper Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,910
52576 — Retainer, Rear Bumper Side, LH
52576-52090 Retainer, Rear Bumper Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,070
52576-52091 Retainer, Rear Bumper Side, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥2,910
52576-52091 Retainer, Rear Bumper Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,910
52591 — Seal, Rear Bumper Side, RH
52591-52180 Seal, Rear Bumper Side, RH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,100
52591-52181 Seal, Rear Bumper Side, RH
2007-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,100
52591-52190 Seal, Rear Bumper Side, RH
2005-01 → 2006-10 ended
NCP91 RS ¥2,650
52591-52191 Seal, Rear Bumper Side, RH
2006-10 → 2007-08 ended
NCP91 RS ¥2,650
52591-52191 Seal, Rear Bumper Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,650
52591-52270 Seal, Rear Bumper Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,210
52591-52270 Seal, Rear Bumper Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,210
52591-52280 Seal, Rear Bumper Side, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,340
52592 — Seal, Rear Bumper Side, LH
52592-52170 Seal, Rear Bumper Side, LH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,100
52592-52171 Seal, Rear Bumper Side, LH
2007-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,100
52592-52180 Seal, Rear Bumper Side, LH
2005-01 → 2006-10 ended
NCP91 RS ¥2,650
52592-52181 Seal, Rear Bumper Side, LH
2006-10 → 2007-08 ended
NCP91 RS ¥2,650
52592-52181 Seal, Rear Bumper Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,650
52592-52270 Seal, Rear Bumper Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,210
52592-52260 Seal, Rear Bumper Side, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,340
52592-52270 Seal, Rear Bumper Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,210
58398J — Cover, Floor Under, NO.1
58398-52030 note Cover, Floor Under, NO.1
2005-04 → 2007-08 ended
KSP90 B,F ¥2,630
58398-52030 note Cover, Floor Under, NO.1
2007-08 → 2008-08 ended
KSP90 B,F ¥2,630
58398-52030 note Cover, Floor Under, NO.1
2008-08 → 2010-08 ended
KSP90 B,F ¥2,630
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
