Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

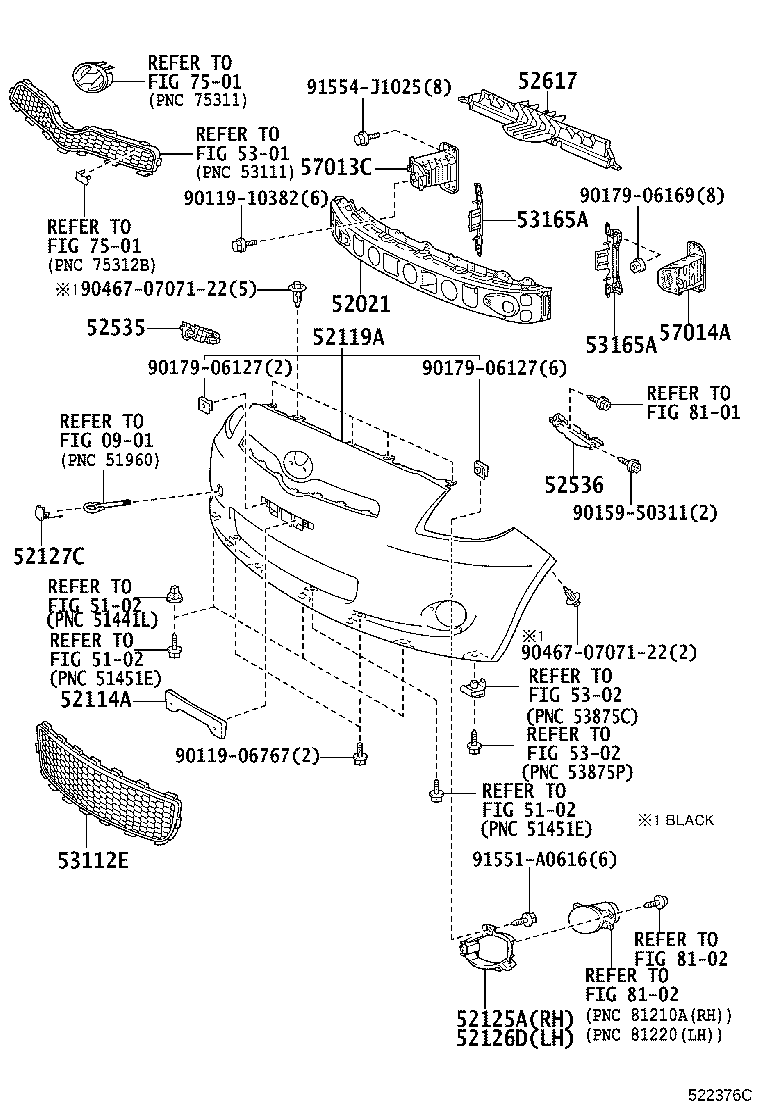

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-52050 |
Reinforcement Sub-assy, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥17,400 | |
| 52021-52050 |
Reinforcement Sub-assy, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥17,400 | |
| 52021-52050 |
Reinforcement Sub-assy, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥17,400 | |
| 52021-52050 |
Reinforcement Sub-assy, Front Bumper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥17,400 | |
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-52020 |
Bracket, Front Bumper Extension Mounting
2006-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,780 | |
| 52114-52020 |
Bracket, Front Bumper Extension Mounting
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,780 | |
| 52114-52030 |
Bracket, Front Bumper Extension Mounting
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 52114-52020 |
Bracket, Front Bumper Extension Mounting
2008-09 → 2010-08
ended
|
NCP91 5F | ¥1,780 | |
| 52114-52020 |
Bracket, Front Bumper Extension Mounting
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥1,780 | |
| 52114-52030 |
Bracket, Front Bumper Extension Mounting
2008-08 → —
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 52119A — Cover, Front Bumper | ||||
| 52119-52410-A0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-B0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-B1 note |
Cover, Front Bumper
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥57,200 | |
| 52119-52410-C0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-D0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-D1 note |
Cover, Front Bumper
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥57,200 | |
| 52119-52410-D2 note |
Cover, Front Bumper
2005-07 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-E0 note |
Cover, Front Bumper
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-E1 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥57,200 | |
| 52119-52410-G0 note |
Cover, Front Bumper
2007-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥57,200 | |
| 52119-52410-G1 note |
Cover, Front Bumper
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-G2 note |
Cover, Front Bumper
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-J0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-J1 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥57,200 | |
| 52119-52410-J2 note |
Cover, Front Bumper
2007-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥57,200 | |
| 52119-52410-J3 note |
Cover, Front Bumper
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥57,200 | |
| 52119-52410-K0 note |
Cover, Front Bumper
2005-01 → 2006-09
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥57,200 | |
| 52119-52420-A0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-B0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-B1 note |
Cover, Front Bumper
2007-01 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-C0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-D0 note |
Cover, Front Bumper
2005-01 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-G0 note |
Cover, Front Bumper
2005-01 → 2005-12
ended
|
NCP91 RS | ¥57,200 | |
| 52119-52420-J0 note |
Cover, Front Bumper
2005-12 → 2007-08
ended
|
NCP91 RS | ¥57,100 | |
| 52119-52420-A0 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52420-B0 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52420-B1 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52420-C0 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52420-D0 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52420-J0 note |
Cover, Front Bumper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52600-A0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-A1 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥57,200 | |
| 52119-52600-B0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-B1 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥57,200 | |
| 52119-52600-C0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-D0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-D1 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥57,200 | |
| 52119-52600-E0 note |
Cover, Front Bumper
2007-08 → 2008-03
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-G0 note |
Cover, Front Bumper
2007-08 → 2008-07
ended
|
NCP9#,SCP90 ILL | ¥57,200 | |
| 52119-52600-H0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-J0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-J1 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-J2 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥57,200 | |
| 52119-52600-K0 note |
Cover, Front Bumper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-A0 note |
Cover, Front Bumper
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-A1 note |
Cover, Front Bumper
2008-08 → —
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥57,200 | |
| 52119-52600-A2 note |
Cover, Front Bumper
2010-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-B0 note |
Cover, Front Bumper
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-B1 note |
Cover, Front Bumper
2008-08 → —
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥57,200 | |
| 52119-52600-B4 note |
Cover, Front Bumper
2010-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-C0 note |
Cover, Front Bumper
2008-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-D0 note |
Cover, Front Bumper
2008-08 → —
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-D1 note |
Cover, Front Bumper
2008-08 → 2010-11
ended
|
NCP9#,SCP90 ILL | ¥57,200 | |
| 52119-52600-D1 note |
Cover, Front Bumper
2009-07 → 2010-11
ended
|
KSP90,NCP95,SCP90 B,F | ¥57,200 | |
| 52119-52600-D2 note |
Cover, Front Bumper
2009-07 → —
|
KSP90,NCP95,SCP90 B,F | ¥57,200 | |
| 52119-52600-F1 note |
Cover, Front Bumper
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-F2 note |
Cover, Front Bumper
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥57,200 | |
| 52119-52600-H0 note |
Cover, Front Bumper
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-H1 note |
Cover, Front Bumper
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥57,200 | |
| 52119-52600-J0 note |
Cover, Front Bumper
2008-08 → 2009-07
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52600-J1 note |
Cover, Front Bumper
2008-08 → —
|
KSP90,NCP9#,SCP90 F,U | ¥57,200 | |
| 52119-52600-J2 note |
Cover, Front Bumper
2008-08 → —
|
NCP9#,SCP90 ILL | ¥57,200 | |
| 52119-52600-K0 note |
Cover, Front Bumper
2008-08 → 2010-11
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥57,200 | |
| 52119-52640-A0 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91,SCP90 RS | ¥57,100 | |
| 52119-52640-A2 note |
Cover, Front Bumper
2010-08 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52119-52640-B0 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91 5F | ¥57,100 | |
| 52119-52640-B0 note |
Cover, Front Bumper
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52119-52640-B1 note |
Cover, Front Bumper
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52119-52640-B1 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91 5F | ¥57,100 | |
| 52119-52640-C0 note |
Cover, Front Bumper
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52119-52640-C0 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91 5F | ¥57,100 | |
| 52119-52640-D0 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91 5F | ¥57,100 | |
| 52119-52640-D0 note |
Cover, Front Bumper
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52119-52640-J0 note |
Cover, Front Bumper
2008-09 → 2010-08
ended
|
NCP91 5F | ¥57,100 | |
| 52119-52640-J0 note |
Cover, Front Bumper
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥57,100 | |
| 52125A — Bracket, Fog Lamp Mounting, RH | ||||
| 52125-52030 |
Bracket, Fog Lamp Mounting, RH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥1,870 | |
| 52125-52030 |
Bracket, Fog Lamp Mounting, RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,870 | |
| 52125-52050 |
Bracket, Fog Lamp Mounting, RH
2008-09 → 2010-08
ended
|
NCP91 5F | ¥1,990 | |
| 52125-52050 |
Bracket, Fog Lamp Mounting, RH
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥1,990 | |
| 52126D — Bracket, Fog Lamp Mounting, LH | ||||
| 52126-52030 |
Bracket, Fog Lamp Mounting, LH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥1,870 | |
| 52126-52030 |
Bracket, Fog Lamp Mounting, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,870 | |
| 52126-52050 |
Bracket, Fog Lamp Mounting, LH
2008-09 → 2010-08
ended
|
NCP91 5F | ¥1,990 | |
| 52126-52050 |
Bracket, Fog Lamp Mounting, LH
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥1,990 | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-52290-A0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-B0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥450 | |
| 52127-52290-B1 note |
Cover, Front Bumper Hole
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥450 | |
| 52127-52290-C0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-D0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-D1 note |
Cover, Front Bumper Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥440 | |
| 52127-52290-D2 note |
Cover, Front Bumper Hole
2005-07 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-E0 note |
Cover, Front Bumper Hole
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-E1 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥440 | |
| 52127-52290-G0 note |
Cover, Front Bumper Hole
2007-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥440 | |
| 52127-52290-G1 note |
Cover, Front Bumper Hole
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-G2 note |
Cover, Front Bumper Hole
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-J0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥440 | |
| 52127-52290-J1 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥450 | |
| 52127-52290-J2 note |
Cover, Front Bumper Hole
2007-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥440 | |
| 52127-52290-J3 note |
Cover, Front Bumper Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥440 | |
| 52127-52290-K0 note |
Cover, Front Bumper Hole
2005-01 → 2006-09
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥440 | |
| 52127-52300-A0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-B0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-B1 note |
Cover, Front Bumper Hole
2007-01 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-C0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-D0 note |
Cover, Front Bumper Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-G0 note |
Cover, Front Bumper Hole
2005-01 → 2005-12
ended
|
NCP91 RS | ¥510 | |
| 52127-52300-J0 note |
Cover, Front Bumper Hole
2005-12 → 2007-08
ended
|
NCP91 RS | ¥480 | |
| 52127-52300-A0 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52300-B0 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52300-B1 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52300-C0 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52300-D0 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52300-J0 note |
Cover, Front Bumper Hole
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥480 | |
| 52127-52440-A0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-A1 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥610 | |
| 52127-52440-B0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-B1 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥610 | |
| 52127-52440-C0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-D0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-D1 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 52127-52440-E0 note |
Cover, Front Bumper Hole
2007-08 → 2008-03
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-G0 note |
Cover, Front Bumper Hole
2007-08 → 2008-07
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 52127-52440-H0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-J0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-J1 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-J2 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 52127-52440-K0 note |
Cover, Front Bumper Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-A0 note |
Cover, Front Bumper Hole
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-A1 note |
Cover, Front Bumper Hole
2008-08 → —
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥610 | |
| 52127-52440-A2 note |
Cover, Front Bumper Hole
2010-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-B0 note |
Cover, Front Bumper Hole
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-B1 note |
Cover, Front Bumper Hole
2008-08 → —
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥610 | |
| 52127-52440-B4 note |
Cover, Front Bumper Hole
2010-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-C0 note |
Cover, Front Bumper Hole
2008-08 → —
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-D0 note |
Cover, Front Bumper Hole
2008-08 → —
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-D1 note |
Cover, Front Bumper Hole
2009-07 → 2010-11
ended
|
KSP90,NCP95,SCP90 B,F | ¥610 | |
| 52127-52440-D1 note |
Cover, Front Bumper Hole
2008-08 → 2010-11
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 52127-52440-D2 note |
Cover, Front Bumper Hole
2009-07 → —
|
KSP90,NCP95,SCP90 B,F | ¥610 | |
| 52127-52440-F1 note |
Cover, Front Bumper Hole
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-F2 note |
Cover, Front Bumper Hole
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥610 | |
| 52127-52440-H0 note |
Cover, Front Bumper Hole
2008-08 → 2010-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-H1 note |
Cover, Front Bumper Hole
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥610 | |
| 52127-52440-J0 note |
Cover, Front Bumper Hole
2008-08 → 2009-07
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52440-J1 note |
Cover, Front Bumper Hole
2008-08 → —
|
KSP90,NCP9#,SCP90 F,U | ¥610 | |
| 52127-52440-J2 note |
Cover, Front Bumper Hole
2008-08 → —
|
NCP9#,SCP90 ILL | ¥610 | |
| 52127-52440-K0 note |
Cover, Front Bumper Hole
2008-08 → 2010-11
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 52127-52470-A0 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91,SCP90 RS | ¥610 | |
| 52127-52470-A2 note |
Cover, Front Bumper Hole
2010-08 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-B0 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91 5F | ¥610 | |
| 52127-52470-B0 note |
Cover, Front Bumper Hole
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-B1 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91 5F | ¥610 | |
| 52127-52470-B1 note |
Cover, Front Bumper Hole
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-C0 note |
Cover, Front Bumper Hole
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-C0 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91 5F | ¥610 | |
| 52127-52470-D0 note |
Cover, Front Bumper Hole
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-D0 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91 5F | ¥610 | |
| 52127-52470-J0 note |
Cover, Front Bumper Hole
2008-09 → —
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 52127-52470-J0 note |
Cover, Front Bumper Hole
2008-09 → 2010-08
ended
|
NCP91 5F | ¥610 | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-52060 |
Retainer, Front Bumper Side, RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,070 | |
| 52535-52060 |
Retainer, Front Bumper Side, RH
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥2,070 | |
| 52535-52060 |
Retainer, Front Bumper Side, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥2,070 | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-52050 |
Retainer, Front Bumper Side, LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,070 | |
| 52536-52050 |
Retainer, Front Bumper Side, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,070 | |
| 52536-52050 |
Retainer, Front Bumper Side, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,070 | |
| 52536-52050 |
Retainer, Front Bumper Side, LH
2008-08 → 2010-08
ended
|
NCP91 5F | ¥2,070 | |
| 52536-52050 |
Retainer, Front Bumper Side, LH
2008-08 → —
|
KSP90,NCP9#,SCP90 ATM | ¥2,070 | |
| 52617 — Absorber, Radiator Support, Upper | ||||
| 52617-52010 |
Absorber, Radiator Support, Upper
2005-01 → 2005-07
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 52617-52020 |
Absorber, Radiator Support, Upper
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥9,500 | |
| 52617-52020 |
Absorber, Radiator Support, Upper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥9,500 | |
| 52617-52020 |
Absorber, Radiator Support, Upper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥9,500 | |
| 52617-52020 |
Absorber, Radiator Support, Upper
2008-08 → 2010-08
ended
|
NCP91 5F | ¥9,500 | |
| 52617-52020 |
Absorber, Radiator Support, Upper
2008-08 → —
|
KSP90,NCP9#,SCP90 ATM | ¥9,500 | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-52170 note |
Grille, Radiator, Lower NO.1
2005-01 → 2007-08
ended
|
NCP91 RS | ¥4,420 | |
| 53112-52170 note |
Grille, Radiator, Lower NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥4,420 | |
| 53112-52310 note |
Grille, Radiator, Lower NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥5,200 | |
| 53112-52310 |
Grille, Radiator, Lower NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥5,200 | |
| 53112-52350 |
Grille, Radiator, Lower NO.1
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥6,300 | |
| 53165A — Bracket, Front Bumper Stone Deflector, NO.1 | ||||
| 53164-52010 note |
Bracket, Front Bumper Stone Deflector, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,530 | |
| 53165-52020 note |
Bracket, Front Bumper Stone Deflector, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,530 | |
| 53164-52010 note |
Bracket, Front Bumper Stone Deflector, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,530 | |
| 53164-52010 note |
Bracket, Front Bumper Stone Deflector, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,530 | |
| 53165-52020 note |
Bracket, Front Bumper Stone Deflector, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,530 | |
| 53165-52020 note |
Bracket, Front Bumper Stone Deflector, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,530 | |
| 53164-52010 note |
Bracket, Front Bumper Stone Deflector, NO.1
2008-08 → 2010-11
ended
|
KSP90,NCP9#,SCP90 | ¥1,530 | |
| 53164-52060 |
Bracket, Front Bumper Stone Deflector, NO.1
2010-11 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,850 | |
| 53165-52020 note |
Bracket, Front Bumper Stone Deflector, NO.1
2008-08 → 2010-11
ended
|
KSP90,NCP9#,SCP90 | ¥1,530 | |
| 57013C — Bracket Sub-assy, Front Side Member, RH | ||||
| 57013-52010 |
Bracket Sub-assy, Front Side Member, RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥10,200 | |
| 57013-52010 |
Bracket Sub-assy, Front Side Member, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥10,200 | |
| 57013-52010 |
Bracket Sub-assy, Front Side Member, RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥10,200 | |
| 57013-52010 |
Bracket Sub-assy, Front Side Member, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥10,200 | |
| 57014A — Bracket Sub-assy, Front Side Member, LH | ||||
| 57014-52010 |
Bracket Sub-assy, Front Side Member, LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥8,200 | |
| 57014-52010 |
Bracket Sub-assy, Front Side Member, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥8,200 | |
| 57014-52010 |
Bracket Sub-assy, Front Side Member, LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥8,200 | |
| 57014-52010 |
Bracket Sub-assy, Front Side Member, LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥8,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
