Exploded illustration 531875E 53410 — HINGE ASSY, HOOD, RH (5 parts) 53420 — HINGE ASSY, HOOD, LH (5 parts) 53451 — ROD, HOOD SUPPORT (4 parts) 53454 — CLIP, HOOD SUPPORT ROD (4 parts) 53452 — HOLDER, HOOD STAY (4 parts) 53497 — PAD, HOOD HINGE, NO.1 (5 parts) 53497 — PAD, HOOD HINGE, NO.1 (5 parts) 53497 — PAD, HOOD HINGE, NO.1 (5 parts) 53497 — PAD, HOOD HINGE, NO.1 (5 parts) 53510 — LOCK ASSY, HOOD (8 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (15 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (15 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (15 parts) 53601 — LEVER SUB-ASSY, HOOD LOCK CONTROL (10 parts) 53614 — CLAMP, HOOD LOCK CONTROL CABLE (10 parts) 53614A — CLAMP, HOOD LOCK CONTROL CABLE, NO.1 (4 parts) 53630 — CABLE ASSY, HOOD LOCK CONTROL (5 parts) 827111E370 — not listed in this catalogue 9011906939 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 5701 — not listed in this catalogue 53614 — CLAMP, HOOD LOCK CONTROL CABLE (10 parts)

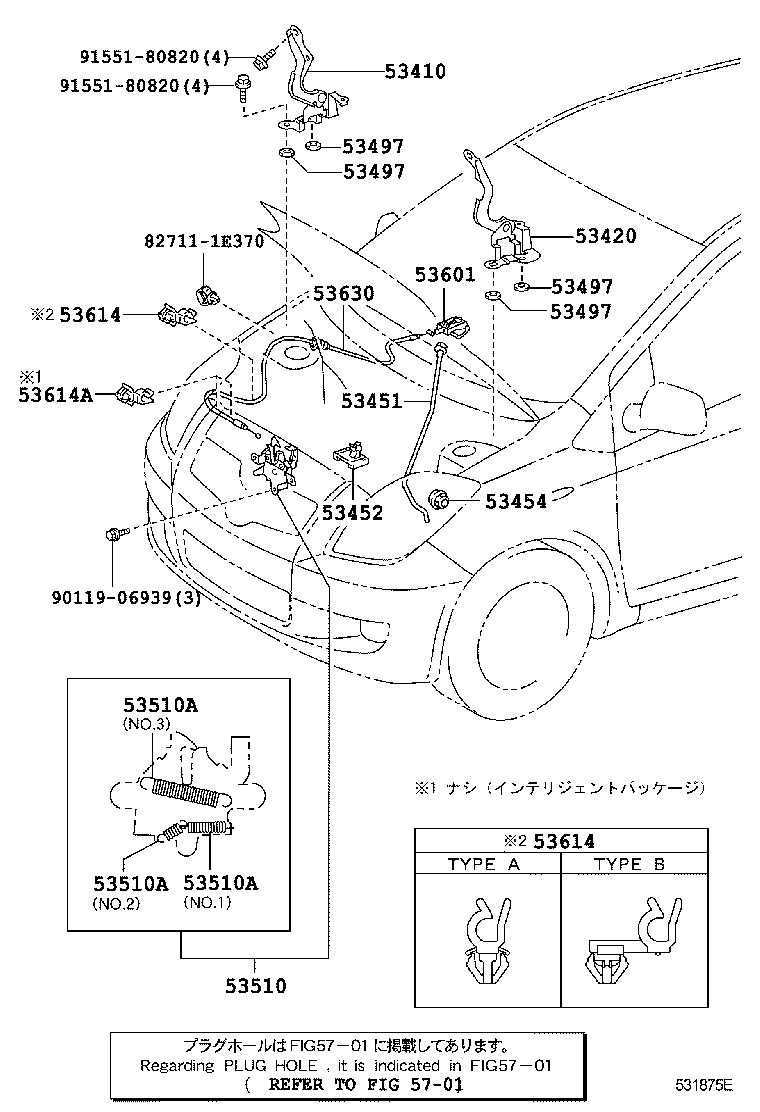

531875E · 18 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
53410 — Hinge Assy, Hood, RH
53410-52180 Hinge Assy, Hood, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,340
53410-52180 Hinge Assy, Hood, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,340
53410-52180 Hinge Assy, Hood, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,340
53410-52180 Hinge Assy, Hood, RH
2008-08 → 2010-07 ended
NCP91 5F ¥2,340
53410-52180 Hinge Assy, Hood, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥2,340
53420 — Hinge Assy, Hood, LH
53420-52180 Hinge Assy, Hood, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,340
53420-52180 Hinge Assy, Hood, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,340
53420-52180 Hinge Assy, Hood, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,340
53420-52180 Hinge Assy, Hood, LH
2008-08 → 2010-07 ended
NCP91 5F ¥2,340
53420-52180 Hinge Assy, Hood, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥2,340
53451 — Rod, Hood Support
53440-52120 Rod, Hood Support
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,570
53440-52120 Rod, Hood Support
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,570
53440-52120 Rod, Hood Support
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,570
53440-52120 Rod, Hood Support
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,570
53452 — Holder, Hood Stay
53452-52010 Holder, Hood Stay
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥500
53452-52010 Holder, Hood Stay
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥500
53452-52010 Holder, Hood Stay
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
53452-52010 Holder, Hood Stay
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥500
53454 — Clip, Hood Support Rod
53454-52020 Clip, Hood Support Rod
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥130
53454-52020 Clip, Hood Support Rod
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥130
53454-52020 Clip, Hood Support Rod
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥130
53454-52020 Clip, Hood Support Rod
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥130
53497 — Pad, Hood Hinge, NO.1
53497-42010 note Pad, Hood Hinge, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
53497-42010 note Pad, Hood Hinge, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
53497-42010 note Pad, Hood Hinge, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
53497-42010 note Pad, Hood Hinge, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥100
53497-42010 note Pad, Hood Hinge, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥100
53510 — Lock Assy, Hood
53510-52290 Lock Assy, Hood
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,200
53510-52310 note Lock Assy, Hood
2005-04 → 2007-08 ended
KSP90 B,F ¥4,660
53510-52290 Lock Assy, Hood
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,200
53510-52290 Lock Assy, Hood
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,200
53510-52310 note Lock Assy, Hood
2007-08 → 2008-08 ended
KSP90 B,F ¥4,660
53510-52290 Lock Assy, Hood
2008-08 → 2010-07 ended
NCP91 5F ¥3,200
53510-52290 Lock Assy, Hood
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,200
53510-52310 note Lock Assy, Hood
2008-08 → 2010-07 ended
KSP90 B,F ¥4,660
53510A — Spring, Tension(FOR HOOD LOCK)
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥90
90506-14085 note Spring, Tension(FOR HOOD LOCK)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥90
90506-14085 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
90506-14085 note Spring, Tension(FOR HOOD LOCK)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥90
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-07 ended
NCP91 5F ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-07 ended
NCP91 5F ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥90
90506-14085 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-07 ended
NCP91 5F ¥120
90506-14085 note Spring, Tension(FOR HOOD LOCK)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥120
53601 — Lever Sub-assy, Hood Lock Control
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2005-01 → 2007-08 ended
NCP91 RS ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,550
53601-52010-E3 note Lever Sub-assy, Hood Lock Control
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,240
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2008-08 → 2010-07 ended
NCP91 5F ¥1,550
53601-52010-B3 note Lever Sub-assy, Hood Lock Control
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥1,550
53601-52010-E3 note Lever Sub-assy, Hood Lock Control
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,240
53614 — Clamp, Hood Lock Control Cable
53614-52010 note Clamp, Hood Lock Control Cable
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
53614-52020 note Clamp, Hood Lock Control Cable
2007-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
53614-52010 note Clamp, Hood Lock Control Cable
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
53614-52010 note Clamp, Hood Lock Control Cable
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
53614-52020 note Clamp, Hood Lock Control Cable
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
53614-52020 note Clamp, Hood Lock Control Cable
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
53614-52010 note Clamp, Hood Lock Control Cable
2008-08 → 2010-07 ended
NCP91 5F ¥120
53614-52010 note Clamp, Hood Lock Control Cable
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥120
53614-52020 note Clamp, Hood Lock Control Cable
2008-08 → 2010-07 ended
NCP91 5F ¥160
53614-52020 note Clamp, Hood Lock Control Cable
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
53614A — Clamp, Hood Lock Control Cable, NO.1
53614-52010 Clamp, Hood Lock Control Cable, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
53614-52010 Clamp, Hood Lock Control Cable, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
53614-52010 Clamp, Hood Lock Control Cable, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥120
53614-52010 Clamp, Hood Lock Control Cable, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥120
53630 — Cable Assy, Hood Lock Control
53630-52110 Cable Assy, Hood Lock Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,610
53630-52110 Cable Assy, Hood Lock Control
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,610
53630-52110 Cable Assy, Hood Lock Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,610
53630-52110 Cable Assy, Hood Lock Control
2008-08 → 2010-07 ended
NCP91 5F ¥1,610
53630-52110 Cable Assy, Hood Lock Control
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥1,610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
