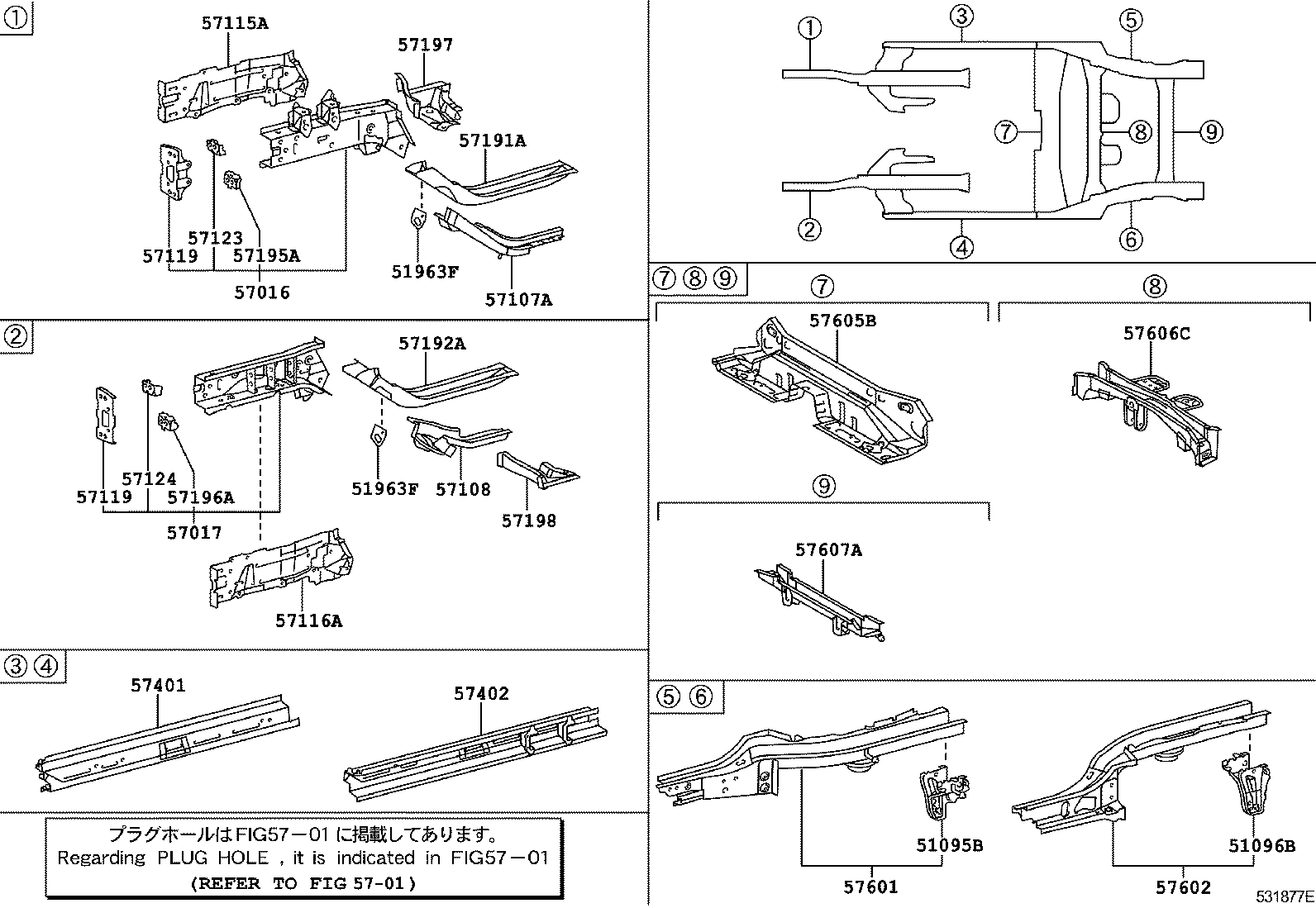

Exploded illustration 531877E 51095B — HOOK SUB-ASSY, TRANSPORT, REAR RH (4 parts) 51096B — HOOK SUB-ASSY, TRANSPORT, REAR LH (4 parts) 57401 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH (4 parts) 57402 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH (4 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (7 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (7 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (7 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (7 parts) 57607A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 (4 parts) 5701 — not listed in this catalogue 51963F — HOOK, TRANSPORT (4 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (4 parts) 57107A — PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH (4 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (4 parts) 57119 — PLATE, FRONT SIDE MEMBER, FRONT (8 parts) 57123 — SUPPORT, FRONT SIDE MEMBER, RH (4 parts) 57191A — MEMBER, FRONT SIDE, INNER REAR RH (4 parts) 57195A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH (4 parts) 57197 — BOX, TORQUE, FRONT RH (4 parts) 51963F — HOOK, TRANSPORT (4 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (4 parts) 57108 — BRACKET SUB-ASSY, STRUT BAR, LH (4 parts) 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (4 parts) 57119 — PLATE, FRONT SIDE MEMBER, FRONT (8 parts) 57124 — SUPPORT, FRONT SIDE MEMBER, LH (4 parts) 57192A — MEMBER, FRONT SIDE, INNER REAR LH (4 parts) 57196A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH (4 parts) 57198 — BOX, TORQUE, FRONT LH (4 parts)
531877E · 27 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
51095B — Hook Sub-assy, Transport, Rear RH
51095-52020 Hook Sub-assy, Transport, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,450
51095-52020 Hook Sub-assy, Transport, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,450
51095-52020 Hook Sub-assy, Transport, Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,450
51095-52020 Hook Sub-assy, Transport, Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,450
51096B — Hook Sub-assy, Transport, Rear LH
51096-52010 Hook Sub-assy, Transport, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,270
51096-52010 Hook Sub-assy, Transport, Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,270
51096-52010 Hook Sub-assy, Transport, Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,270
51096-52010 Hook Sub-assy, Transport, Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,270
51963F — Hook, Transport
51963-52050 Hook, Transport
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥700
51963-52050 Hook, Transport
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥700
51963-52050 Hook, Transport
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥700
51963-52050 Hook, Transport
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥700
57016 — Reinforcement Sub-assy, Front Side Member, RH
57016-52070 Reinforcement Sub-assy, Front Side Member, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥12,200
57016-52070 Reinforcement Sub-assy, Front Side Member, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥12,200
57016-52070 Reinforcement Sub-assy, Front Side Member, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥12,200
57016-52070 Reinforcement Sub-assy, Front Side Member, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥12,200
57017 — Reinforcement Sub-assy, Front Side Member, LH
57017-52060 Reinforcement Sub-assy, Front Side Member, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,800
57017-52060 Reinforcement Sub-assy, Front Side Member, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,800
57017-52060 Reinforcement Sub-assy, Front Side Member, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,800
57017-52060 Reinforcement Sub-assy, Front Side Member, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,800
57107A — Plate Sub-assy, Front Side Member, NO.2 RH
57107-52030 Plate Sub-assy, Front Side Member, NO.2 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,400
57107-52030 Plate Sub-assy, Front Side Member, NO.2 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,400
57107-52030 Plate Sub-assy, Front Side Member, NO.2 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,400
57107-52030 Plate Sub-assy, Front Side Member, NO.2 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,400
57108 — Bracket Sub-assy, Strut Bar, LH
57108-52030 Bracket Sub-assy, Strut Bar, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,400
57108-52030 Bracket Sub-assy, Strut Bar, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,400
57108-52030 Bracket Sub-assy, Strut Bar, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,400
57108-52030 Bracket Sub-assy, Strut Bar, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,400
57115A — Plate, Front Side Member, Outer RH
57025-52010 Plate, Front Side Member, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,200
57025-52010 Plate, Front Side Member, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,200
57025-52010 Plate, Front Side Member, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,200
57025-52010 Plate, Front Side Member, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,200
57116A — Plate, Front Side Member, Outer LH
57026-52010 Plate, Front Side Member, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,200
57026-52010 Plate, Front Side Member, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,200
57026-52010 Plate, Front Side Member, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,200
57026-52010 Plate, Front Side Member, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,200
57119 — Plate, Front Side Member, Front
57119-52020 note Plate, Front Side Member, Front
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,750
57129-52010 note Plate, Front Side Member, Front
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,750
57119-52020 note Plate, Front Side Member, Front
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,750
57119-52020 note Plate, Front Side Member, Front
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,750
57129-52010 note Plate, Front Side Member, Front
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,750
57129-52010 note Plate, Front Side Member, Front
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,750
57119-52020 note Plate, Front Side Member, Front
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,750
57129-52010 note Plate, Front Side Member, Front
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,750
57123 — Support, Front Side Member, RH
57123-52010 Support, Front Side Member, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,010
57123-52010 Support, Front Side Member, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
57123-52010 Support, Front Side Member, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,010
57123-52010 Support, Front Side Member, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,010
57124 — Support, Front Side Member, LH
57124-52010 Support, Front Side Member, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,010
57124-52010 Support, Front Side Member, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
57124-52010 Support, Front Side Member, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,010
57124-52010 Support, Front Side Member, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,010
57191A — Member, Front Side, Inner Rear RH
57191-52020 Member, Front Side, Inner Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,600
57191-52020 Member, Front Side, Inner Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,600
57191-52020 Member, Front Side, Inner Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,600
57191-52020 Member, Front Side, Inner Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,600
57192A — Member, Front Side, Inner Rear LH
57192-52020 Member, Front Side, Inner Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,600
57192-52020 Member, Front Side, Inner Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,600
57192-52020 Member, Front Side, Inner Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,600
57192-52020 Member, Front Side, Inner Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,600
57195A — Reinforcement, Front Side Member, Front RH
57195-52020 Reinforcement, Front Side Member, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,010
57195-52020 Reinforcement, Front Side Member, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
57195-52020 Reinforcement, Front Side Member, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,010
57195-52020 Reinforcement, Front Side Member, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,010
57196A — Reinforcement, Front Side Member, Front LH
57196-52010 Reinforcement, Front Side Member, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,010
57196-52010 Reinforcement, Front Side Member, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
57196-52010 Reinforcement, Front Side Member, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,010
57196-52010 Reinforcement, Front Side Member, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,010
57197 — Box, Torque, Front RH
57197-52030 Box, Torque, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,120
57197-52030 Box, Torque, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,120
57197-52030 Box, Torque, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,120
57197-52030 Box, Torque, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,120
57198 — Box, Torque, Front LH
57198-52030 Box, Torque, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,120
57198-52030 Box, Torque, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,120
57198-52030 Box, Torque, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,120
57198-52030 Box, Torque, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,120
57401 — Member Sub-assy, Main Floor Side, RH
57401-52150 Member Sub-assy, Main Floor Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥17,800
57401-52150 Member Sub-assy, Main Floor Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,800
57401-52150 Member Sub-assy, Main Floor Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥17,800
57401-52150 Member Sub-assy, Main Floor Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥17,800
57402 — Member Sub-assy, Main Floor Side, LH
57402-52170 Member Sub-assy, Main Floor Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥17,800
57402-52170 Member Sub-assy, Main Floor Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,800
57402-52170 Member Sub-assy, Main Floor Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥17,800
57402-52170 Member Sub-assy, Main Floor Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥17,800
57601 — Member Sub-assy, Rear Floor Side, RH
57601-52230 Member Sub-assy, Rear Floor Side, RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥41,600
57601-52240 Member Sub-assy, Rear Floor Side, RH
2005-01 → 2007-08 ended
NCP95 ¥41,600
57601-52230 Member Sub-assy, Rear Floor Side, RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥41,600
57601-52230 Member Sub-assy, Rear Floor Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥41,600
57601-52240 Member Sub-assy, Rear Floor Side, RH
2007-08 → 2008-08 ended
NCP95 ¥41,600
57601-52230 Member Sub-assy, Rear Floor Side, RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥41,600
57601-52240 Member Sub-assy, Rear Floor Side, RH
2008-08 → 2010-12 ended
NCP95 ¥41,600
57602 — Member Sub-assy, Rear Floor Side, LH
57602-52280 Member Sub-assy, Rear Floor Side, LH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥41,600
57602-52290 Member Sub-assy, Rear Floor Side, LH
2005-01 → 2007-08 ended
NCP95 ¥41,600
57602-52280 Member Sub-assy, Rear Floor Side, LH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥41,600
57602-52280 Member Sub-assy, Rear Floor Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥41,600
57602-52290 Member Sub-assy, Rear Floor Side, LH
2007-08 → 2008-08 ended
NCP95 ¥41,600
57602-52280 Member Sub-assy, Rear Floor Side, LH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥41,600
57602-52290 Member Sub-assy, Rear Floor Side, LH
2008-08 → 2010-12 ended
NCP95 ¥41,600
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-52110 Member Sub-assy, Rear Floor Cross, NO.1
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥18,400
57605-52120 Member Sub-assy, Rear Floor Cross, NO.1
2005-01 → 2007-08 ended
NCP95 ¥20,900
57605-52110 Member Sub-assy, Rear Floor Cross, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,400
57605-52110 Member Sub-assy, Rear Floor Cross, NO.1
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥18,400
57605-52120 Member Sub-assy, Rear Floor Cross, NO.1
2007-08 → 2008-08 ended
NCP95 ¥20,900
57605-52110 Member Sub-assy, Rear Floor Cross, NO.1
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥18,400
57605-52120 Member Sub-assy, Rear Floor Cross, NO.1
2008-08 → 2010-12 ended
NCP95 ¥20,900
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-52170 Member Sub-assy, Rear Floor Cross, NO.2
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥15,800
57606-52180 Member Sub-assy, Rear Floor Cross, NO.2
2005-01 → 2007-08 ended
NCP95 ¥31,200
57606-52170 Member Sub-assy, Rear Floor Cross, NO.2
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥15,800
57606-52170 Member Sub-assy, Rear Floor Cross, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥15,800
57606-52180 Member Sub-assy, Rear Floor Cross, NO.2
2007-08 → 2008-08 ended
NCP95 ¥31,200
57606-52170 Member Sub-assy, Rear Floor Cross, NO.2
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥15,800
57606-52180 Member Sub-assy, Rear Floor Cross, NO.2
2008-08 → 2010-12 ended
NCP95 ¥31,200
57607A — Member Sub-assy, Rear Floor Cross, NO.3
57607-52070 Member Sub-assy, Rear Floor Cross, NO.3
2005-01 → 2005-03 ended
NCP95 ¥20,900
57607-52071 Member Sub-assy, Rear Floor Cross, NO.3
2005-04 → 2007-08 ended
NCP95 ¥13,100
57607-52071 Member Sub-assy, Rear Floor Cross, NO.3
2007-08 → 2008-08 ended
NCP95 ¥13,100
57607-52071 Member Sub-assy, Rear Floor Cross, NO.3
2008-08 → 2010-12 ended
NCP95 ¥13,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.

This drawing is also used by

Ist
