Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

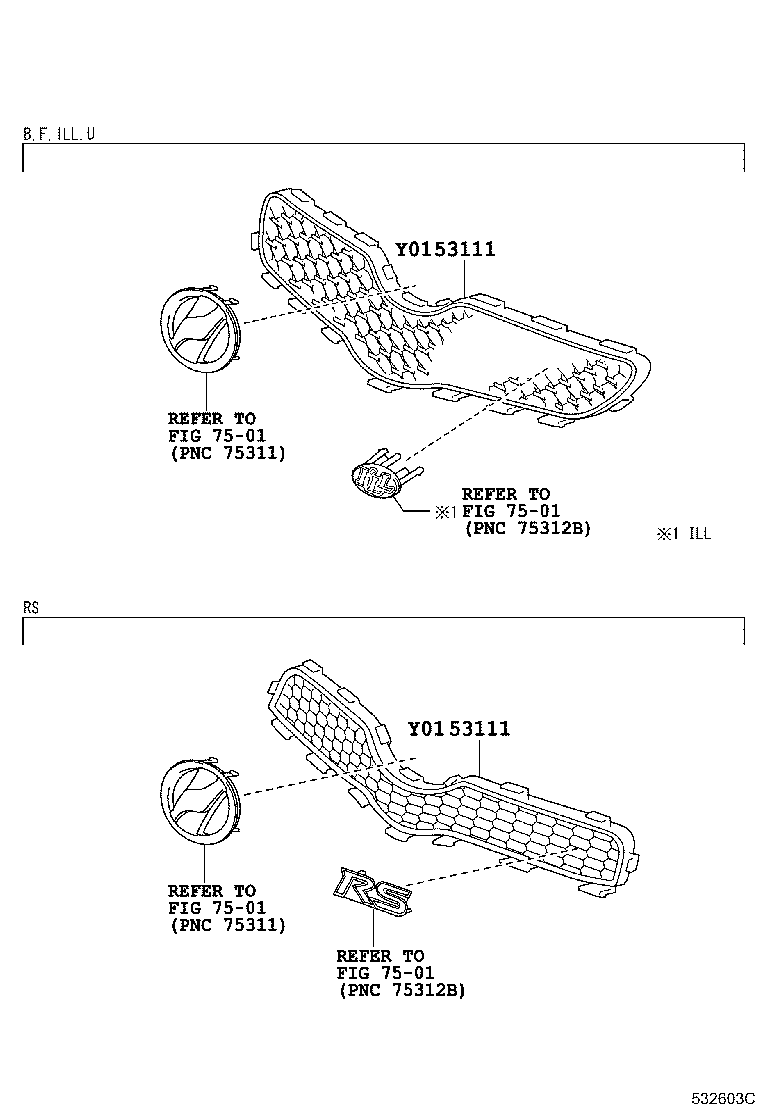

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53111 — Grille, Radiator | ||||
| 53111-52360 note |
Grille, Radiator
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥8,900 | |
| 53111-52370 note |
Grille, Radiator
2005-01 → 2007-08
ended
|
NCP91 RS | ¥8,900 | |
| 53111-52480-B0 note |
Grille, Radiator
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥13,600 | |
| 53111-52370 note |
Grille, Radiator
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥8,900 | |
| 53111-52530 note |
Grille, Radiator
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥8,800 | |
| 53111-52540 note |
Grille, Radiator
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥13,300 | |
| 53111-52530 note |
Grille, Radiator
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥8,800 | |
| 53111-52540 note |
Grille, Radiator
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥13,300 | |
| 53111-52610 note |
Grille, Radiator
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥11,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
