Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

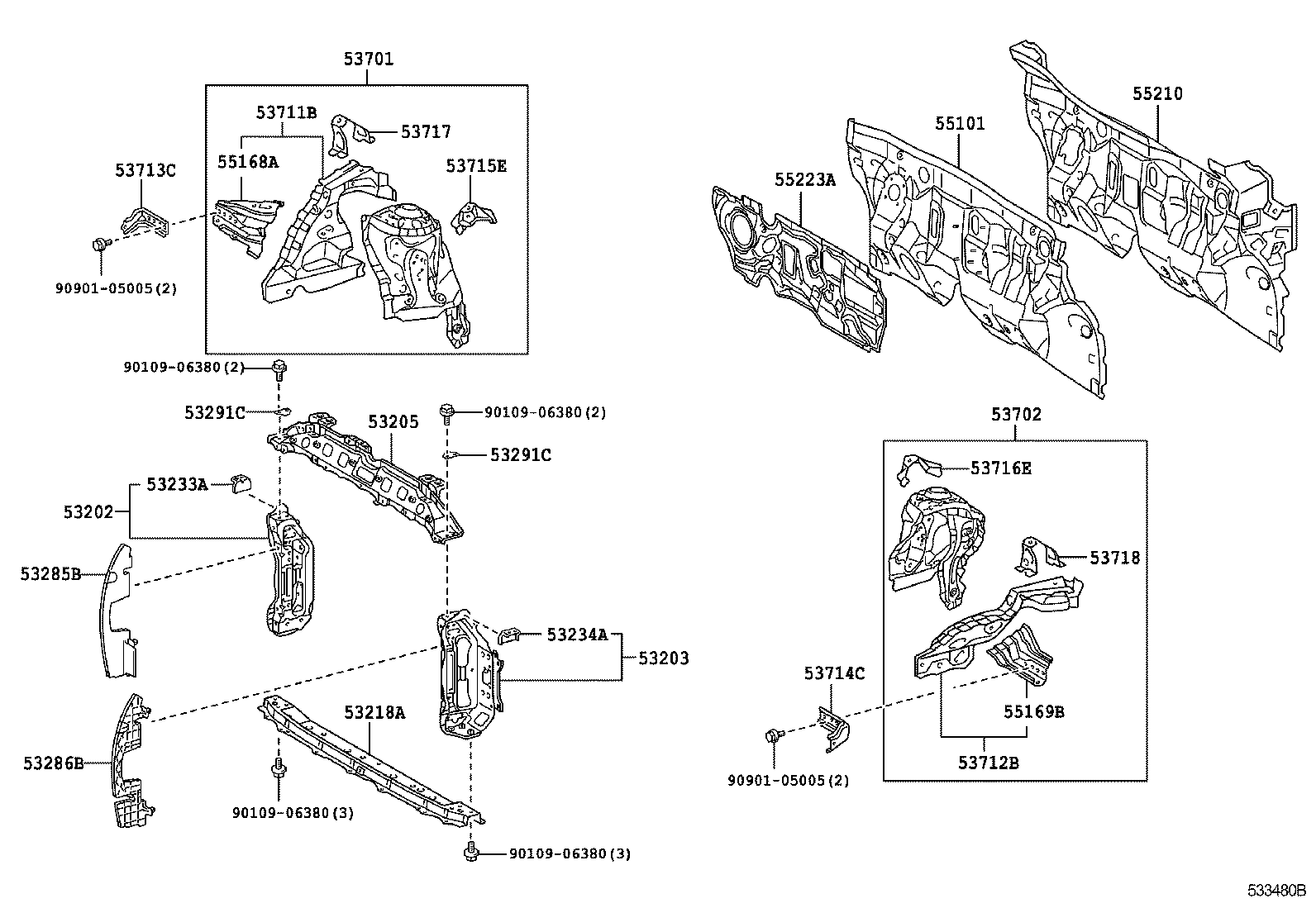

Exploded illustration 533480B 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (4 parts) 53712B — APRON, FRONT FENDER, FRONT LH (4 parts) 55169B — BRACKET, FRONT FENDER MOUNTING, LH (4 parts) 53718 — PLATE, FENDER APRON, LH (4 parts) 53713C — EXTENSION, FRONT FENDER APRON, FRONT RH (4 parts) 55210 — INSULATOR ASSY, DASH PANEL (6 parts) 55101 — PANEL SUB-ASSY, DASH (7 parts) 55223A — INSULATOR, DASH PANEL, OUTER (4 parts) 53717 — PLATE, FENDER APRON, RH (4 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (4 parts) 55168A — BRACKET, FRONT FENDER MOUNTING, RH (4 parts) 53711B — APRON, FRONT FENDER, FRONT RH (4 parts) 53714C — EXTENSION, FRONT FENDER APRON, FRONT LH (4 parts) 53716E — EXTENSION, FRONT FENDER APRON, REAR LH (4 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (4 parts) 53233A — BRACKET, HEADLAMP, NO.1 RH (4 parts) 53234A — BRACKET, HEADLAMP, NO.1 LH (4 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (5 parts) 53285B — SEAL, RADIATOR SIDE AIR, NO.1 (6 parts) 53286B — SEAL, RADIATOR SIDE AIR, NO.2 (6 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (5 parts) 53291C — SEAL, RADIATOR SUPPORT TO FRAME (4 parts) 53291C — SEAL, RADIATOR SUPPORT TO FRAME (4 parts) 9090105005 — not listed in this catalogue 9090105005 — not listed in this catalogue 9010906380 — not listed in this catalogue 9010906380 — not listed in this catalogue 9010906380 — not listed in this catalogue 9010906380 — not listed in this catalogue 53218A — SUPPORT, RADIATOR, LOWER (4 parts) 53715E — EXTENSION, FRONT FENDER APRON, REAR RH (4 parts)
533480B · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
53202 — Support Sub-assy, Radiator, RH
53202-52901 Support Sub-assy, Radiator, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥8,200
53202-52901 Support Sub-assy, Radiator, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,200
53202-52905 Support Sub-assy, Radiator, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,100
53202-52905 Support Sub-assy, Radiator, RH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 ¥8,100
53202-52910 Support Sub-assy, Radiator, RH
2010-11 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥8,100
53203 — Support Sub-assy, Radiator, LH
53203-52901 Support Sub-assy, Radiator, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,600
53203-52901 Support Sub-assy, Radiator, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,600
53203-52903 Support Sub-assy, Radiator, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,100
53203-52903 Support Sub-assy, Radiator, LH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 ¥8,100
53203-52908 Support Sub-assy, Radiator, LH
2010-11 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥8,100
53205 — Support Sub-assy, Radiator, Upper
53205-52090 Support Sub-assy, Radiator, Upper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,100
53205-52090 Support Sub-assy, Radiator, Upper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,100
53205-52090 Support Sub-assy, Radiator, Upper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,100
53205-52090 Support Sub-assy, Radiator, Upper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥13,100
53218A — Support, Radiator, Lower
53028-52070 Support, Radiator, Lower
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,900
53028-52070 Support, Radiator, Lower
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,900
53028-52070 Support, Radiator, Lower
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,900
53028-52070 Support, Radiator, Lower
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,900
53233A — Bracket, Headlamp, NO.1 RH
53233-52010 Bracket, Headlamp, NO.1 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥360
53233-52010 Bracket, Headlamp, NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥360
53233-52030 Bracket, Headlamp, NO.1 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥740
53233-52030 Bracket, Headlamp, NO.1 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
53234A — Bracket, Headlamp, NO.1 LH
53234-52020 Bracket, Headlamp, NO.1 LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥360
53234-52020 Bracket, Headlamp, NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥360
53234-52040 Bracket, Headlamp, NO.1 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥740
53234-52040 Bracket, Headlamp, NO.1 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
53285B — Seal, Radiator Side Air, NO.1
53285-52170 Seal, Radiator Side Air, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥940
53285-52200 Seal, Radiator Side Air, NO.1
2005-01 → 2007-08 ended
NCP91 RS ¥2,390
53285-52200 Seal, Radiator Side Air, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,390
53285-52280 Seal, Radiator Side Air, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,530
53285-52280 Seal, Radiator Side Air, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,530
53285-52300 Seal, Radiator Side Air, NO.1
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥2,620
53286B — Seal, Radiator Side Air, NO.2
53286-52100 Seal, Radiator Side Air, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥940
53286-52140 Seal, Radiator Side Air, NO.2
2005-01 → 2007-08 ended
NCP91 RS ¥2,030
53286-52140 Seal, Radiator Side Air, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,030
53286-52220 Seal, Radiator Side Air, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,160
53286-52220 Seal, Radiator Side Air, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,160
53286-52240 Seal, Radiator Side Air, NO.2
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥2,240
53291C — Seal, Radiator Support TO Frame
53291-52070 Seal, Radiator Support TO Frame
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥300
53291-52070 Seal, Radiator Support TO Frame
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥300
53291-52070 Seal, Radiator Support TO Frame
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥300
53291-52070 Seal, Radiator Support TO Frame
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥300
53701 — Apron Sub-assy, Front Fender, RH
53701-52150 Apron Sub-assy, Front Fender, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥25,800
53701-52150 Apron Sub-assy, Front Fender, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥25,800
53701-52150 Apron Sub-assy, Front Fender, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥25,800
53701-52150 Apron Sub-assy, Front Fender, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥25,800
53702 — Apron Sub-assy, Front Fender, LH
53702-52150 Apron Sub-assy, Front Fender, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥25,800
53702-52150 Apron Sub-assy, Front Fender, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥25,800
53702-52150 Apron Sub-assy, Front Fender, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥25,800
53702-52150 Apron Sub-assy, Front Fender, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥25,800
53711B — Apron, Front Fender, Front RH
53707-52030 Apron, Front Fender, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,500
53707-52030 Apron, Front Fender, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,500
53707-52030 Apron, Front Fender, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,500
53707-52030 Apron, Front Fender, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,500
53712B — Apron, Front Fender, Front LH
53708-52030 Apron, Front Fender, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,500
53708-52030 Apron, Front Fender, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,500
53708-52030 Apron, Front Fender, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,500
53708-52030 Apron, Front Fender, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,500
53713C — Extension, Front Fender Apron, Front RH
53713-52010 Extension, Front Fender Apron, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
53713-52010 Extension, Front Fender Apron, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
53713-52010 Extension, Front Fender Apron, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
53713-52010 Extension, Front Fender Apron, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
53714C — Extension, Front Fender Apron, Front LH
53714-52020 Extension, Front Fender Apron, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
53714-52020 Extension, Front Fender Apron, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
53714-52020 Extension, Front Fender Apron, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
53714-52020 Extension, Front Fender Apron, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
53715E — Extension, Front Fender Apron, Rear RH
53715-52030 Extension, Front Fender Apron, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥670
53715-52030 Extension, Front Fender Apron, Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥670
53715-52030 Extension, Front Fender Apron, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥670
53715-52030 Extension, Front Fender Apron, Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥670
53716E — Extension, Front Fender Apron, Rear LH
53716-52030 Extension, Front Fender Apron, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥750
53716-52030 Extension, Front Fender Apron, Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
53716-52030 Extension, Front Fender Apron, Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥750
53716-52030 Extension, Front Fender Apron, Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥750
53717 — Plate, Fender Apron, RH
53717-52080 Plate, Fender Apron, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
53717-52080 Plate, Fender Apron, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
53717-52080 Plate, Fender Apron, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
53717-52080 Plate, Fender Apron, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
53718 — Plate, Fender Apron, LH
53718-52080 Plate, Fender Apron, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
53718-52080 Plate, Fender Apron, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
53718-52080 Plate, Fender Apron, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
53718-52080 Plate, Fender Apron, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
55101 — Panel Sub-assy, Dash
55101-52520 Panel Sub-assy, Dash
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ATM ¥18,400
55101-52521 Panel Sub-assy, Dash
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥11,500
55101-52690 Panel Sub-assy, Dash
2005-01 → 2007-08 ended
NCP91 5F —
55101-52521 Panel Sub-assy, Dash
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ATM ¥11,500
55101-52690 Panel Sub-assy, Dash
2007-08 → 2008-08 ended
NCP91 5F —
55101-52521 Panel Sub-assy, Dash
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥11,500
55101-52690 Panel Sub-assy, Dash
2008-09 → 2010-08 ended
NCP91 5F —
55168A — Bracket, Front Fender Mounting, RH
55168-52130 Bracket, Front Fender Mounting, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,320
55168-52130 Bracket, Front Fender Mounting, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,320
55168-52130 Bracket, Front Fender Mounting, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,320
55168-52130 Bracket, Front Fender Mounting, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,320
55169B — Bracket, Front Fender Mounting, LH
55169-52130 Bracket, Front Fender Mounting, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,320
55169-52130 Bracket, Front Fender Mounting, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,320
55169-52130 Bracket, Front Fender Mounting, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,320
55169-52130 Bracket, Front Fender Mounting, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,320
55210 — Insulator Assy, Dash Panel
55210-52170 Insulator Assy, Dash Panel
2005-01 → 2006-04 ended
KSP90,NCP9#,SCP90 ¥13,400
55210-52171 Insulator Assy, Dash Panel
2006-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,300
55210-52171 Insulator Assy, Dash Panel
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,300
55210-52171 Insulator Assy, Dash Panel
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,300
55210-52171 Insulator Assy, Dash Panel
2008-08 → 2009-08 ended
KSP90,NCP9#,SCP90 ¥13,300
55210-52172 Insulator Assy, Dash Panel
2009-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥13,300
55223A — Insulator, Dash Panel, Outer
55223-52080 Insulator, Dash Panel, Outer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,200
55223-52080 Insulator, Dash Panel, Outer
2007-08 → 2008-06 ended
KSP90,NCP9#,SCP90 ¥5,200
55223-52100 Insulator, Dash Panel, Outer
2008-07 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥6,200
55223-52100 Insulator, Dash Panel, Outer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
