Exploded illustration 536943 53341B — INSULATOR, HOOD (4 parts) 53802 — FENDER SUB-ASSY, FRONT LH (4 parts) 53828B — PROTECTOR, FRONT FENDER SIDE PANEL, LH (10 parts) 53827L — PROTECTOR, FRONT FENDER SIDE PANEL, RH (10 parts) 53867 — SEAL, FRONT FENDER TO COWL SIDE, LH (4 parts) 53866 — SEAL, FRONT FENDER TO COWL SIDE, RH (4 parts) 55738C — STOPPER, HOOD, RH (5 parts) 55738C — STOPPER, HOOD, RH (5 parts) 9046708136 — not listed in this catalogue 9046709050 — not listed in this catalogue 9095006124 — not listed in this catalogue 9054115024 — not listed in this catalogue 53381A — CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) (4 parts) 53381 — SEAL, HOOD TO RADIATOR SUPPORT (4 parts) 53301 — HOOD SUB-ASSY (3 parts) 53801 — FENDER SUB-ASSY, FRONT RH (4 parts) 53882F — SEAL, FRONT FENDER (4 parts) 53882F — SEAL, FRONT FENDER (4 parts) 53882F — SEAL, FRONT FENDER (4 parts) 53882F — SEAL, FRONT FENDER (4 parts) 9162140614 — not listed in this catalogue 5701 — not listed in this catalogue

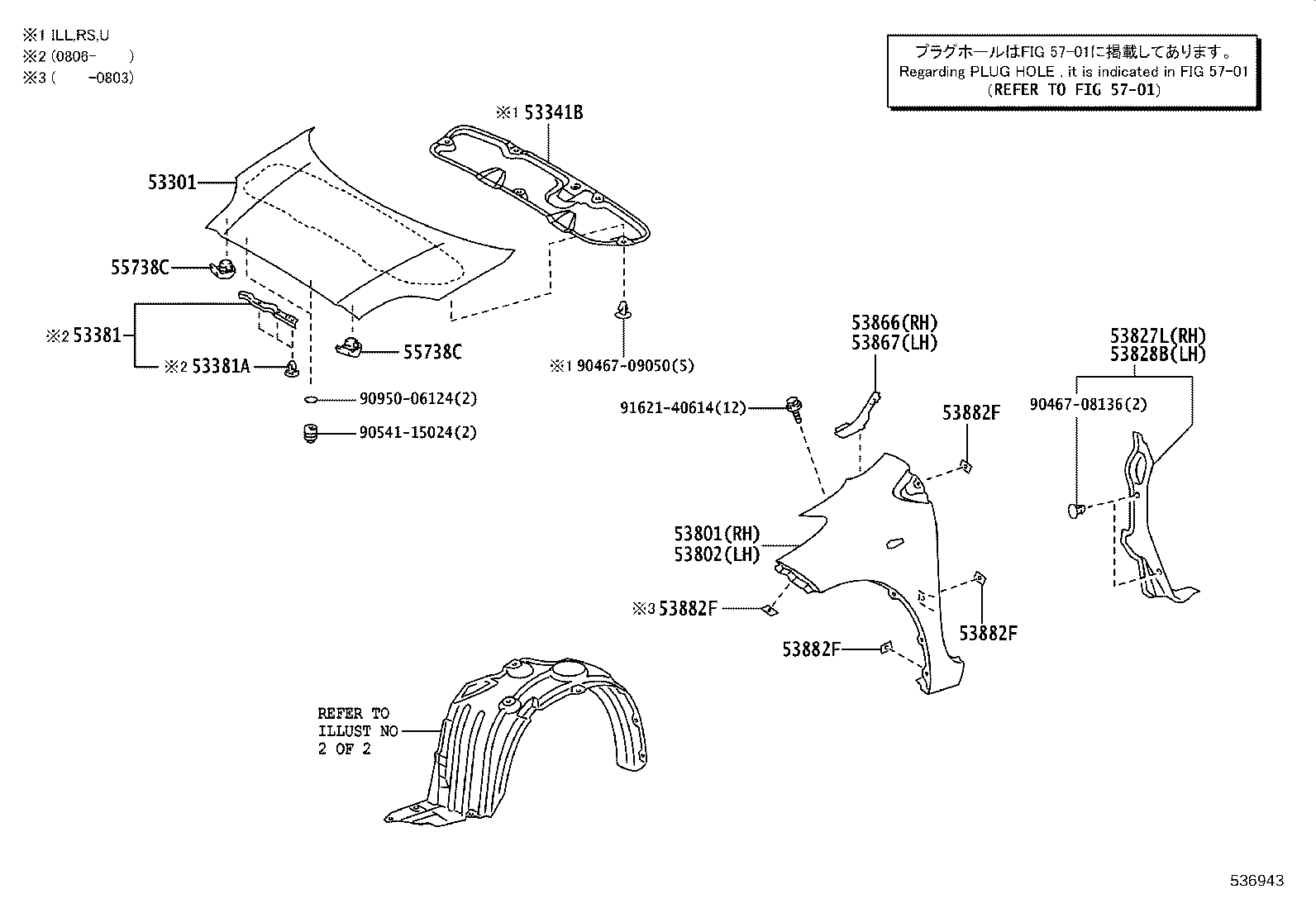

536943 · 16 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
53301 — Hood Sub-assy
53301-52230 Hood Sub-assy
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥32,500
53301-52230 Hood Sub-assy
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥32,500
53301-52230 Hood Sub-assy
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥32,500
53341B — Insulator, Hood
53341-52130 Insulator, Hood
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥4,260
53341-52130 Insulator, Hood
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥4,260
53341-52130 Insulator, Hood
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,260
53341-52130 Insulator, Hood
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥4,260
53381 — Seal, Hood TO Radiator Support
53381-52060 Seal, Hood TO Radiator Support
2008-06 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,110
53381-52060 Seal, Hood TO Radiator Support
2008-06 → 2008-09 ended
NCP91,SCP90 RS ¥2,110
53381-52060 Seal, Hood TO Radiator Support
2008-08 → 2009-02 ended
NCP9# ¥2,110
53381-52060 Seal, Hood TO Radiator Support
2008-08 → 2010-12 ended
KSP90,SCP90 ¥2,110
53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-09050 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-06 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
90467-09050 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-06 → 2008-09 ended
NCP91,SCP90 RS ¥120
90467-09050 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-08 → 2009-02 ended
NCP9# ¥120
90467-09050 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2008-08 → 2010-12 ended
KSP90,SCP90 ¥120
53801 — Fender Sub-assy, Front RH
53811-52210 Fender Sub-assy, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥27,300
53811-52280 Fender Sub-assy, Front RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥27,300
53811-52280 Fender Sub-assy, Front RH
2008-08 → 2010-02 ended
KSP90,NCP9#,SCP90 ¥27,300
53811-52420 Fender Sub-assy, Front RH
2010-02 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥27,300
53802 — Fender Sub-assy, Front LH
53812-52210 Fender Sub-assy, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥27,300
53812-52280 Fender Sub-assy, Front LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥27,300
53812-52280 Fender Sub-assy, Front LH
2008-08 → 2010-02 ended
KSP90,NCP9#,SCP90 ¥27,300
53812-52390 Fender Sub-assy, Front LH
2010-02 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥27,300
53827L — Protector, Front Fender Side Panel, RH
53827-52100 Protector, Front Fender Side Panel, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2005-01 → 2007-08 ended
KSP90 B,F ¥1,990
53827-52100 Protector, Front Fender Side Panel, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,990
53827-52100 Protector, Front Fender Side Panel, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2008-08 → 2010-08 ended
KSP90 B,F ¥1,990
53827-52100 note Protector, Front Fender Side Panel, RH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥1,990
53827-52100 Protector, Front Fender Side Panel, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥1,990
53828B — Protector, Front Fender Side Panel, LH
53828-52120 Protector, Front Fender Side Panel, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2005-01 → 2007-08 ended
KSP90 B,F ¥1,990
53828-52120 Protector, Front Fender Side Panel, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,990
53828-52120 Protector, Front Fender Side Panel, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2008-08 → 2010-08 ended
KSP90 B,F ¥1,990
53828-52120 Protector, Front Fender Side Panel, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥1,990
53828-52120 note Protector, Front Fender Side Panel, LH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥1,990
53866 — Seal, Front Fender TO Cowl Side, RH
53866-52080 Seal, Front Fender TO Cowl Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥590
53866-52080 Seal, Front Fender TO Cowl Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
53866-52080 Seal, Front Fender TO Cowl Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
53866-52080 Seal, Front Fender TO Cowl Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥590
53867 — Seal, Front Fender TO Cowl Side, LH
53867-52080 Seal, Front Fender TO Cowl Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥590
53867-52080 Seal, Front Fender TO Cowl Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
53867-52080 Seal, Front Fender TO Cowl Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
53867-52080 Seal, Front Fender TO Cowl Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥590
53882F — Seal, Front Fender
53882-16030 Seal, Front Fender
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥60
53882-16030 Seal, Front Fender
2007-08 → 2008-03 ended
KSP90,NCP9#,SCP90 ¥60
53882-16030 Seal, Front Fender
2008-03 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥60
53882-16030 Seal, Front Fender
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥60
55738C — Stopper, Hood, RH
55738-52050 Stopper, Hood, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥280
55738-52050 Stopper, Hood, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥280
55738-52050 Stopper, Hood, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥280
55738-52050 Stopper, Hood, RH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 ¥280
55738-52060 Stopper, Hood, RH
2010-11 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
