Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

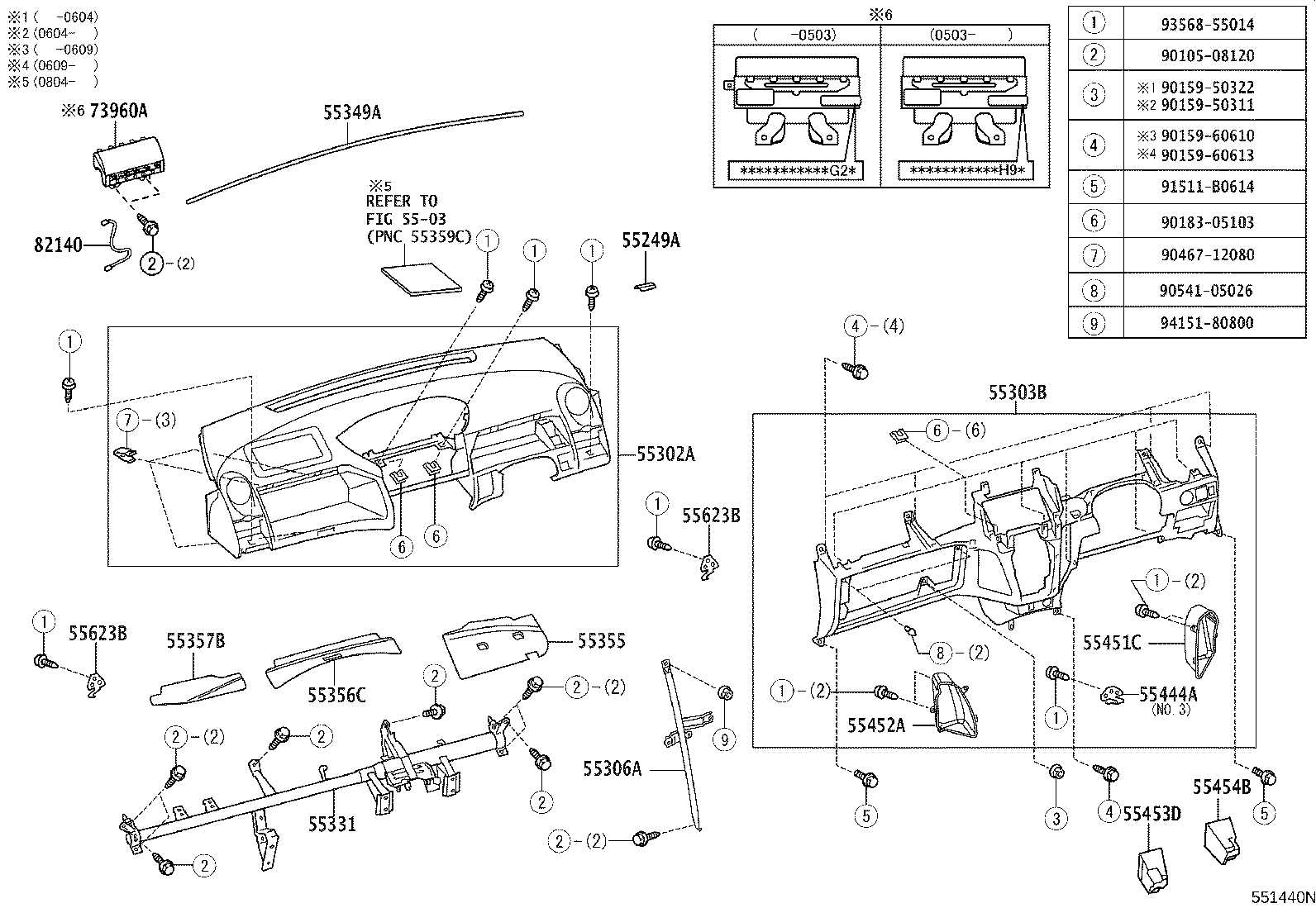

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55249A — Seal, Front Panel | ||||
| 55249-52010 note |
Seal, Front Panel
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,X | ¥360 | |
| 55249-52010 |
Seal, Front Panel
2005-01 → 2007-08
ended
|
NCP95,SCP90 U | ¥360 | |
| 55249-52010 note |
Seal, Front Panel
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 F | ¥360 | |
| 55249-52010 |
Seal, Front Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥360 | |
| 55249-52010 note |
Seal, Front Panel
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 55249-52010 |
Seal, Front Panel
2008-08 → 2010-07
ended
|
KSP90 U | ¥360 | |
| 55249-52010 note |
Seal, Front Panel
2008-08 → 2010-07
ended
|
KSP90 F;NCP91 5F | ¥360 | |
| 55249-52010 |
Seal, Front Panel
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL,U | ¥360 | |
| 55249-52010 note |
Seal, Front Panel
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ATM (F,RS) | ¥360 | |
| 55302A — Panel Sub-assy, Instrument, Upper | ||||
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥37,800 | |
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2005-01 → 2007-08
ended
|
NCP91 RS | ¥37,800 | |
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥37,800 | |
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥37,800 | |
| 55302-52030-E0 note |
Panel Sub-assy, Instrument, Upper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥37,800 | |
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2008-08 → 2010-07
ended
|
NCP91 5F | ¥37,800 | |
| 55302-52030-B0 note |
Panel Sub-assy, Instrument, Upper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥37,800 | |
| 55302-52030-E0 note |
Panel Sub-assy, Instrument, Upper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥37,800 | |
| 55303B — Panel Sub-assy, Instrument, Lower | ||||
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥25,500 | |
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2005-01 → 2007-08
ended
|
NCP91 RS | ¥25,500 | |
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥25,500 | |
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥25,500 | |
| 55303-52130-E0 note |
Panel Sub-assy, Instrument, Lower
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥25,500 | |
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2008-08 → 2010-07
ended
|
NCP91 5F | ¥25,500 | |
| 55303-52130-B0 note |
Panel Sub-assy, Instrument, Lower
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥25,500 | |
| 55303-52130-E0 note |
Panel Sub-assy, Instrument, Lower
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥25,500 | |
| 55306A — Brace Sub-assy, Instrument Panel, NO.1 | ||||
| 55306-52180 |
Brace Sub-assy, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,860 | |
| 55306-52180 |
Brace Sub-assy, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,860 | |
| 55306-52180 |
Brace Sub-assy, Instrument Panel, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,860 | |
| 55306-52180 |
Brace Sub-assy, Instrument Panel, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥1,860 | |
| 55306-52180 |
Brace Sub-assy, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥1,860 | |
| 55331 — Reinforcement, Instrument Panel | ||||
| 55330-52470 |
Reinforcement, Instrument Panel
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥18,200 | |
| 55330-52470 |
Reinforcement, Instrument Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥18,200 | |
| 55330-52470 |
Reinforcement, Instrument Panel
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥18,200 | |
| 55330-52470 |
Reinforcement, Instrument Panel
2008-08 → 2009-02
ended
|
KSP90,NCP9#,SCP90 | ¥18,200 | |
| 55330-52471 |
Reinforcement, Instrument Panel
2009-03 → 2010-07
ended
|
NCP91 5F | ¥18,200 | |
| 55330-52471 |
Reinforcement, Instrument Panel
2009-03 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥18,200 | |
| 55349A — Cushion, Instrument Panel | ||||
| 55349-52060 |
Cushion, Instrument Panel
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥810 | |
| 55349-52060 |
Cushion, Instrument Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥810 | |
| 55349-52060 |
Cushion, Instrument Panel
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥810 | |
| 55349-52060 |
Cushion, Instrument Panel
2008-08 → 2010-07
ended
|
NCP91 5F | ¥810 | |
| 55349-52060 |
Cushion, Instrument Panel
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥810 | |
| 55355 — Cushion, Instrument Panel, NO.1 | ||||
| 55355-52100 |
Cushion, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U | ¥590 | |
| 55355-52100 |
Cushion, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥590 | |
| 55355-52100 |
Cushion, Instrument Panel, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥590 | |
| 55355-52100 |
Cushion, Instrument Panel, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥590 | |
| 55355-52100 |
Cushion, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) | ¥590 | |
| 55356C — Cushion, Instrument Panel, NO.2 | ||||
| 55356-52110 |
Cushion, Instrument Panel, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U | ¥500 | |
| 55356-52110 |
Cushion, Instrument Panel, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥500 | |
| 55356-52110 |
Cushion, Instrument Panel, NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥500 | |
| 55356-52110 |
Cushion, Instrument Panel, NO.2
2008-08 → 2010-07
ended
|
NCP91 5F | ¥500 | |
| 55356-52110 |
Cushion, Instrument Panel, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) | ¥500 | |
| 55357B — Cushion, Instrument Panel, NO.3 | ||||
| 55357-52080 |
Cushion, Instrument Panel, NO.3
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U | ¥360 | |
| 55357-52080 |
Cushion, Instrument Panel, NO.3
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥360 | |
| 55357-52080 |
Cushion, Instrument Panel, NO.3
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 55357-52080 |
Cushion, Instrument Panel, NO.3
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) | ¥360 | |
| 55357-52080 |
Cushion, Instrument Panel, NO.3
2008-08 → 2010-07
ended
|
NCP91 5F | ¥360 | |
| 55444A — Spring, Instrument Panel Box | ||||
| 55444-52230 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥220 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55451C — Box, Instrument Panel, NO.1 | ||||
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
NCP91 RS | ¥2,910 | |
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥2,910 | |
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥2,910 | |
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥2,910 | |
| 55451-52140-E0 note |
Box, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥2,910 | |
| 55451-52140-B0 note |
Box, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥2,910 | |
| 55451-52140-E0 note |
Box, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 55452A — Box, Instrument Panel, NO.2 | ||||
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥2,910 | |
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2005-01 → 2007-08
ended
|
NCP91 RS | ¥2,910 | |
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥2,910 | |
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥2,910 | |
| 55452-52130-E0 note |
Box, Instrument Panel, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥2,910 | |
| 55452-52130-B0 note |
Box, Instrument Panel, NO.2
2008-08 → 2010-07
ended
|
NCP91 5F | ¥2,910 | |
| 55452-52130-E0 note |
Box, Instrument Panel, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,910 | |
| 55453D — Pad, Instrument Panel Safety, NO.1 | ||||
| 55453-52060 |
Pad, Instrument Panel Safety, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,340 | |
| 55453-52060 |
Pad, Instrument Panel Safety, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,340 | |
| 55453-52060 |
Pad, Instrument Panel Safety, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,340 | |
| 55453-52060 |
Pad, Instrument Panel Safety, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥2,340 | |
| 55453-52060 |
Pad, Instrument Panel Safety, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥2,340 | |
| 55454B — Pad, Instrument Panel Safety, NO.2 | ||||
| 55454-52050 |
Pad, Instrument Panel Safety, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,990 | |
| 55454-52050 |
Pad, Instrument Panel Safety, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,990 | |
| 55454-52050 |
Pad, Instrument Panel Safety, NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,990 | |
| 55454-52050 |
Pad, Instrument Panel Safety, NO.2
2008-08 → 2010-07
ended
|
NCP91 5F | ¥1,990 | |
| 55454-52050 |
Pad, Instrument Panel Safety, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥1,990 | |
| 55623B — Spring, Instrument Panel Cup Holder | ||||
| 55623-52020 |
Spring, Instrument Panel Cup Holder
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 55623-52020 |
Spring, Instrument Panel Cup Holder
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥220 | |
| 55623-52020 |
Spring, Instrument Panel Cup Holder
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 55623-52020 |
Spring, Instrument Panel Cup Holder
2008-08 → 2010-07
ended
|
NCP91 5F | ¥220 | |
| 55623-52020 |
Spring, Instrument Panel Cup Holder
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥220 | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-52050 |
Airbag Assy, Instrument Panel Passenger W/O Door
2005-01 → 2005-03
ended
|
KSP90,NCP9#,SCP90 | ¥120,000 | |
| 73960-52100 |
Airbag Assy, Instrument Panel Passenger W/O Door
2005-03 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥120,000 | |
| 73960-52101 |
Airbag Assy, Instrument Panel Passenger W/O Door
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥120,000 | |
| 73960-52101 |
Airbag Assy, Instrument Panel Passenger W/O Door
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥120,000 | |
| 73960-52101 |
Airbag Assy, Instrument Panel Passenger W/O Door
2008-08 → 2010-07
ended
|
NCP91 5F | ¥120,000 | |
| 73960-52101 |
Airbag Assy, Instrument Panel Passenger W/O Door
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥120,000 | |
| 82140 — Wire Assy, Instrument Panel | ||||
| 82140-52020 |
Wire Assy, Instrument Panel
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥600 | |
| 82140-52020 |
Wire Assy, Instrument Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥600 | |
| 82140-52020 |
Wire Assy, Instrument Panel
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥600 | |
| 82140-52020 |
Wire Assy, Instrument Panel
2008-08 → 2010-07
ended
|
NCP91 5F | ¥600 | |
| 82140-52020 |
Wire Assy, Instrument Panel
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
