Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

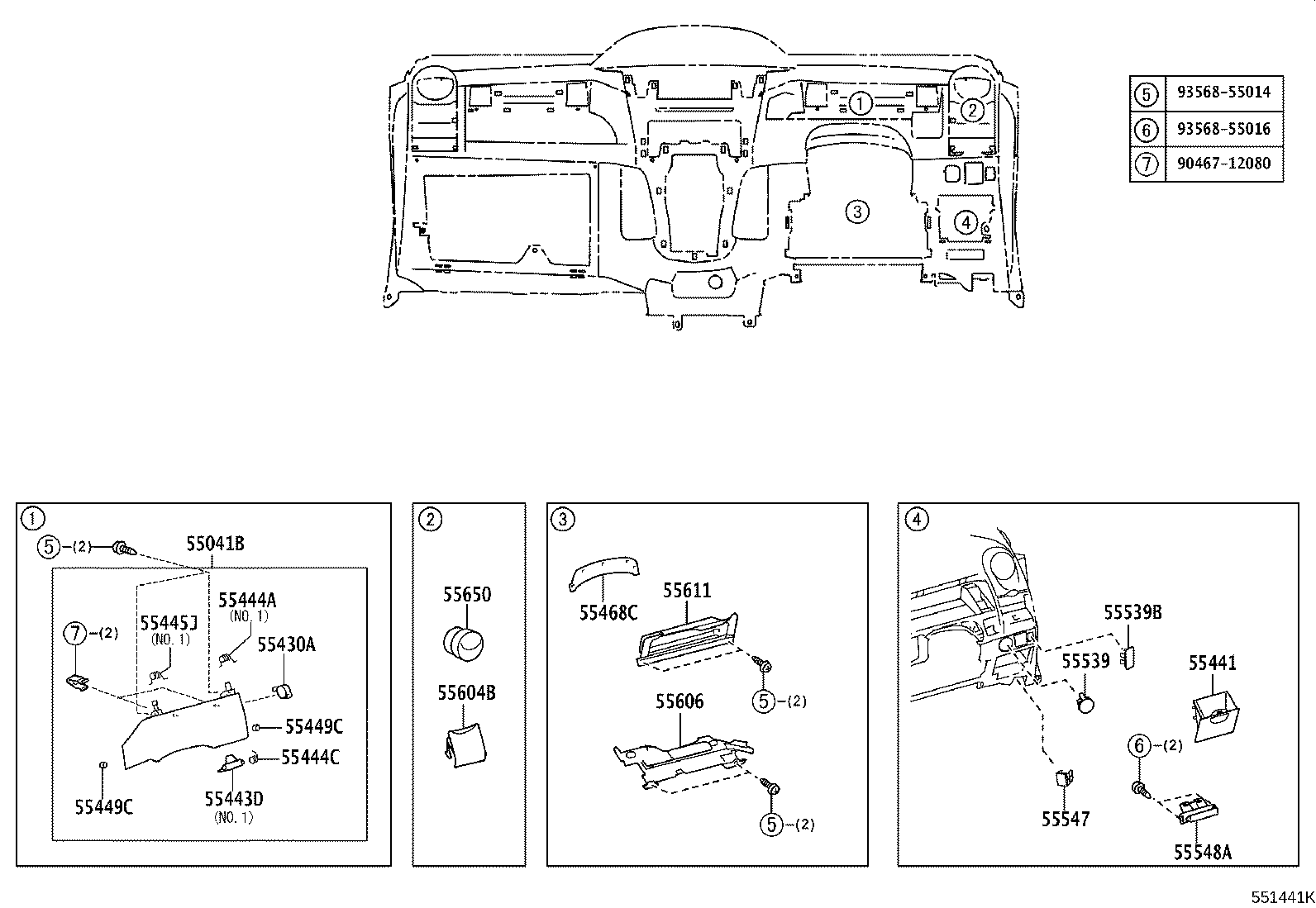

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55041B — Door Sub-assy, Instrument Panel Box, NO.1 | ||||
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2005-01 → 2007-08
ended
|
NCP91 RS | ¥9,700 | |
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥9,700 | |
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥9,700 | |
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥9,700 | |
| 55041-52020-E0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥9,700 | |
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥9,700 | |
| 55041-52020-B0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥9,700 | |
| 55041-52020-E0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥9,700 | |
| 55430A — Damper Assy, Instrument Cluster Finish Panel | ||||
| 55430-52020 |
Damper Assy, Instrument Cluster Finish Panel
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥500 | |
| 55430-52020 |
Damper Assy, Instrument Cluster Finish Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥500 | |
| 55430-52020 |
Damper Assy, Instrument Cluster Finish Panel
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥500 | |
| 55430-52020 |
Damper Assy, Instrument Cluster Finish Panel
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥500 | |
| 55430-52020 |
Damper Assy, Instrument Cluster Finish Panel
2008-08 → 2010-07
ended
|
NCP91 5F | ¥500 | |
| 55441 — Box, Instrument Panel | ||||
| 55441-52100-B0 note |
Box, Instrument Panel
2005-01 → 2005-07
ended
|
KSP90,NCP9#,SCP90 B,F,X | ¥2,690 | |
| 55441-52100-B0 note |
Box, Instrument Panel
2005-01 → 2005-07
ended
|
NCP9#,SCP90 RS,U | ¥2,690 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥2,680 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2005-08 → 2007-08
ended
|
NCP91 RS | ¥2,680 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥2,680 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥2,680 | |
| 55441-52101-E0 note |
Box, Instrument Panel
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,680 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2008-08 → 2010-07
ended
|
NCP91 5F | ¥2,680 | |
| 55441-52101-B0 note |
Box, Instrument Panel
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥2,680 | |
| 55441-52101-E0 note |
Box, Instrument Panel
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,680 | |
| 55443D — Knob, Instrument Panel Box Door | ||||
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥760 | |
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥760 | |
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2005-01 → 2007-08
ended
|
NCP91 RS | ¥760 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2005-01 → 2007-08
ended
|
NCP91 RS | ¥940 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥940 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥940 | |
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥760 | |
| 55443-52060-E0 note |
Knob, Instrument Panel Box Door
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥760 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥940 | |
| 55443-52080-E0 note |
Knob, Instrument Panel Box Door
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥940 | |
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-07
ended
|
NCP91 5F | ¥760 | |
| 55443-52060-B0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥760 | |
| 55443-52060-E0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥760 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-07
ended
|
NCP91 5F | ¥940 | |
| 55443-52080-B0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥940 | |
| 55443-52080-E0 note |
Knob, Instrument Panel Box Door
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥940 | |
| 55444A — Spring, Instrument Panel Box | ||||
| 55444-52230 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55444-52230 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥220 | |
| 55444-52250 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥220 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55444-52270 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55444C — Spring, Instrument Panel Box | ||||
| 55478-52020 |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55478-52020 |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55478-52020 |
Spring, Instrument Panel Box
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥160 | |
| 55478-52020 |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55478-52020 |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55445J — Spring, Instrument Panel Box | ||||
| 55445-52160 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55445-52180 note |
Spring, Instrument Panel Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55445-52160 note |
Spring, Instrument Panel Box
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥160 | |
| 55445-52160 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55445-52180 note |
Spring, Instrument Panel Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55445-52180 note |
Spring, Instrument Panel Box
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥160 | |
| 55445-52160 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55445-52160 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55445-52180 note |
Spring, Instrument Panel Box
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55445-52180 note |
Spring, Instrument Panel Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55449C — Cushion, Instrument Panel Finish Panel, NO.2 | ||||
| 55449-28020 |
Cushion, Instrument Panel Finish Panel, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 55449-28020 |
Cushion, Instrument Panel Finish Panel, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 55449-28020 |
Cushion, Instrument Panel Finish Panel, NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥160 | |
| 55449-28020 |
Cushion, Instrument Panel Finish Panel, NO.2
2008-08 → 2010-07
ended
|
NCP91 5F | ¥160 | |
| 55449-28020 |
Cushion, Instrument Panel Finish Panel, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥160 | |
| 55468C — Seal, Instrument Cluster Finish Panel, NO.1 | ||||
| 55468-52010 |
Seal, Instrument Cluster Finish Panel, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥360 | |
| 55468-52010 |
Seal, Instrument Cluster Finish Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥360 | |
| 55468-52010 |
Seal, Instrument Cluster Finish Panel, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 55468-52010 |
Seal, Instrument Cluster Finish Panel, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥360 | |
| 55468-52010 |
Seal, Instrument Cluster Finish Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥360 | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,X | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,X | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,X | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥310 | |
| 55539-52040-E0 note |
Cover, Spare Switch Hole
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 B,F | ¥500 | |
| 55539-52040-E0 note |
Cover, Spare Switch Hole
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 F | ¥500 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2010-07 → 2010-12
ended
|
KSP90 U | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2008-08 → 2010-07
ended
|
NCP91 5F | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (F,RS) | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS) | ¥310 | |
| 55539-52040-B0 note |
Cover, Spare Switch Hole
2008-08 → 2010-07
ended
|
NCP91 5F | ¥310 | |
| 55539-52040-E0 note |
Cover, Spare Switch Hole
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F | ¥500 | |
| 55539-52040-E0 note |
Cover, Spare Switch Hole
2010-07 → 2010-12
ended
|
KSP90 U | ¥500 | |
| 55539-52040-E0 note |
Cover, Spare Switch Hole
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 F | ¥500 | |
| 55539B — Cover, Spare Switch Hole, NO.2 | ||||
| 55539-52060-B0 note |
Cover, Spare Switch Hole, NO.2
2005-01 → 2005-12
ended
|
KSP90 B | ¥300 | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole, NO.2
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥300 | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole, NO.2
2005-12 → 2007-05
ended
|
NCP91 RS | ¥300 | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole, NO.2
2005-12 → 2007-05
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥300 | |
| 55539-52060-B0 note |
Cover, Spare Switch Hole, NO.2
2005-12 → 2007-05
ended
|
KSP90,NCP95,SCP90 ILL | ¥300 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-05 → 2007-08
ended
|
NCP91 RS | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-05 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-05 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-08 → 2008-09
ended
|
NCP91 RS | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2007-08 → 2008-09
ended
|
SCP90 RS | ¥360 | |
| 55539-52070-E0 note |
Cover, Spare Switch Hole, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2008-09 → 2010-12
ended
|
NCP91 RS | ¥360 | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole, NO.2
2008-09 → 2010-12
ended
|
SCP90 RS | ¥360 | |
| 55539-52070-E0 note |
Cover, Spare Switch Hole, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥360 | |
| 55547 — Cover, Remote Control Mirror Hole | ||||
| 55547-28010-B1 note |
Cover, Remote Control Mirror Hole
2005-01 → 2007-08
ended
|
KSP90 B | ¥580 | |
| 55547-28010-B1 note |
Cover, Remote Control Mirror Hole
2007-08 → 2008-08
ended
|
KSP90 B | ¥580 | |
| 55547-28010-E5 note |
Cover, Remote Control Mirror Hole
2007-08 → 2008-08
ended
|
KSP90 B | ¥840 | |
| 55547-28010-B1 note |
Cover, Remote Control Mirror Hole
2008-08 → 2010-12
ended
|
KSP90 B | ¥580 | |
| 55547-28010-E5 note |
Cover, Remote Control Mirror Hole
2008-08 → 2009-08
ended
|
KSP90 B | ¥840 | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-01 → 2007-08
ended
|
NCP91 RS | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥610 | |
| 55548-52030-E1 note |
Cover, Instrument Panel Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥980 | |
| 55548-52030-E1 note |
Cover, Instrument Panel Hole
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥980 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-09 → 2010-07
ended
|
NCP91 5F | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-09 → 2010-07
ended
|
NCP91 5F | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-09 → 2010-12
ended
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 55548-52030-B0 note |
Cover, Instrument Panel Hole
2008-09 → 2010-12
ended
|
NCP91,SCP90 CVFC RS | ¥610 | |
| 55604B — Holder Sub-assy, Instrument Panel Cup | ||||
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥3,570 | |
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥3,570 | |
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2005-01 → 2007-08
ended
|
NCP91 RS | ¥3,570 | |
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥3,570 | |
| 55619-52020-E0 note |
Holder Sub-assy, Instrument Panel Cup
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥3,570 | |
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥3,570 | |
| 55619-52020-B0 note |
Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-07
ended
|
NCP91 5F | ¥3,570 | |
| 55619-52020-E0 note |
Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥3,570 | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-52030 |
Cover Sub-assy, Instrument Panel Under, NO.1
2005-01 → 2007-08
ended
|
NCP9#,SCP90 RS,U | ¥3,310 | |
| 55606-52040 |
Cover Sub-assy, Instrument Panel Under, NO.1
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥5,300 | |
| 55606-52030 |
Cover Sub-assy, Instrument Panel Under, NO.1
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U | ¥3,310 | |
| 55606-52030 |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-08 → 2010-07
ended
|
NCP91 5F | ¥3,310 | |
| 55606-52030 |
Cover Sub-assy, Instrument Panel Under, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) | ¥3,310 | |
| 55611 — Tray, Instrument Panel Under | ||||
| 55611-52120-B0 note |
Tray, Instrument Panel Under
2005-01 → 2005-09
ended
|
NCP9#,SCP90 RS,U | ¥4,630 | |
| 55611-52120-B0 note |
Tray, Instrument Panel Under
2005-08 → 2005-09
ended
|
KSP90,NCP9#,SCP90 B,F,X | ¥4,630 | |
| 55611-52120-B0 note |
Tray, Instrument Panel Under
2005-01 → 2005-08
ended
|
KSP90,NCP9#,SCP90 B,F,X | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2005-09 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2005-09 → 2007-08
ended
|
NCP91 RS | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS,U | ¥4,630 | |
| 55611-52121-E0 note |
Tray, Instrument Panel Under
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2008-08 → 2010-07
ended
|
NCP91 5F | ¥4,630 | |
| 55611-52121-B0 note |
Tray, Instrument Panel Under
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) | ¥4,630 | |
| 55611-52121-E0 note |
Tray, Instrument Panel Under
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥4,630 | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-52140-B0 note |
Register Assy, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
NCP91 RS | ¥3,220 | |
| 55650-52140-B0 note |
Register Assy, Instrument Panel, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥3,220 | |
| 55650-52160-B0 note |
Register Assy, Instrument Panel, NO.1
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥4,830 | |
| 55650-52140-B0 note |
Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥3,220 | |
| 55650-52140-E0 note |
Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥3,220 | |
| 55650-52160-B0 note |
Register Assy, Instrument Panel, NO.1
2008-01 → 2008-08
ended
|
KSP90,NCP95,SCP90 F | ¥4,830 | |
| 55650-52160-E0 note |
Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥4,830 | |
| 55650-52160-E0 note |
Register Assy, Instrument Panel, NO.1
2008-01 → 2008-08
ended
|
KSP90,NCP95,SCP90 F | ¥4,830 | |
| 55650-52180-B0 note |
Register Assy, Instrument Panel, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥3,940 | |
| 55650-52140-B0 note |
Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥3,220 | |
| 55650-52140-E0 note |
Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥3,220 | |
| 55650-52180-B0 note |
Register Assy, Instrument Panel, NO.1
2008-09 → 2010-07
ended
|
NCP91 5F | ¥3,940 | |
| 55650-52180-B0 note |
Register Assy, Instrument Panel, NO.1
2008-09 → 2010-12
ended
|
NCP91,SCP90 CVFC RS | ¥3,940 | |
| 55650-52200-B0 note |
Register Assy, Instrument Panel, NO.1
2008-08 → 2009-08
ended
|
KSP90,NCP95,SCP90 F | ¥4,830 | |
| 55650-52200-B0 note |
Register Assy, Instrument Panel, NO.1
2009-08 → 2010-07
ended
|
KSP90 F | ¥4,830 | |
| 55650-52200-B0 note |
Register Assy, Instrument Panel, NO.1
2009-08 → 2010-12
ended
|
NCP95,SCP90 F | ¥4,830 | |
| 55650-52200-E0 note |
Register Assy, Instrument Panel, NO.1
2009-08 → 2010-12
ended
|
NCP95,SCP90 F | ¥4,830 | |
| 55650-52200-E0 note |
Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥4,830 | |
| 55650-52200-E0 note |
Register Assy, Instrument Panel, NO.1
2009-08 → 2010-07
ended
|
KSP90 F | ¥4,830 | |
| 55650-52200-E0 note |
Register Assy, Instrument Panel, NO.1
2008-08 → 2009-08
ended
|
KSP90,NCP95,SCP90 F | ¥4,830 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
