Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

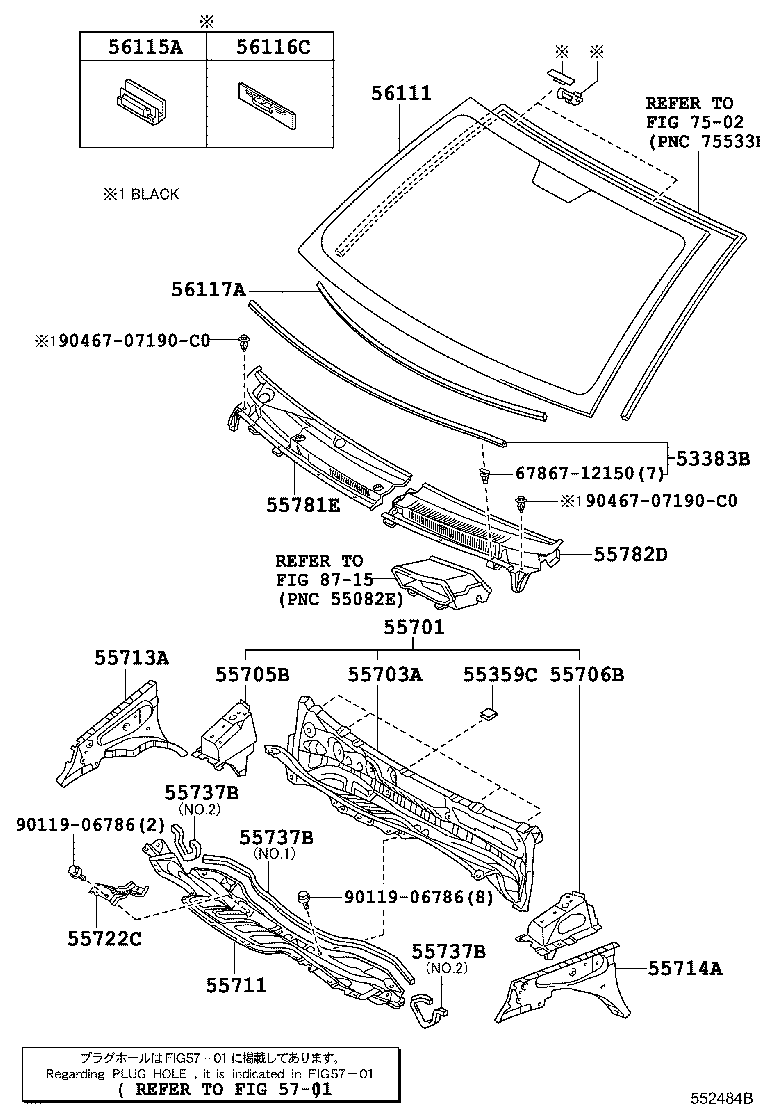

Exploded illustration 552484B 56111 — GLASS, WINDSHIELD (13 parts) 55781E — LOUVER SUB-ASSY, COWL TOP VENTILATOR (4 parts) 55713A — PANEL, COWL TOP SIDE, RH (4 parts) 55714A — PANEL, COWL TOP SIDE, LH (4 parts) 55737B — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 (8 parts) 55722C — BRACE, COWL TOP TO COWL, INNER (4 parts) 55737B — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 (8 parts) 55737B — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 (8 parts) 55701 — PANEL SUB-ASSY, COWL (4 parts) 55705B — PANEL SUB-ASSY, COWL TOP SIDE, RH (4 parts) 55703A — PANEL SUB-ASSY, COWL TOP, INNER (4 parts) 55706B — PANEL SUB-ASSY, COWL TOP SIDE, LH (4 parts) 55782D — LOUVER, COWL TOP VENTILATOR, LH (11 parts) 53383B — SEAL, HOOD TO COWL TOP (4 parts) 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 6786712150 — not listed in this catalogue 9046707190C0 — not listed in this catalogue 9046707190C0 — not listed in this catalogue 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (5 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (5 parts) 55711 — PANEL, COWL TOP, OUTER (4 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (11 parts) 8715 — not listed in this catalogue 7502 — not listed in this catalogue 55359C — COSHION, INSTRUMENT PANEL, NO.5 (4 parts) 5701 — not listed in this catalogue
552484B · 19 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
97 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-52050 Seal, Hood TO Cowl Top
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥900
53383-52050 Seal, Hood TO Cowl Top
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥900
53383-52050 Seal, Hood TO Cowl Top
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥900
53383-52050 Seal, Hood TO Cowl Top
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥900
55359C — Coshion, Instrument Panel, NO.5
55359-52160 Coshion, Instrument Panel, NO.5
2008-04 → 2008-07 ended
KSP90,NCP9#,SCP90 ¥70
55359-52170 Coshion, Instrument Panel, NO.5
2008-08 → 2008-09 ended
NCP91,SCP90 RS ¥110
55359-52170 Coshion, Instrument Panel, NO.5
2008-08 → 2010-07 ended
NCP91 5F ¥110
55359-52170 Coshion, Instrument Panel, NO.5
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥110
55701 — Panel Sub-assy, Cowl
55700-52180 Panel Sub-assy, Cowl
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥22,700
55700-52180 Panel Sub-assy, Cowl
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥22,700
55700-52180 Panel Sub-assy, Cowl
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,700
55700-52180 Panel Sub-assy, Cowl
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥22,700
55703A — Panel Sub-assy, Cowl Top, Inner
55703-52090 Panel Sub-assy, Cowl Top, Inner
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥15,800
55703-52090 Panel Sub-assy, Cowl Top, Inner
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥15,800
55703-52090 Panel Sub-assy, Cowl Top, Inner
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥15,800
55703-52090 Panel Sub-assy, Cowl Top, Inner
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥15,800
55705B — Panel Sub-assy, Cowl Top Side, RH
55705-52090 Panel Sub-assy, Cowl Top Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
55705-52090 Panel Sub-assy, Cowl Top Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
55705-52090 Panel Sub-assy, Cowl Top Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
55705-52090 Panel Sub-assy, Cowl Top Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,700
55706B — Panel Sub-assy, Cowl Top Side, LH
55706-52090 Panel Sub-assy, Cowl Top Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
55706-52090 Panel Sub-assy, Cowl Top Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
55706-52090 Panel Sub-assy, Cowl Top Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
55706-52090 Panel Sub-assy, Cowl Top Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,700
55711 — Panel, Cowl Top, Outer
55701-52160 Panel, Cowl Top, Outer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥15,800
55701-52160 Panel, Cowl Top, Outer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥15,800
55701-52160 Panel, Cowl Top, Outer
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥15,800
55701-52160 Panel, Cowl Top, Outer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥15,800
55713A — Panel, Cowl Top Side, RH
55713-52090 Panel, Cowl Top Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,110
55713-52090 Panel, Cowl Top Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,110
55713-52090 Panel, Cowl Top Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,110
55713-52090 Panel, Cowl Top Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,110
55714A — Panel, Cowl Top Side, LH
55714-52090 Panel, Cowl Top Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,110
55714-52090 Panel, Cowl Top Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,110
55714-52090 Panel, Cowl Top Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,110
55714-52090 Panel, Cowl Top Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,110
55722C — Brace, Cowl Top TO Cowl, Inner
55722-52020 Brace, Cowl Top TO Cowl, Inner
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,110
55722-52020 Brace, Cowl Top TO Cowl, Inner
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,110
55722-52020 Brace, Cowl Top TO Cowl, Inner
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,110
55722-52020 Brace, Cowl Top TO Cowl, Inner
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,110
55737B — Seal, Heater Air Duct Splash Shield, NO.1
55737-52010 note Seal, Heater Air Duct Splash Shield, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
55737-52050 note Seal, Heater Air Duct Splash Shield, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
55737-52010 note Seal, Heater Air Duct Splash Shield, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
55737-52010 note Seal, Heater Air Duct Splash Shield, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
55737-52050 note Seal, Heater Air Duct Splash Shield, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
55737-52050 note Seal, Heater Air Duct Splash Shield, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
55737-52010 note Seal, Heater Air Duct Splash Shield, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
55737-52050 note Seal, Heater Air Duct Splash Shield, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
55781E — Louver Sub-assy, Cowl Top Ventilator
55708-52040 Louver Sub-assy, Cowl Top Ventilator
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,000
55708-52040 Louver Sub-assy, Cowl Top Ventilator
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,000
55708-52040 Louver Sub-assy, Cowl Top Ventilator
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,000
55708-52040 Louver Sub-assy, Cowl Top Ventilator
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,000
55782D — Louver, Cowl Top Ventilator, LH
55709-52040 Louver, Cowl Top Ventilator, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2005-01 → 2007-08 ended
KSP90 B,F ¥10,000
55709-52040 Louver, Cowl Top Ventilator, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,000
55709-52040 Louver, Cowl Top Ventilator, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥10,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,000
55709-52040 Louver, Cowl Top Ventilator, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,000
55709-52090 note Louver, Cowl Top Ventilator, LH
2008-08 → 2010-08 ended
KSP90 B,F ¥10,000
56111 — Glass, Windshield
56101-52240 note Glass, Windshield
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥90,100
56101-52250 note Glass, Windshield
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥111,000
56101-52250 note Glass, Windshield
2005-01 → 2007-08 ended
KSP90 B,F ¥111,000
56101-52240 note Glass, Windshield
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥90,100
56101-52250 note Glass, Windshield
2007-08 → 2008-08 ended
KSP90 B,F ¥111,000
56101-52250 note Glass, Windshield
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥111,000
56101-52240 note Glass, Windshield
2008-08 → 2008-11 ended
KSP90,NCP9#,SCP90 ¥90,100
56101-52250 note Glass, Windshield
2008-08 → 2009-08 ended
KSP90,NCP9#,SCP90 ¥111,000
56101-52250 note Glass, Windshield
2008-08 → 2009-08 ended
KSP90 B,F ¥111,000
56101-52560 note Glass, Windshield
2008-11 → 2009-08 ended
KSP90,NCP9#,SCP90 —
56101-52922 note Glass, Windshield
2009-09 → 2010-12 ended
KSP90,NCP9#,SCP90 —
56101-52925 note Glass, Windshield
2009-09 → 2010-08 ended
KSP90 B,F —
56101-52925 note Glass, Windshield
2009-09 → 2010-12 ended
KSP90,NCP9#,SCP90 —
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2008-08 → 2010-08 ended
NCP91 5F ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2008-08 → —
KSP90,NCP9#,SCP90 ATM ¥130
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2008-08 → 2010-08 ended
NCP91 5F ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2008-08 → —
KSP90,NCP9#,SCP90 ATM ¥120
56117A — Dam, Window Glass Adhesive
56117-52130 note Dam, Window Glass Adhesive
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥760
56117-52130 note Dam, Window Glass Adhesive
2005-01 → 2007-08 ended
KSP90 B,F ¥760
56117-52130 note Dam, Window Glass Adhesive
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥760
56117-52130 note Dam, Window Glass Adhesive
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥760
56117-52130 note Dam, Window Glass Adhesive
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥760
56117-52130 note Dam, Window Glass Adhesive
2007-08 → 2008-08 ended
KSP90 B,F ¥760
56117-52130 note Dam, Window Glass Adhesive
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥760
56117-52130 note Dam, Window Glass Adhesive
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥760
56117-52130 note Dam, Window Glass Adhesive
2008-08 → 2010-08 ended
KSP90 B,F ¥760
56117-52130 note Dam, Window Glass Adhesive
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥760
56117-52130 note Dam, Window Glass Adhesive
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
