Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

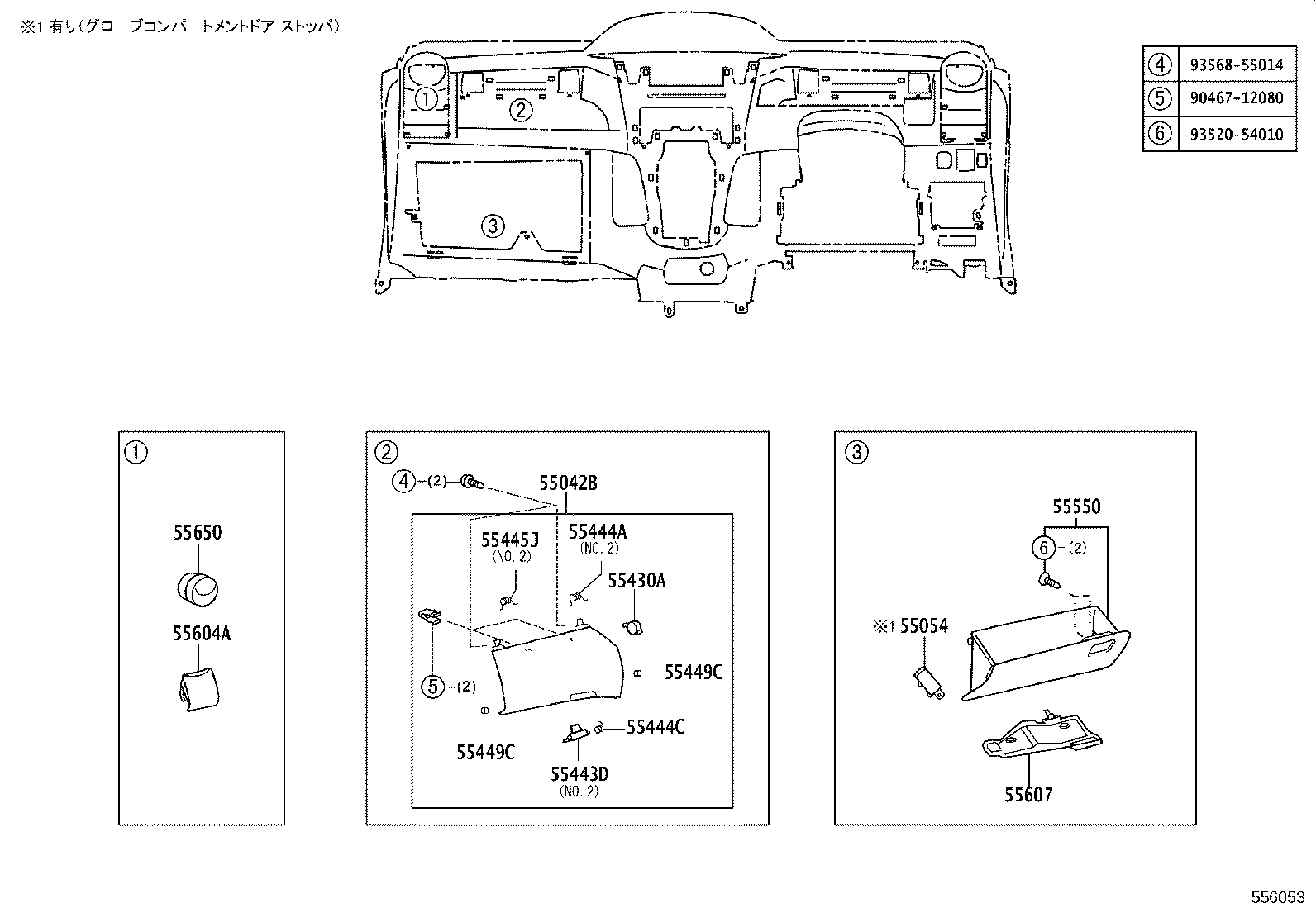

Exploded illustration 556053 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (5 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (8 parts) 55604A — HOLDER SUB-ASSY, INSTRUMENT PANEL CUP (8 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (5 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (20 parts) 55430A — DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL (5 parts) 55444C — SPRING, INSTRUMENT PANEL BOX (5 parts) 55443D — KNOB, INSTRUMENT PANEL BOX DOOR (16 parts) 55444A — SPRING, INSTRUMENT PANEL BOX (12 parts) 55445J — SPRING, INSTRUMENT PANEL BOX (10 parts) 55449C — CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 (5 parts) 55449C — CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 (5 parts) 55042B — DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 (8 parts) 9356855014 — not listed in this catalogue 9046712080 — not listed in this catalogue 9352054010 — not listed in this catalogue
556053 · 13 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
55042B — Door Sub-assy, Instrument Panel Box, NO.2
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2005-01 → 2007-08 ended
NCP91 RS ¥11,600
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥11,600
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥11,600
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥11,600
55042-52020-E0 note Door Sub-assy, Instrument Panel Box, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,600
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2008-08 → 2010-07 ended
NCP91 5F ¥11,600
55042-52020-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥11,600
55042-52020-E0 note Door Sub-assy, Instrument Panel Box, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,600
55054 — Stopper Sub-assy, Glove Compartment Door
55054-52020 Stopper Sub-assy, Glove Compartment Door
2005-01 → 2007-08 ended
NCP9#,SCP90 RS,U ¥660
55054-52020 Stopper Sub-assy, Glove Compartment Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥660
55054-52020 Stopper Sub-assy, Glove Compartment Door
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥660
55054-52020 Stopper Sub-assy, Glove Compartment Door
2008-08 → 2010-07 ended
NCP91 5F ¥660
55054-52020 Stopper Sub-assy, Glove Compartment Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) ¥660
55430A — Damper Assy, Instrument Cluster Finish Panel
55430-52020 Damper Assy, Instrument Cluster Finish Panel
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥500
55430-52020 Damper Assy, Instrument Cluster Finish Panel
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥500
55430-52020 Damper Assy, Instrument Cluster Finish Panel
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
55430-52020 Damper Assy, Instrument Cluster Finish Panel
2008-08 → 2010-07 ended
NCP91 5F ¥500
55430-52020 Damper Assy, Instrument Cluster Finish Panel
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥500
55443D — Knob, Instrument Panel Box Door
55443-52060-B0 note Knob, Instrument Panel Box Door
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥760
55443-52060-B0 note Knob, Instrument Panel Box Door
2005-01 → 2007-08 ended
NCP91 RS ¥760
55443-52060-B0 note Knob, Instrument Panel Box Door
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥760
55443-52080-B0 note Knob, Instrument Panel Box Door
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥940
55443-52080-B0 note Knob, Instrument Panel Box Door
2005-01 → 2007-08 ended
NCP91 RS ¥940
55443-52080-B0 note Knob, Instrument Panel Box Door
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥940
55443-52060-B0 note Knob, Instrument Panel Box Door
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥760
55443-52060-E0 note Knob, Instrument Panel Box Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥760
55443-52080-B0 note Knob, Instrument Panel Box Door
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥940
55443-52080-E0 note Knob, Instrument Panel Box Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥940
55443-52060-B0 note Knob, Instrument Panel Box Door
2008-08 → 2010-07 ended
NCP91 5F ¥760
55443-52060-B0 note Knob, Instrument Panel Box Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥760
55443-52060-E0 note Knob, Instrument Panel Box Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥760
55443-52080-B0 note Knob, Instrument Panel Box Door
2008-08 → 2010-07 ended
NCP91 5F ¥940
55443-52080-B0 note Knob, Instrument Panel Box Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥940
55443-52080-E0 note Knob, Instrument Panel Box Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥940
55444A — Spring, Instrument Panel Box
55444-52230 note Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55444-52250 note Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥220
55444-52270 note Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55444-52230 note Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55444-52250 note Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥220
55444-52270 note Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55444-52230 note Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥160
55444-52230 note Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55444-52250 note Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥220
55444-52250 note Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥220
55444-52270 note Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥160
55444-52270 note Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55444C — Spring, Instrument Panel Box
55478-52020 Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55478-52020 Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55478-52020 Spring, Instrument Panel Box
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
55478-52020 Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥160
55478-52020 Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55445J — Spring, Instrument Panel Box
55445-52160 note Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55445-52180 note Spring, Instrument Panel Box
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55445-52160 note Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55445-52160 note Spring, Instrument Panel Box
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
55445-52180 note Spring, Instrument Panel Box
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
55445-52180 note Spring, Instrument Panel Box
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55445-52160 note Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55445-52160 note Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥160
55445-52180 note Spring, Instrument Panel Box
2008-08 → 2010-07 ended
NCP91 5F ¥160
55445-52180 note Spring, Instrument Panel Box
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55449C — Cushion, Instrument Panel Finish Panel, NO.2
55449-28020 Cushion, Instrument Panel Finish Panel, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
55449-28020 Cushion, Instrument Panel Finish Panel, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
55449-28020 Cushion, Instrument Panel Finish Panel, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
55449-28020 Cushion, Instrument Panel Finish Panel, NO.2
2008-08 → 2010-07 ended
NCP91 5F ¥160
55449-28020 Cushion, Instrument Panel Finish Panel, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥160
55550 — Door Assy, Glove Compartment
55550-52150-B0 note Door Assy, Glove Compartment
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥13,600
55550-52150-B0 note Door Assy, Glove Compartment
2005-01 → 2007-08 ended
NCP91 RS ¥13,600
55550-52150-B0 note Door Assy, Glove Compartment
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥13,600
55550-52150-B0 note Door Assy, Glove Compartment
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥13,600
55550-52150-E0 note Door Assy, Glove Compartment
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,600
55550-52150-B0 note Door Assy, Glove Compartment
2008-08 → 2010-07 ended
NCP91 5F ¥13,600
55550-52150-B0 note Door Assy, Glove Compartment
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥13,600
55550-52150-E0 note Door Assy, Glove Compartment
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,600
55604A — Holder Sub-assy, Instrument Panel Cup
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,570
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2005-01 → 2007-08 ended
NCP91 RS ¥3,570
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,570
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,570
55618-52040-E0 note Holder Sub-assy, Instrument Panel Cup
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,570
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-07 ended
NCP91 5F ¥3,570
55618-52040-B0 note Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS,U) ¥3,570
55618-52040-E0 note Holder Sub-assy, Instrument Panel Cup
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,570
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-52030 Cover Sub-assy, Instrument Panel Under, NO.2
2005-01 → 2007-08 ended
NCP9#,SCP90 RS,U ¥3,330
55607-52040 Cover Sub-assy, Instrument Panel Under, NO.2
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥5,300
55607-52030 Cover Sub-assy, Instrument Panel Under, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ILL,RS,U ¥3,330
55607-52030 Cover Sub-assy, Instrument Panel Under, NO.2
2008-08 → 2010-07 ended
NCP91 5F ¥3,330
55607-52030 Cover Sub-assy, Instrument Panel Under, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (ILL,RS,U) ¥3,330
55650 — Register Assy, Instrument Panel, NO.1
55650-52140-B0 note Register Assy, Instrument Panel, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,220
55650-52140-B0 note Register Assy, Instrument Panel, NO.1
2005-01 → 2007-08 ended
NCP91 RS ¥3,220
55650-52160-B0 note Register Assy, Instrument Panel, NO.1
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥4,830
55650-52140-B0 note Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,220
55650-52140-E0 note Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,220
55650-52160-B0 note Register Assy, Instrument Panel, NO.1
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,830
55650-52160-E0 note Register Assy, Instrument Panel, NO.1
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,830
55650-52160-E0 note Register Assy, Instrument Panel, NO.1
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥4,830
55650-52180-B0 note Register Assy, Instrument Panel, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,940
55650-52140-B0 note Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,220
55650-52140-E0 note Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,220
55650-52180-B0 note Register Assy, Instrument Panel, NO.1
2008-09 → 2010-07 ended
NCP91 5F ¥3,940
55650-52180-B0 note Register Assy, Instrument Panel, NO.1
2008-09 → 2010-12 ended
NCP91,SCP90 CVFC RS ¥3,940
55650-52200-B0 note Register Assy, Instrument Panel, NO.1
2008-08 → 2009-08 ended
KSP90,NCP95,SCP90 F ¥4,830
55650-52200-B0 note Register Assy, Instrument Panel, NO.1
2009-08 → 2010-07 ended
KSP90 F ¥4,830
55650-52200-B0 note Register Assy, Instrument Panel, NO.1
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥4,830
55650-52200-E0 note Register Assy, Instrument Panel, NO.1
2008-08 → 2009-08 ended
KSP90,NCP95,SCP90 F ¥4,830
55650-52200-E0 note Register Assy, Instrument Panel, NO.1
2009-08 → 2010-07 ended
KSP90 F ¥4,830
55650-52200-E0 note Register Assy, Instrument Panel, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥4,830
55650-52200-E0 note Register Assy, Instrument Panel, NO.1
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥4,830
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
