Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

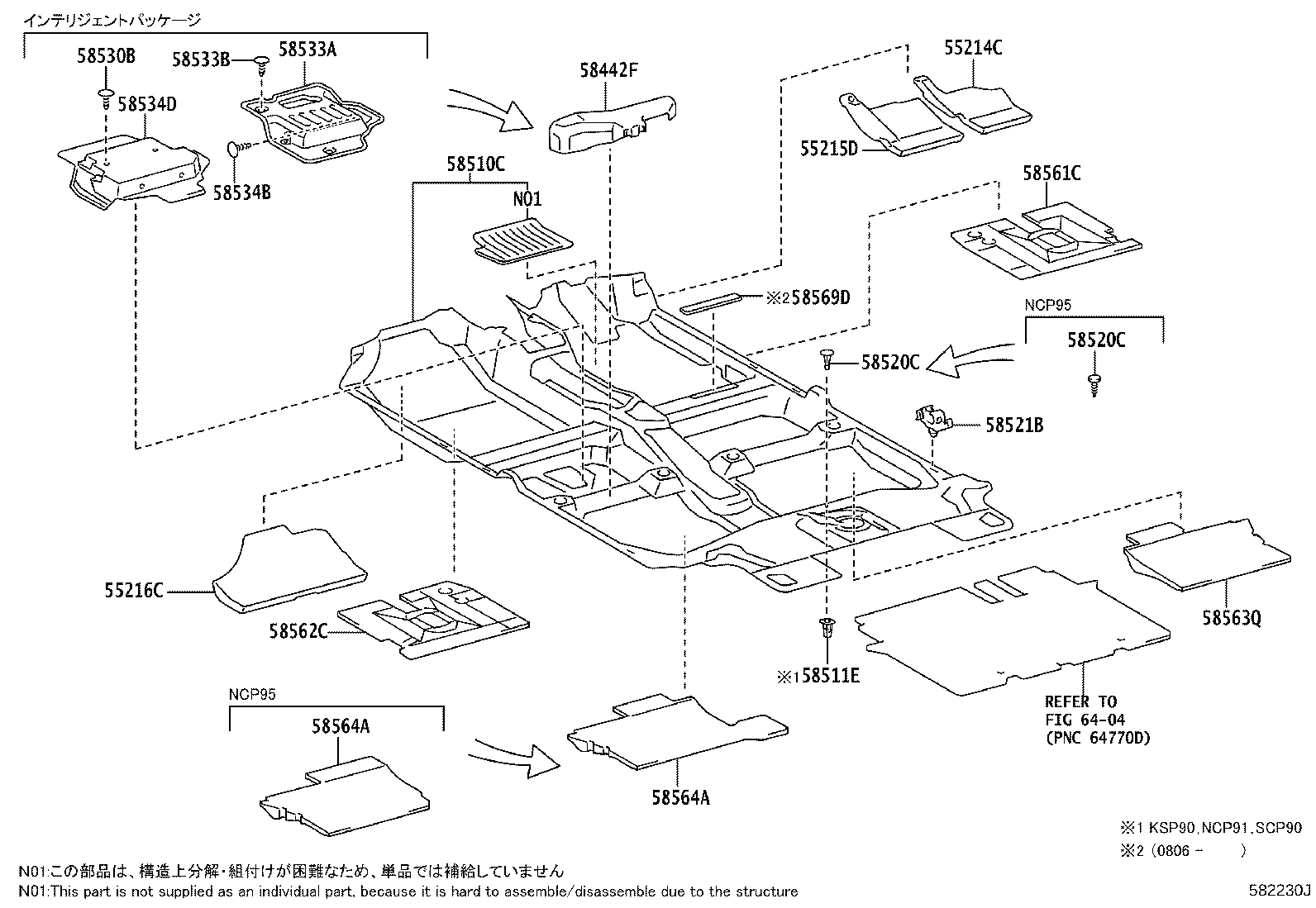

Exploded illustration 582230J 58442F — COVER, JACK (7 parts) 58510C — CARPET ASSY, FRONT FLOOR, FRONT (53 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (3 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (15 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (15 parts) 58521B — HOOK, FLOOR CARPET (3 parts) 58533B — CLIP(FOR FLOOR CARPET COVER) (3 parts) 58533A — COVER, FLOOR CARPET, CENTER RH (3 parts) 58534D — COVER, FLOOR CARPET, CENTER LH (3 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (7 parts) 58534B — CLIP(FOR FLOOR CARPET CENTER COVER) (3 parts) 6404 — not listed in this catalogue 58569D — COVER, FRONT FLOOR CAUTION PLATE (6 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (4 parts) 55214C — PAD, DASH PANEL INSULATOR, NO.2 (3 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (4 parts) 55216C — PAD, DASH PANEL INSULATOR, NO.4 (3 parts) 58562C — SILENCER, FRONT FLOOR, NO.2 (4 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (7 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (7 parts)
582230J · 20 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
134 parts on this figure
Part number Description Fitment Price
55214C — Pad, Dash Panel Insulator, NO.2
55214-52130 Pad, Dash Panel Insulator, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,080
55214-52130 Pad, Dash Panel Insulator, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,080
55214-52130 Pad, Dash Panel Insulator, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,080
55215D — Pad, Dash Panel Insulator, NO.3
55215-52100 Pad, Dash Panel Insulator, NO.3
2005-01 → 2006-06 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,940
55215-52101 Pad, Dash Panel Insulator, NO.3
2006-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,200
55215-52101 Pad, Dash Panel Insulator, NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,200
55215-52101 Pad, Dash Panel Insulator, NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,200
55216C — Pad, Dash Panel Insulator, NO.4
55216-52010 Pad, Dash Panel Insulator, NO.4
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,490
55216-52010 Pad, Dash Panel Insulator, NO.4
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥2,490
55216-52010 Pad, Dash Panel Insulator, NO.4
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,490
58442F — Cover, Jack
58442-52060 Cover, Jack
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,030
58442-52060 note Cover, Jack
2005-01 → 2007-08 ended
KSP90 B,F ¥2,030
58442-52060 Cover, Jack
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,030
58442-52060 note Cover, Jack
2007-08 → 2008-08 ended
KSP90 B,F ¥2,030
58442-52060 Cover, Jack
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,030
58442-52060 Cover, Jack
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,030
58442-52060 note Cover, Jack
2008-08 → 2010-12 ended
KSP90 B,F ¥2,030
58510C — Carpet Assy, Front Floor, Front
58510-52A60-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP91 RS ¥49,600
58510-52A70-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP91 RS ¥50,500
58510-52B10-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP95 F,U ¥52,200
58510-52B10-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
NCP95 ILL ¥52,200
58510-52B20-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP95 F,U ¥51,900
58510-52B20-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
NCP95 ILL ¥51,900
58510-52B30-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
SCP90 ILL ¥52,700
58510-52B30-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥52,700
58510-52B40-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥52,200
58510-52B40-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
SCP90 ILL ¥52,200
58510-5D090-B0 note Carpet Assy, Front Floor, Front
2005-04 → 2007-08 ended
KSP90 B,F ¥49,000
58510-5D150-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
KSP90 B,F ¥49,600
58510-5D150-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
KSP90 ILL ¥49,600
58510-5D190-B0 note Carpet Assy, Front Floor, Front
2005-01 → 2007-08 ended
KSP90 B,F ¥50,500
58510-5D190-B0 note Carpet Assy, Front Floor, Front
2005-12 → 2007-08 ended
KSP90 ILL ¥50,500
58510-52A61-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 RS ¥49,600
58510-52A62-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-09 ended
NCP91,SCP90 RS ¥49,600
58510-52A71-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 RS ¥50,400
58510-52A72-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-09 ended
NCP91,SCP90 RS ¥50,400
58510-52B11-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP95 ILL ¥52,100
58510-52B11-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP95 F,U ¥52,100
58510-52B12-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP95 ILL ¥52,100
58510-52B12-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP95 F,U ¥52,100
58510-52B21-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP95 F,U ¥51,800
58510-52B21-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP95 ILL ¥51,800
58510-52B22-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP95 F,U ¥51,800
58510-52B22-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP95 ILL ¥51,800
58510-52B31-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 U ¥52,700
58510-52B31-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 ILL ¥52,700
58510-52B32-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP91,SCP90 ILL ¥52,700
58510-52B32-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP91,SCP90 U ¥52,700
58510-52B41-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 U ¥52,100
58510-52B41-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
NCP91,SCP90 ILL ¥52,100
58510-52B42-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP91,SCP90 ILL ¥52,100
58510-52B42-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
NCP91,SCP90 U ¥52,100
58510-5D091-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-08 ended
KSP90 B,F ¥48,900
58510-5D151-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
KSP90;SCP90 F ¥49,600
58510-5D152-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
KSP90;SCP90 F ¥49,600
58510-5D191-B0 note Carpet Assy, Front Floor, Front
2007-08 → 2008-05 ended
KSP90;SCP90 F ¥50,400
58510-5D192-B0 note Carpet Assy, Front Floor, Front
2008-06 → 2008-08 ended
KSP90;SCP90 F ¥50,400
58510-52A62-B0 note Carpet Assy, Front Floor, Front
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥49,600
58510-52A72-B0 note Carpet Assy, Front Floor, Front
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥50,400
58510-52B12-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP95 F,U ¥52,100
58510-52B12-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP95 ILL ¥52,100
58510-52B22-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP95 F,U ¥51,800
58510-52B22-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP95 ILL ¥51,800
58510-52B32-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥52,700
58510-52B32-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥52,700
58510-52B42-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥52,100
58510-52B42-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥52,100
58510-5D091-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-08 ended
KSP90 B,F ¥48,900
58510-5D152-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
KSP90;SCP90 F ¥49,600
58510-5D192-B0 note Carpet Assy, Front Floor, Front
2008-08 → 2010-12 ended
KSP90;SCP90 F ¥50,400
58511E — Clip(FOR FRONT FLOOR MAT)
90467-10023 Clip(FOR FRONT FLOOR MAT)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥70
90467-10023 Clip(FOR FRONT FLOOR MAT)
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥70
90467-10023 Clip(FOR FRONT FLOOR MAT)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥70
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2005-01 → 2007-08 ended
NCP95 F,U ¥130
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2005-12 → 2007-08 ended
NCP95 ILL ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2005-01 → 2007-08 ended
NCP91 RS ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2005-12 → 2007-08 ended
KSP90,SCP90 ILL ¥130
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-08 ended
NCP95 F,U ¥130
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-08 ended
NCP95 ILL ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,U ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥130
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2008-08 → 2010-12 ended
NCP95 F,U ¥130
90467-06016-P2 note Clip(FOR FRONT FLOOR CARPET)
2008-08 → 2010-12 ended
NCP95 ILL ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥130
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,U ¥130
58521B — Hook, Floor Carpet
58521-52040 Hook, Floor Carpet
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥390
58521-52040 Hook, Floor Carpet
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥390
58521-52040 Hook, Floor Carpet
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥390
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-05164-C0 note Clip(FOR FRONT FLOOR CARPET)
2005-04 → 2007-08 ended
KSP90 B,F ¥90
90467-05164-C0 note Clip(FOR FRONT FLOOR CARPET)
2007-08 → 2008-08 ended
KSP90 B,F ¥90
90467-05164-C0 note Clip(FOR FRONT FLOOR CARPET)
2008-08 → 2010-08 ended
KSP90 B,F ¥90
58533A — Cover, Floor Carpet, Center RH
58533-52040-B0 note Cover, Floor Carpet, Center RH
2005-04 → 2007-08 ended
KSP90 B,F ¥3,700
58533-52040-B0 note Cover, Floor Carpet, Center RH
2007-08 → 2008-08 ended
KSP90 B,F ¥3,700
58533-52040-B0 note Cover, Floor Carpet, Center RH
2008-08 → 2010-08 ended
KSP90 B,F ¥3,700
58533B — Clip(FOR FLOOR CARPET COVER)
90467-05165-B0 note Clip(FOR FLOOR CARPET COVER)
2005-04 → 2007-08 ended
KSP90 B,F ¥90
90467-05165-B0 note Clip(FOR FLOOR CARPET COVER)
2007-08 → 2008-08 ended
KSP90 B,F ¥90
90467-05165-B0 note Clip(FOR FLOOR CARPET COVER)
2008-08 → 2010-08 ended
KSP90 B,F ¥90
58534B — Clip(FOR FLOOR CARPET CENTER COVER)
90467-05161-B0 note Clip(FOR FLOOR CARPET CENTER COVER)
2005-04 → 2007-08 ended
KSP90 B,F ¥70
90467-05161-B0 note Clip(FOR FLOOR CARPET CENTER COVER)
2007-08 → 2008-08 ended
KSP90 B,F ¥70
90467-05161-B0 note Clip(FOR FLOOR CARPET CENTER COVER)
2008-08 → 2010-08 ended
KSP90 B,F ¥70
58534D — Cover, Floor Carpet, Center LH
58534-52020-B0 note Cover, Floor Carpet, Center LH
2005-04 → 2007-08 ended
KSP90 B,F ¥2,680
58534-52020-B0 note Cover, Floor Carpet, Center LH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,680
58534-52020-B0 note Cover, Floor Carpet, Center LH
2008-08 → 2010-08 ended
KSP90 B,F ¥2,680
58561C — Silencer, Front Floor, NO.1
58561-52130 Silencer, Front Floor, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,880
58561-52130 Silencer, Front Floor, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,880
58561-52130 Silencer, Front Floor, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,880
58561-52130 Silencer, Front Floor, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,880
58562C — Silencer, Front Floor, NO.2
58562-52090 Silencer, Front Floor, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,880
58562-52090 Silencer, Front Floor, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,880
58562-52090 Silencer, Front Floor, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,880
58562-52090 Silencer, Front Floor, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,880
58563Q — Silencer, Front Floor, NO.3
58563-52070 Silencer, Front Floor, NO.3
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥3,550
58563-52110 Silencer, Front Floor, NO.3
2005-01 → 2007-08 ended
NCP95 ¥4,370
58563-52070 Silencer, Front Floor, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,550
58563-52070 Silencer, Front Floor, NO.3
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥3,550
58563-52110 Silencer, Front Floor, NO.3
2007-08 → 2008-08 ended
NCP95 ¥4,370
58563-52070 Silencer, Front Floor, NO.3
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥3,550
58563-52110 Silencer, Front Floor, NO.3
2008-08 → 2010-12 ended
NCP95 ¥4,370
58564A — Silencer, Front Floor, NO.4
58564-52080 Silencer, Front Floor, NO.4
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥3,810
58564-52110 Silencer, Front Floor, NO.4
2005-01 → 2007-08 ended
NCP95 ¥4,370
58564-52080 Silencer, Front Floor, NO.4
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,810
58564-52080 Silencer, Front Floor, NO.4
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥3,810
58564-52110 Silencer, Front Floor, NO.4
2007-08 → 2008-08 ended
NCP95 ¥4,370
58564-52080 Silencer, Front Floor, NO.4
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥3,810
58564-52110 Silencer, Front Floor, NO.4
2008-08 → 2010-12 ended
NCP95 ¥4,370
58569D — Cover, Front Floor Caution Plate
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-06 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,460
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-06 → 2008-08 ended
NCP9#,SCP90 ILL ¥1,460
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-06 → 2008-09 ended
NCP91,SCP90 RS ¥1,460
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,460
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥1,460
58569-52020-B0 note Cover, Front Floor Caution Plate
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
