Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

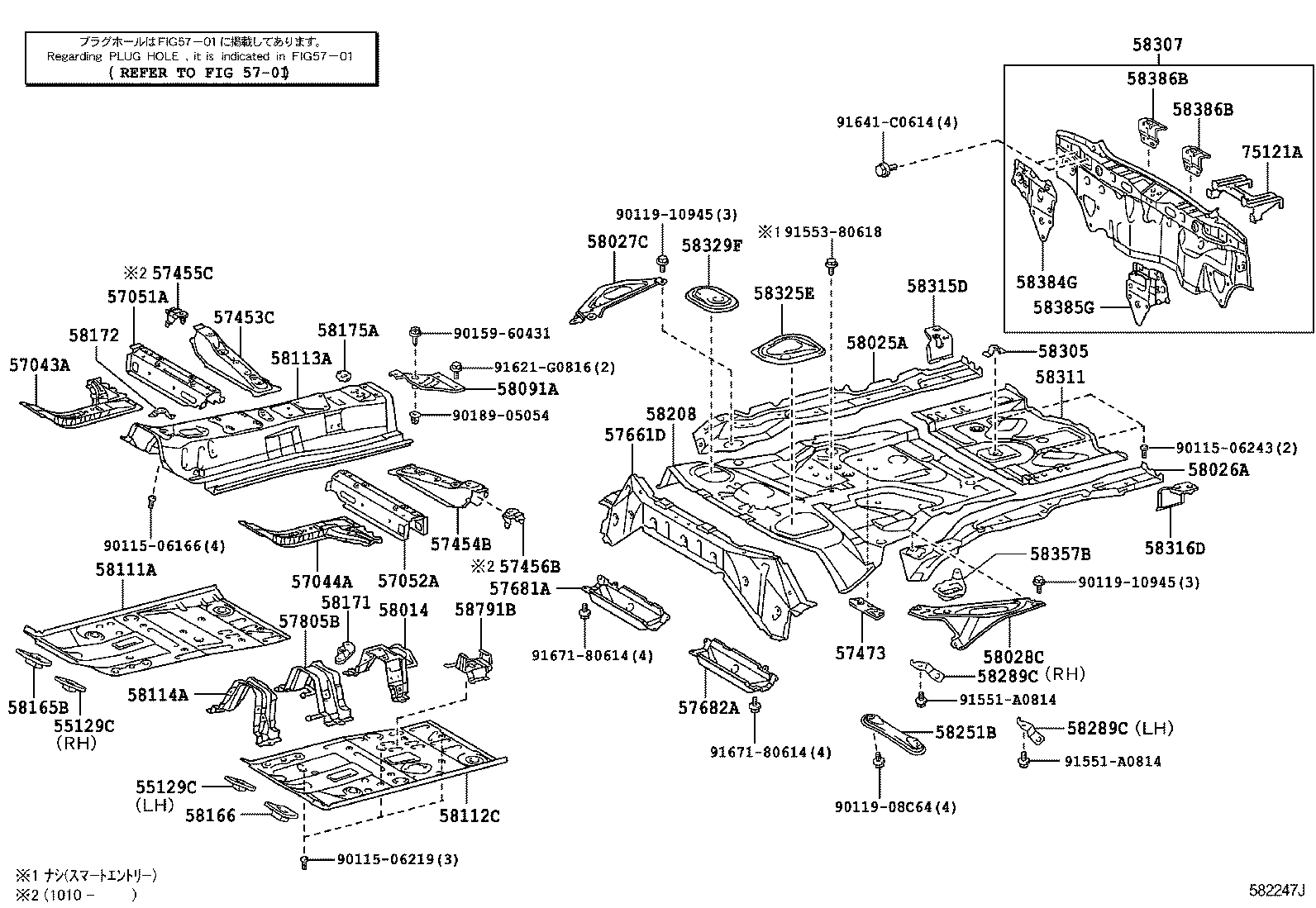

Exploded illustration 582247J 57051A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH (4 parts) 58172 — BRACKET, COMPUTER MOUNTING, NO.3 (7 parts) 57043A — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH (5 parts) 58111A — PAN, FRONT FLOOR, RH (4 parts) 55129C — COVER, DASH PANEL HOLE (10 parts) 55129C — COVER, DASH PANEL HOLE (10 parts) 58165B — COVER, FRONT FLOOR, RH (5 parts) 58166 — COVER, FRONT FLOOR, LH (5 parts) 58112C — PAN, FRONT FLOOR, LH (4 parts) 57044A — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH (5 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (7 parts) 57805B — REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH (9 parts) 58014 — PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER (4 parts) 58791B — CARRIER, JACK (4 parts) 58114A — REINFORCEMENT, FRONT FLOOR PANEL (9 parts) 57453C — MEMBER, FRONT FLOOR CROSS SIDE, RH (5 parts) 58175A — REINFORCEMENT, PARKING BRAKE BASE, NO.1 (4 parts) 58091A — REINFORCEMENT SET, BODY FITTING (3 parts) 58329F — COVER, REAR FLOOR SERVICE HOLE, NO.2 (3 parts) 58384G — GUSSET, LOWER BACK, UPPER RH (4 parts) 58385G — GUSSET, LOWER BACK, UPPER LH (4 parts) 75121A — BRACKET, REAR LICENSE PLATE (6 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (4 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (9 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (4 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (7 parts) 58208 — PAN, CENTER FLOOR (10 parts) 58025A — PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH (5 parts) 58026A — PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH (5 parts) 57473 — REINFORCEMENT, REAR SEATBACK HINGE (4 parts) 58289C — BRACKET, FLOOR BRAKE HOSE, REAR (16 parts) 58289C — BRACKET, FLOOR BRAKE HOSE, REAR (16 parts) 58251B — BRACE, FLOOR PANEL, FRONT (4 parts) 57682A — BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH (4 parts) 57681A — BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER (3 parts) 58315D — EXTENSION, REAR FLOOR PAN, RH (4 parts) 58311 — PAN, REAR FLOOR (8 parts) 58305 — BRACKET SUB-ASSY, SPARE WHEEL CLAMP (7 parts) 58316D — EXTENSION, REAR FLOOR PAN, LH (4 parts) 58113A — PANEL, FRONT FLOOR, CENTER (8 parts) 57454B — MEMBER, FRONT FLOOR CROSS SIDE, LH (5 parts) 57661D — MEMBER, REAR FLOOR CROSS, FRONT (3 parts) 58027C — PANEL SUB-ASSY, CENTER FLOOR SIDE, RH (3 parts) 58028C — PANEL SUB-ASSY, CENTER FLOOR SIDE, LH (3 parts) 57052A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH (4 parts) 9011506166 — not listed in this catalogue 9015960431 — not listed in this catalogue 9018905054 — not listed in this catalogue 91621G0816 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9011908C64 — not listed in this catalogue 9011506219 — not listed in this catalogue 9011910945 — not listed in this catalogue 91641C0614 — not listed in this catalogue 9011910945 — not listed in this catalogue 9011506243 — not listed in this catalogue 9155380618 — not listed in this catalogue 58357B — BRACKET, ACTUATOR COVER, NO.3 RH (7 parts) 91551A0814 — not listed in this catalogue 91551A0814 — not listed in this catalogue 5701 — not listed in this catalogue 57455C — BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH (1 parts) 57456B — BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH (1 parts)
582247J · 48 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
240 parts on this figure
Part number Description Fitment Price
55129C — Cover, Dash Panel Hole
55129-52050 note Cover, Dash Panel Hole
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,260
55139-52020 note Cover, Dash Panel Hole
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,260
55129-52050 note Cover, Dash Panel Hole
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,260
55129-52050 note Cover, Dash Panel Hole
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,260
55139-52020 note Cover, Dash Panel Hole
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,260
55139-52020 note Cover, Dash Panel Hole
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,260
55129-52050 note Cover, Dash Panel Hole
2008-08 → 2009-11 ended
KSP90,NCP9#,SCP90 ¥1,260
55129-52051 note Cover, Dash Panel Hole
2009-12 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥780
55139-52020 note Cover, Dash Panel Hole
2008-08 → 2009-11 ended
KSP90,NCP9#,SCP90 ¥1,260
55139-52021 note Cover, Dash Panel Hole
2009-12 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥780
57043A — Reinforcement Sub-assy, Front Side Member, Rear RH
57043-52020 Reinforcement Sub-assy, Front Side Member, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,100
57043-52020 Reinforcement Sub-assy, Front Side Member, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,100
57043-52020 Reinforcement Sub-assy, Front Side Member, Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,100
57043-52020 Reinforcement Sub-assy, Front Side Member, Rear RH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 ¥7,100
57043-52021 Reinforcement Sub-assy, Front Side Member, Rear RH
2010-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,100
57044A — Reinforcement Sub-assy, Front Side Member, Rear LH
57044-52040 Reinforcement Sub-assy, Front Side Member, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,100
57044-52040 Reinforcement Sub-assy, Front Side Member, Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,100
57044-52040 Reinforcement Sub-assy, Front Side Member, Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,100
57044-52040 Reinforcement Sub-assy, Front Side Member, Rear LH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 ¥7,100
57044-52041 Reinforcement Sub-assy, Front Side Member, Rear LH
2010-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,100
57051A — Member Sub-assy, Front Floor Cross, RH
57051-52010 Member Sub-assy, Front Floor Cross, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,700
57051-52010 Member Sub-assy, Front Floor Cross, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,700
57051-52010 Member Sub-assy, Front Floor Cross, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,700
57051-52010 Member Sub-assy, Front Floor Cross, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,700
57052A — Member Sub-assy, Front Floor Cross, LH
57052-52010 Member Sub-assy, Front Floor Cross, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,700
57052-52010 Member Sub-assy, Front Floor Cross, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,700
57052-52010 Member Sub-assy, Front Floor Cross, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,700
57052-52010 Member Sub-assy, Front Floor Cross, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,700
57453C — Member, Front Floor Cross Side, RH
57453-52020 Member, Front Floor Cross Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,500
57453-52020 Member, Front Floor Cross Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,500
57453-52020 Member, Front Floor Cross Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,500
57453-52020 Member, Front Floor Cross Side, RH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 ¥6,500
57453-52021 Member, Front Floor Cross Side, RH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,500
57454B — Member, Front Floor Cross Side, LH
57454-52010 Member, Front Floor Cross Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,500
57454-52010 Member, Front Floor Cross Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,500
57454-52010 Member, Front Floor Cross Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,500
57454-52010 Member, Front Floor Cross Side, LH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 ¥6,500
57454-52011 Member, Front Floor Cross Side, LH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,500
57455C — Bracket, Front Seat Mounting, Outside RH
57455-52040 Bracket, Front Seat Mounting, Outside RH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥550
57456B — Bracket, Front Seat Mounting, Outside LH
57456-52040 Bracket, Front Seat Mounting, Outside LH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥550
57473 — Reinforcement, Rear Seatback Hinge
57473-52020 Reinforcement, Rear Seatback Hinge
2005-01 → 2006-06 ended
NCP95 ¥2,120
57473-52021 Reinforcement, Rear Seatback Hinge
2006-07 → 2007-08 ended
NCP95 ¥1,320
57473-52021 Reinforcement, Rear Seatback Hinge
2007-08 → 2008-08 ended
NCP95 ¥1,320
57473-52021 Reinforcement, Rear Seatback Hinge
2008-08 → 2010-12 ended
NCP95 ¥1,320
57661D — Member, Rear Floor Cross, Front
57068-52030 Member, Rear Floor Cross, Front
2005-01 → 2007-08 ended
NCP95 ¥10,600
57068-52030 Member, Rear Floor Cross, Front
2007-08 → 2008-08 ended
NCP95 ¥10,600
57068-52030 Member, Rear Floor Cross, Front
2008-08 → 2010-12 ended
NCP95 ¥10,600
57681A — Brace, Rear Floor NO.2 Crossmember, Outer
57681-52030 Brace, Rear Floor NO.2 Crossmember, Outer
2005-01 → 2007-08 ended
NCP95 ¥2,470
57681-52030 Brace, Rear Floor NO.2 Crossmember, Outer
2007-08 → 2008-08 ended
NCP95 ¥2,470
57681-52030 Brace, Rear Floor NO.2 Crossmember, Outer
2008-08 → 2010-12 ended
NCP95 ¥2,470
57682A — Brace, Rear Floor NO.2 Crossmember, Outer LH
57682-52010 Brace, Rear Floor NO.2 Crossmember, Outer LH
2005-01 → 2007-08 ended
NCP95 ¥3,920
57682-52010 Brace, Rear Floor NO.2 Crossmember, Outer LH
2007-08 → 2008-08 ended
NCP95 ¥3,920
57682-52010 Brace, Rear Floor NO.2 Crossmember, Outer LH
2008-08 → 2009-03 ended
NCP95 ¥3,920
58105-52030 Brace, Rear Floor NO.2 Crossmember, Outer LH
2009-03 → 2010-12 ended
NCP95 ¥2,470
57805B — Reinforcement Sub-assy, Belt Anchor, RH
57805-52130 Reinforcement Sub-assy, Belt Anchor, RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥6,700
57805-52140 Reinforcement Sub-assy, Belt Anchor, RH
2005-01 → 2007-08 ended
NCP95 ¥6,700
57805-52130 Reinforcement Sub-assy, Belt Anchor, RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥6,700
57805-52130 Reinforcement Sub-assy, Belt Anchor, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,700
57805-52140 Reinforcement Sub-assy, Belt Anchor, RH
2007-08 → 2008-08 ended
NCP95 ¥6,700
57805-52130 Reinforcement Sub-assy, Belt Anchor, RH
2008-08 → 2010-09 ended
KSP90,NCP91,SCP90 ¥6,700
57805-52131 Reinforcement Sub-assy, Belt Anchor, RH
2010-10 → 2010-12 ended
KSP90,NCP91,SCP90 ¥4,120
57805-52140 Reinforcement Sub-assy, Belt Anchor, RH
2008-08 → 2010-09 ended
NCP95 ¥6,700
57805-52141 Reinforcement Sub-assy, Belt Anchor, RH
2010-10 → 2010-12 ended
NCP95 ¥4,120
58014 — Panel Sub-assy, Front Floor, Rear Lower
58014-52010 Panel Sub-assy, Front Floor, Rear Lower
2005-01 → 2007-08 ended
NCP95 ¥8,900
58014-52010 Panel Sub-assy, Front Floor, Rear Lower
2007-08 → 2008-08 ended
NCP95 ¥8,900
58014-52010 Panel Sub-assy, Front Floor, Rear Lower
2008-08 → 2010-09 ended
NCP95 ¥8,900
58014-52011 Panel Sub-assy, Front Floor, Rear Lower
2010-10 → 2010-12 ended
NCP95 ¥8,900
58025A — Panel Sub-assy, Floor Side Rail, FR RH
58025-52010 Panel Sub-assy, Floor Side Rail, FR RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,800
58025-52010 Panel Sub-assy, Floor Side Rail, FR RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,800
58025-52010 Panel Sub-assy, Floor Side Rail, FR RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,800
58025-52010 Panel Sub-assy, Floor Side Rail, FR RH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 ¥6,800
58025-52060 Panel Sub-assy, Floor Side Rail, FR RH
2010-11 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥8,200
58026A — Panel Sub-assy, Floor Side Rail, FR LH
58026-52010 Panel Sub-assy, Floor Side Rail, FR LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,800
58026-52010 Panel Sub-assy, Floor Side Rail, FR LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,800
58026-52010 Panel Sub-assy, Floor Side Rail, FR LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,800
58026-52010 Panel Sub-assy, Floor Side Rail, FR LH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 ¥6,800
58026-52090 Panel Sub-assy, Floor Side Rail, FR LH
2010-11 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥8,200
58027C — Panel Sub-assy, Center Floor Side, RH
58027-52020 Panel Sub-assy, Center Floor Side, RH
2005-01 → 2007-08 ended
NCP95 ¥2,300
58027-52020 Panel Sub-assy, Center Floor Side, RH
2007-08 → 2008-08 ended
NCP95 ¥2,300
58027-52020 Panel Sub-assy, Center Floor Side, RH
2008-08 → 2010-12 ended
NCP95 ¥2,300
58028C — Panel Sub-assy, Center Floor Side, LH
58028-52010 Panel Sub-assy, Center Floor Side, LH
2005-01 → 2007-08 ended
NCP95 ¥2,300
58028-52010 Panel Sub-assy, Center Floor Side, LH
2007-08 → 2008-08 ended
NCP95 ¥2,300
58028-52010 Panel Sub-assy, Center Floor Side, LH
2008-08 → 2010-12 ended
NCP95 ¥2,300
58091A — Reinforcement Set, Body Fitting
58091-52030 Reinforcement Set, Body Fitting
2005-01 → 2007-08 ended
NCP95 ¥2,330
58091-52030 Reinforcement Set, Body Fitting
2007-08 → 2008-08 ended
NCP95 ¥2,330
58091-52030 Reinforcement Set, Body Fitting
2008-08 → 2010-12 ended
NCP95 ¥2,330
58111A — Pan, Front Floor, RH
58111-52160 Pan, Front Floor, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥18,400
58111-52160 Pan, Front Floor, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥18,400
58111-52160 Pan, Front Floor, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,400
58111-52160 Pan, Front Floor, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥18,400
58112C — Pan, Front Floor, LH
58112-52901 Pan, Front Floor, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥18,400
58112-52901 Pan, Front Floor, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥18,400
58112-52901 Pan, Front Floor, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,400
58112-52901 Pan, Front Floor, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥18,400
58113A — Panel, Front Floor, Center
58113-52901 Panel, Front Floor, Center
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥36,700
58113-52903 Panel, Front Floor, Center
2005-01 → 2006-07 ended
NCP95 ¥36,700
58113-52911 Panel, Front Floor, Center
2006-07 → 2007-08 ended
NCP95 ¥30,600
58113-52901 Panel, Front Floor, Center
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥36,700
58113-52901 Panel, Front Floor, Center
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥36,700
58113-52911 Panel, Front Floor, Center
2007-08 → 2008-08 ended
NCP95 ¥30,600
58113-52901 Panel, Front Floor, Center
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥36,700
58113-52911 Panel, Front Floor, Center
2008-08 → 2010-12 ended
NCP95 ¥30,600
58114A — Reinforcement, Front Floor Panel
58114-52070 Reinforcement, Front Floor Panel
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥4,350
58114-52080 Reinforcement, Front Floor Panel
2005-01 → 2007-08 ended
NCP95 ¥4,500
58114-52070 Reinforcement, Front Floor Panel
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,350
58114-52070 Reinforcement, Front Floor Panel
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥4,350
58114-52080 Reinforcement, Front Floor Panel
2007-08 → 2008-08 ended
NCP95 ¥4,500
58114-52070 Reinforcement, Front Floor Panel
2008-08 → 2010-09 ended
KSP90,NCP91,SCP90 ¥4,350
58114-52071 Reinforcement, Front Floor Panel
2010-10 → 2010-12 ended
KSP90,NCP91,SCP90 ¥2,740
58114-52080 Reinforcement, Front Floor Panel
2008-08 → 2010-09 ended
NCP95 ¥4,500
58114-52081 Reinforcement, Front Floor Panel
2010-10 → 2010-12 ended
NCP95 ¥2,820
58165B — Cover, Front Floor, RH
58165-52010 Cover, Front Floor, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,780
58165-52010 Cover, Front Floor, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,780
58165-52010 Cover, Front Floor, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,780
58165-52010 Cover, Front Floor, RH
2008-08 → 2009-11 ended
KSP90,NCP9#,SCP90 ¥1,780
58165-52011 Cover, Front Floor, RH
2009-12 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,110
58166 — Cover, Front Floor, LH
58166-52010 Cover, Front Floor, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,780
58166-52010 Cover, Front Floor, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,780
58166-52010 Cover, Front Floor, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,780
58166-52010 Cover, Front Floor, LH
2008-08 → 2009-11 ended
KSP90,NCP9#,SCP90 ¥1,780
58166-52011 Cover, Front Floor, LH
2009-12 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,110
58171 — Reinforcement, Parking Brake Base
58171-52090 Reinforcement, Parking Brake Base
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥840
58171-52120 Reinforcement, Parking Brake Base
2005-01 → 2007-08 ended
NCP95 ¥840
58171-52090 Reinforcement, Parking Brake Base
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥840
58171-52090 Reinforcement, Parking Brake Base
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥840
58171-52120 Reinforcement, Parking Brake Base
2007-08 → 2008-08 ended
NCP95 ¥840
58171-52090 Reinforcement, Parking Brake Base
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥840
58171-52120 Reinforcement, Parking Brake Base
2008-08 → 2010-12 ended
NCP95 ¥840
58172 — Bracket, Computer Mounting, NO.3
58172-52020 Bracket, Computer Mounting, NO.3
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥500
58172-52030 Bracket, Computer Mounting, NO.3
2005-01 → 2007-08 ended
NCP95 ¥400
58172-52020 Bracket, Computer Mounting, NO.3
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥500
58172-52020 Bracket, Computer Mounting, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
58172-52030 Bracket, Computer Mounting, NO.3
2007-08 → 2008-08 ended
NCP95 ¥400
58172-52020 Bracket, Computer Mounting, NO.3
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥500
58172-52030 Bracket, Computer Mounting, NO.3
2008-08 → 2010-12 ended
NCP95 ¥400
58175A — Reinforcement, Parking Brake Base, NO.1
58175-52020 Reinforcement, Parking Brake Base, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥220
58175-52020 Reinforcement, Parking Brake Base, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥220
58175-52020 Reinforcement, Parking Brake Base, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥220
58175-52020 Reinforcement, Parking Brake Base, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥220
58208 — Pan, Center Floor
58211-52170 Pan, Center Floor
2005-01 → 2007-08 ended
NCP95 ¥14,500
58211-52180 Pan, Center Floor
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥22,900
58211-52190 Pan, Center Floor
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥22,900
58211-52170 Pan, Center Floor
2007-08 → 2008-08 ended
NCP95 ¥14,500
58211-52180 Pan, Center Floor
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥22,900
58211-52190 Pan, Center Floor
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥22,900
58211-52190 Pan, Center Floor
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,900
58211-52170 Pan, Center Floor
2008-08 → 2010-12 ended
NCP95 ¥14,500
58211-52180 Pan, Center Floor
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥22,900
58211-52190 Pan, Center Floor
2008-08 → 2010-12 ended
KSP90;NCP91,SCP90 F,RS ¥22,900
58251B — Brace, Floor Panel, Front
58251-52020 Brace, Floor Panel, Front
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥840
58251-52020 Brace, Floor Panel, Front
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥840
58251-52020 Brace, Floor Panel, Front
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥840
58251-52020 Brace, Floor Panel, Front
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥840
58289C — Bracket, Floor Brake Hose, Rear
58289-52030 note Bracket, Floor Brake Hose, Rear
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥820
58289-52040 note Bracket, Floor Brake Hose, Rear
2005-01 → 2007-08 ended
NCP95 ¥380
58299-52060 note Bracket, Floor Brake Hose, Rear
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥820
58299-52070 note Bracket, Floor Brake Hose, Rear
2005-01 → 2007-08 ended
NCP95 ¥510
58289-52030 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥820
58289-52030 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
58289-52040 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-08 ended
NCP95 ¥380
58299-52060 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥820
58299-52060 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
58299-52070 note Bracket, Floor Brake Hose, Rear
2007-08 → 2008-08 ended
NCP95 ¥510
58289-52030 note Bracket, Floor Brake Hose, Rear
2008-08 → 2010-09 ended
KSP90,NCP91,SCP90 ¥820
58289-52040 note Bracket, Floor Brake Hose, Rear
2008-08 → 2010-12 ended
NCP95 ¥380
58289-52080 note Bracket, Floor Brake Hose, Rear
2010-10 → 2010-12 ended
KSP90,NCP91,SCP90 ¥900
58299-52060 note Bracket, Floor Brake Hose, Rear
2008-08 → 2010-09 ended
KSP90,NCP91,SCP90 ¥820
58299-52070 note Bracket, Floor Brake Hose, Rear
2008-08 → 2010-12 ended
NCP95 ¥510
58299-52100 note Bracket, Floor Brake Hose, Rear
2010-10 → 2010-12 ended
KSP90,NCP91,SCP90 ¥940
58305 — Bracket Sub-assy, Spare Wheel Clamp
58351-33010 Bracket Sub-assy, Spare Wheel Clamp
2005-01 → 2005-04 ended
KSP90,NCP91,SCP90 ¥410
58351-33010 Bracket Sub-assy, Spare Wheel Clamp
2005-01 → 2005-05 ended
NCP95 ¥410
58351-52070 Bracket Sub-assy, Spare Wheel Clamp
2005-04 → 2007-08 ended
NCP95 ILL;KSP90,NCP91,SCP90 ¥500
58351-52070 Bracket Sub-assy, Spare Wheel Clamp
2005-05 → 2007-08 ended
NCP95 F,U ¥500
58351-52070 Bracket Sub-assy, Spare Wheel Clamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥500
58351-52070 Bracket Sub-assy, Spare Wheel Clamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥500
58351-52070 Bracket Sub-assy, Spare Wheel Clamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥500
58307 — Panel Sub-assy, Body Lower Back
58307-52400 Panel Sub-assy, Body Lower Back
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥20,800
58307-52410 Panel Sub-assy, Body Lower Back
2005-01 → 2007-08 ended
NCP91 RS ¥20,700
58307-52420 Panel Sub-assy, Body Lower Back
2005-01 → 2007-08 ended
NCP95 ¥20,800
58307-52410 Panel Sub-assy, Body Lower Back
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥20,700
58307-52530 Panel Sub-assy, Body Lower Back
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥20,700
58307-52540 Panel Sub-assy, Body Lower Back
2007-08 → 2008-08 ended
NCP95 ¥20,700
58307-52410 Panel Sub-assy, Body Lower Back
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥20,700
58307-52530 Panel Sub-assy, Body Lower Back
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥20,700
58307-52540 Panel Sub-assy, Body Lower Back
2008-08 → 2010-12 ended
NCP95 ¥20,700
58311 — Pan, Rear Floor
58311-52110 Pan, Rear Floor
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥15,300
58311-52190 Pan, Rear Floor
2005-01 → 2005-05 ended
NCP95 ¥8,800
58311-52191 Pan, Rear Floor
2005-05 → 2007-08 ended
NCP95 ¥7,500
58311-52110 Pan, Rear Floor
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥15,300
58311-52110 Pan, Rear Floor
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥15,300
58311-52191 Pan, Rear Floor
2007-08 → 2008-08 ended
NCP95 ¥7,500
58311-52110 Pan, Rear Floor
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥15,300
58311-52191 Pan, Rear Floor
2008-08 → 2010-12 ended
NCP95 ¥7,500
58315D — Extension, Rear Floor Pan, RH
58315-52160 Extension, Rear Floor Pan, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,640
58315-52160 Extension, Rear Floor Pan, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,640
58315-52160 Extension, Rear Floor Pan, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,640
58315-52160 Extension, Rear Floor Pan, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,640
58316D — Extension, Rear Floor Pan, LH
58316-52180 Extension, Rear Floor Pan, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,640
58316-52180 Extension, Rear Floor Pan, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,640
58316-52180 Extension, Rear Floor Pan, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,640
58316-52180 Extension, Rear Floor Pan, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,640
58325E — Cover, Rear Floor Service Hole
58325-52050 Cover, Rear Floor Service Hole
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥1,450
58325-52060 Cover, Rear Floor Service Hole
2005-01 → 2007-08 ended
NCP95 ¥1,450
58325-52050 Cover, Rear Floor Service Hole
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥1,450
58325-52050 Cover, Rear Floor Service Hole
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,450
58325-52060 Cover, Rear Floor Service Hole
2007-08 → 2008-08 ended
NCP95 ¥1,450
58325-52050 Cover, Rear Floor Service Hole
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥1,450
58325-52060 Cover, Rear Floor Service Hole
2008-08 → 2010-12 ended
NCP95 ¥1,450
58329F — Cover, Rear Floor Service Hole, NO.2
58329-52020 Cover, Rear Floor Service Hole, NO.2
2005-01 → 2007-08 ended
NCP95 ¥920
58329-52020 Cover, Rear Floor Service Hole, NO.2
2007-08 → 2008-08 ended
NCP95 ¥920
58329-52020 Cover, Rear Floor Service Hole, NO.2
2008-08 → 2010-12 ended
NCP95 ¥920
58357B — Bracket, Actuator Cover, NO.3 RH
58357-52030 Bracket, Actuator Cover, NO.3 RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥1,280
58357-52040 Bracket, Actuator Cover, NO.3 RH
2005-12 → 2007-08 ended
NCP95 ¥1,080
58357-52030 Bracket, Actuator Cover, NO.3 RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥1,280
58357-52030 Bracket, Actuator Cover, NO.3 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,280
58357-52040 Bracket, Actuator Cover, NO.3 RH
2007-08 → 2008-08 ended
NCP95 ¥1,080
58357-52030 Bracket, Actuator Cover, NO.3 RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥1,280
58357-52040 Bracket, Actuator Cover, NO.3 RH
2008-08 → 2010-12 ended
NCP95 ¥1,080
58384G — Gusset, Lower Back, Upper RH
58384-52080 Gusset, Lower Back, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
58384-52080 Gusset, Lower Back, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
58384-52080 Gusset, Lower Back, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
58384-52080 Gusset, Lower Back, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,700
58385G — Gusset, Lower Back, Upper LH
58385-52060 Gusset, Lower Back, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,650
58385-52060 Gusset, Lower Back, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,650
58385-52060 Gusset, Lower Back, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,650
58385-52060 Gusset, Lower Back, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,650
58386B — Bracket, Rear Bumper Cover, NO.2
58386-52040 Bracket, Rear Bumper Cover, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥820
58386-52040 Bracket, Rear Bumper Cover, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥820
58386-52040 Bracket, Rear Bumper Cover, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥820
58386-52040 Bracket, Rear Bumper Cover, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥820
58791B — Carrier, Jack
58791-52060 Carrier, Jack
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,310
58791-52060 Carrier, Jack
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,310
58791-52060 Carrier, Jack
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,310
58791-52060 Carrier, Jack
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,310
75121A — Bracket, Rear License Plate
75121-52070 Bracket, Rear License Plate
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,360
75121-52080 Bracket, Rear License Plate
2005-01 → 2007-08 ended
NCP91 RS ¥1,410
75121-52080 Bracket, Rear License Plate
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,410
75121-52100 Bracket, Rear License Plate
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,360
75121-52080 Bracket, Rear License Plate
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,410
75121-52100 Bracket, Rear License Plate
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
