Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

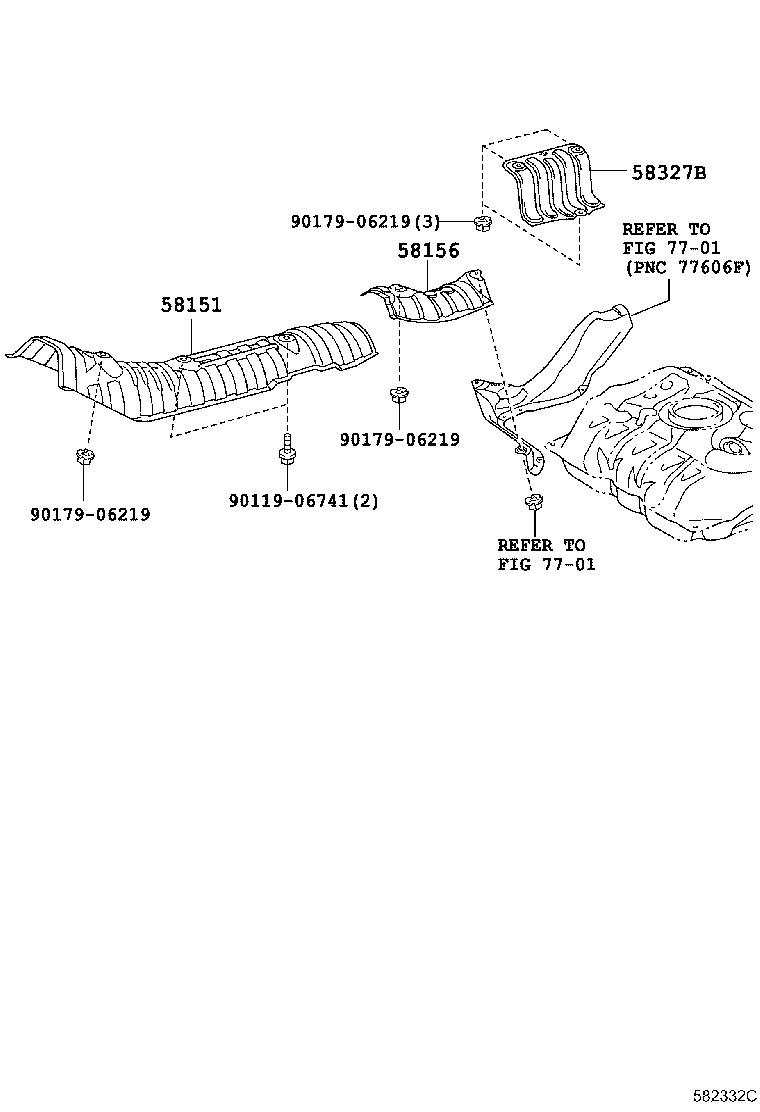

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-52060 |
Insulator, Front Floor Heat, NO.1
2005-01 → 2006-05
ended
|
NCP91 | ¥6,000 | |
| 58151-52061 |
Insulator, Front Floor Heat, NO.1
2006-06 → 2007-08
ended
|
NCP91 | ¥6,000 | |
| 58151-52070 |
Insulator, Front Floor Heat, NO.1
2005-01 → 2007-08
ended
|
NCP95 | ¥2,550 | |
| 58151-52061 |
Insulator, Front Floor Heat, NO.1
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥6,000 | |
| 58151-52061 |
Insulator, Front Floor Heat, NO.1
2007-08 → 2008-09
ended
|
NCP91 RS | ¥6,000 | |
| 58151-52070 |
Insulator, Front Floor Heat, NO.1
2007-08 → 2008-08
ended
|
NCP95 | ¥2,550 | |
| 58151-52061 |
Insulator, Front Floor Heat, NO.1
2008-08 → 2009-10
ended
|
NCP91 | ¥6,000 | |
| 58151-52062 |
Insulator, Front Floor Heat, NO.1
2009-11 → 2010-12
ended
|
NCP91 | ¥3,730 | |
| 58151-52070 |
Insulator, Front Floor Heat, NO.1
2008-08 → 2009-12
ended
|
NCP95 | ¥2,550 | |
| 58151-52071 |
Insulator, Front Floor Heat, NO.1
2010-01 → 2010-12
ended
|
NCP95 | ¥1,600 | |
| 58156 — Insulator, Front Floor Heat, NO.4 | ||||
| 58156-52010 |
Insulator, Front Floor Heat, NO.4
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,240 | |
| 58156-52010 |
Insulator, Front Floor Heat, NO.4
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,240 | |
| 58156-52010 |
Insulator, Front Floor Heat, NO.4
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,240 | |
| 58156-52010 |
Insulator, Front Floor Heat, NO.4
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,240 | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-52110 |
Insulator, Main Muffler Heat
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,620 | |
| 58327-52130 |
Insulator, Main Muffler Heat
2005-01 → 2007-08
ended
|
NCP95 | ¥2,860 | |
| 58327-52110 |
Insulator, Main Muffler Heat
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,620 | |
| 58327-52110 |
Insulator, Main Muffler Heat
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,620 | |
| 58327-52130 |
Insulator, Main Muffler Heat
2007-08 → 2007-12
ended
|
NCP95 | ¥2,860 | |
| 58327-52150 |
Insulator, Main Muffler Heat
2008-01 → 2008-08
ended
|
NCP95 | ¥2,690 | |
| 58327-52110 |
Insulator, Main Muffler Heat
2008-08 → 2009-12
ended
|
KSP90,NCP91,SCP90 | ¥1,620 | |
| 58327-52111 |
Insulator, Main Muffler Heat
2010-01 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,130 | |
| 58327-52150 |
Insulator, Main Muffler Heat
2008-08 → 2008-10
ended
|
NCP95 | ¥2,690 | |
| 58327-52151 |
Insulator, Main Muffler Heat
2008-11 → 2010-12
ended
|
NCP95 | ¥1,690 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
