Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

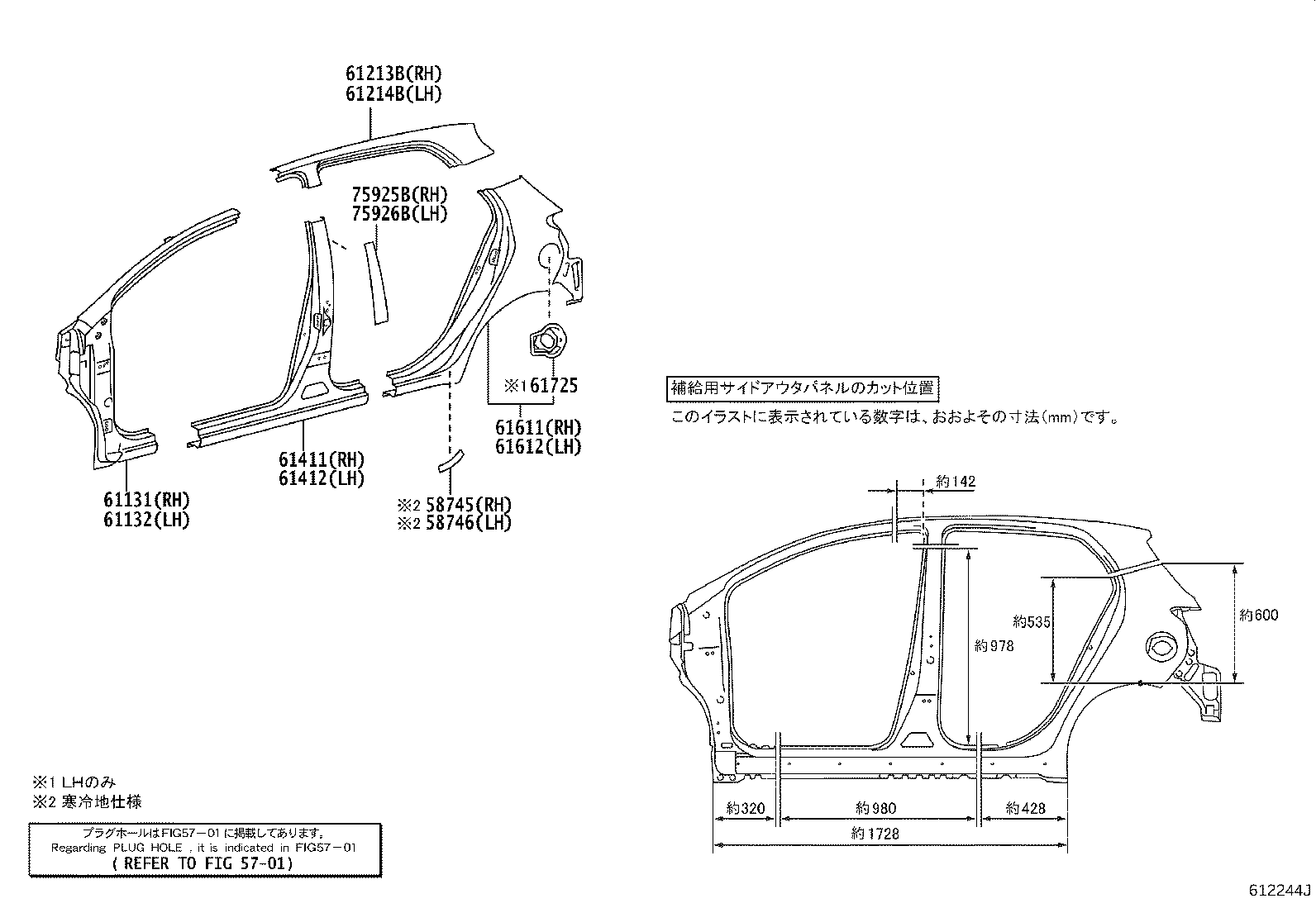

Exploded illustration 612244J 5701 — not listed in this catalogue 58745 — PROTECTOR, QUARTER PANEL, FRONT RH (12 parts) 58746 — PROTECTOR, QUARTER PANEL, FRONT LH (12 parts) 61725 — BOX, FUEL INLET (4 parts) 61131 — PILLAR, FRONT BODY, UPPER OUTER RH (6 parts) 61132 — PILLAR, FRONT BODY, UPPER OUTER LH (6 parts) 61213B — RAIL, ROOF SIDE, OUTER NO.2 RH (5 parts) 61214B — RAIL, ROOF SIDE, OUTER NO.2 LH (5 parts) 61411 — PANEL, ROCKER, OUTER RH (6 parts) 61412 — PANEL, ROCKER, OUTER LH (6 parts) 61611 — PANEL, QUARTER, RH (8 parts) 61612 — PANEL, QUARTER, LH (8 parts) 75925B — TAPE, BLACK OUT, NO.3 RH (4 parts) 75926B — TAPE, BLACK OUT, NO.3 LH (4 parts)
612244J · 13 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
58745 — Protector, Quarter Panel, Front RH
58741-52150 note Protector, Quarter Panel, Front RH
2006-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,520
58741-52150 note Protector, Quarter Panel, Front RH
2006-07 → 2007-08 ended
KSP90 B,F ¥1,520
58741-52280 note Protector, Quarter Panel, Front RH
2006-07 → 2007-08 ended
NCP91 RS ¥1,520
58745-52040 note Protector, Quarter Panel, Front RH
2005-01 → 2006-06 ended
KSP90 B,F ¥810
58745-52040 note Protector, Quarter Panel, Front RH
2005-01 → 2006-06 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥810
58745-52070 note Protector, Quarter Panel, Front RH
2005-01 → 2006-06 ended
NCP91 RS ¥810
58741-52150 note Protector, Quarter Panel, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,520
58741-52150 note Protector, Quarter Panel, Front RH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,520
58741-52280 note Protector, Quarter Panel, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,520
58741-52150 note Protector, Quarter Panel, Front RH
2008-08 → 2010-08 ended
KSP90 B,F ¥1,520
58741-52150 note Protector, Quarter Panel, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,520
58741-52280 note Protector, Quarter Panel, Front RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,520
58746 — Protector, Quarter Panel, Front LH
58742-52150 note Protector, Quarter Panel, Front LH
2006-07 → 2007-08 ended
KSP90 B,F ¥1,520
58742-52150 note Protector, Quarter Panel, Front LH
2006-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,520
58742-52290 note Protector, Quarter Panel, Front LH
2006-07 → 2007-08 ended
NCP91 RS ¥1,520
58746-52050 note Protector, Quarter Panel, Front LH
2005-01 → 2006-06 ended
KSP90 B,F ¥810
58746-52050 note Protector, Quarter Panel, Front LH
2005-01 → 2006-06 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥810
58746-52080 note Protector, Quarter Panel, Front LH
2005-01 → 2006-06 ended
NCP91 RS ¥810
58742-52150 note Protector, Quarter Panel, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,520
58742-52150 note Protector, Quarter Panel, Front LH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,520
58742-52290 note Protector, Quarter Panel, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,520
58742-52150 note Protector, Quarter Panel, Front LH
2008-08 → 2010-08 ended
KSP90 B,F ¥1,520
58742-52150 note Protector, Quarter Panel, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,520
58742-52290 note Protector, Quarter Panel, Front LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,520
61131 — Pillar, Front Body, Upper Outer RH
61131-52170 Pillar, Front Body, Upper Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥22,800
61131-52200 Pillar, Front Body, Upper Outer RH
2005-01 → 2007-08 ended
NCP91 RS ¥22,800
61131-52170 Pillar, Front Body, Upper Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥22,800
61131-52200 Pillar, Front Body, Upper Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,800
61131-52170 Pillar, Front Body, Upper Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥22,800
61131-52200 Pillar, Front Body, Upper Outer RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥22,800
61132 — Pillar, Front Body, Upper Outer LH
61132-52110 Pillar, Front Body, Upper Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥22,800
61132-52180 Pillar, Front Body, Upper Outer LH
2005-01 → 2007-08 ended
NCP91 RS ¥22,800
61132-52110 Pillar, Front Body, Upper Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥22,800
61132-52180 Pillar, Front Body, Upper Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,800
61132-52110 Pillar, Front Body, Upper Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥22,800
61132-52180 Pillar, Front Body, Upper Outer LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥22,800
61213B — Rail, Roof Side, Outer NO.2 RH
61213-52090 Rail, Roof Side, Outer NO.2 RH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 ¥5,800
61213-52150 Rail, Roof Side, Outer NO.2 RH
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,300
61213-52150 Rail, Roof Side, Outer NO.2 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
61213-52150 Rail, Roof Side, Outer NO.2 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
61213-52150 Rail, Roof Side, Outer NO.2 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,300
61214B — Rail, Roof Side, Outer NO.2 LH
61214-52090 Rail, Roof Side, Outer NO.2 LH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 ¥5,800
61214-52150 Rail, Roof Side, Outer NO.2 LH
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,300
61214-52150 Rail, Roof Side, Outer NO.2 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
61214-52150 Rail, Roof Side, Outer NO.2 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
61214-52150 Rail, Roof Side, Outer NO.2 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,300
61411 — Panel, Rocker, Outer RH
61411-52160 Panel, Rocker, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥21,700
61411-52180 Panel, Rocker, Outer RH
2005-01 → 2007-08 ended
NCP91 RS ¥21,700
61411-52160 Panel, Rocker, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,700
61411-52180 Panel, Rocker, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥21,700
61411-52160 Panel, Rocker, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,700
61411-52180 Panel, Rocker, Outer RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥21,700
61412 — Panel, Rocker, Outer LH
61412-52170 Panel, Rocker, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥21,700
61412-52190 Panel, Rocker, Outer LH
2005-01 → 2007-08 ended
NCP91 RS ¥21,700
61412-52170 Panel, Rocker, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,700
61412-52190 Panel, Rocker, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥21,700
61412-52170 Panel, Rocker, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,700
61412-52190 Panel, Rocker, Outer LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥21,700
61611 — Panel, Quarter, RH
61601-52270 Panel, Quarter, RH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥45,100
61601-52330 Panel, Quarter, RH
2005-01 → 2007-01 ended
NCP91 RS ¥45,100
61601-52440 Panel, Quarter, RH
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥45,000
61601-52450 Panel, Quarter, RH
2007-02 → 2007-08 ended
NCP91 RS ¥45,000
61601-52440 Panel, Quarter, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥45,000
61601-52450 Panel, Quarter, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥45,000
61601-52440 Panel, Quarter, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥45,000
61601-52450 Panel, Quarter, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥45,000
61612 — Panel, Quarter, LH
61602-52290 Panel, Quarter, LH
2005-01 → 2007-01 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥45,100
61602-52360 Panel, Quarter, LH
2005-01 → 2007-01 ended
NCP91 RS ¥45,100
61602-52470 Panel, Quarter, LH
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥45,000
61602-52480 Panel, Quarter, LH
2007-02 → 2007-08 ended
NCP91 RS ¥45,000
61602-52470 Panel, Quarter, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥45,000
61602-52480 Panel, Quarter, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥45,000
61602-52470 Panel, Quarter, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥45,000
61602-52480 Panel, Quarter, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥45,000
61725 — Box, Fuel Inlet
61725-52080 Box, Fuel Inlet
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,480
61725-52080 Box, Fuel Inlet
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,480
61725-52080 Box, Fuel Inlet
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,480
61725-52080 Box, Fuel Inlet
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,480
75925B — Tape, Black Out, NO.3 RH
75925-52060 Tape, Black Out, NO.3 RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥1,270
75925-52061 Tape, Black Out, NO.3 RH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,270
75925-52061 Tape, Black Out, NO.3 RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,270
75925-52061 Tape, Black Out, NO.3 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,270
75926B — Tape, Black Out, NO.3 LH
75926-52060 Tape, Black Out, NO.3 LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥1,270
75926-52061 Tape, Black Out, NO.3 LH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,270
75926-52061 Tape, Black Out, NO.3 LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,270
75926-52061 Tape, Black Out, NO.3 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,270
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
