Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

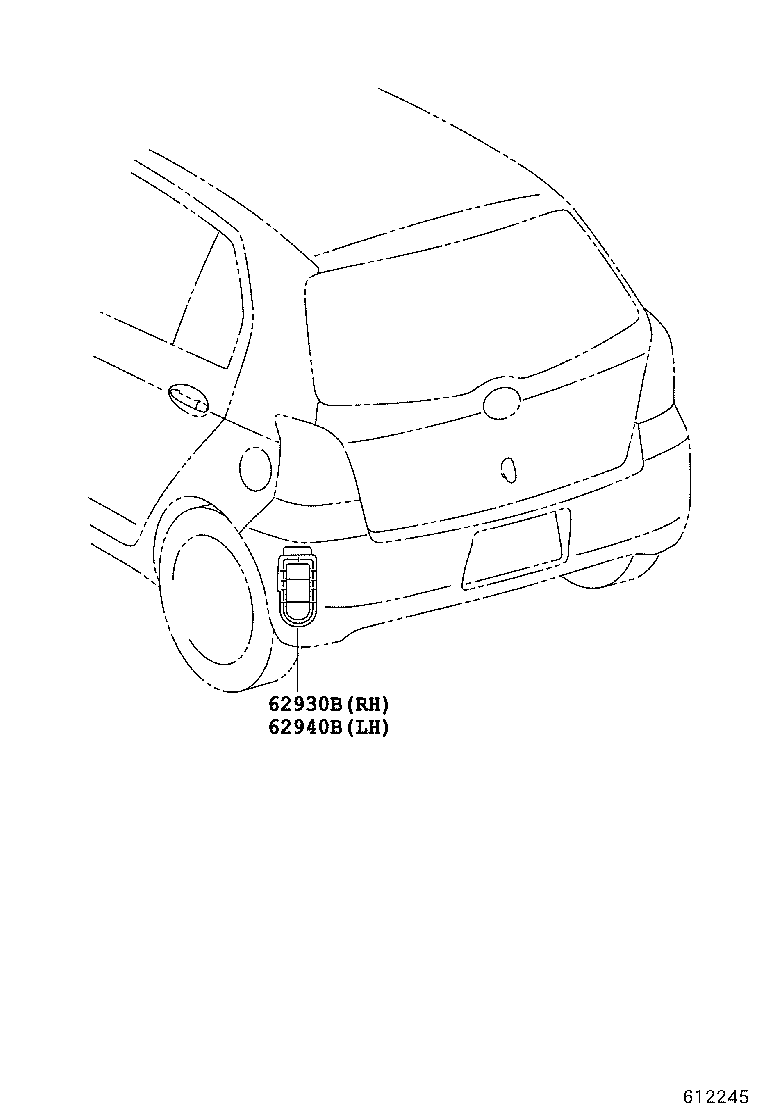

Exploded illustration 612245 62940B — DUCT ASSY, QUARTER VENT, LH (4 parts) 62930B — DUCT ASSY, QUARTER VENT, RH (4 parts)
612245 · 2 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
62930B — Duct Assy, Quarter Vent, RH
62930-52010 Duct Assy, Quarter Vent, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,280
62930-52010 Duct Assy, Quarter Vent, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,280
62930-52010 Duct Assy, Quarter Vent, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,280
62930-52010 Duct Assy, Quarter Vent, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,280
62940B — Duct Assy, Quarter Vent, LH
62930-52010 Duct Assy, Quarter Vent, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,280
62930-52010 Duct Assy, Quarter Vent, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,280
62930-52010 Duct Assy, Quarter Vent, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,280
62930-52010 Duct Assy, Quarter Vent, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
