Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

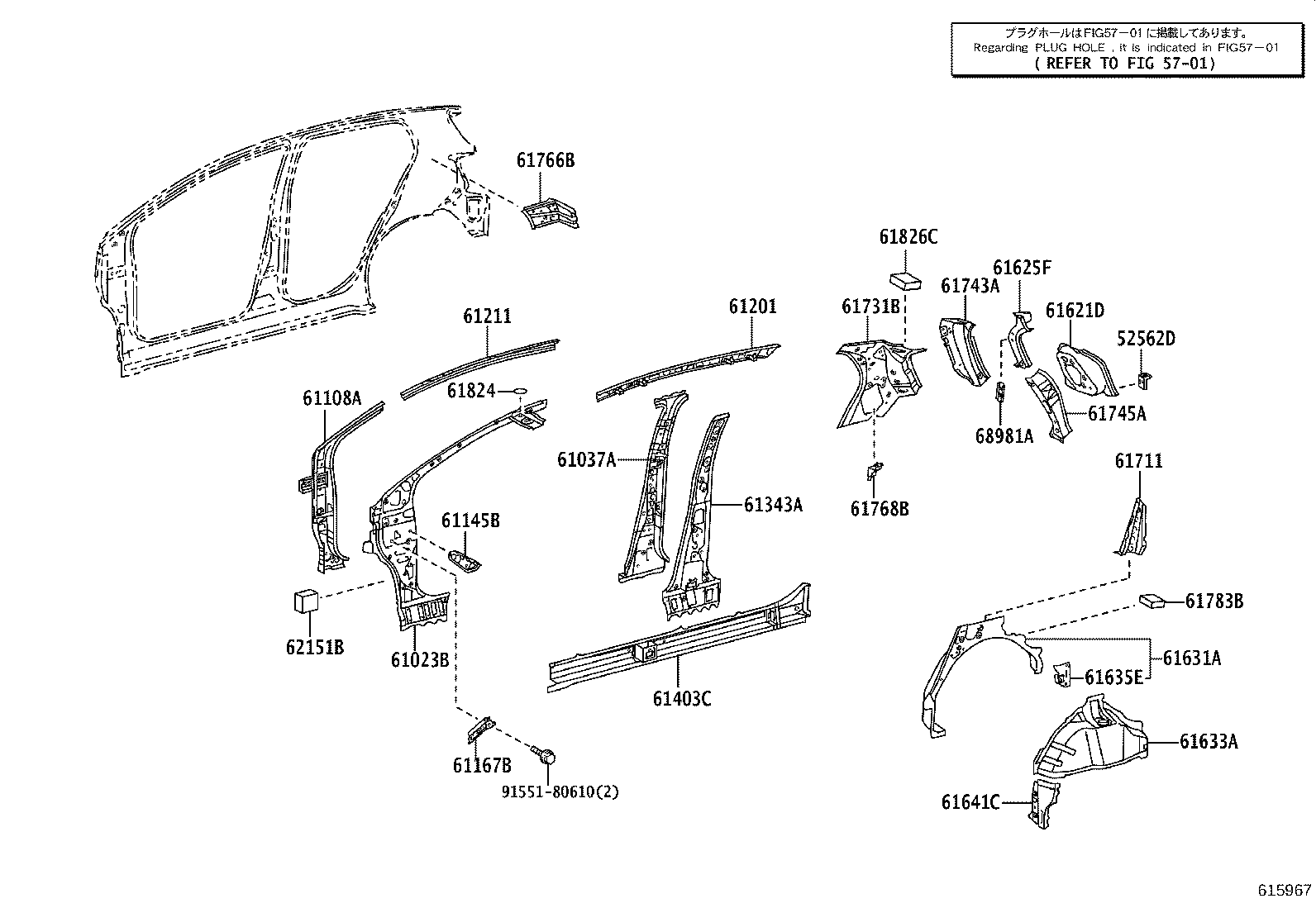

Exploded illustration 615967 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (4 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (4 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (4 parts) 61167B — BRACE, FRONT BODY PILLAR, LOWER (4 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (4 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (4 parts) 61343A — PILLAR, CENTER BODY, INNER RH (5 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (4 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (4 parts) 52562D — RETAINER, REAR BUMPER, UPPER SIDE, RH (4 parts) 61625F — EXTENSION, QUARTER PANEL, UPPER RH (4 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (4 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (4 parts) 61641C — GUSSET, QUARTER WHEEL HOUSE, FRONT RH (4 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (4 parts) 61731B — PANEL, ROOF SIDE, INNER RH (4 parts) 61743A — REINFORCEMENT, BACK DOOR OPENING SIDE, RH (5 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (4 parts) 61766B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH (4 parts) 61768B — REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH (5 parts) 61783B — PAD, REAR WHEEL OPENING EXTENSION, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (5 parts) 61826C — PAD, NOISE SHUTTER, NO.3 (4 parts) 62151B — PAD, COWL SIDE SILENCER (4 parts) 68981A — RETAINER, BACK DOOR STAY, RH (4 parts) 9155180610 — not listed in this catalogue 61635E — EXTENSION, QUARTER WHEEL HOUSE, RH (4 parts) 5701 — not listed in this catalogue 61145B — GUSSET, FRONT BODY PILLAR, LOWER RH (4 parts)
615967 · 27 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
52562D — Retainer, Rear Bumper, Upper Side, RH
52562-52030 Retainer, Rear Bumper, Upper Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-52120 Pillar Sub-assy, Front Body, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥21,000
61023-52120 Pillar Sub-assy, Front Body, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,000
61023-52120 Pillar Sub-assy, Front Body, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥21,000
61023-52120 Pillar Sub-assy, Front Body, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥21,000
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-52904 Reinforcement Sub-assy, Center Body Pillar, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥34,200
61037-52904 Reinforcement Sub-assy, Center Body Pillar, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥34,200
61037-52904 Reinforcement Sub-assy, Center Body Pillar, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥34,200
61037-52904 Reinforcement Sub-assy, Center Body Pillar, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥34,200
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-52120 Reinforce Sub-assy, Front Body Pillar, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥17,100
61108-52120 Reinforce Sub-assy, Front Body Pillar, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,100
61108-52120 Reinforce Sub-assy, Front Body Pillar, Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥17,100
61108-52120 Reinforce Sub-assy, Front Body Pillar, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥17,100
61145B — Gusset, Front Body Pillar, Lower RH
61145-52010 Gusset, Front Body Pillar, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,590
61145-52010 Gusset, Front Body Pillar, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,590
61145-52010 Gusset, Front Body Pillar, Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,590
61145-52010 Gusset, Front Body Pillar, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,590
61167B — Brace, Front Body Pillar, Lower
61167-52010 Brace, Front Body Pillar, Lower
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥540
61167-52010 Brace, Front Body Pillar, Lower
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥540
61167-52010 Brace, Front Body Pillar, Lower
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥540
61167-52010 Brace, Front Body Pillar, Lower
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥540
61201 — Rail Sub-assy, Roof Side, RH
61201-52040 Rail Sub-assy, Roof Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,000
61201-52040 Rail Sub-assy, Roof Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,000
61201-52040 Rail Sub-assy, Roof Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,000
61201-52040 Rail Sub-assy, Roof Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥13,000
61211 — Rail, Roof Side, Outer RH
61211-52110 Rail, Roof Side, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,300
61211-52110 Rail, Roof Side, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
61211-52110 Rail, Roof Side, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
61211-52110 Rail, Roof Side, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,300
61343A — Pillar, Center Body, Inner RH
61032-52030 Pillar, Center Body, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,100
61032-52030 Pillar, Center Body, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,100
61032-52030 Pillar, Center Body, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,100
61032-52030 Pillar, Center Body, Inner RH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 ¥10,100
61032-52031 Pillar, Center Body, Inner RH
2010-06 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,100
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-52140 Reinforce Sub-assy, Rocker, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥19,800
61403-52140 Reinforce Sub-assy, Rocker, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥19,800
61403-52140 Reinforce Sub-assy, Rocker, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥19,800
61403-52140 Reinforce Sub-assy, Rocker, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥19,800
61621D — Trough, Back Door Opening, RH
61621-52110 Trough, Back Door Opening, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,980
61621-52110 Trough, Back Door Opening, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,980
61621-52110 Trough, Back Door Opening, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,980
61621-52110 Trough, Back Door Opening, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,980
61625F — Extension, Quarter Panel, Upper RH
61625-52110 Extension, Quarter Panel, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,070
61625-52110 Extension, Quarter Panel, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,070
61625-52110 Extension, Quarter Panel, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,070
61625-52110 Extension, Quarter Panel, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,070
61631A — Panel, Quarter Wheel House, Outer RH
61631-52902 Panel, Quarter Wheel House, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,500
61631-52902 Panel, Quarter Wheel House, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,500
61631-52902 Panel, Quarter Wheel House, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,500
61631-52902 Panel, Quarter Wheel House, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,500
61633A — Panel, Quarter Wheel House, Inner RH
61607-52330 Panel, Quarter Wheel House, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,400
61607-52330 Panel, Quarter Wheel House, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,400
61607-52330 Panel, Quarter Wheel House, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,400
61607-52330 Panel, Quarter Wheel House, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,400
61635E — Extension, Quarter Wheel House, RH
61635-52060 Extension, Quarter Wheel House, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,130
61635-52060 Extension, Quarter Wheel House, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,130
61635-52060 Extension, Quarter Wheel House, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,130
61635-52060 Extension, Quarter Wheel House, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,130
61641C — Gusset, Quarter Wheel House, Front RH
61641-52100 Gusset, Quarter Wheel House, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,390
61641-52100 Gusset, Quarter Wheel House, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,390
61641-52100 Gusset, Quarter Wheel House, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,390
61641-52100 Gusset, Quarter Wheel House, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,390
61711 — Panel, Roof Side, Outer RH
61711-52130 Panel, Roof Side, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,330
61711-52130 Panel, Roof Side, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,330
61711-52130 Panel, Roof Side, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,330
61711-52130 Panel, Roof Side, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,330
61731B — Panel, Roof Side, Inner RH
61731-52180 Panel, Roof Side, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥12,100
61731-52180 Panel, Roof Side, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥12,100
61731-52180 Panel, Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥12,100
61731-52180 Panel, Roof Side, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥12,100
61743A — Reinforcement, Back Door Opening Side, RH
61743-52070 Reinforcement, Back Door Opening Side, RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥7,200
61743-52071 Reinforcement, Back Door Opening Side, RH
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,200
61743-52071 Reinforcement, Back Door Opening Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,200
61743-52071 Reinforcement, Back Door Opening Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,200
61743-52071 Reinforcement, Back Door Opening Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,200
61745A — Reinforcement, Back Door Opening, Lower RH
61745-52080 Reinforcement, Back Door Opening, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,730
61745-52080 Reinforcement, Back Door Opening, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,730
61745-52080 Reinforcement, Back Door Opening, Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,730
61745-52080 Reinforcement, Back Door Opening, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,730
61766B — Reinforcement, Belt Anchor TO Roof Side, Inner RH
61766-52100 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,890
61766-52100 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,890
61766-52100 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,890
61766-52100 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,890
61768B — Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61768-52150 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 ¥1,430
61768-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,430
61768-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,430
61768-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,430
61768-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,430
61783B — Pad, Rear Wheel Opening Extension, NO.1
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥320
61824 — Plate, Noise Control, NO.1
61824-52010 Plate, Noise Control, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
61824-52010 Plate, Noise Control, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
61824-52010 Plate, Noise Control, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
61824-12060 Plate, Noise Control, NO.1
2009-05 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥220
61824-52010 Plate, Noise Control, NO.1
2008-08 → 2009-04 ended
KSP90,NCP9#,SCP90 ¥100
61826C — Pad, Noise Shutter, NO.3
61826-52040 Pad, Noise Shutter, NO.3
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥570
61826-52040 Pad, Noise Shutter, NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥570
61826-52040 Pad, Noise Shutter, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥570
61826-52040 Pad, Noise Shutter, NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥570
62151B — Pad, Cowl Side Silencer
62151-52030 Pad, Cowl Side Silencer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥200
62151-52030 Pad, Cowl Side Silencer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥200
62151-52030 Pad, Cowl Side Silencer
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥200
62151-52030 Pad, Cowl Side Silencer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥200
68981A — Retainer, Back Door Stay, RH
68981-52050 Retainer, Back Door Stay, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥590
68981-52050 Retainer, Back Door Stay, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
68981-52050 Retainer, Back Door Stay, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
68981-52050 Retainer, Back Door Stay, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
