Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

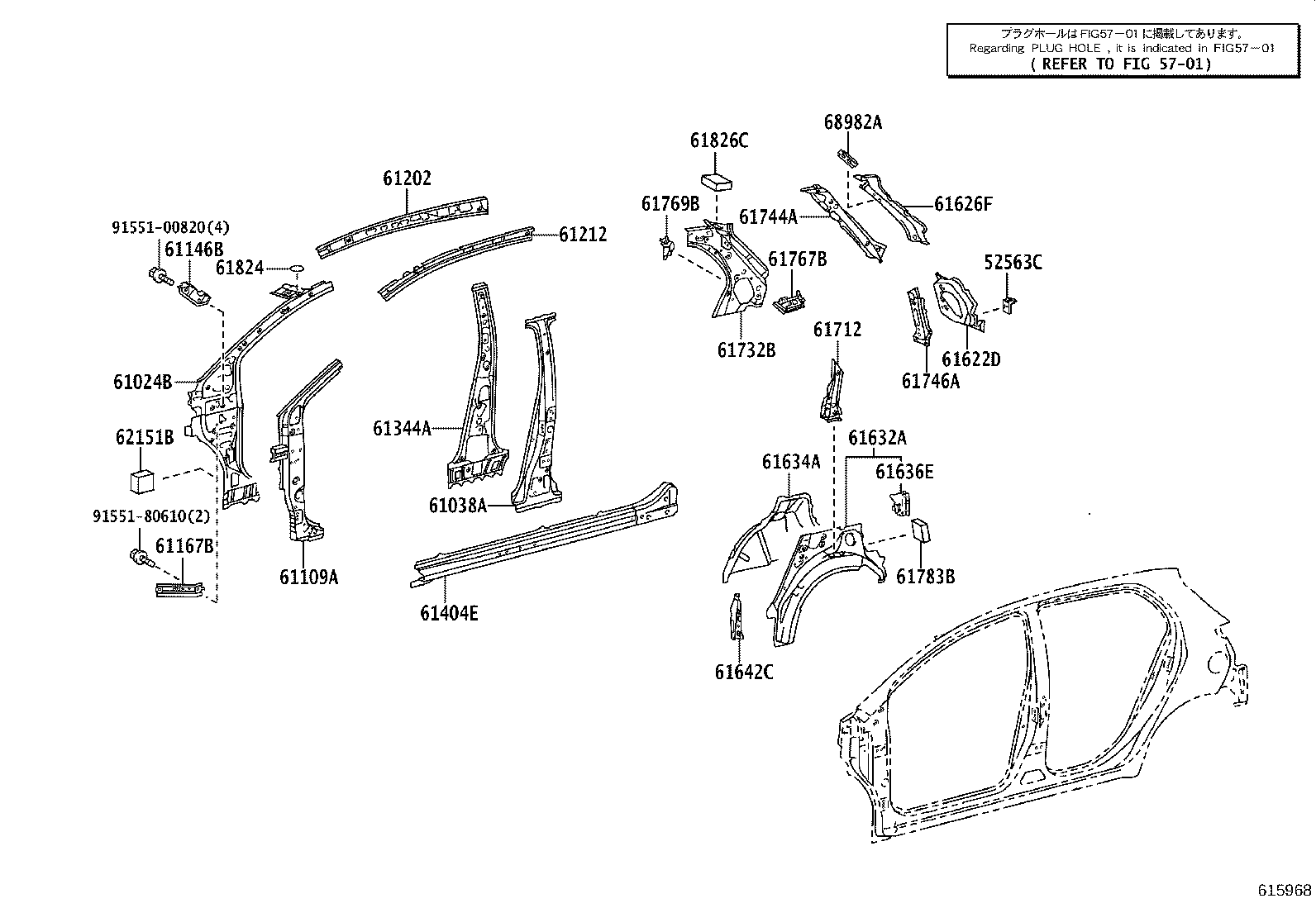

Exploded illustration 615968 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (4 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (4 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (4 parts) 61146B — GUSSET, FRONT BODY PILLAR, LOWER LH (4 parts) 61167B — BRACE, FRONT BODY PILLAR, LOWER (4 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (4 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (4 parts) 61344A — PILLAR, CENTER BODY, INNER LH (5 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (4 parts) 52563C — RETAINER, REAR BUMPER, UPPER SIDE, LH (4 parts) 61622D — TROUGH, BACK DOOR OPENING, LH (4 parts) 61626F — EXTENSION, QUARTER PANEL, UPPER LH (4 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (4 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (4 parts) 61642C — GUSSET, QUARTER WHEEL HOUSE, FRONT LH (4 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (4 parts) 61732B — PANEL, ROOF SIDE, INNER LH (5 parts) 61744A — REINFORCEMENT, BACK DOOR OPENING SIDE, LH (5 parts) 61746A — REINFORCEMENT, BACK DOOR OPENING, LOWER LH (4 parts) 61767B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH (4 parts) 61769B — REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH (5 parts) 61783B — PAD, REAR WHEEL OPENING EXTENSION, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (5 parts) 61826C — PAD, NOISE SHUTTER, NO.3 (4 parts) 62151B — PAD, COWL SIDE SILENCER (4 parts) 68982A — RETAINER, BACK DOOR STAY, LH (4 parts) 9155100820 — not listed in this catalogue 9155180610 — not listed in this catalogue 61636E — EXTENSION, QUARTER WHEEL HOUSE, LH (4 parts) 5701 — not listed in this catalogue
615968 · 27 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
52563C — Retainer, Rear Bumper, Upper Side, LH
52562-52030 Retainer, Rear Bumper, Upper Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,140
52562-52030 Retainer, Rear Bumper, Upper Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-52120 Pillar Sub-assy, Front Body, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥21,000
61024-52120 Pillar Sub-assy, Front Body, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,000
61024-52120 Pillar Sub-assy, Front Body, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥21,000
61024-52120 Pillar Sub-assy, Front Body, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥21,000
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-52904 Reinforcement Sub-assy, Center Body Pillar, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥34,200
61038-52904 Reinforcement Sub-assy, Center Body Pillar, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥34,200
61038-52904 Reinforcement Sub-assy, Center Body Pillar, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥34,200
61038-52904 Reinforcement Sub-assy, Center Body Pillar, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥34,200
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-52100 Reinforce Sub-assy, Front Body Pillar, Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥17,100
61109-52100 Reinforce Sub-assy, Front Body Pillar, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,100
61109-52100 Reinforce Sub-assy, Front Body Pillar, Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥17,100
61109-52100 Reinforce Sub-assy, Front Body Pillar, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥17,100
61146B — Gusset, Front Body Pillar, Lower LH
61146-52020 Gusset, Front Body Pillar, Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,590
61146-52020 Gusset, Front Body Pillar, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,590
61146-52020 Gusset, Front Body Pillar, Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,590
61146-52020 Gusset, Front Body Pillar, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,590
61167B — Brace, Front Body Pillar, Lower
61167-52010 Brace, Front Body Pillar, Lower
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥540
61167-52010 Brace, Front Body Pillar, Lower
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥540
61167-52010 Brace, Front Body Pillar, Lower
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥540
61167-52010 Brace, Front Body Pillar, Lower
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥540
61202 — Rail Sub-assy, Roof Side, LH
61202-52030 Rail Sub-assy, Roof Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,000
61202-52030 Rail Sub-assy, Roof Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,000
61202-52030 Rail Sub-assy, Roof Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,000
61202-52030 Rail Sub-assy, Roof Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥13,000
61212 — Rail, Roof Side, Outer LH
61212-52070 Rail, Roof Side, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,300
61212-52070 Rail, Roof Side, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
61212-52070 Rail, Roof Side, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
61212-52070 Rail, Roof Side, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥9,300
61344A — Pillar, Center Body, Inner LH
61042-52020 Pillar, Center Body, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,100
61042-52020 Pillar, Center Body, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,100
61042-52020 Pillar, Center Body, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,100
61042-52020 Pillar, Center Body, Inner LH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 ¥10,100
61042-52021 Pillar, Center Body, Inner LH
2010-06 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,100
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-52140 Reinforce Sub-assy, Rocker, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥19,800
61404-52140 Reinforce Sub-assy, Rocker, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥19,800
61404-52140 Reinforce Sub-assy, Rocker, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥19,800
61404-52140 Reinforce Sub-assy, Rocker, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥19,800
61622D — Trough, Back Door Opening, LH
61622-52110 Trough, Back Door Opening, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,980
61622-52110 Trough, Back Door Opening, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,980
61622-52110 Trough, Back Door Opening, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,980
61622-52110 Trough, Back Door Opening, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,980
61626F — Extension, Quarter Panel, Upper LH
61626-52110 Extension, Quarter Panel, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,070
61626-52110 Extension, Quarter Panel, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,070
61626-52110 Extension, Quarter Panel, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,070
61626-52110 Extension, Quarter Panel, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,070
61632A — Panel, Quarter Wheel House, Outer LH
61632-52902 Panel, Quarter Wheel House, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,500
61632-52902 Panel, Quarter Wheel House, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,500
61632-52902 Panel, Quarter Wheel House, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,500
61632-52902 Panel, Quarter Wheel House, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,500
61634A — Panel, Quarter Wheel House, Inner LH
61608-52370 Panel, Quarter Wheel House, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,400
61608-52370 Panel, Quarter Wheel House, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,400
61608-52370 Panel, Quarter Wheel House, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,400
61608-52370 Panel, Quarter Wheel House, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,400
61636E — Extension, Quarter Wheel House, LH
61636-52060 Extension, Quarter Wheel House, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,130
61636-52060 Extension, Quarter Wheel House, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,130
61636-52060 Extension, Quarter Wheel House, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,130
61636-52060 Extension, Quarter Wheel House, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,130
61642C — Gusset, Quarter Wheel House, Front LH
61642-52100 Gusset, Quarter Wheel House, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,390
61642-52100 Gusset, Quarter Wheel House, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,390
61642-52100 Gusset, Quarter Wheel House, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,390
61642-52100 Gusset, Quarter Wheel House, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,390
61712 — Panel, Roof Side, Outer LH
61712-52160 Panel, Roof Side, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,330
61712-52160 Panel, Roof Side, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,330
61712-52160 Panel, Roof Side, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,330
61712-52160 Panel, Roof Side, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,330
61732B — Panel, Roof Side, Inner LH
61732-52230 Panel, Roof Side, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥12,100
61732-52230 Panel, Roof Side, Inner LH
2007-08 → 2007-10 ended
KSP90,NCP9#,SCP90 ¥12,100
61732-52231 Panel, Roof Side, Inner LH
2007-11 → 2008-09 ended
NCP91,SCP90 RS ¥12,100
61732-52231 Panel, Roof Side, Inner LH
2007-11 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥12,100
61732-52231 Panel, Roof Side, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥12,100
61744A — Reinforcement, Back Door Opening Side, LH
61744-52060 Reinforcement, Back Door Opening Side, LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥7,400
61744-52061 Reinforcement, Back Door Opening Side, LH
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,200
61744-52061 Reinforcement, Back Door Opening Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,200
61744-52061 Reinforcement, Back Door Opening Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,200
61744-52061 Reinforcement, Back Door Opening Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,200
61746A — Reinforcement, Back Door Opening, Lower LH
61746-52080 Reinforcement, Back Door Opening, Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,730
61746-52080 Reinforcement, Back Door Opening, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,730
61746-52080 Reinforcement, Back Door Opening, Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,730
61746-52080 Reinforcement, Back Door Opening, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,730
61767B — Reinforcement, Belt Anchor TO Roof Side, Inner LH
61767-52120 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,240
61767-52120 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,240
61767-52120 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,240
61767-52120 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,240
61769B — Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
61769-52150 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 ¥1,430
61769-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,430
61769-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,430
61769-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,430
61769-52151 Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,430
61783B — Pad, Rear Wheel Opening Extension, NO.1
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥320
61783-52040 Pad, Rear Wheel Opening Extension, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥320
61824 — Plate, Noise Control, NO.1
61824-52010 Plate, Noise Control, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
61824-52010 Plate, Noise Control, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
61824-52010 Plate, Noise Control, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
61824-12060 Plate, Noise Control, NO.1
2009-05 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥220
61824-52010 Plate, Noise Control, NO.1
2008-08 → 2009-04 ended
KSP90,NCP9#,SCP90 ¥100
61826C — Pad, Noise Shutter, NO.3
61826-52040 Pad, Noise Shutter, NO.3
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥570
61826-52040 Pad, Noise Shutter, NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥570
61826-52040 Pad, Noise Shutter, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥570
61826-52040 Pad, Noise Shutter, NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥570
62151B — Pad, Cowl Side Silencer
62151-52030 Pad, Cowl Side Silencer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥200
62151-52030 Pad, Cowl Side Silencer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥200
62151-52030 Pad, Cowl Side Silencer
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥200
62151-52030 Pad, Cowl Side Silencer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥200
68982A — Retainer, Back Door Stay, LH
68981-52050 Retainer, Back Door Stay, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥590
68981-52050 Retainer, Back Door Stay, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
68981-52050 Retainer, Back Door Stay, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥590
68981-52050 Retainer, Back Door Stay, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
