Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 641617L 9018905079 — not listed in this catalogue 9018905079 — not listed in this catalogue 9015950322 — not listed in this catalogue 9015950322 — not listed in this catalogue 64746 — COVER, REAR COMBINATION LAMP SERVICE, LH (8 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (9 parts) 58401E — BOARD SUB-ASSY, DECK (7 parts) 64982 — KNOB, COVER (7 parts) 64997 — BOX, DECK FLOOR, LH (4 parts) 64770D — COVER ASSY, SPARE WHEEL (4 parts) 64716D — COVER, DECK TRIM, REAR (14 parts) 64995 — BOX, DECK FLOOR, RH (4 parts) 59315 — COVER, REAR FLOOR BOX (3 parts) 64982 — KNOB, COVER (7 parts) 58731C — CAP, REAR ABSORBER (8 parts) 64745 — COVER, REAR COMBINATION LAMP SERVICE, RH (8 parts) 58732C — CAP, REAR ABSORBER (8 parts) 64746A — COVER, DECK TRIM SIDE LAMP HOLE (5 parts) 64786A — PLATE, JACK COVER (4 parts) 58790A — CARRIER ASSY, JACK (3 parts) 64786A — PLATE, JACK COVER (4 parts) 58418E — BOARD, REAR FLOOR, NO.4 (4 parts) 58418E — BOARD, REAR FLOOR, NO.4 (4 parts) 64777J — CUSHION, SPARE WHEEL (5 parts) 9046710161 — not listed in this catalogue 64740B — BOARD, DECK TRIM SIDE, LH (9 parts) 9046710161 — not listed in this catalogue 9356854512 — not listed in this catalogue 9356854512 — not listed in this catalogue 9011906713 — not listed in this catalogue 64716D — COVER, DECK TRIM, REAR (14 parts) 59311 — PANEL, REAR FLOOR BOX (3 parts) 64716E — CLIP(FOR DECK TRIM REAR COVER) (9 parts) 64716E — CLIP(FOR DECK TRIM REAR COVER) (9 parts) 58570D — CARPET ASSY, REAR FLOOR (15 parts)

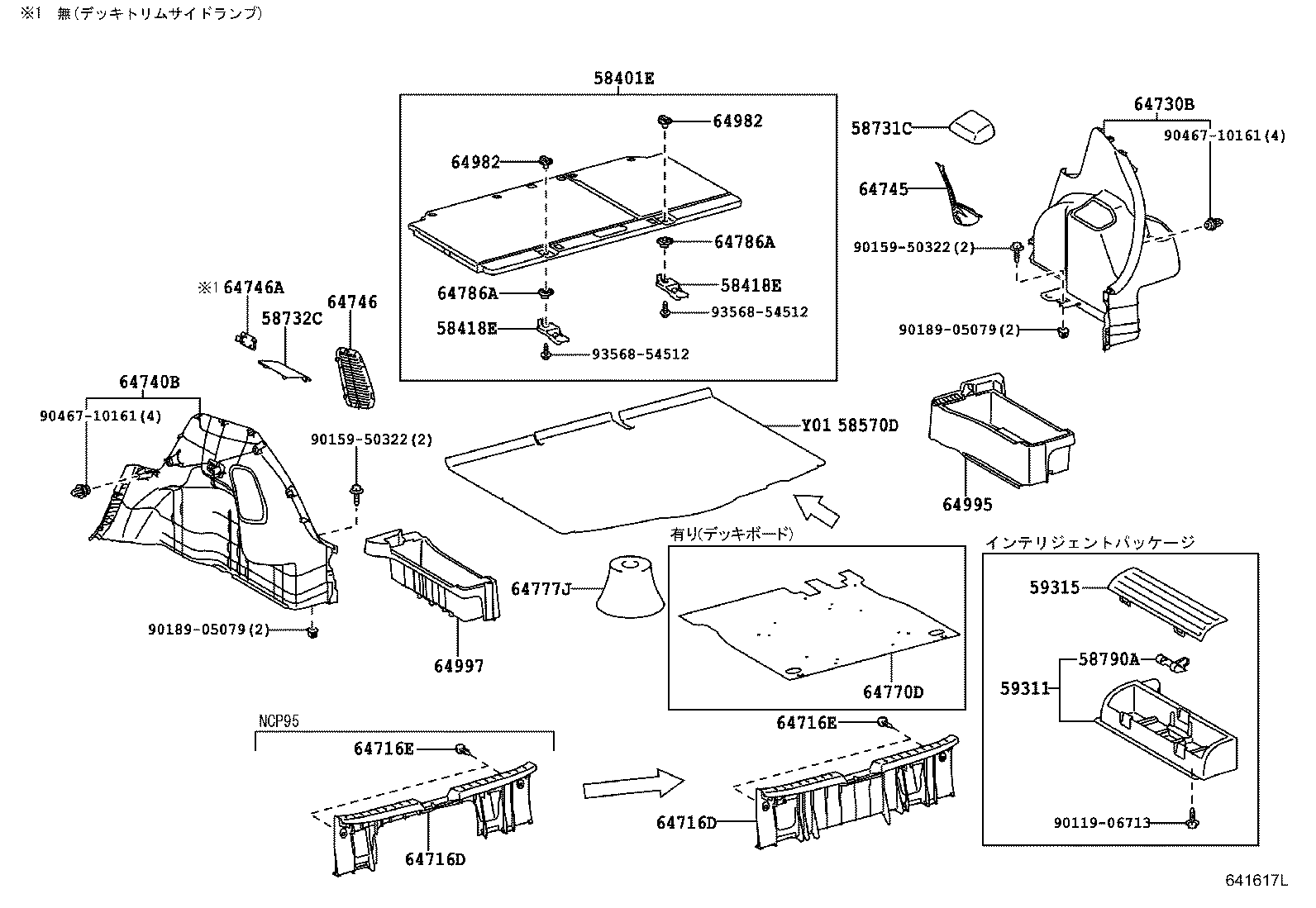

641617L · 26 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
141 parts on this figure
Part number Description Fitment Price
58401E — Board Sub-assy, Deck
58410-52010-B1 note Board Sub-assy, Deck
2005-01 → 2007-08 ended
SCP90 F ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2005-01 → 2007-08 ended
SCP90 U;NCP9# F,U,X ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2005-12 → 2007-08 ended
NCP95,SCP90 ILL ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥43,500
58410-52010-B1 note Board Sub-assy, Deck
2008-08 → 2010-12 ended
SCP90 U;NCP9# F,U ¥43,500
58418E — Board, Rear Floor, NO.4
58418-52011 Board, Rear Floor, NO.4
2005-01 → 2007-08 ended
SCP90 ILL,U;NCP9# F,ILL,U,X ¥110
58418-52011 note Board, Rear Floor, NO.4
2005-01 → 2007-08 ended
SCP90 F ¥110
58418-52011 Board, Rear Floor, NO.4
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥110
58418-52011 Board, Rear Floor, NO.4
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥110
58570D — Carpet Assy, Rear Floor
58570-52230-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
KSP90 B,F ¥11,700
58570-52230-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
KSP90 F ¥11,700
58570-52230-B0 note Carpet Assy, Rear Floor
2005-12 → 2007-08 ended
KSP90 ILL ¥11,700
58570-52240-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
SCP90 F ¥11,600
58570-52240-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
SCP90 F ¥11,600
58570-52240-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
SCP90 F ¥11,600
58570-52250-B0 note Carpet Assy, Rear Floor
2005-04 → 2007-08 ended
KSP90 B,F ¥10,000
58570-52270-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
NCP91 RS ¥14,800
58570-52270-B0 note Carpet Assy, Rear Floor
2005-01 → 2007-08 ended
NCP91 RS ¥14,800
58570-52231-B0 note Carpet Assy, Rear Floor
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥11,600
58570-52250-B0 note Carpet Assy, Rear Floor
2007-08 → 2008-08 ended
KSP90 B,F ¥10,000
58570-52271-B0 note Carpet Assy, Rear Floor
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥14,700
58570-52231-B0 note Carpet Assy, Rear Floor
2008-08 → 2010-12 ended
KSP90;SCP90 F ¥11,600
58570-52250-B0 note Carpet Assy, Rear Floor
2008-08 → 2010-08 ended
KSP90 B,F ¥10,000
58570-52271-B0 note Carpet Assy, Rear Floor
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥14,700
58731C — Cap, Rear Absorber
58731-52050-B0 note Cap, Rear Absorber
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,160
58731-52050-B0 note Cap, Rear Absorber
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,160
58731-52050-B0 note Cap, Rear Absorber
2005-01 → 2007-08 ended
NCP91 RS ¥1,160
58731-52050-B0 note Cap, Rear Absorber
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,160
58731-52050-B0 note Cap, Rear Absorber
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,160
58731-52050-E0 note Cap, Rear Absorber
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,160
58731-52050-B0 note Cap, Rear Absorber
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,160
58731-52050-E0 note Cap, Rear Absorber
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,160
58732C — Cap, Rear Absorber
58732-52030-B0 note Cap, Rear Absorber
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥970
58732-52030-B0 note Cap, Rear Absorber
2005-01 → 2007-08 ended
NCP91 RS ¥970
58732-52030-B0 note Cap, Rear Absorber
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥970
58732-52030-B0 note Cap, Rear Absorber
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥970
58732-52030-B0 note Cap, Rear Absorber
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥970
58732-52030-E0 note Cap, Rear Absorber
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥970
58732-52030-B0 note Cap, Rear Absorber
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥970
58732-52030-E0 note Cap, Rear Absorber
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥970
58790A — Carrier Assy, Jack
58790-52020 note Carrier Assy, Jack
2005-04 → 2007-08 ended
KSP90 B,F ¥570
58790-52020 note Carrier Assy, Jack
2007-08 → 2008-08 ended
KSP90 B,F ¥570
58790-52020 note Carrier Assy, Jack
2008-08 → 2010-08 ended
KSP90 B,F ¥570
59311 — Panel, Rear Floor Box
59311-52030 note Panel, Rear Floor Box
2005-04 → 2007-08 ended
KSP90 B,F ¥10,100
59311-52030 note Panel, Rear Floor Box
2007-08 → 2008-08 ended
KSP90 B,F ¥10,100
59311-52030 note Panel, Rear Floor Box
2008-08 → 2010-08 ended
KSP90 B,F ¥10,100
59315 — Cover, Rear Floor Box
59315-52020 note Cover, Rear Floor Box
2005-04 → 2007-08 ended
KSP90 B,F ¥4,950
59315-52020 note Cover, Rear Floor Box
2007-08 → 2008-08 ended
KSP90 B,F ¥4,950
59315-52020 note Cover, Rear Floor Box
2008-08 → 2010-08 ended
KSP90 B,F ¥4,950
64716D — Cover, Deck Trim, Rear
64716-52110-B0 note Cover, Deck Trim, Rear
2005-01 → 2007-08 ended
NCP95 F,U ¥8,700
64716-52110-B0 note Cover, Deck Trim, Rear
2005-12 → 2007-08 ended
NCP95 ILL ¥8,700
64716-52120-B0 note Cover, Deck Trim, Rear
2005-12 → 2007-08 ended
KSP90,SCP90 ILL ¥10,700
64716-52120-B0 note Cover, Deck Trim, Rear
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥10,700
64716-52120-B0 note Cover, Deck Trim, Rear
2005-01 → 2007-08 ended
NCP91 RS ¥10,700
64716-52110-B0 note Cover, Deck Trim, Rear
2007-08 → 2008-08 ended
NCP95 F,U ¥8,700
64716-52110-E0 note Cover, Deck Trim, Rear
2007-08 → 2008-08 ended
NCP95 ¥8,700
64716-52120-B0 note Cover, Deck Trim, Rear
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,U ¥10,700
64716-52120-B0 note Cover, Deck Trim, Rear
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,700
64716-52120-E0 note Cover, Deck Trim, Rear
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥10,700
64716-52110-B0 note Cover, Deck Trim, Rear
2008-08 → 2010-12 ended
NCP95 F,U ¥8,700
64716-52110-E0 note Cover, Deck Trim, Rear
2008-08 → 2010-12 ended
NCP95 ¥8,700
64716-52120-B0 note Cover, Deck Trim, Rear
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,RS,U ¥10,700
64716-52120-E0 note Cover, Deck Trim, Rear
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥10,700
64716E — Clip(FOR DECK TRIM REAR COVER)
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2005-01 → 2007-08 ended
NCP91 RS ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥120
90467-08186-E3 note Clip(FOR DECK TRIM REAR COVER)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
90467-08186-B4 note Clip(FOR DECK TRIM REAR COVER)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥120
90467-08186-E3 note Clip(FOR DECK TRIM REAR COVER)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
64730B — Panel Assy, Deck Trim Side, RH
64730-52290-B0 note Panel Assy, Deck Trim Side, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥18,600
64730-52300-B0 note Panel Assy, Deck Trim Side, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥21,700
64730-52300-B0 note Panel Assy, Deck Trim Side, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥21,700
64730-52300-B0 note Panel Assy, Deck Trim Side, RH
2005-01 → 2007-08 ended
NCP91 RS ¥21,700
64730-52290-B0 note Panel Assy, Deck Trim Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥18,600
64730-52290-B0 note Panel Assy, Deck Trim Side, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,600
64730-52290-E0 note Panel Assy, Deck Trim Side, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥18,600
64730-52290-B0 note Panel Assy, Deck Trim Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥18,600
64730-52290-E0 note Panel Assy, Deck Trim Side, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥18,600
64740B — Board, Deck Trim Side, LH
64740-52350-B0 note Board, Deck Trim Side, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥16,800
64740-52360-B0 note Board, Deck Trim Side, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥20,100
64740-52360-B0 note Board, Deck Trim Side, LH
2005-01 → 2007-08 ended
NCP91 RS ¥20,100
64740-52360-B0 note Board, Deck Trim Side, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥20,100
64740-52350-B0 note Board, Deck Trim Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥16,800
64740-52350-B0 note Board, Deck Trim Side, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥16,800
64740-52350-E0 note Board, Deck Trim Side, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥16,800
64740-52350-B0 note Board, Deck Trim Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥16,800
64740-52350-E0 note Board, Deck Trim Side, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥16,800
64745 — Cover, Rear Combination Lamp Service, RH
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,930
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,930
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,930
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,930
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,930
64745-52070-E0 note Cover, Rear Combination Lamp Service, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,930
64745-52070-B0 note Cover, Rear Combination Lamp Service, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,930
64745-52070-E0 note Cover, Rear Combination Lamp Service, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,930
64746 — Cover, Rear Combination Lamp Service, LH
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,530
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2005-01 → 2007-08 ended
NCP91 RS ¥1,530
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,530
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,530
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,530
64746-52100-E0 note Cover, Rear Combination Lamp Service, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,530
64746-52100-B0 note Cover, Rear Combination Lamp Service, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,530
64746-52100-E0 note Cover, Rear Combination Lamp Service, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,530
64746A — Cover, Deck Trim Side Lamp Hole
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2005-01 → 2007-08 ended
KSP90 B ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90 B ¥430
64746-52110-E0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90 B ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2008-08 → 2010-12 ended
KSP90 B ¥430
64746-52110-E0 note Cover, Deck Trim Side Lamp Hole
2008-08 → 2009-08 ended
KSP90 B ¥430
64770D — Cover Assy, Spare Wheel
64771-52160 Cover Assy, Spare Wheel
2005-01 → 2007-08 ended
NCP91,SCP90 ILL,U,X ¥5,800
64771-52160 note Cover Assy, Spare Wheel
2005-01 → 2007-08 ended
SCP90 F ¥5,800
64771-52160 Cover Assy, Spare Wheel
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥5,800
64771-52160 Cover Assy, Spare Wheel
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥5,800
64777J — Cushion, Spare Wheel
64777-52020 Cushion, Spare Wheel
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥930
64777-52020 note Cushion, Spare Wheel
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 F,RS ¥930
64777-52020 note Cushion, Spare Wheel
2005-01 → 2007-08 ended
SCP90 F ¥930
64777-52020 Cushion, Spare Wheel
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥930
64777-52020 Cushion, Spare Wheel
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥930
64786A — Plate, Jack Cover
64786-20010 Plate, Jack Cover
2005-01 → 2007-08 ended
SCP90 ILL,U;NCP9# F,ILL,U,X ¥390
64786-20010 note Plate, Jack Cover
2005-01 → 2007-08 ended
SCP90 F ¥390
64786-20010 Plate, Jack Cover
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥390
64786-20010 Plate, Jack Cover
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥390
64982 — Knob, Cover
64982-13010-C0 note Knob, Cover
2005-01 → 2007-08 ended
SCP90 U;NCP9# F,U,X ¥300
64982-13010-C0 note Knob, Cover
2005-01 → 2007-08 ended
SCP90 F ¥300
64982-13010-C0 note Knob, Cover
2005-12 → 2007-08 ended
NCP95,SCP90 ILL ¥300
64982-13010-C0 note Knob, Cover
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥300
64982-13010-C0 note Knob, Cover
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥300
64982-13010-C0 note Knob, Cover
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥300
64982-13010-C0 note Knob, Cover
2008-08 → 2010-12 ended
SCP90 U;NCP9# F,U ¥300
64995 — Box, Deck Floor, RH
64995-52050 Box, Deck Floor, RH
2005-01 → 2007-08 ended
SCP90 ILL,U;NCP9# F,ILL,U,X ¥13,500
64995-52050 note Box, Deck Floor, RH
2005-01 → 2007-08 ended
SCP90 F ¥13,500
64995-52050 Box, Deck Floor, RH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥13,500
64995-52050 Box, Deck Floor, RH
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥13,500
64997 — Box, Deck Floor, LH
64997-52030 Box, Deck Floor, LH
2005-01 → 2007-08 ended
SCP90 ILL,U;NCP9# F,ILL,U,X ¥13,500
64997-52030 note Box, Deck Floor, LH
2005-01 → 2007-08 ended
SCP90 F ¥13,500
64997-52030 Box, Deck Floor, LH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥13,500
64997-52030 Box, Deck Floor, LH
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥13,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
