Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

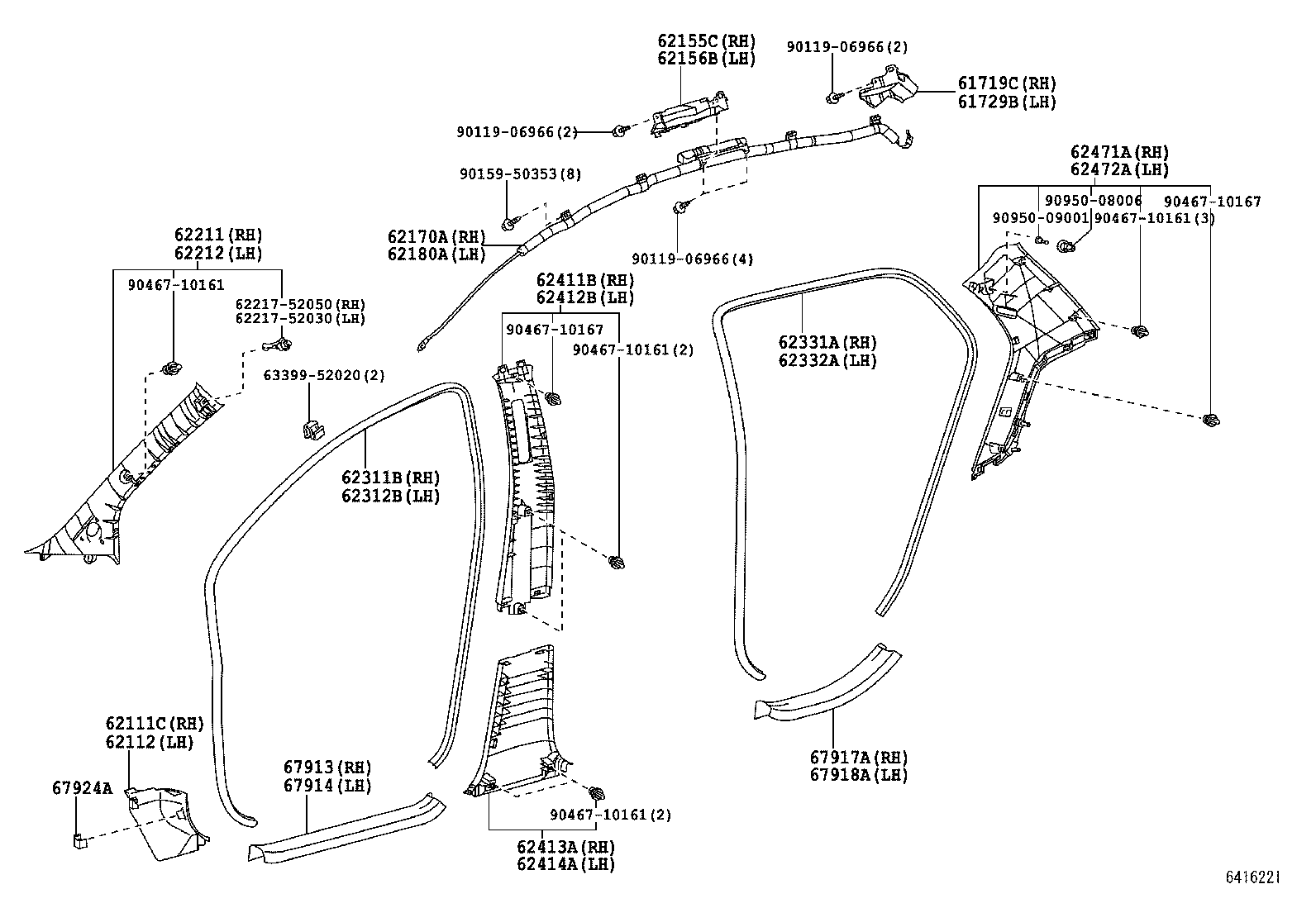

Exploded illustration 641622I 62111C — BOARD, COWL SIDE TRIM, RH (7 parts) 62112 — BOARD, COWL SIDE TRIM, LH (7 parts) 62155C — BRACKET, CURTAIN SHIELD AIRBAG, RH (9 parts) 62156B — BRACKET, CURTAIN SHIELD AIRBAG, LH (9 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (7 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (7 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (7 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (7 parts) 62471A — GARNISH, ROOF SIDE, INNER RH (20 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (20 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (10 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (10 parts) 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (16 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (16 parts) 61719C — BRACKET, ROOF SIDE RAIL, RH (9 parts) 61729B — BRACKET, ROOF SIDE RAIL, LH (9 parts) 62411B — GARNISH, CENTER PILLAR, UPPER RH (9 parts) 62412B — GARNISH, CENTER PILLAR, UPPER LH (9 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (7 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (7 parts) 62331A — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (10 parts) 62332A — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (10 parts) 67924A — CLAMP, DOOR SCUFF PLATE, NO.2 (4 parts) 9015950353 — not listed in this catalogue 9011906966 — not listed in this catalogue 6339952020 — not listed in this catalogue 9011906966 — not listed in this catalogue 9011906966 — not listed in this catalogue 9046710167 — not listed in this catalogue 9046710167 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue 9095008006 — not listed in this catalogue 9046710161 — not listed in this catalogue 62212 — GARNISH, FRONT PILLAR, LH (39 parts) 62211 — GARNISH, FRONT PILLAR, RH (38 parts) 9046710161 — not listed in this catalogue 6221752030 — not listed in this catalogue 6221752050 — not listed in this catalogue 9095009001 — not listed in this catalogue
641622I · 25 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
303 parts on this figure
Part number Description Fitment Price
61719C — Bracket, Roof Side Rail, RH
61719-52020 note Bracket, Roof Side Rail, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,430
61719-52020 Bracket, Roof Side Rail, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,430
61719-52020 note Bracket, Roof Side Rail, RH
2007-08 → 2008-08 ended
KSP90 B ¥1,430
61719-52020 Bracket, Roof Side Rail, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,430
61719-52020 note Bracket, Roof Side Rail, RH
2007-08 → 2008-09 ended
NCP91 5F ¥1,430
61719-52020 Bracket, Roof Side Rail, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,430
61719-52020 Bracket, Roof Side Rail, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,430
61719-52020 note Bracket, Roof Side Rail, RH
2008-08 → 2010-12 ended
KSP90 B;NCP91 5F ¥1,430
61719-52020 note Bracket, Roof Side Rail, RH
2008-08 → 2010-12 ended
KSP90 B ¥1,430
61729B — Bracket, Roof Side Rail, LH
61729-52030 note Bracket, Roof Side Rail, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,430
61729-52030 Bracket, Roof Side Rail, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,430
61729-52030 Bracket, Roof Side Rail, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,430
61729-52030 note Bracket, Roof Side Rail, LH
2007-08 → 2008-08 ended
KSP90 B ¥1,430
61729-52030 Bracket, Roof Side Rail, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,430
61729-52030 note Bracket, Roof Side Rail, LH
2007-08 → 2008-09 ended
NCP91 5F ¥1,430
61729-52030 Bracket, Roof Side Rail, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,430
61729-52030 note Bracket, Roof Side Rail, LH
2008-08 → 2010-12 ended
KSP90 B;NCP91 5F ¥1,430
61729-52030 note Bracket, Roof Side Rail, LH
2008-08 → 2010-12 ended
KSP90 B ¥1,430
62111C — Board, Cowl Side Trim, RH
62111-52120-B0 note Board, Cowl Side Trim, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,610
62111-52120-B0 note Board, Cowl Side Trim, RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,610
62111-52120-B0 note Board, Cowl Side Trim, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,610
62111-52120-B0 note Board, Cowl Side Trim, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,610
62111-52120-E0 note Board, Cowl Side Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,610
62111-52120-B0 note Board, Cowl Side Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,610
62111-52120-E0 note Board, Cowl Side Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,610
62112 — Board, Cowl Side Trim, LH
62112-52150-B0 note Board, Cowl Side Trim, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,810
62112-52150-B0 note Board, Cowl Side Trim, LH
2005-01 → 2007-08 ended
NCP91 RS ¥2,810
62112-52150-B0 note Board, Cowl Side Trim, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,810
62112-52150-B0 note Board, Cowl Side Trim, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,810
62112-52150-E0 note Board, Cowl Side Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,810
62112-52150-B0 note Board, Cowl Side Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,810
62112-52150-E0 note Board, Cowl Side Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,810
62155C — Bracket, Curtain Shield Airbag, RH
62155-52020 Bracket, Curtain Shield Airbag, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,360
62155-52020 note Bracket, Curtain Shield Airbag, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,360
62155-52020 Bracket, Curtain Shield Airbag, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,360
62155-52020 note Bracket, Curtain Shield Airbag, RH
2007-08 → 2008-08 ended
KSP90 B ¥1,360
62155-52020 Bracket, Curtain Shield Airbag, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,360
62155-52020 note Bracket, Curtain Shield Airbag, RH
2007-08 → 2008-09 ended
NCP91 5F ¥1,360
62155-52020 note Bracket, Curtain Shield Airbag, RH
2008-08 → 2010-12 ended
KSP90 B ¥1,360
62155-52020 note Bracket, Curtain Shield Airbag, RH
2008-08 → 2010-12 ended
KSP90 B;NCP91 5F ¥1,360
62155-52020 Bracket, Curtain Shield Airbag, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,360
62156B — Bracket, Curtain Shield Airbag, LH
62156-52050 Bracket, Curtain Shield Airbag, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,360
62156-52050 note Bracket, Curtain Shield Airbag, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,360
62156-52050 Bracket, Curtain Shield Airbag, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,360
62156-52050 note Bracket, Curtain Shield Airbag, LH
2007-08 → 2008-08 ended
KSP90 B ¥1,360
62156-52050 Bracket, Curtain Shield Airbag, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,360
62156-52050 note Bracket, Curtain Shield Airbag, LH
2007-08 → 2008-09 ended
NCP91 5F ¥1,360
62156-52050 Bracket, Curtain Shield Airbag, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,360
62156-52050 note Bracket, Curtain Shield Airbag, LH
2008-08 → 2010-12 ended
KSP90 B;NCP91 5F ¥1,360
62156-52050 note Bracket, Curtain Shield Airbag, LH
2008-08 → 2010-12 ended
KSP90 B ¥1,360
62170A — Airbag Assy, Curtain Shield, RH
62170-52020 Airbag Assy, Curtain Shield, RH
2005-01 → 2005-03 ended
NCP95,SCP90 U ¥44,400
62170-52020 note Airbag Assy, Curtain Shield, RH
2005-01 → 2005-03 ended
KSP90,NCP9#,SCP90 B,F,RS,X ¥44,400
62170-52021 Airbag Assy, Curtain Shield, RH
2005-04 → 2006-04 ended
NCP95,SCP90 U ¥44,400
62170-52021 note Airbag Assy, Curtain Shield, RH
2005-04 → 2006-04 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥44,400
62170-52022 Airbag Assy, Curtain Shield, RH
2006-05 → 2007-08 ended
NCP95,SCP90 U ¥44,300
62170-52022 note Airbag Assy, Curtain Shield, RH
2006-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥44,300
62170-52022 note Airbag Assy, Curtain Shield, RH
2007-08 → 2008-07 ended
KSP90 B;NCP91 5F ¥44,300
62170-52022 Airbag Assy, Curtain Shield, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥44,300
62170-52023 note Airbag Assy, Curtain Shield, RH
2008-08 → 2008-09 ended
NCP91 5F ¥44,300
62170-52023 Airbag Assy, Curtain Shield, RH
2008-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,300
62170-52023 Airbag Assy, Curtain Shield, RH
2008-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥44,300
62170-52023 note Airbag Assy, Curtain Shield, RH
2008-08 → 2008-09 ended
KSP90 B ¥44,300
62170-52023 note Airbag Assy, Curtain Shield, RH
2008-08 → 2008-09 ended
KSP90 B ¥44,300
62170-52024 Airbag Assy, Curtain Shield, RH
2008-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥44,300
62170-52024 note Airbag Assy, Curtain Shield, RH
2008-09 → 2010-12 ended
KSP90 B;NCP91 5F ¥44,300
62170-52024 note Airbag Assy, Curtain Shield, RH
2008-09 → 2010-12 ended
KSP90 B ¥44,300
62180A — Airbag Assy, Curtain Shield, LH
62180-52020 Airbag Assy, Curtain Shield, LH
2005-01 → 2005-03 ended
NCP95,SCP90 U ¥44,400
62180-52020 note Airbag Assy, Curtain Shield, LH
2005-01 → 2005-03 ended
KSP90,NCP9#,SCP90 B,F,RS,X ¥44,400
62180-52021 Airbag Assy, Curtain Shield, LH
2005-04 → 2006-04 ended
NCP95,SCP90 U ¥44,400
62180-52021 note Airbag Assy, Curtain Shield, LH
2005-04 → 2006-04 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥44,400
62180-52022 Airbag Assy, Curtain Shield, LH
2006-05 → 2007-08 ended
NCP95,SCP90 U ¥44,300
62180-52022 note Airbag Assy, Curtain Shield, LH
2006-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥44,300
62180-52022 note Airbag Assy, Curtain Shield, LH
2007-08 → 2008-07 ended
KSP90 B;NCP91 5F ¥44,300
62180-52022 Airbag Assy, Curtain Shield, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥44,300
62180-52023 Airbag Assy, Curtain Shield, LH
2008-08 → 2008-09 ended
NCP91,SCP90 RS ¥44,300
62180-52023 note Airbag Assy, Curtain Shield, LH
2008-08 → 2008-09 ended
NCP91 5F ¥44,300
62180-52023 note Airbag Assy, Curtain Shield, LH
2008-08 → 2008-09 ended
KSP90 B ¥44,300
62180-52023 note Airbag Assy, Curtain Shield, LH
2008-08 → 2008-09 ended
KSP90 B ¥44,300
62180-52023 Airbag Assy, Curtain Shield, LH
2008-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥44,300
62180-52024 Airbag Assy, Curtain Shield, LH
2008-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥44,300
62180-52024 note Airbag Assy, Curtain Shield, LH
2008-09 → 2010-12 ended
KSP90 B;NCP91 5F ¥44,300
62180-52024 note Airbag Assy, Curtain Shield, LH
2008-09 → 2010-12 ended
KSP90 B ¥44,300
62211 — Garnish, Front Pillar, RH
62211-52120-B0 note Garnish, Front Pillar, RH
2005-01 → 2005-10 ended
NCP91 X ¥7,100
62211-52120-B0 note Garnish, Front Pillar, RH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 B,F ¥7,100
62211-52120-B1 note Garnish, Front Pillar, RH
2005-01 → 2007-08 ended
NCP91 RS ¥7,100
62211-52120-E0 note Garnish, Front Pillar, RH
2005-08 → 2005-10 ended
NCP91 X ¥7,100
62211-52120-E0 note Garnish, Front Pillar, RH
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 B,F,ILL ¥7,100
62211-52130-B0 note Garnish, Front Pillar, RH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 B,F ¥6,200
62211-52130-B0 note Garnish, Front Pillar, RH
2005-01 → 2005-10 ended
NCP91 X ¥6,200
62211-52130-B1 note Garnish, Front Pillar, RH
2005-01 → 2007-08 ended
NCP91 RS ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2005-08 → 2005-10 ended
NCP91 X ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 B,F,ILL ¥6,200
62211-52140-B0 note Garnish, Front Pillar, RH
2005-10 → 2007-08 ended
NCP91 X ¥7,400
62211-52140-E0 note Garnish, Front Pillar, RH
2005-10 → 2007-08 ended
NCP91 X ¥7,500
62211-52150-B0 note Garnish, Front Pillar, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥6,400
62211-52150-B0 note Garnish, Front Pillar, RH
2005-10 → 2007-08 ended
NCP91 X ¥6,400
62211-52150-B0 note Garnish, Front Pillar, RH
2006-05 → 2007-08 ended
SCP90 F ¥6,400
62211-52150-E0 note Garnish, Front Pillar, RH
2006-05 → 2007-08 ended
SCP90 F ¥6,400
62211-52150-E0 note Garnish, Front Pillar, RH
2005-12 → 2007-08 ended
NCP91 X ¥6,400
62211-52150-E0 note Garnish, Front Pillar, RH
2005-12 → 2007-08 ended
NCP95,SCP90 U ¥6,400
62211-52120-B0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 B ¥7,100
62211-52120-E0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 B ¥7,100
62211-52130-B0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 B ¥6,200
62211-52130-B0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 F ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 B ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90 F ¥6,200
62211-52140-B1 note Garnish, Front Pillar, RH
2007-08 → 2008-09 ended
NCP91 5F ¥7,400
62211-52150-B0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥6,400
62211-52150-B1 note Garnish, Front Pillar, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,400
62211-52150-E0 note Garnish, Front Pillar, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥6,400
62211-52120-B0 note Garnish, Front Pillar, RH
2010-08 → 2010-12 ended
KSP90 B ¥7,100
62211-52120-B0 note Garnish, Front Pillar, RH
2010-04 → 2010-08 ended
KSP90 B ¥7,100
62211-52130-B0 note Garnish, Front Pillar, RH
2010-04 → —
KSP90 B ¥6,200
62211-52130-B0 note Garnish, Front Pillar, RH
2008-08 → 2010-12 ended
KSP90 B ¥6,200
62211-52130-B0 note Garnish, Front Pillar, RH
2008-08 → 2010-08 ended
KSP90 F ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2008-08 → 2010-08 ended
KSP90 F ¥6,200
62211-52130-E0 note Garnish, Front Pillar, RH
2008-08 → 2010-08 ended
KSP90 B ¥6,200
62211-52150-B0 note Garnish, Front Pillar, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥6,400
62211-52150-B1 note Garnish, Front Pillar, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥6,400
62211-52150-E0 note Garnish, Front Pillar, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥6,400
62212 — Garnish, Front Pillar, LH
62212-52120-B0 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 B,F ¥7,100
62212-52120-B0 note Garnish, Front Pillar, LH
2005-01 → 2005-10 ended
NCP91 X ¥7,100
62212-52120-B1 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
NCP91 RS ¥7,100
62212-52120-E0 note Garnish, Front Pillar, LH
2005-08 → 2005-10 ended
NCP91 X ¥7,100
62212-52120-E0 note Garnish, Front Pillar, LH
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 B,F,ILL ¥7,100
62212-52130-B0 note Garnish, Front Pillar, LH
2005-01 → 2005-10 ended
NCP91 X ¥6,200
62212-52130-B0 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
NCP91 RS ¥6,200
62212-52130-B0 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 B,F ¥6,200
62212-52130-B1 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
NCP91 RS ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2005-08 → 2005-10 ended
NCP91 X ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 B,F,ILL ¥6,200
62212-52140-B0 note Garnish, Front Pillar, LH
2005-10 → 2007-08 ended
NCP91 X ¥7,400
62212-52140-E0 note Garnish, Front Pillar, LH
2005-10 → 2007-08 ended
NCP91 X ¥7,500
62212-52150-B0 note Garnish, Front Pillar, LH
2006-05 → 2007-08 ended
SCP90 F ¥6,400
62212-52150-B0 note Garnish, Front Pillar, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥6,400
62212-52150-B0 note Garnish, Front Pillar, LH
2005-10 → 2007-08 ended
NCP91 X ¥6,400
62212-52150-E0 note Garnish, Front Pillar, LH
2005-12 → 2007-08 ended
NCP95,SCP90 U ¥6,400
62212-52150-E0 note Garnish, Front Pillar, LH
2005-12 → 2007-08 ended
NCP91 X ¥6,400
62212-52150-E0 note Garnish, Front Pillar, LH
2006-05 → 2007-08 ended
SCP90 F ¥6,400
62212-52120-B0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 B ¥7,100
62212-52120-E0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 B ¥7,100
62212-52130-B0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 B ¥6,200
62212-52130-B0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 F ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 F ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90 B ¥6,200
62212-52140-B1 note Garnish, Front Pillar, LH
2007-08 → 2008-09 ended
NCP91 5F ¥7,400
62212-52150-B0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥6,400
62212-52150-B1 note Garnish, Front Pillar, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,400
62212-52150-E0 note Garnish, Front Pillar, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥6,400
62212-52120-B0 note Garnish, Front Pillar, LH
2010-04 → 2010-08 ended
KSP90 B ¥7,100
62212-52120-B0 note Garnish, Front Pillar, LH
2010-08 → 2010-12 ended
KSP90 B ¥7,100
62212-52130-B0 note Garnish, Front Pillar, LH
2008-08 → 2010-08 ended
KSP90 F ¥6,200
62212-52130-B0 note Garnish, Front Pillar, LH
2010-04 → —
KSP90 B ¥6,200
62212-52130-B0 note Garnish, Front Pillar, LH
2008-08 → 2010-12 ended
KSP90 B ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2008-08 → 2010-08 ended
KSP90 F ¥6,200
62212-52130-E0 note Garnish, Front Pillar, LH
2008-08 → 2010-08 ended
KSP90 B ¥6,200
62212-52150-B0 note Garnish, Front Pillar, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥6,400
62212-52150-B1 note Garnish, Front Pillar, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥6,400
62212-52150-E0 note Garnish, Front Pillar, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥6,400
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-52120-B0 note Weatherstrip, Front Door Opening Trim, RH
2005-01 → 2007-08 ended
NCP91 RS ¥9,300
62311-52120-B1 note Weatherstrip, Front Door Opening Trim, RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥9,300
62311-52120-B1 note Weatherstrip, Front Door Opening Trim, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥9,300
62311-52120-E0 note Weatherstrip, Front Door Opening Trim, RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥9,300
62311-52120-B0 note Weatherstrip, Front Door Opening Trim, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
62311-52120-B1 note Weatherstrip, Front Door Opening Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,300
62311-52120-E0 note Weatherstrip, Front Door Opening Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
62311-52120-B0 note Weatherstrip, Front Door Opening Trim, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥9,300
62311-52120-B1 note Weatherstrip, Front Door Opening Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,300
62311-52120-E0 note Weatherstrip, Front Door Opening Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-52070-B0 note Weatherstrip, Front Door Opening Trim, LH
2005-01 → 2007-08 ended
NCP91 RS ¥9,300
62312-52070-B1 note Weatherstrip, Front Door Opening Trim, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥9,300
62312-52070-B1 note Weatherstrip, Front Door Opening Trim, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥9,300
62312-52070-E0 note Weatherstrip, Front Door Opening Trim, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥9,300
62312-52070-B0 note Weatherstrip, Front Door Opening Trim, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,300
62312-52070-B1 note Weatherstrip, Front Door Opening Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,300
62312-52070-E0 note Weatherstrip, Front Door Opening Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
62312-52070-B0 note Weatherstrip, Front Door Opening Trim, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥9,300
62312-52070-B1 note Weatherstrip, Front Door Opening Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,300
62312-52070-E0 note Weatherstrip, Front Door Opening Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,300
62331A — Weatherstrip, Rear Door Opening Trim, RH
62331-52030-B0 note Weatherstrip, Rear Door Opening Trim, RH
2005-01 → 2007-08 ended
NCP91 RS ¥8,400
62331-52030-B1 note Weatherstrip, Rear Door Opening Trim, RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥8,400
62331-52030-B1 note Weatherstrip, Rear Door Opening Trim, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥8,400
62331-52030-E0 note Weatherstrip, Rear Door Opening Trim, RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥8,400
62331-52030-B0 note Weatherstrip, Rear Door Opening Trim, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,400
62331-52030-B1 note Weatherstrip, Rear Door Opening Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,400
62331-52030-E0 note Weatherstrip, Rear Door Opening Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,400
62331-52030-B0 note Weatherstrip, Rear Door Opening Trim, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥8,400
62331-52030-B1 note Weatherstrip, Rear Door Opening Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,400
62331-52030-E0 note Weatherstrip, Rear Door Opening Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,400
62332A — Weatherstrip, Rear Door Opening Trim, LH
62332-52040-B0 note Weatherstrip, Rear Door Opening Trim, LH
2005-01 → 2007-08 ended
NCP91 RS ¥8,400
62332-52040-B1 note Weatherstrip, Rear Door Opening Trim, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥8,400
62332-52040-B1 note Weatherstrip, Rear Door Opening Trim, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥8,400
62332-52040-E0 note Weatherstrip, Rear Door Opening Trim, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥8,400
62332-52040-B0 note Weatherstrip, Rear Door Opening Trim, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,400
62332-52040-B1 note Weatherstrip, Rear Door Opening Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,400
62332-52040-E0 note Weatherstrip, Rear Door Opening Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,400
62332-52040-B0 note Weatherstrip, Rear Door Opening Trim, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥8,400
62332-52040-B1 note Weatherstrip, Rear Door Opening Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,400
62332-52040-E0 note Weatherstrip, Rear Door Opening Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥8,400
62411B — Garnish, Center Pillar, Upper RH
62411-52120-B0 note Garnish, Center Pillar, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥7,800
62411-52120-B1 note Garnish, Center Pillar, Upper RH
2005-01 → 2007-08 ended
NCP91 RS ¥7,800
62411-52120-E0 note Garnish, Center Pillar, Upper RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥7,800
62411-52120-B0 note Garnish, Center Pillar, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,800
62411-52120-B1 note Garnish, Center Pillar, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,800
62411-52120-E0 note Garnish, Center Pillar, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,800
62411-52120-B0 note Garnish, Center Pillar, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,800
62411-52120-B1 note Garnish, Center Pillar, Upper RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,800
62411-52120-E0 note Garnish, Center Pillar, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,800
62412B — Garnish, Center Pillar, Upper LH
62412-52120-B0 note Garnish, Center Pillar, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥7,800
62412-52120-B1 note Garnish, Center Pillar, Upper LH
2005-01 → 2007-08 ended
NCP91 RS ¥7,800
62412-52120-E0 note Garnish, Center Pillar, Upper LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥7,800
62412-52120-B0 note Garnish, Center Pillar, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,800
62412-52120-B1 note Garnish, Center Pillar, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,800
62412-52120-E0 note Garnish, Center Pillar, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,800
62412-52120-B0 note Garnish, Center Pillar, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,800
62412-52120-B1 note Garnish, Center Pillar, Upper LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,800
62412-52120-E0 note Garnish, Center Pillar, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,800
62413A — Garnish, Center Pillar, Lower RH
62413-52090-B0 note Garnish, Center Pillar, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥6,100
62413-52090-B0 note Garnish, Center Pillar, Lower RH
2005-01 → 2007-08 ended
NCP91 RS ¥6,100
62413-52090-B0 note Garnish, Center Pillar, Lower RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥6,100
62413-52090-B0 note Garnish, Center Pillar, Lower RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥6,100
62413-52090-E0 note Garnish, Center Pillar, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,100
62413-52090-B0 note Garnish, Center Pillar, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥6,100
62413-52090-E0 note Garnish, Center Pillar, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,100
62414A — Garnish, Center Pillar, Lower LH
62414-52090-B0 note Garnish, Center Pillar, Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥6,100
62414-52090-B0 note Garnish, Center Pillar, Lower LH
2005-01 → 2007-08 ended
NCP91 RS ¥6,100
62414-52090-B0 note Garnish, Center Pillar, Lower LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥6,100
62414-52090-B0 note Garnish, Center Pillar, Lower LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥6,100
62414-52090-E0 note Garnish, Center Pillar, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,100
62414-52090-B0 note Garnish, Center Pillar, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥6,100
62414-52090-E0 note Garnish, Center Pillar, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,100
62471A — Garnish, Roof Side, Inner RH
62471-52150-B0 note Garnish, Roof Side, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62471-52150-E0 note Garnish, Roof Side, Inner RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62471-52160-B0 note Garnish, Roof Side, Inner RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥9,700
62471-52160-B0 note Garnish, Roof Side, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62471-52160-B1 note Garnish, Roof Side, Inner RH
2005-01 → 2007-08 ended
NCP91 RS ¥9,700
62471-52160-E0 note Garnish, Roof Side, Inner RH
2005-08 → 2007-08 ended
NCP95,SCP90 U ¥9,700
62471-52160-E0 note Garnish, Roof Side, Inner RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥9,700
62471-52170-B1 note Garnish, Roof Side, Inner RH
2005-01 → 2007-08 ended
NCP91 RS ¥9,800
62471-52170-E0 note Garnish, Roof Side, Inner RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥9,800
62471-52150-B0 note Garnish, Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90 B ¥9,700
62471-52150-B1 note Garnish, Roof Side, Inner RH
2007-08 → 2008-09 ended
NCP91 5F ¥9,700
62471-52150-E0 note Garnish, Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90 B ¥9,700
62471-52160-B0 note Garnish, Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,700
62471-52160-B1 note Garnish, Roof Side, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,700
62471-52160-E0 note Garnish, Roof Side, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,700
62471-52150-B0 note Garnish, Roof Side, Inner RH
2010-04 → 2010-08 ended
KSP90 B ¥9,700
62471-52150-B0 note Garnish, Roof Side, Inner RH
2010-08 → 2010-12 ended
KSP90 B ¥9,700
62471-52160-B0 note Garnish, Roof Side, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,700
62471-52160-B1 note Garnish, Roof Side, Inner RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥9,700
62471-52160-E0 note Garnish, Roof Side, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,700
62472A — Garnish, Roof Side, Inner LH
62472-52180-B0 note Garnish, Roof Side, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62472-52180-E0 note Garnish, Roof Side, Inner LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62472-52190-B0 note Garnish, Roof Side, Inner LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥9,700
62472-52190-B0 note Garnish, Roof Side, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥9,700
62472-52190-B1 note Garnish, Roof Side, Inner LH
2005-01 → 2007-08 ended
NCP91 RS ¥9,700
62472-52190-E0 note Garnish, Roof Side, Inner LH
2005-08 → 2007-08 ended
NCP95,SCP90 U ¥9,700
62472-52190-E0 note Garnish, Roof Side, Inner LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥9,700
62472-52200-B1 note Garnish, Roof Side, Inner LH
2005-01 → 2007-08 ended
NCP91 RS ¥9,800
62472-52200-E0 note Garnish, Roof Side, Inner LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥9,700
62472-52180-B0 note Garnish, Roof Side, Inner LH
2007-08 → 2008-08 ended
KSP90 B ¥9,700
62472-52180-B1 note Garnish, Roof Side, Inner LH
2007-08 → 2008-09 ended
NCP91 5F ¥9,700
62472-52180-E0 note Garnish, Roof Side, Inner LH
2007-08 → 2008-08 ended
KSP90 B ¥9,700
62472-52190-B0 note Garnish, Roof Side, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,700
62472-52190-B1 note Garnish, Roof Side, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,700
62472-52190-E0 note Garnish, Roof Side, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,700
62472-52180-B0 note Garnish, Roof Side, Inner LH
2010-04 → 2010-08 ended
KSP90 B ¥9,700
62472-52180-B0 note Garnish, Roof Side, Inner LH
2010-08 → 2010-12 ended
KSP90 B ¥9,700
62472-52190-B0 note Garnish, Roof Side, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥9,700
62472-52190-B1 note Garnish, Roof Side, Inner LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥9,700
62472-52190-E0 note Garnish, Roof Side, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥9,700
67913 — Plate, Front Door Scuff, RH
67913-52120-B0 note Plate, Front Door Scuff, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥4,330
67913-52120-B0 note Plate, Front Door Scuff, RH
2005-01 → 2007-08 ended
NCP91 RS ¥4,330
67913-52120-B0 note Plate, Front Door Scuff, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥4,330
67913-52120-B0 note Plate, Front Door Scuff, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥4,330
67913-52120-E0 note Plate, Front Door Scuff, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,330
67913-52120-B0 note Plate, Front Door Scuff, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥4,330
67913-52120-E0 note Plate, Front Door Scuff, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,330
67914 — Plate, Front Door Scuff, LH
67914-52130-B0 note Plate, Front Door Scuff, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥4,330
67914-52130-B0 note Plate, Front Door Scuff, LH
2005-01 → 2007-08 ended
NCP91 RS ¥4,330
67914-52130-B0 note Plate, Front Door Scuff, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥4,330
67914-52130-B0 note Plate, Front Door Scuff, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥4,330
67914-52130-E0 note Plate, Front Door Scuff, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,330
67914-52130-B0 note Plate, Front Door Scuff, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥4,330
67914-52130-E0 note Plate, Front Door Scuff, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,330
67917A — Plate, Rear Door Scuff, RH
67917-52140-B0 note Plate, Rear Door Scuff, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,030
67917-52140-B0 note Plate, Rear Door Scuff, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,030
67917-52140-B0 note Plate, Rear Door Scuff, RH
2005-01 → 2007-08 ended
NCP91 RS ¥3,030
67917-52140-B0 note Plate, Rear Door Scuff, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,030
67917-52140-E0 note Plate, Rear Door Scuff, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,030
67917-52140-B0 note Plate, Rear Door Scuff, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,030
67917-52140-E0 note Plate, Rear Door Scuff, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,030
67918A — Plate, Rear Door Scuff, LH
67918-52150-B0 note Plate, Rear Door Scuff, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,030
67918-52150-B0 note Plate, Rear Door Scuff, LH
2005-01 → 2007-08 ended
NCP91 RS ¥3,030
67918-52150-B0 note Plate, Rear Door Scuff, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,030
67918-52150-B0 note Plate, Rear Door Scuff, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,030
67918-52150-E0 note Plate, Rear Door Scuff, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,030
67918-52150-B0 note Plate, Rear Door Scuff, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,030
67918-52150-E0 note Plate, Rear Door Scuff, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,030
67924A — Clamp, Door Scuff Plate, NO.2
67924-52140 Clamp, Door Scuff Plate, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥210
67924-52140 Clamp, Door Scuff Plate, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥210
67924-52140 Clamp, Door Scuff Plate, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥210
67924-52140 Clamp, Door Scuff Plate, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
