Exploded illustration 641623C 63310 — HEADLINING ASSY, ROOF (19 parts) 66424 — SPACER, SIDE RAIL, REAR LH (8 parts) 66413B — SPACER, SIDE RAIL, FRONT RH (8 parts) 66414A — SPACER, SIDE RAIL, REAR RH (8 parts) 66423 — SPACER, SIDE RAIL, FRONT LH (8 parts) 63339A — COVER, ROOF HEADLINING SERVICE HOLE (16 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63343B — PAD, ROOF SILENCER, REAR (3 parts) 63343B — PAD, ROOF SILENCER, REAR (3 parts) 63310H — CLIP(FOR ROOF HEADLINING) (10 parts) 63345 — PAD, ROOF SILENCER, NO.5 (3 parts) 63345 — PAD, ROOF SILENCER, NO.5 (3 parts) 8121 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue

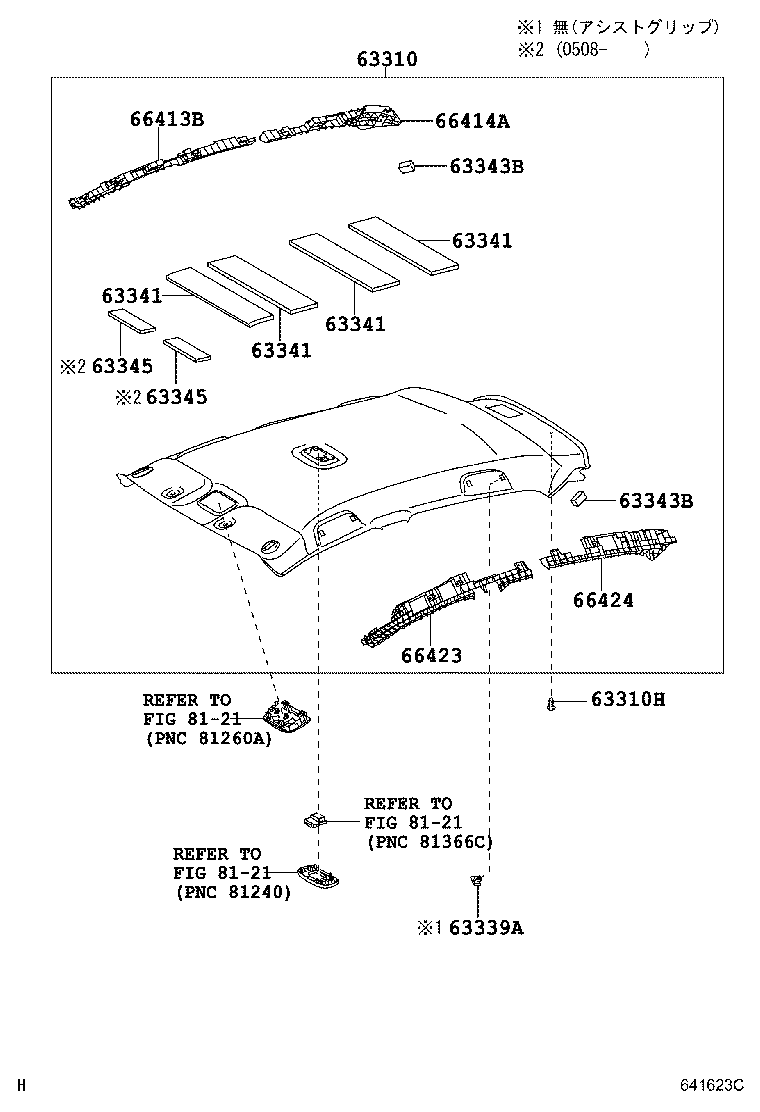

641623C · 15 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
63310 — Headlining Assy, Roof
63301-52010-B0 note Headlining Assy, Roof
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥57,500
63301-52010-B1 note Headlining Assy, Roof
2005-01 → 2007-08 ended
NCP91 RS ¥57,500
63301-52010-E0 note Headlining Assy, Roof
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥57,500
63301-52020-B0 note Headlining Assy, Roof
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥57,500
63301-52020-B0 note Headlining Assy, Roof
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥57,500
63301-52020-B1 note Headlining Assy, Roof
2005-01 → 2007-08 ended
NCP91 RS ¥57,500
63301-52020-E0 note Headlining Assy, Roof
2005-09 → 2007-08 ended
NCP95,SCP90 U ¥57,500
63301-52020-E0 note Headlining Assy, Roof
2005-09 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥57,500
63301-52010-B0 note Headlining Assy, Roof
2007-08 → 2008-08 ended
KSP90 B ¥57,500
63301-52010-B1 note Headlining Assy, Roof
2007-08 → 2008-09 ended
NCP91 5F ¥57,500
63301-52010-E0 note Headlining Assy, Roof
2007-08 → 2008-08 ended
KSP90 B ¥57,500
63301-52020-B0 note Headlining Assy, Roof
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥57,500
63301-52020-B1 note Headlining Assy, Roof
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥57,500
63301-52020-E0 note Headlining Assy, Roof
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥57,500
63301-52010-B0 note Headlining Assy, Roof
2010-04 → 2010-08 ended
KSP90 B ¥57,500
63301-52010-B0 note Headlining Assy, Roof
2010-08 → 2010-12 ended
KSP90 B ¥57,500
63301-52020-B0 note Headlining Assy, Roof
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥57,500
63301-52020-B1 note Headlining Assy, Roof
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥57,500
63301-52020-E0 note Headlining Assy, Roof
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥57,500
63310H — Clip(FOR ROOF HEADLINING)
90467-05164-B6 note Clip(FOR ROOF HEADLINING)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥60
90467-05164-B6 note Clip(FOR ROOF HEADLINING)
2005-01 → 2007-08 ended
NCP91 RS ¥60
90467-05164-C0 note Clip(FOR ROOF HEADLINING)
2005-01 → 2007-08 ended
NCP91 RS ¥90
90467-05164-E2 note Clip(FOR ROOF HEADLINING)
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥90
90467-05164-B6 note Clip(FOR ROOF HEADLINING)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥60
90467-05164-C0 note Clip(FOR ROOF HEADLINING)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥90
90467-05164-E2 note Clip(FOR ROOF HEADLINING)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
90467-05164-B6 note Clip(FOR ROOF HEADLINING)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥60
90467-05164-C0 note Clip(FOR ROOF HEADLINING)
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥90
90467-05164-E2 note Clip(FOR ROOF HEADLINING)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥90
63339A — Cover, Roof Headlining Service Hole
63339-52030-B1 note Cover, Roof Headlining Service Hole
2005-01 → 2005-07 ended
NCP91 RS ¥280
63339-52030-B1 note Cover, Roof Headlining Service Hole
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2005-12 → 2007-08 ended
NCP91 5F ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2005-07 → 2007-08 ended
NCP91 RS ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2005-01 → 2005-07 ended
NCP91 RS ¥280
63339-52030-E0 note Cover, Roof Headlining Service Hole
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥430
63339-52030-B1 note Cover, Roof Headlining Service Hole
2007-08 → 2008-08 ended
KSP90 B ¥280
63339-52030-B1 note Cover, Roof Headlining Service Hole
2007-08 → —
NCP91 5F ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2007-08 → 2008-09 ended
NCP91 5F ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2007-08 → —
NCP91 5F ¥280
63339-52030-E0 note Cover, Roof Headlining Service Hole
2007-08 → 2008-08 ended
KSP90 B ¥430
63339-52030-E0 note Cover, Roof Headlining Service Hole
2007-08 → —
NCP91 5F ¥430
63339-52030-B1 note Cover, Roof Headlining Service Hole
2010-04 → 2010-08 ended
KSP90 B ¥280
63339-52030-B1 note Cover, Roof Headlining Service Hole
2010-08 → 2010-12 ended
KSP90 B ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2008-09 → —
NCP91 5F ¥280
63339-52030-C0 note Cover, Roof Headlining Service Hole
2008-09 → —
NCP91 5F ¥280
63341 — Pad, Roof Silencer, NO.1
63341-52150 Pad, Roof Silencer, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥650
63341-52150 Pad, Roof Silencer, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥650
63341-52150 Pad, Roof Silencer, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥650
63343B — Pad, Roof Silencer, Rear
63343-52040 Pad, Roof Silencer, Rear
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥900
63343-52040 Pad, Roof Silencer, Rear
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥900
63343-52040 Pad, Roof Silencer, Rear
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥900
63345 — Pad, Roof Silencer, NO.5
63345-52030 Pad, Roof Silencer, NO.5
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥230
63345-52030 Pad, Roof Silencer, NO.5
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥230
63345-52030 Pad, Roof Silencer, NO.5
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥230
66413B — Spacer, Side Rail, Front RH
66413-52160 Spacer, Side Rail, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥3,860
66413-52180 note Spacer, Side Rail, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,930
66413-52180 Spacer, Side Rail, Front RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,930
66413-52160 note Spacer, Side Rail, Front RH
2007-08 → 2008-09 ended
KSP90 B;NCP91 5F ¥3,860
66413-52180 Spacer, Side Rail, Front RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,930
66413-52160 note Spacer, Side Rail, Front RH
2010-04 → 2010-08 ended
KSP90 B ¥3,860
66413-52160 note Spacer, Side Rail, Front RH
2010-08 → 2010-12 ended
KSP90 B ¥3,860
66413-52180 Spacer, Side Rail, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,930
66414A — Spacer, Side Rail, Rear RH
66414-52190 Spacer, Side Rail, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥3,370
66414-52210 Spacer, Side Rail, Rear RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,150
66414-52210 note Spacer, Side Rail, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,150
66414-52190 note Spacer, Side Rail, Rear RH
2007-08 → 2008-09 ended
KSP90 B;NCP91 5F ¥3,370
66414-52210 Spacer, Side Rail, Rear RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,150
66414-52190 note Spacer, Side Rail, Rear RH
2010-04 → 2010-08 ended
KSP90 B ¥3,370
66414-52190 note Spacer, Side Rail, Rear RH
2010-08 → 2010-12 ended
KSP90 B ¥3,370
66414-52210 Spacer, Side Rail, Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,150
66423 — Spacer, Side Rail, Front LH
66423-52170 Spacer, Side Rail, Front LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,930
66423-52170 note Spacer, Side Rail, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,930
66423-52180 Spacer, Side Rail, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥3,860
66423-52170 Spacer, Side Rail, Front LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,930
66423-52180 note Spacer, Side Rail, Front LH
2007-08 → 2008-09 ended
KSP90 B;NCP91 5F ¥3,860
66423-52170 Spacer, Side Rail, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,930
66423-52180 note Spacer, Side Rail, Front LH
2010-04 → 2010-08 ended
KSP90 B ¥3,860
66423-52180 note Spacer, Side Rail, Front LH
2010-08 → 2010-12 ended
KSP90 B ¥3,860
66424 — Spacer, Side Rail, Rear LH
66424-52180 Spacer, Side Rail, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥3,340
66424-52200 Spacer, Side Rail, Rear LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,130
66424-52200 note Spacer, Side Rail, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,130
66424-52180 note Spacer, Side Rail, Rear LH
2007-08 → 2008-09 ended
KSP90 B;NCP91 5F ¥3,340
66424-52200 Spacer, Side Rail, Rear LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥1,130
66424-52180 note Spacer, Side Rail, Rear LH
2010-04 → 2010-08 ended
KSP90 B ¥3,340
66424-52180 note Spacer, Side Rail, Rear LH
2010-08 → 2010-12 ended
KSP90 B ¥3,340
66424-52200 Spacer, Side Rail, Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
