Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

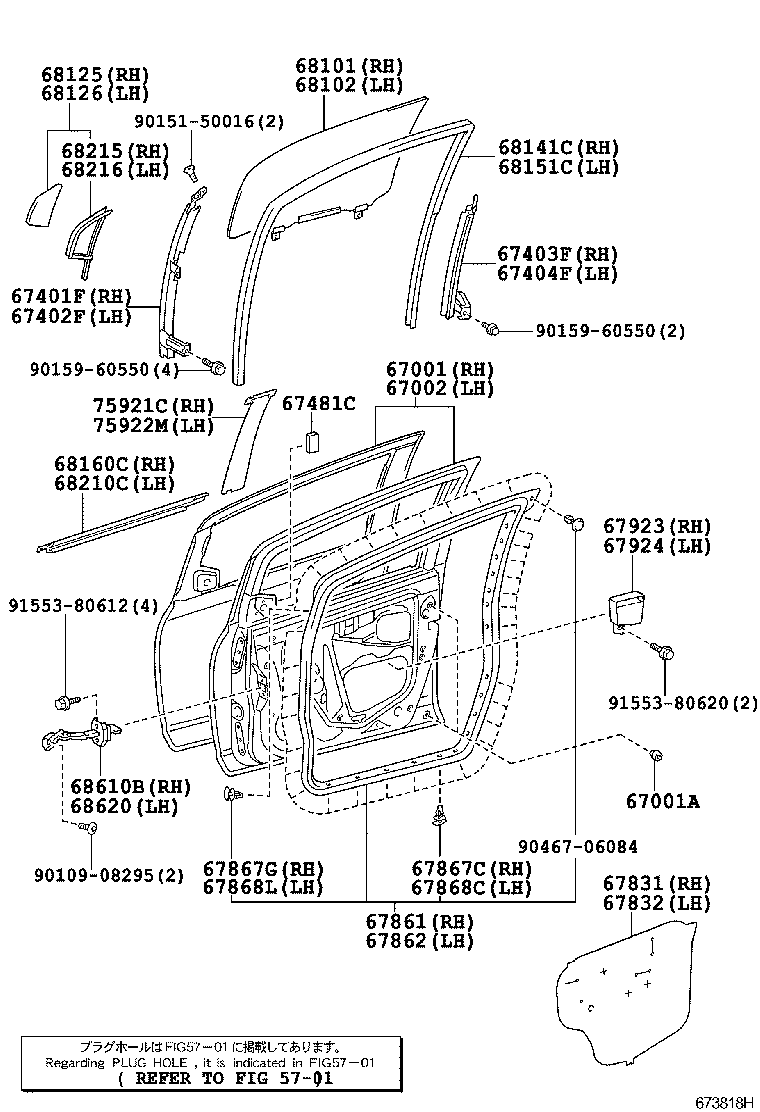

Exploded illustration 673818H 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (3 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (3 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (4 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (4 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (4 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (4 parts) 67481C — SEAL, FRONT DOOR FRONT LOWER FRAME (4 parts) 67001A — CUSHION, FRONT DOOR PANEL (5 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (14 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (14 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (5 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (5 parts) 67867G — RETAINER, DOOR WEATHERSTRIP, RH (4 parts) 67868L — RETAINER, DOOR WEATHERSTRIP, LH (4 parts) 67923 — CUSHION, FRONT DOOR STIFFENER, NO.1 (7 parts) 67924 — CUSHION, FRONT DOOR STIFFENER, NO.2 (7 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (3 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (3 parts) 68141C — RUN, FRONT DOOR GLASS, RH (4 parts) 68151C — RUN, FRONT DOOR GLASS, LH (4 parts) 68160C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH (4 parts) 68210C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH (4 parts) 68215 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH (5 parts) 68216 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH (5 parts) 68610B — CHECK ASSY, FRONT DOOR, RH (7 parts) 68620 — CHECK ASSY, FRONT DOOR, LH (7 parts) 75921C — TAPE, BLACK OUT, NO.1 RH (4 parts) 75922M — TAPE, BLACK OUT, NO.1 LH (4 parts) 9010908295 — not listed in this catalogue 9015150016 — not listed in this catalogue 9015960550 — not listed in this catalogue 9015960550 — not listed in this catalogue 9046706084 — not listed in this catalogue 9155380612 — not listed in this catalogue 9155380620 — not listed in this catalogue 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (4 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (4 parts) 68125 — GLASS, FRONT DOOR FIX WINDOW, RH (5 parts) 68126 — GLASS, FRONT DOOR FIX WINDOW, LH (5 parts) 5701 — not listed in this catalogue
673818H · 32 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
163 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-52260 Panel Sub-assy, Front Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥58,100
67001-52260 Panel Sub-assy, Front Door, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥58,100
67001-52260 Panel Sub-assy, Front Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥58,100
67001A — Cushion, Front Door Panel
90541-09124 Cushion, Front Door Panel
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ¥100
90541-09137 Cushion, Front Door Panel
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
90541-09137 Cushion, Front Door Panel
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
90541-09137 Cushion, Front Door Panel
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
90541-09137 Cushion, Front Door Panel
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67002 — Panel Sub-assy, Front Door, LH
67002-52340 Panel Sub-assy, Front Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥58,100
67002-52340 Panel Sub-assy, Front Door, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥58,100
67002-52340 Panel Sub-assy, Front Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥58,100
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-52090 Frame Sub-assy, Front Door, Front Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,110
67401-52090 Frame Sub-assy, Front Door, Front Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,110
67401-52090 Frame Sub-assy, Front Door, Front Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,110
67401-52090 Frame Sub-assy, Front Door, Front Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,110
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-52060 Frame Sub-assy, Front Door, Front Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,110
67402-52060 Frame Sub-assy, Front Door, Front Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,110
67402-52060 Frame Sub-assy, Front Door, Front Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,110
67402-52060 Frame Sub-assy, Front Door, Front Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,110
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-52160 Frame Sub-assy, Front Door, Rear Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,070
67403-52160 Frame Sub-assy, Front Door, Rear Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,070
67403-52160 Frame Sub-assy, Front Door, Rear Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,070
67403-52161 Frame Sub-assy, Front Door, Rear Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,070
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-52130 Frame Sub-assy, Front Door, Rear Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,070
67404-52130 Frame Sub-assy, Front Door, Rear Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,070
67404-52130 Frame Sub-assy, Front Door, Rear Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,070
67404-52131 Frame Sub-assy, Front Door, Rear Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,070
67481C — Seal, Front Door Front Lower Frame
67481-52010 Seal, Front Door Front Lower Frame
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥300
67481-52010 Seal, Front Door Front Lower Frame
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥300
67481-52010 Seal, Front Door Front Lower Frame
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥300
67481-52010 Seal, Front Door Front Lower Frame
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥300
67831 — Cover, Front Door Service Hole, RH
67831-52280 Cover, Front Door Service Hole, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥870
67831-52350 note Cover, Front Door Service Hole, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥1,020
67831-52350 Cover, Front Door Service Hole, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,020
67831-52280 Cover, Front Door Service Hole, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥870
67831-52280 Cover, Front Door Service Hole, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥870
67831-52350 Cover, Front Door Service Hole, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,020
67831-52350 note Cover, Front Door Service Hole, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,020
67831-52350 note Cover, Front Door Service Hole, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,020
67831-52280 Cover, Front Door Service Hole, RH
2010-07 → 2010-12 ended
KSP90 U ¥870
67831-52280 Cover, Front Door Service Hole, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥870
67831-52350 note Cover, Front Door Service Hole, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥1,020
67831-52350 Cover, Front Door Service Hole, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥1,020
67831-52350 Cover, Front Door Service Hole, RH
2008-08 → 2010-07 ended
KSP90 U ¥1,020
67831-52350 note Cover, Front Door Service Hole, RH
2008-08 → 2010-07 ended
KSP90 F ¥1,020
67832 — Cover, Front Door Service Hole, LH
67831-52280 Cover, Front Door Service Hole, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥870
67832-52210 Cover, Front Door Service Hole, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,020
67832-52210 note Cover, Front Door Service Hole, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥1,020
67831-52280 Cover, Front Door Service Hole, LH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥870
67831-52280 Cover, Front Door Service Hole, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥870
67832-52210 Cover, Front Door Service Hole, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,020
67832-52210 note Cover, Front Door Service Hole, LH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,020
67832-52210 note Cover, Front Door Service Hole, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,020
67831-52280 Cover, Front Door Service Hole, LH
2010-07 → 2010-12 ended
KSP90 U ¥870
67831-52280 Cover, Front Door Service Hole, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥870
67832-52210 Cover, Front Door Service Hole, LH
2008-08 → 2010-07 ended
KSP90 U ¥1,020
67832-52210 note Cover, Front Door Service Hole, LH
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥1,020
67832-52210 Cover, Front Door Service Hole, LH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥1,020
67832-52210 note Cover, Front Door Service Hole, LH
2008-08 → 2010-07 ended
KSP90 F ¥1,020
67861 — Weatherstrip, Front Door, RH
67861-52150 Weatherstrip, Front Door, RH
2005-01 → 2005-09 ended
KSP90,NCP9#,SCP90 ¥7,400
67861-52151 Weatherstrip, Front Door, RH
2005-10 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,400
67861-52151 Weatherstrip, Front Door, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,400
67861-52151 Weatherstrip, Front Door, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,400
67861-52151 Weatherstrip, Front Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,400
67862 — Weatherstrip, Front Door, LH
67862-52150 Weatherstrip, Front Door, LH
2005-01 → 2005-09 ended
KSP90,NCP9#,SCP90 ¥7,400
67862-52151 Weatherstrip, Front Door, LH
2005-10 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,400
67862-52151 Weatherstrip, Front Door, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,400
67862-52151 Weatherstrip, Front Door, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,400
67862-52151 Weatherstrip, Front Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,400
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-12150 Retainer, Front Door Weatherstrip, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-12150 Retainer, Front Door Weatherstrip, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-12150 Retainer, Front Door Weatherstrip, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67867G — Retainer, Door Weatherstrip, RH
67867-52010 Retainer, Door Weatherstrip, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-52010 Retainer, Door Weatherstrip, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-52010 Retainer, Door Weatherstrip, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-52010 Retainer, Door Weatherstrip, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-12150 Retainer, Front Door Weatherstrip, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-12150 Retainer, Front Door Weatherstrip, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-12150 Retainer, Front Door Weatherstrip, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67868L — Retainer, Door Weatherstrip, LH
67867-52020 Retainer, Door Weatherstrip, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-52020 Retainer, Door Weatherstrip, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-52020 Retainer, Door Weatherstrip, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-52020 Retainer, Door Weatherstrip, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67923 — Cushion, Front Door Stiffener, NO.1
67923-52090 Cushion, Front Door Stiffener, NO.1
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥3,410
67923-52091 Cushion, Front Door Stiffener, NO.1
2005-05 → 2005-08 ended
KSP90,NCP9#,SCP90 ¥3,420
67923-52092 Cushion, Front Door Stiffener, NO.1
2005-08 → 2005-10 ended
KSP90,NCP9#,SCP90 ¥3,420
67923-52093 Cushion, Front Door Stiffener, NO.1
2005-11 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,410
67923-52093 Cushion, Front Door Stiffener, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,410
67923-52093 Cushion, Front Door Stiffener, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,410
67923-52093 Cushion, Front Door Stiffener, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,410
67924 — Cushion, Front Door Stiffener, NO.2
67924-52120 Cushion, Front Door Stiffener, NO.2
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥3,410
67924-52121 Cushion, Front Door Stiffener, NO.2
2005-05 → 2005-08 ended
KSP90,NCP9#,SCP90 ¥3,420
67924-52122 Cushion, Front Door Stiffener, NO.2
2005-08 → 2005-10 ended
KSP90,NCP9#,SCP90 ¥3,420
67924-52123 Cushion, Front Door Stiffener, NO.2
2005-11 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,410
67924-52123 Cushion, Front Door Stiffener, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,410
67924-52123 Cushion, Front Door Stiffener, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,410
67924-52123 Cushion, Front Door Stiffener, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,410
68101 — Glass Sub-assy, Front Door, RH
68110-52180 note Glass Sub-assy, Front Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
68110-52180 note Glass Sub-assy, Front Door, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥0
68110-52180 note Glass Sub-assy, Front Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
68102 — Glass Sub-assy, Front Door, LH
68120-52180 note Glass Sub-assy, Front Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
68120-52180 note Glass Sub-assy, Front Door, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥0
68120-52180 note Glass Sub-assy, Front Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
68125 — Glass, Front Door Fix Window, RH
68101-52030 note Glass, Front Door Fix Window, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
68101-52030 note Glass, Front Door Fix Window, RH
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 —
68101-52031 note Glass, Front Door Fix Window, RH
2008-01 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
68101-52031 note Glass, Front Door Fix Window, RH
2008-01 → 2008-09 ended
NCP91,SCP90 RS —
68101-52031 note Glass, Front Door Fix Window, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
68126 — Glass, Front Door Fix Window, LH
68102-52020 note Glass, Front Door Fix Window, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
68102-52020 note Glass, Front Door Fix Window, LH
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 —
68102-52021 note Glass, Front Door Fix Window, LH
2008-01 → 2008-09 ended
NCP91,SCP90 RS —
68102-52021 note Glass, Front Door Fix Window, LH
2008-01 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
68102-52021 note Glass, Front Door Fix Window, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
68141C — Run, Front Door Glass, RH
68141-52170 Run, Front Door Glass, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,880
68141-52170 Run, Front Door Glass, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,880
68141-52170 Run, Front Door Glass, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,880
68141-52170 Run, Front Door Glass, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,880
68151C — Run, Front Door Glass, LH
68151-52150 Run, Front Door Glass, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,880
68151-52150 Run, Front Door Glass, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,880
68151-52150 Run, Front Door Glass, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,880
68151-52150 Run, Front Door Glass, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,880
68160C — Weatherstrip Assy, Front Door Glass, Outer RH
68160-52110 Weatherstrip Assy, Front Door Glass, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,090
68160-52110 Weatherstrip Assy, Front Door Glass, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,090
68160-52110 Weatherstrip Assy, Front Door Glass, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,090
68160-52110 Weatherstrip Assy, Front Door Glass, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,090
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68210-52110 Weatherstrip Assy, Front Door Glass, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,090
68210-52110 Weatherstrip Assy, Front Door Glass, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,090
68210-52110 Weatherstrip Assy, Front Door Glass, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,090
68210-52110 Weatherstrip Assy, Front Door Glass, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,090
68215 — Weatherstrip, Front Door Fix Window, RH
68215-52010 Weatherstrip, Front Door Fix Window, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,190
68215-52010 Weatherstrip, Front Door Fix Window, RH
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 ¥4,190
68215-52011 Weatherstrip, Front Door Fix Window, RH
2008-01 → 2008-09 ended
NCP91,SCP90 RS ¥4,190
68215-52011 Weatherstrip, Front Door Fix Window, RH
2008-01 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,190
68215-52011 Weatherstrip, Front Door Fix Window, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,190
68216 — Weatherstrip, Front Door Fix Window, LH
68216-52010 Weatherstrip, Front Door Fix Window, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,190
68216-52010 Weatherstrip, Front Door Fix Window, LH
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 ¥4,190
68216-52011 Weatherstrip, Front Door Fix Window, LH
2008-01 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,190
68216-52011 Weatherstrip, Front Door Fix Window, LH
2008-01 → 2008-09 ended
NCP91,SCP90 RS ¥4,190
68216-52011 Weatherstrip, Front Door Fix Window, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,190
68610B — Check Assy, Front Door, RH
68610-12161 Check Assy, Front Door, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 ¥3,700
68610-52100 Check Assy, Front Door, RH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
68610-52100 Check Assy, Front Door, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
68610-52100 Check Assy, Front Door, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
68610-52100 Check Assy, Front Door, RH
2008-08 → 2010-03 ended
KSP90,NCP9#,SCP90 ¥3,700
68610-52101 Check Assy, Front Door, RH
2010-03 → 2010-07 ended
NCP91 5F ¥3,700
68610-52101 Check Assy, Front Door, RH
2010-03 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,700
68620 — Check Assy, Front Door, LH
68610-52100 Check Assy, Front Door, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
68620-12091 Check Assy, Front Door, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 ¥3,700
68610-52100 Check Assy, Front Door, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
68610-52100 Check Assy, Front Door, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
68610-52100 Check Assy, Front Door, LH
2008-08 → 2010-03 ended
KSP90,NCP9#,SCP90 ¥3,700
68610-52101 Check Assy, Front Door, LH
2010-03 → 2010-07 ended
NCP91 5F ¥3,700
68610-52101 Check Assy, Front Door, LH
2010-03 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,700
75921C — Tape, Black Out, NO.1 RH
75921-52070 Tape, Black Out, NO.1 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,780
75921-52070 Tape, Black Out, NO.1 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,780
75921-52070 Tape, Black Out, NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,780
75921-52070 Tape, Black Out, NO.1 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,780
75922M — Tape, Black Out, NO.1 LH
75922-52070 Tape, Black Out, NO.1 LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,780
75922-52070 Tape, Black Out, NO.1 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,780
75922-52070 Tape, Black Out, NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,780
75922-52070 Tape, Black Out, NO.1 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,780
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
