Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

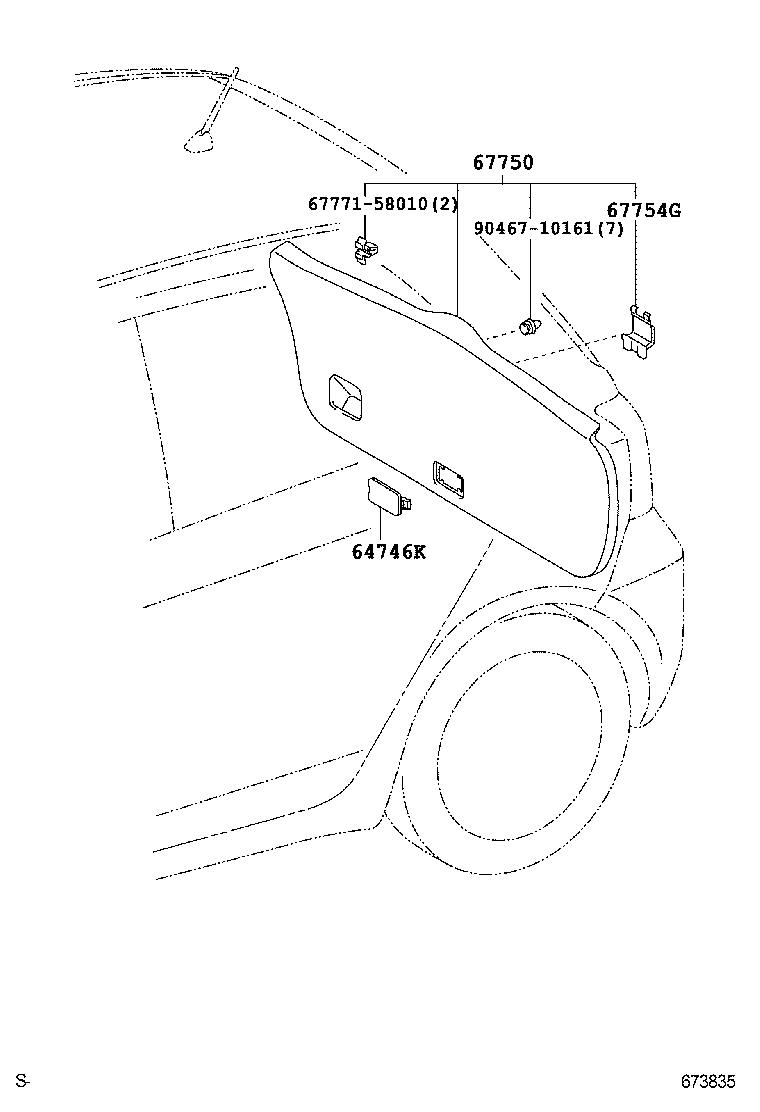

Exploded illustration 673835 67750 — BOARD ASSY, BACK DOOR TRIM (8 parts) 64746K — COVER, DECK TRIM SIDE LAMP HOLE (11 parts) 67754G — SPACER, BACK DOOR TRIM (11 parts) 9046710161 — not listed in this catalogue 6777158010 — not listed in this catalogue
673835 · 3 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
64746K — Cover, Deck Trim Side Lamp Hole
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2005-01 → 2007-08 ended
NCP91 RS ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥430
64746-52110-E0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥430
64746-52110-E0 note Cover, Deck Trim Side Lamp Hole
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥430
64746-52110-B0 note Cover, Deck Trim Side Lamp Hole
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥430
64746-52110-E0 note Cover, Deck Trim Side Lamp Hole
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥430
67750 — Board Assy, Back Door Trim
67750-52070-B0 note Board Assy, Back Door Trim
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥11,900
67750-52080-B0 note Board Assy, Back Door Trim
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥11,700
67750-52080-B0 note Board Assy, Back Door Trim
2005-01 → 2007-08 ended
NCP91 RS ¥11,700
67750-52080-B0 note Board Assy, Back Door Trim
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥11,700
67750-52080-B0 note Board Assy, Back Door Trim
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥11,700
67750-52080-E0 note Board Assy, Back Door Trim
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,700
67750-52080-B0 note Board Assy, Back Door Trim
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥11,700
67750-52080-E0 note Board Assy, Back Door Trim
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,700
67754G — Spacer, Back Door Trim
67754-52050-B0 note Spacer, Back Door Trim
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥610
67754-52050-B0 note Spacer, Back Door Trim
2005-01 → 2007-08 ended
NCP91 RS ¥610
67754-52050-B0 note Spacer, Back Door Trim
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥610
67754-52050-B0 note Spacer, Back Door Trim
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥610
67754-52050-B0 note Spacer, Back Door Trim
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥610
67754-52050-B0 note Spacer, Back Door Trim
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥610
67754-52050-B0 note Spacer, Back Door Trim
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥610
67754-52050-E0 note Spacer, Back Door Trim
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥610
67754-52050-E0 note Spacer, Back Door Trim
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥610
67754-52050-B0 note Spacer, Back Door Trim
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥610
67754-52050-E0 note Spacer, Back Door Trim
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
