Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

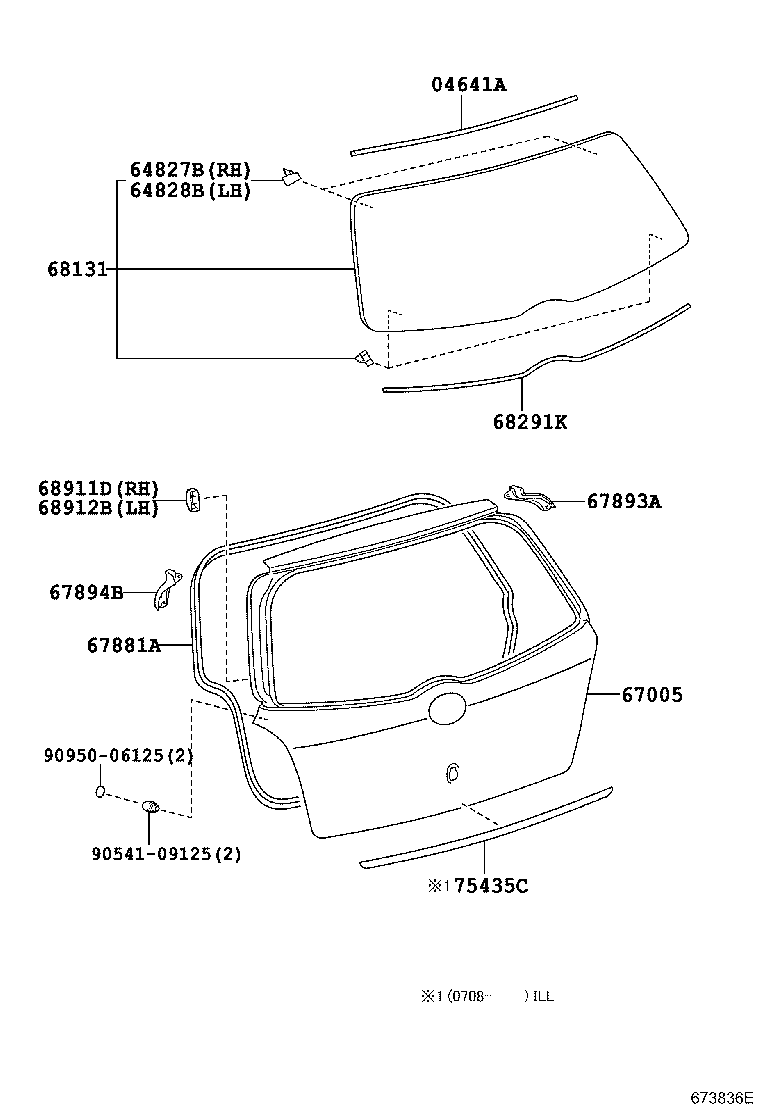

Exploded illustration 673836E 04641A — DAM KIT, BACK WINDOW GLASS ADHESIVE (4 parts) 64827B — CLIP, BACK WINDOW GLASS, RH (4 parts) 64828B — CLIP, BACK WINDOW GLASS, LH (4 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (9 parts) 75435C — ORNAMENT, BACK DOOR (2 parts) 67881A — WEATHERSTRIP, BACK DOOR (4 parts) 67893A — PROTECTOR, BACK DOOR PANEL, NO.1 (4 parts) 67894B — PROTECTOR, BACK DOOR PANEL, NO.2 (4 parts) 68911D — COVER, BACK DOOR STAY, RH (4 parts) 68912B — COVER, BACK DOOR STAY, LH (4 parts) 68131 — GLASS, BACK DOOR (13 parts) 68291K — DAM KIT, BACK WINDOW GLASS (4 parts) 9054109125 — not listed in this catalogue 9095006125 — not listed in this catalogue
673836E · 12 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
04641A — Dam Kit, Back Window Glass Adhesive
64813-52070 Dam Kit, Back Window Glass Adhesive
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,000
64813-52070 Dam Kit, Back Window Glass Adhesive
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,000
64813-52070 Dam Kit, Back Window Glass Adhesive
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,000
64813-52070 Dam Kit, Back Window Glass Adhesive
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,000
64827B — Clip, Back Window Glass, RH
64827-52070 Clip, Back Window Glass, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥360
64827-52070 Clip, Back Window Glass, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥360
64827-52070 Clip, Back Window Glass, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥360
64827-52070 Clip, Back Window Glass, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥360
64828B — Clip, Back Window Glass, LH
64828-52050 Clip, Back Window Glass, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥360
64828-52050 Clip, Back Window Glass, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥360
64828-52050 Clip, Back Window Glass, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥360
64828-52050 Clip, Back Window Glass, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥360
67005 — Panel Sub-assy, Back Door
67005-52720 Panel Sub-assy, Back Door
2005-01 → 2007-08 ended
NCP91 RS ¥54,700
67005-52720 note Panel Sub-assy, Back Door
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥54,700
67005-52730 Panel Sub-assy, Back Door
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥54,700
67005-52720 note Panel Sub-assy, Back Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥54,700
67005-52720 Panel Sub-assy, Back Door
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥54,700
67005-52730 Panel Sub-assy, Back Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥54,700
67005-52720 note Panel Sub-assy, Back Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥54,700
67005-52720 Panel Sub-assy, Back Door
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥54,700
67005-52730 Panel Sub-assy, Back Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥54,700
67881A — Weatherstrip, Back Door
67881-52110 Weatherstrip, Back Door
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥11,500
67881-52110 Weatherstrip, Back Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥11,500
67881-52110 Weatherstrip, Back Door
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥11,500
67881-52110 Weatherstrip, Back Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥11,500
67893A — Protector, Back Door Panel, NO.1
67893-52040 Protector, Back Door Panel, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,140
67893-52040 Protector, Back Door Panel, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,140
67893-52040 Protector, Back Door Panel, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,140
67893-52040 Protector, Back Door Panel, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
67894B — Protector, Back Door Panel, NO.2
67894-52040 Protector, Back Door Panel, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,140
67894-52040 Protector, Back Door Panel, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,140
67894-52040 Protector, Back Door Panel, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,140
67894-52040 Protector, Back Door Panel, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
68131 — Glass, Back Door
68105-52380 note Glass, Back Door
2005-01 → 2007-08 ended
KSP90 B ¥53,700
68105-52380 note Glass, Back Door
2005-12 → 2007-08 ended
NCP91 5F ¥53,700
68105-52450 note Glass, Back Door
2005-01 → 2007-06 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥55,800
68105-52451 note Glass, Back Door
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68105-52380 note Glass, Back Door
2007-08 → 2008-08 ended
KSP90 B ¥53,700
68105-52380 note Glass, Back Door
2007-08 → —
NCP91 5F ¥53,700
68105-52451 note Glass, Back Door
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U —
68105-52451 note Glass, Back Door
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
68105-52380 note Glass, Back Door
2008-09 → —
NCP91 5F ¥53,700
68105-52380 note Glass, Back Door
2008-09 → —
NCP91 5F ¥53,700
68105-52380 note Glass, Back Door
2008-08 → 2010-12 ended
KSP90 B ¥53,700
68105-52451 note Glass, Back Door
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68105-52451 note Glass, Back Door
2010-08 → 2010-12 ended
KSP90 B —
68291K — Dam Kit, Back Window Glass
64814-52040 Dam Kit, Back Window Glass
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,470
64814-52040 Dam Kit, Back Window Glass
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,470
64814-52040 Dam Kit, Back Window Glass
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,470
64814-52040 Dam Kit, Back Window Glass
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,470
68911D — Cover, Back Door Stay, RH
68911-52010 Cover, Back Door Stay, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥740
68911-52010 Cover, Back Door Stay, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥740
68911-52010 Cover, Back Door Stay, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
68911-52010 Cover, Back Door Stay, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
68912B — Cover, Back Door Stay, LH
68912-52010 Cover, Back Door Stay, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥740
68912-52010 Cover, Back Door Stay, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥740
68912-52010 Cover, Back Door Stay, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
68912-52010 Cover, Back Door Stay, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
75435C — Ornament, Back Door
75435-52010 Ornament, Back Door
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥1,900
75435-52010 Ornament, Back Door
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥1,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
