Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

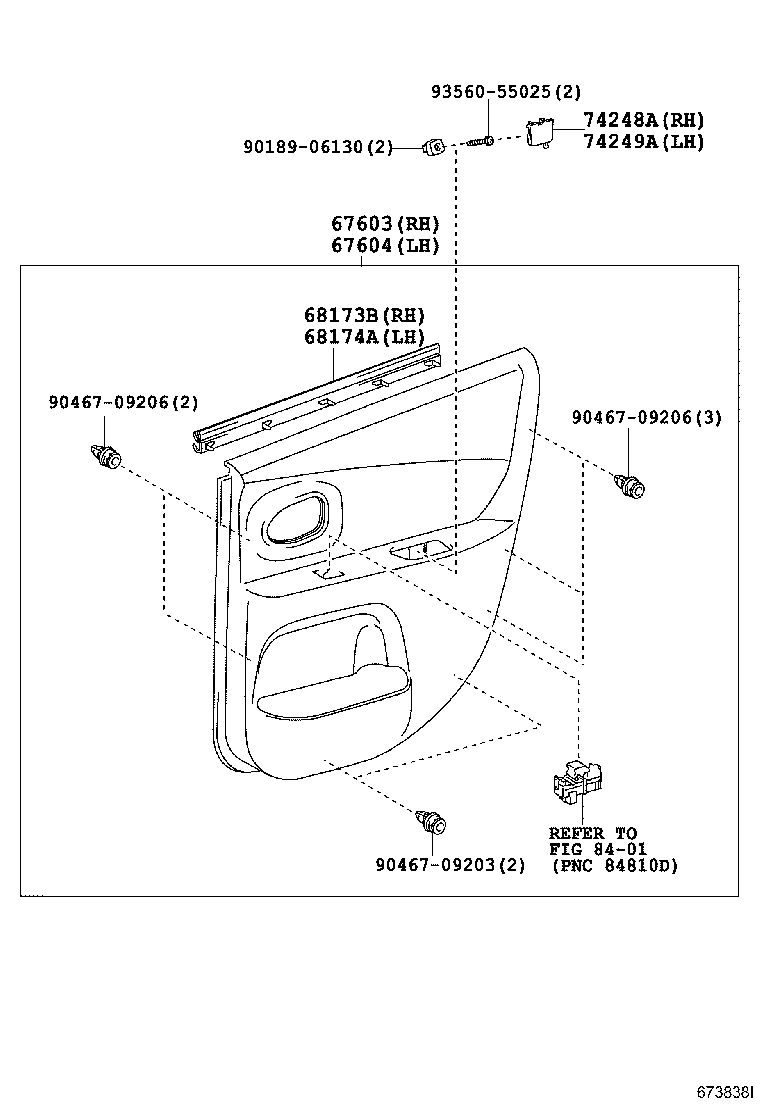

Exploded illustration 673838I 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (30 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (30 parts) 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (4 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (4 parts) 8401 — not listed in this catalogue 9046709206 — not listed in this catalogue 9046709203 — not listed in this catalogue 9046709206 — not listed in this catalogue 74248A — PLUG, REAR DOOR ARMREST, RH (9 parts) 74249A — PLUG, REAR DOOR ARMREST, LH (9 parts) 9018906130 — not listed in this catalogue 9356055025 — not listed in this catalogue
673838I · 6 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-52A20-B0 note Board Sub-assy, Rear Door Trim, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥22,900
67630-52A20-B1 note Board Sub-assy, Rear Door Trim, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥22,900
67630-52A40-B0 note Board Sub-assy, Rear Door Trim, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥26,300
67630-52A40-B1 note Board Sub-assy, Rear Door Trim, RH
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥26,300
67630-52A40-B2 note Board Sub-assy, Rear Door Trim, RH
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥26,300
67630-52A50-B0 note Board Sub-assy, Rear Door Trim, RH
2005-01 → 2007-08 ended
NCP91 RS ¥22,900
67630-52J40-B0 note Board Sub-assy, Rear Door Trim, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥26,300
67630-52L50-B0 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67630-52L50-E0 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67630-52L60-E1 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥22,900
67630-52L70-B0 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L70-E0 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L80-B0 note Board Sub-assy, Rear Door Trim, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,900
67630-52L50-B0 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67630-52L50-E0 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥22,900
67630-52L50-E0 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-05 ended
KSP90 B ¥22,900
67630-52L60-E1 note Board Sub-assy, Rear Door Trim, RH
2010-05 → 2010-12 ended
NCP9#,SCP90 ILL ¥22,900
67630-52L60-E1 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-05 ended
NCP9#,SCP90 ILL ¥22,900
67630-52L70-B0 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L70-B0 note Board Sub-assy, Rear Door Trim, RH
2010-05 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L70-E0 note Board Sub-assy, Rear Door Trim, RH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L70-E0 note Board Sub-assy, Rear Door Trim, RH
2010-05 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥22,900
67630-52L80-B0 note Board Sub-assy, Rear Door Trim, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥22,900
67630-52S60-E0 note Board Sub-assy, Rear Door Trim, RH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥22,900
67630-52T30-B0 note Board Sub-assy, Rear Door Trim, RH
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥22,900
67630-52T30-B0 note Board Sub-assy, Rear Door Trim, RH
2009-08 → 2010-08 ended
KSP90 F ¥22,900
67630-52T30-B0 note Board Sub-assy, Rear Door Trim, RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥22,900
67630-52T30-E0 note Board Sub-assy, Rear Door Trim, RH
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥22,900
67630-52T30-E0 note Board Sub-assy, Rear Door Trim, RH
2009-08 → 2010-08 ended
KSP90 F ¥22,900
67630-52T30-E0 note Board Sub-assy, Rear Door Trim, RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥22,900
67604 — Board Sub-assy, Rear Door Trim, LH
67640-52D30-B0 note Board Sub-assy, Rear Door Trim, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥22,900
67640-52D30-B1 note Board Sub-assy, Rear Door Trim, LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥22,900
67640-52D50-B0 note Board Sub-assy, Rear Door Trim, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥26,300
67640-52D50-B1 note Board Sub-assy, Rear Door Trim, LH
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥26,300
67640-52D50-B2 note Board Sub-assy, Rear Door Trim, LH
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥26,300
67640-52D60-B0 note Board Sub-assy, Rear Door Trim, LH
2005-01 → 2007-08 ended
NCP91 RS ¥22,900
67640-52M50-B0 note Board Sub-assy, Rear Door Trim, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥26,300
67640-52P20-B0 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67640-52P20-E0 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67640-52P30-E1 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥22,900
67640-52P40-B0 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P40-E0 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P50-B0 note Board Sub-assy, Rear Door Trim, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥22,900
67640-52P20-B0 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥22,900
67640-52P20-E0 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-05 ended
KSP90 B ¥22,900
67640-52P20-E0 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥22,900
67640-52P30-E1 note Board Sub-assy, Rear Door Trim, LH
2010-05 → 2010-12 ended
NCP9#,SCP90 ILL ¥22,900
67640-52P30-E1 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-05 ended
NCP9#,SCP90 ILL ¥22,900
67640-52P40-B0 note Board Sub-assy, Rear Door Trim, LH
2010-05 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P40-B0 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P40-E0 note Board Sub-assy, Rear Door Trim, LH
2008-08 → 2010-05 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P40-E0 note Board Sub-assy, Rear Door Trim, LH
2010-05 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥22,900
67640-52P50-B0 note Board Sub-assy, Rear Door Trim, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥22,900
67640-52S00-E0 note Board Sub-assy, Rear Door Trim, LH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥22,900
67640-52S70-B0 note Board Sub-assy, Rear Door Trim, LH
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥22,900
67640-52S70-B0 note Board Sub-assy, Rear Door Trim, LH
2009-08 → 2010-08 ended
KSP90 F ¥22,900
67640-52S70-B0 note Board Sub-assy, Rear Door Trim, LH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥22,900
67640-52S70-E0 note Board Sub-assy, Rear Door Trim, LH
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥22,900
67640-52S70-E0 note Board Sub-assy, Rear Door Trim, LH
2009-08 → 2010-08 ended
KSP90 F ¥22,900
67640-52S70-E0 note Board Sub-assy, Rear Door Trim, LH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥22,900
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-52110 Weatherstrip, Rear Door Glass, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,060
68173-52110 Weatherstrip, Rear Door Glass, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,060
68173-52110 Weatherstrip, Rear Door Glass, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,060
68173-52110 Weatherstrip, Rear Door Glass, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,060
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-52110 Weatherstrip, Rear Door Glass, Inner LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,060
68174-52110 Weatherstrip, Rear Door Glass, Inner LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,060
68174-52110 Weatherstrip, Rear Door Glass, Inner LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,060
68174-52110 Weatherstrip, Rear Door Glass, Inner LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,060
74248A — Plug, Rear Door Armrest, RH
74248-52010-B0 note Plug, Rear Door Armrest, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2005-01 → 2007-08 ended
NCP91 RS ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥260
74248-52010-E0 note Plug, Rear Door Armrest, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
74248-52010-B0 note Plug, Rear Door Armrest, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥260
74248-52010-E0 note Plug, Rear Door Armrest, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
74249A — Plug, Rear Door Armrest, LH
74249-52010-B0 note Plug, Rear Door Armrest, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2005-01 → 2007-08 ended
NCP91 RS ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥260
74249-52010-E0 note Plug, Rear Door Armrest, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
74249-52010-B0 note Plug, Rear Door Armrest, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥260
74249-52010-E0 note Plug, Rear Door Armrest, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
