Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

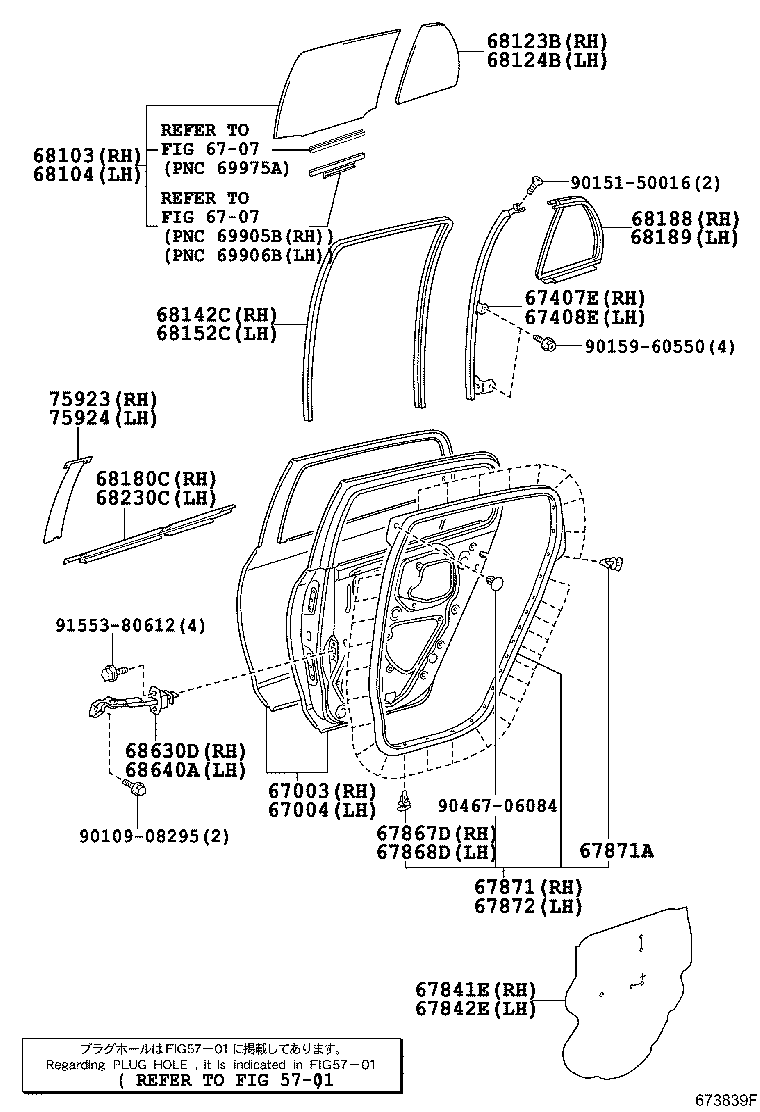

Exploded illustration 673839F 67841E — COVER, REAR DOOR SERVICE HOLE, RH (4 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (4 parts) 68180C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH (4 parts) 68230C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH (4 parts) 75923 — TAPE, BLACK OUT, NO.2 RH (4 parts) 75924 — TAPE, BLACK OUT, NO.2 LH (4 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (4 parts) 68630D — CHECK ASSY, REAR DOOR, RH (7 parts) 68640A — CHECK ASSY, REAR DOOR, LH (8 parts) 9010908295 — not listed in this catalogue 9155380612 — not listed in this catalogue 67003 — PANEL SUB-ASSY, REAR DOOR, RH (5 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (5 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (4 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (4 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (4 parts) 67871A — RETAINER(FOR REAR DOOR WEATHERSTRIP) (8 parts) 9046706084 — not listed in this catalogue 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (4 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (4 parts) 68142C — RUN, REAR DOOR GLASS, RH (5 parts) 68152C — RUN, REAR DOOR GLASS, LH (5 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (4 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (4 parts) 9015960550 — not listed in this catalogue 9015150016 — not listed in this catalogue 68103 — GLASS SUB-ASSY, REAR DOOR, RH (14 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (14 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (13 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (13 parts) 6707 — not listed in this catalogue 6707 — not listed in this catalogue 5701 — not listed in this catalogue
673839F · 25 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
153 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-52300 Panel Sub-assy, Rear Door, RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥55,700
67003-52301 Panel Sub-assy, Rear Door, RH
2005-05 → 2006-02 ended
KSP90,NCP9#,SCP90 ¥55,700
67003-52302 Panel Sub-assy, Rear Door, RH
2006-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥55,400
67003-52302 Panel Sub-assy, Rear Door, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥55,400
67003-52302 Panel Sub-assy, Rear Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥55,400
67004 — Panel Sub-assy, Rear Door, LH
67004-52300 Panel Sub-assy, Rear Door, LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥55,700
67004-52301 Panel Sub-assy, Rear Door, LH
2005-05 → 2006-02 ended
KSP90,NCP9#,SCP90 ¥55,700
67004-52302 Panel Sub-assy, Rear Door, LH
2006-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥55,400
67004-52302 Panel Sub-assy, Rear Door, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥55,400
67004-52302 Panel Sub-assy, Rear Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥55,400
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-52110 Bar Sub-assy, Rear Door Window Division, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,810
67407-52110 Bar Sub-assy, Rear Door Window Division, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,810
67407-52110 Bar Sub-assy, Rear Door Window Division, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,810
67407-52110 Bar Sub-assy, Rear Door Window Division, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,810
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-52110 Bar Sub-assy, Rear Door Window Division, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,810
67408-52110 Bar Sub-assy, Rear Door Window Division, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,810
67408-52110 Bar Sub-assy, Rear Door Window Division, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,810
67408-52110 Bar Sub-assy, Rear Door Window Division, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,810
67841E — Cover, Rear Door Service Hole, RH
67841-52170 Cover, Rear Door Service Hole, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥870
67841-52170 Cover, Rear Door Service Hole, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥870
67841-52170 Cover, Rear Door Service Hole, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥870
67841-52170 Cover, Rear Door Service Hole, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥870
67842E — Cover, Rear Door Service Hole, LH
67841-52170 Cover, Rear Door Service Hole, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥870
67841-52170 Cover, Rear Door Service Hole, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥870
67841-52170 Cover, Rear Door Service Hole, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥870
67841-52170 Cover, Rear Door Service Hole, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥870
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67871 — Weatherstrip, Rear Door, RH
67871-52130 Weatherstrip, Rear Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,400
67871-52130 Weatherstrip, Rear Door, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,400
67871-52130 Weatherstrip, Rear Door, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,400
67871-52130 Weatherstrip, Rear Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,400
67871A — Retainer(FOR REAR DOOR WEATHERSTRIP)
67867-52020 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-52030 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
67867-52020 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-52020 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-52030 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥100
67867-52030 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥100
67867-52020 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67867-52030 note Retainer(FOR REAR DOOR WEATHERSTRIP)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥100
67872 — Weatherstrip, Rear Door, LH
67872-52150 Weatherstrip, Rear Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,400
67872-52150 Weatherstrip, Rear Door, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,400
67872-52150 Weatherstrip, Rear Door, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,400
67872-52150 Weatherstrip, Rear Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,400
68103 — Glass Sub-assy, Rear Door, RH
68130-52210 note Glass Sub-assy, Rear Door, RH
2005-01 → 2005-05 ended
KSP90 B ¥15,600
68130-52211 note Glass Sub-assy, Rear Door, RH
2005-05 → 2007-08 ended
KSP90 B ¥15,500
68130-52211 note Glass Sub-assy, Rear Door, RH
2005-12 → 2007-08 ended
NCP91 5F ¥15,500
68130-52220 note Glass Sub-assy, Rear Door, RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥16,300
68130-52221 note Glass Sub-assy, Rear Door, RH
2005-05 → 2007-06 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68130-52222 note Glass Sub-assy, Rear Door, RH
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68130-52211 note Glass Sub-assy, Rear Door, RH
2007-08 → 2008-08 ended
KSP90 B ¥15,500
68130-52211 note Glass Sub-assy, Rear Door, RH
2007-08 → —
NCP91 5F ¥15,500
68130-52222 note Glass Sub-assy, Rear Door, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68130-52211 note Glass Sub-assy, Rear Door, RH
2008-08 → 2010-12 ended
KSP90 B ¥15,500
68130-52211 note Glass Sub-assy, Rear Door, RH
2008-09 → —
NCP91 5F ¥15,500
68130-52211 note Glass Sub-assy, Rear Door, RH
2008-09 → —
NCP91 5F ¥15,500
68130-52222 note Glass Sub-assy, Rear Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68130-52222 note Glass Sub-assy, Rear Door, RH
2010-08 → 2010-12 ended
KSP90 B —
68104 — Glass Sub-assy, Rear Door, LH
68140-52210 note Glass Sub-assy, Rear Door, LH
2005-01 → 2005-05 ended
KSP90 B ¥15,600
68140-52211 note Glass Sub-assy, Rear Door, LH
2005-05 → 2007-08 ended
KSP90 B ¥15,500
68140-52211 note Glass Sub-assy, Rear Door, LH
2005-12 → 2007-08 ended
NCP91 5F ¥15,500
68140-52220 note Glass Sub-assy, Rear Door, LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥16,300
68140-52221 note Glass Sub-assy, Rear Door, LH
2005-05 → 2007-06 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68140-52222 note Glass Sub-assy, Rear Door, LH
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68140-52211 note Glass Sub-assy, Rear Door, LH
2007-08 → 2008-08 ended
KSP90 B ¥15,500
68140-52211 note Glass Sub-assy, Rear Door, LH
2007-08 → —
NCP91 5F ¥15,500
68140-52222 note Glass Sub-assy, Rear Door, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68140-52211 note Glass Sub-assy, Rear Door, LH
2008-09 → —
NCP91 5F ¥15,500
68140-52211 note Glass Sub-assy, Rear Door, LH
2008-09 → —
NCP91 5F ¥15,500
68140-52211 note Glass Sub-assy, Rear Door, LH
2008-08 → 2010-12 ended
KSP90 B ¥15,500
68140-52222 note Glass Sub-assy, Rear Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68140-52222 note Glass Sub-assy, Rear Door, LH
2010-08 → 2010-12 ended
KSP90 B —
68123B — Glass, Rear Door Quarter Window, RH
68123-52130 note Glass, Rear Door Quarter Window, RH
2005-01 → 2007-08 ended
KSP90 B ¥5,100
68123-52130 note Glass, Rear Door Quarter Window, RH
2005-12 → 2007-08 ended
NCP91 5F ¥5,100
68123-52140 note Glass, Rear Door Quarter Window, RH
2005-01 → 2007-06 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥6,100
68123-52141 note Glass, Rear Door Quarter Window, RH
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68123-52130 note Glass, Rear Door Quarter Window, RH
2007-08 → 2008-08 ended
KSP90 B ¥5,100
68123-52130 note Glass, Rear Door Quarter Window, RH
2007-08 → —
NCP91 5F ¥5,100
68123-52141 note Glass, Rear Door Quarter Window, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U —
68123-52141 note Glass, Rear Door Quarter Window, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
68123-52130 note Glass, Rear Door Quarter Window, RH
2008-08 → 2010-12 ended
KSP90 B ¥5,100
68123-52130 note Glass, Rear Door Quarter Window, RH
2008-09 → —
NCP91 5F ¥5,100
68123-52130 note Glass, Rear Door Quarter Window, RH
2008-09 → —
NCP91 5F ¥5,100
68123-52141 note Glass, Rear Door Quarter Window, RH
2010-08 → 2010-12 ended
KSP90 B —
68123-52141 note Glass, Rear Door Quarter Window, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68124B — Glass, Rear Door Quarter Window, LH
68124-52130 note Glass, Rear Door Quarter Window, LH
2005-01 → 2007-08 ended
KSP90 B ¥5,100
68124-52130 note Glass, Rear Door Quarter Window, LH
2005-12 → 2007-08 ended
NCP91 5F ¥5,100
68124-52140 note Glass, Rear Door Quarter Window, LH
2005-01 → 2007-06 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥6,100
68124-52141 note Glass, Rear Door Quarter Window, LH
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X —
68124-52130 note Glass, Rear Door Quarter Window, LH
2007-08 → 2008-08 ended
KSP90 B ¥5,100
68124-52130 note Glass, Rear Door Quarter Window, LH
2007-08 → —
NCP91 5F ¥5,100
68124-52141 note Glass, Rear Door Quarter Window, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U —
68124-52141 note Glass, Rear Door Quarter Window, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
68124-52130 note Glass, Rear Door Quarter Window, LH
2008-08 → 2010-12 ended
KSP90 B ¥5,100
68124-52130 note Glass, Rear Door Quarter Window, LH
2008-09 → —
NCP91 5F ¥5,100
68124-52130 note Glass, Rear Door Quarter Window, LH
2008-09 → —
NCP91 5F ¥5,100
68124-52141 note Glass, Rear Door Quarter Window, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U —
68124-52141 note Glass, Rear Door Quarter Window, LH
2010-08 → 2010-12 ended
KSP90 B —
68142C — Run, Rear Door Glass, RH
68142-52130 Run, Rear Door Glass, RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥4,890
68142-52131 Run, Rear Door Glass, RH
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,880
68142-52131 Run, Rear Door Glass, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,880
68142-52131 Run, Rear Door Glass, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,880
68142-52131 Run, Rear Door Glass, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,880
68152C — Run, Rear Door Glass, LH
68152-52140 Run, Rear Door Glass, LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥4,890
68152-52141 Run, Rear Door Glass, LH
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,880
68152-52141 Run, Rear Door Glass, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,880
68152-52141 Run, Rear Door Glass, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,880
68152-52141 Run, Rear Door Glass, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,880
68180C — Weatherstrip Assy, Rear Door Glass, Outer RH
68180-52100 Weatherstrip Assy, Rear Door Glass, Outer RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,090
68180-52100 Weatherstrip Assy, Rear Door Glass, Outer RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,090
68180-52100 Weatherstrip Assy, Rear Door Glass, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,090
68180-52100 Weatherstrip Assy, Rear Door Glass, Outer RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,090
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-52070 Weatherstrip, Rear Door Quarter Window, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,760
68188-52070 Weatherstrip, Rear Door Quarter Window, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,760
68188-52070 Weatherstrip, Rear Door Quarter Window, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,760
68188-52070 Weatherstrip, Rear Door Quarter Window, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,760
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-52070 Weatherstrip, Rear Door Quarter Window, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,760
68189-52070 Weatherstrip, Rear Door Quarter Window, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,760
68189-52070 Weatherstrip, Rear Door Quarter Window, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,760
68189-52070 Weatherstrip, Rear Door Quarter Window, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,760
68230C — Weatherstrip Assy, Rear Door Glass, Outer LH
68230-52100 Weatherstrip Assy, Rear Door Glass, Outer LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,090
68230-52100 Weatherstrip Assy, Rear Door Glass, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,090
68230-52100 Weatherstrip Assy, Rear Door Glass, Outer LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,090
68230-52100 Weatherstrip Assy, Rear Door Glass, Outer LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,090
68630D — Check Assy, Rear Door, RH
68630-52060 Check Assy, Rear Door, RH
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ¥3,700
68630-52061 Check Assy, Rear Door, RH
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
68630-52061 Check Assy, Rear Door, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
68630-52061 Check Assy, Rear Door, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
68630-52061 Check Assy, Rear Door, RH
2008-08 → 2010-02 ended
KSP90,NCP9#,SCP90 ¥3,700
68630-52062 Check Assy, Rear Door, RH
2010-03 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,700
68630-52062 Check Assy, Rear Door, RH
2010-03 → 2010-07 ended
NCP91 5F ¥3,700
68640A — Check Assy, Rear Door, LH
68630-52061 Check Assy, Rear Door, LH
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,700
68640-52070 Check Assy, Rear Door, LH
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ¥3,700
68640-52071 Check Assy, Rear Door, LH
2005-05 → 2005-07 ended
KSP90,NCP9#,SCP90 ¥3,700
68630-52061 Check Assy, Rear Door, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,700
68630-52061 Check Assy, Rear Door, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,700
68630-52061 Check Assy, Rear Door, LH
2008-08 → 2010-02 ended
KSP90,NCP9#,SCP90 ¥3,700
68630-52062 Check Assy, Rear Door, LH
2010-03 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,700
68630-52062 Check Assy, Rear Door, LH
2010-03 → 2010-07 ended
NCP91 5F ¥3,700
75923 — Tape, Black Out, NO.2 RH
75923-52060 Tape, Black Out, NO.2 RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,620
75923-52060 Tape, Black Out, NO.2 RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,620
75923-52060 Tape, Black Out, NO.2 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,620
75923-52060 Tape, Black Out, NO.2 RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,620
75924 — Tape, Black Out, NO.2 LH
75924-52060 Tape, Black Out, NO.2 LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,620
75924-52060 Tape, Black Out, NO.2 LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,620
75924-52060 Tape, Black Out, NO.2 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,620
75924-52060 Tape, Black Out, NO.2 LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
