Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

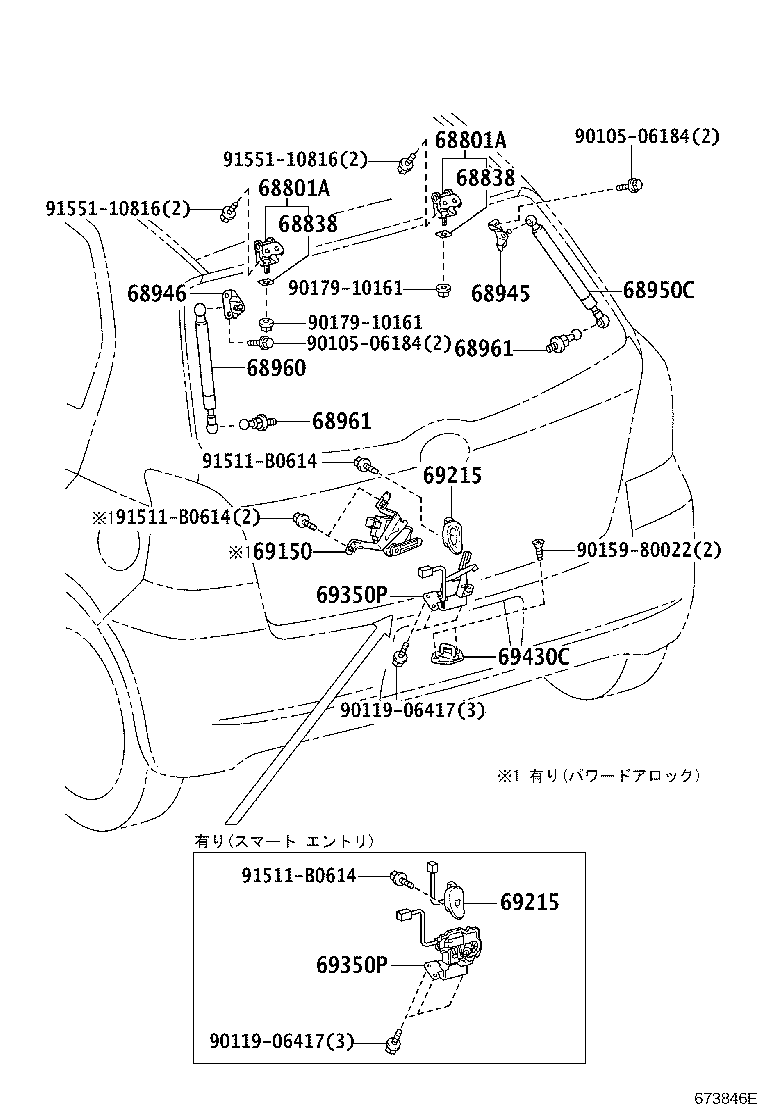

Exploded illustration 673846E 91511B0614 — not listed in this catalogue 68801A — HINGE SUB-ASSY, BACK DOOR, UPPER (5 parts) 68801A — HINGE SUB-ASSY, BACK DOOR, UPPER (5 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (10 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (10 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (5 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (5 parts) 68950C — STAY ASSY, BACK DOOR, RH (6 parts) 68960 — STAY ASSY, BACK DOOR, LH (6 parts) 68961 — BOLT, BACK DOOR STAY (5 parts) 68961 — BOLT, BACK DOOR STAY (5 parts) 69150 — ACTUATOR ASSY, BACK DOOR LOCK (11 parts) 69215 — HANDLE, BACK DOOR OUTSIDE (22 parts) 69215 — HANDLE, BACK DOOR OUTSIDE (22 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (13 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (5 parts) 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9011906417 — not listed in this catalogue 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (13 parts) 9011906417 — not listed in this catalogue 9015980022 — not listed in this catalogue 9017910161 — not listed in this catalogue 9017910161 — not listed in this catalogue 91511B0614 — not listed in this catalogue 91511B0614 — not listed in this catalogue 9155110816 — not listed in this catalogue 9155110816 — not listed in this catalogue
673846E · 16 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
68801A — Hinge Sub-assy, Back Door, Upper
68801-52010 Hinge Sub-assy, Back Door, Upper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,810
68801-52010 Hinge Sub-assy, Back Door, Upper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,810
68801-52010 Hinge Sub-assy, Back Door, Upper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,810
68801-52010 Hinge Sub-assy, Back Door, Upper
2008-08 → 2010-07 ended
NCP91 5F ¥1,810
68801-52010 Hinge Sub-assy, Back Door, Upper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥1,810
68838 — Pad, Back Door Hinge, NO.1
68838-10020 note Pad, Back Door Hinge, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥260
68838-52010 note Pad, Back Door Hinge, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥260
68838-10020 note Pad, Back Door Hinge, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
68838-10020 note Pad, Back Door Hinge, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥260
68838-52010 note Pad, Back Door Hinge, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
68838-52010 note Pad, Back Door Hinge, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥260
68838-10020 note Pad, Back Door Hinge, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥260
68838-10020 note Pad, Back Door Hinge, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥260
68838-52010 note Pad, Back Door Hinge, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥260
68838-52010 note Pad, Back Door Hinge, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥260
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-52050 Bracket, Back Door Damper Stay, Upper RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper RH
2008-08 → 2010-07 ended
NCP91 5F ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥610
68946 — Bracket, Back Door Damper Stay, Upper LH
68945-52050 Bracket, Back Door Damper Stay, Upper LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥610
68945-52050 Bracket, Back Door Damper Stay, Upper LH
2008-08 → 2010-07 ended
NCP91 5F ¥610
68950C — Stay Assy, Back Door, RH
68950-0D020 Stay Assy, Back Door, RH
2005-01 → 2007-02 ended
KSP90,NCP9#,SCP90 ¥9,100
68950-0D021 Stay Assy, Back Door, RH
2007-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,100
68950-0D021 Stay Assy, Back Door, RH
2007-08 → 2008-04 ended
KSP90,NCP9#,SCP90 ¥9,100
68950-0D022 Stay Assy, Back Door, RH
2008-05 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥9,100
68950-0D022 Stay Assy, Back Door, RH
2008-08 → 2010-07 ended
NCP91 5F ¥9,100
68950-0D022 Stay Assy, Back Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥9,100
68960 — Stay Assy, Back Door, LH
68960-0D010 Stay Assy, Back Door, LH
2005-01 → 2007-02 ended
KSP90,NCP9#,SCP90 ¥9,100
68960-0D011 Stay Assy, Back Door, LH
2007-03 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥9,100
68960-0D011 Stay Assy, Back Door, LH
2007-08 → 2008-04 ended
KSP90,NCP9#,SCP90 ¥9,100
68960-0D012 Stay Assy, Back Door, LH
2008-05 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥9,100
68960-0D012 Stay Assy, Back Door, LH
2008-08 → 2010-07 ended
NCP91 5F ¥9,100
68960-0D012 Stay Assy, Back Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥9,100
68961 — Bolt, Back Door Stay
68961-10030 Bolt, Back Door Stay
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥430
68961-10030 Bolt, Back Door Stay
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥430
68961-10030 Bolt, Back Door Stay
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥430
68961-10030 Bolt, Back Door Stay
2008-08 → 2010-07 ended
NCP91 5F ¥430
68961-10030 Bolt, Back Door Stay
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥430
69150 — Actuator Assy, Back Door Lock
69150-52070 Actuator Assy, Back Door Lock
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥8,700
69150-52070 note Actuator Assy, Back Door Lock
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥8,700
69150-52070 note Actuator Assy, Back Door Lock
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,700
69150-52070 Actuator Assy, Back Door Lock
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,700
69150-52070 Actuator Assy, Back Door Lock
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥8,700
69150-52070 note Actuator Assy, Back Door Lock
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥8,700
69150-52070 Actuator Assy, Back Door Lock
2008-08 → 2010-07 ended
NCP91 5F ¥8,700
69150-52070 note Actuator Assy, Back Door Lock
2008-08 → 2010-07 ended
NCP91 5F ¥8,700
69150-52070 Actuator Assy, Back Door Lock
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS) ¥8,700
69150-52070 note Actuator Assy, Back Door Lock
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (F,RS) ¥8,700
69150-52070 Actuator Assy, Back Door Lock
2010-07 → 2010-12 ended
KSP90 U ¥8,700
69215 — Handle, Back Door Outside
69209-52010 Handle, Back Door Outside
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥7,500
69209-52010 note Handle, Back Door Outside
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥7,500
69215-52060 Handle, Back Door Outside
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥2,100
69209-52010 Handle, Back Door Outside
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥7,500
69209-52010 note Handle, Back Door Outside
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS ¥7,500
69209-52020-A0 note Handle, Back Door Outside
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-B0 note Handle, Back Door Outside
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-D0 note Handle, Back Door Outside
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-G0 note Handle, Back Door Outside
2007-08 → 2008-07 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-J0 note Handle, Back Door Outside
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥8,200
69215-52060 Handle, Back Door Outside
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS ¥2,100
69209-52010 note Handle, Back Door Outside
2008-08 → 2010-12 ended
NCP9#,SCP90 ATM (F,RS) ¥7,500
69209-52010 Handle, Back Door Outside
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥7,500
69209-52010 note Handle, Back Door Outside
2008-08 → 2010-07 ended
KSP90 F;NCP91 5F ¥7,500
69209-52010 Handle, Back Door Outside
2008-08 → 2010-07 ended
KSP90 U ¥7,500
69209-52020-A0 note Handle, Back Door Outside
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-B0 note Handle, Back Door Outside
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-D0 note Handle, Back Door Outside
2008-08 → 2010-11 ended
NCP9#,SCP90 ILL ¥8,200
69209-52020-J0 note Handle, Back Door Outside
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥8,200
69215-52060 Handle, Back Door Outside
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS) ¥2,100
69215-52060 Handle, Back Door Outside
2010-07 → 2010-12 ended
KSP90 U ¥2,100
69215-52060 Handle, Back Door Outside
2008-08 → 2010-07 ended
NCP91 5F ¥2,100
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-52110 Lock Assy, Back Door, W/Courtesy Lamp Switch
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥14,700
69350-52110 note Lock Assy, Back Door, W/Courtesy Lamp Switch
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥14,700
69350-52260 Lock Assy, Back Door, W/Courtesy Lamp Switch
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥7,400
69350-52110 note Lock Assy, Back Door, W/Courtesy Lamp Switch
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS ¥14,700
69350-52110 Lock Assy, Back Door, W/Courtesy Lamp Switch
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥14,700
69350-52260 Lock Assy, Back Door, W/Courtesy Lamp Switch
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS ¥7,400
69350-52110 Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-07 ended
KSP90 U ¥14,700
69350-52110 note Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-07 ended
KSP90 F;NCP91 5F ¥14,700
69350-52110 Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥14,700
69350-52110 note Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-12 ended
NCP9#,SCP90 ATM (F,RS) ¥14,700
69350-52260 Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-07 ended
NCP91 5F ¥7,400
69350-52260 Lock Assy, Back Door, W/Courtesy Lamp Switch
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS) ¥7,400
69350-52260 Lock Assy, Back Door, W/Courtesy Lamp Switch
2010-07 → 2010-12 ended
KSP90 U ¥7,400
69430C — Striker Assy, Back Door Lock
69430-20160 Striker Assy, Back Door Lock
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,290
69430-20160 Striker Assy, Back Door Lock
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,290
69430-20160 Striker Assy, Back Door Lock
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,290
69430-20160 Striker Assy, Back Door Lock
2008-08 → 2010-07 ended
NCP91 5F ¥1,290
69430-20160 Striker Assy, Back Door Lock
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥1,290
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
