Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

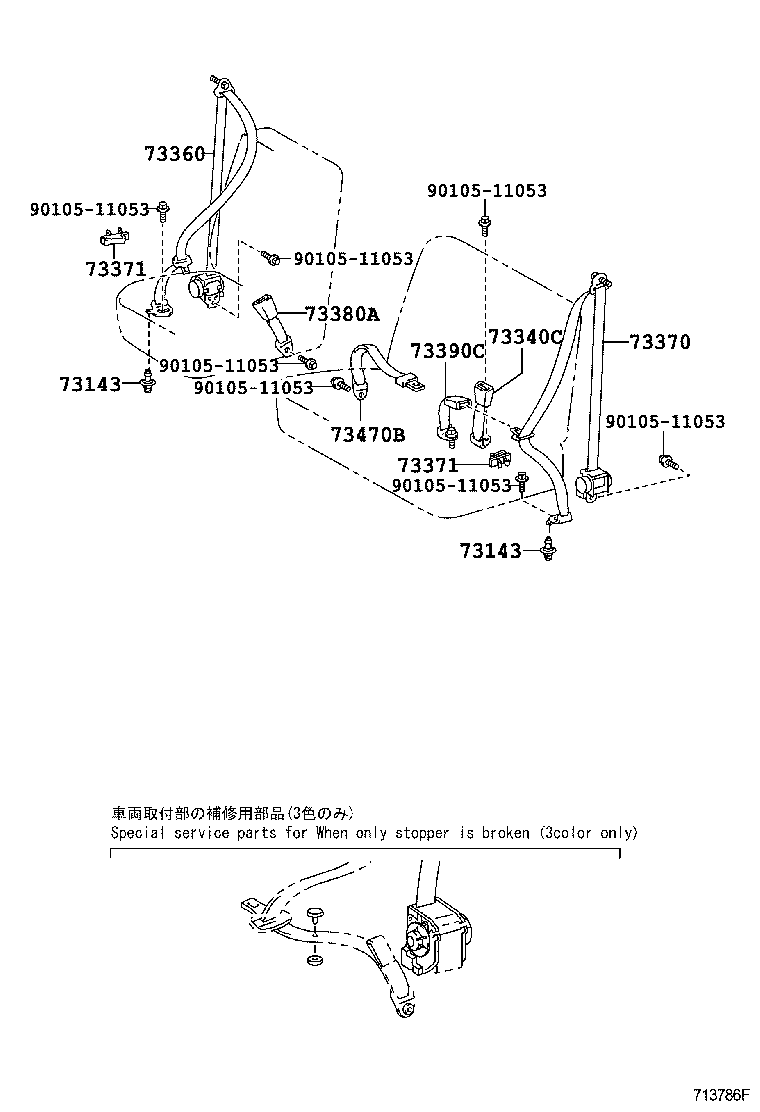

Exploded illustration 713786F 73470B — BELT ASSY, REAR SEAT INNER W/CENTER, RH (13 parts) 73371 — HANGER, REAR SEAT SHOULDER BELT, RH (9 parts) 73340C — BELT ASSY, REAR SEAT LAP TYPE, CENTER LH (6 parts) 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 73380A — BELT ASSY, REAR SEAT, INNER (12 parts) 73371 — HANGER, REAR SEAT SHOULDER BELT, RH (9 parts) 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (9 parts) 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (9 parts) 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 73143 — SEAL, SEAT BELT HOLE (3 parts) 73143 — SEAL, SEAT BELT HOLE (3 parts) 73390C — BELT ASSY, REAR NO.1 SEAT, INNER LH (6 parts)
713786F · 10 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
73143 — Seal, Seat Belt Hole
73143-52010 Seal, Seat Belt Hole
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥200
73143-52010 Seal, Seat Belt Hole
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥200
73143-52010 Seal, Seat Belt Hole
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥200
73340C — Belt Assy, Rear Seat Lap Type, Center LH
73340-52030-C0 note Belt Assy, Rear Seat Lap Type, Center LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥7,000
73340-52030-E0 note Belt Assy, Rear Seat Lap Type, Center LH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥7,000
73340-52030-C0 note Belt Assy, Rear Seat Lap Type, Center LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥7,000
73340-52030-E0 note Belt Assy, Rear Seat Lap Type, Center LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥7,000
73340-52030-C0 note Belt Assy, Rear Seat Lap Type, Center LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥7,000
73340-52030-E0 note Belt Assy, Rear Seat Lap Type, Center LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥7,000
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-52210-C2 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥23,900
73360-52211-C2 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥23,800
73360-52211-E0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥23,800
73360-52211-C2 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73360-52211-E0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73360-52211-C2 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2008-08 → 2009-02 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73360-52211-E0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2008-08 → 2009-02 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73360-52212-C2 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2009-03 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73360-52212-E0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2009-03 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73370-52160-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥23,900
73370-52161-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥23,800
73370-52161-E0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥23,800
73370-52161-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73370-52161-E0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73370-52161-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2008-08 → 2009-02 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73370-52161-E0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2008-08 → 2009-02 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73370-52162-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2009-03 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥23,800
73370-52162-E0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2009-03 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥23,800
73371 — Hanger, Rear Seat Shoulder Belt, RH
73371-44020-B6 note Hanger, Rear Seat Shoulder Belt, RH
2005-01 → 2007-08 ended
NCP91 RS ¥440
73371-44020-E3 note Hanger, Rear Seat Shoulder Belt, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥440
73371-44020-P0 note Hanger, Rear Seat Shoulder Belt, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥440
73371-44020-B6 note Hanger, Rear Seat Shoulder Belt, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥440
73371-44020-E3 note Hanger, Rear Seat Shoulder Belt, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥440
73371-44020-P0 note Hanger, Rear Seat Shoulder Belt, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥440
73371-44020-B6 note Hanger, Rear Seat Shoulder Belt, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥440
73371-44020-E3 note Hanger, Rear Seat Shoulder Belt, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥440
73371-44020-P0 note Hanger, Rear Seat Shoulder Belt, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥440
73380A — Belt Assy, Rear Seat, Inner
73380-52030-C0 note Belt Assy, Rear Seat, Inner
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥3,810
73380-52030-E0 note Belt Assy, Rear Seat, Inner
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥3,810
73380-52080-C0 note Belt Assy, Rear Seat, Inner
2005-01 → 2007-08 ended
NCP95 F,U ¥3,810
73380-52080-E0 note Belt Assy, Rear Seat, Inner
2005-08 → 2007-08 ended
NCP95 ¥3,810
73380-52030-C0 note Belt Assy, Rear Seat, Inner
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥3,810
73380-52030-E0 note Belt Assy, Rear Seat, Inner
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,810
73380-52080-C0 note Belt Assy, Rear Seat, Inner
2007-08 → 2008-08 ended
NCP95 F,U ¥3,810
73380-52080-E0 note Belt Assy, Rear Seat, Inner
2007-08 → 2008-08 ended
NCP95 ¥3,810
73380-52030-C0 note Belt Assy, Rear Seat, Inner
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥3,810
73380-52030-E0 note Belt Assy, Rear Seat, Inner
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,810
73380-52080-C0 note Belt Assy, Rear Seat, Inner
2008-08 → 2010-12 ended
NCP95 F,U ¥3,810
73380-52080-E0 note Belt Assy, Rear Seat, Inner
2008-08 → 2010-12 ended
NCP95 ¥3,810
73390C — Belt Assy, Rear NO.1 Seat, Inner LH
73390-52010-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥3,810
73390-52010-E0 note Belt Assy, Rear NO.1 Seat, Inner LH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥3,810
73390-52010-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥3,810
73390-52010-E0 note Belt Assy, Rear NO.1 Seat, Inner LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,810
73390-52010-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥3,810
73390-52010-E0 note Belt Assy, Rear NO.1 Seat, Inner LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,810
73470B — Belt Assy, Rear Seat Inner W/Center, RH
73470-52200-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,RS ¥9,000
73470-52200-E2 note Belt Assy, Rear Seat Inner W/Center, RH
2005-08 → 2007-08 ended
KSP90 ¥9,000
73470-52280-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥3,810
73470-52280-E0 note Belt Assy, Rear Seat Inner W/Center, RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥3,810
73470-52200-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥9,000
73470-52200-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥9,000
73470-52200-E2 note Belt Assy, Rear Seat Inner W/Center, RH
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥9,000
73470-52280-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥3,810
73470-52280-E0 note Belt Assy, Rear Seat Inner W/Center, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,810
73470-52200-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2008-08 → 2010-12 ended
KSP90;NCP91,SCP90 F,RS ¥9,000
73470-52200-E2 note Belt Assy, Rear Seat Inner W/Center, RH
2008-08 → 2010-12 ended
KSP90;SCP90 F ¥9,000
73470-52280-C0 note Belt Assy, Rear Seat Inner W/Center, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥3,810
73470-52280-E0 note Belt Assy, Rear Seat Inner W/Center, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,810
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
