Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

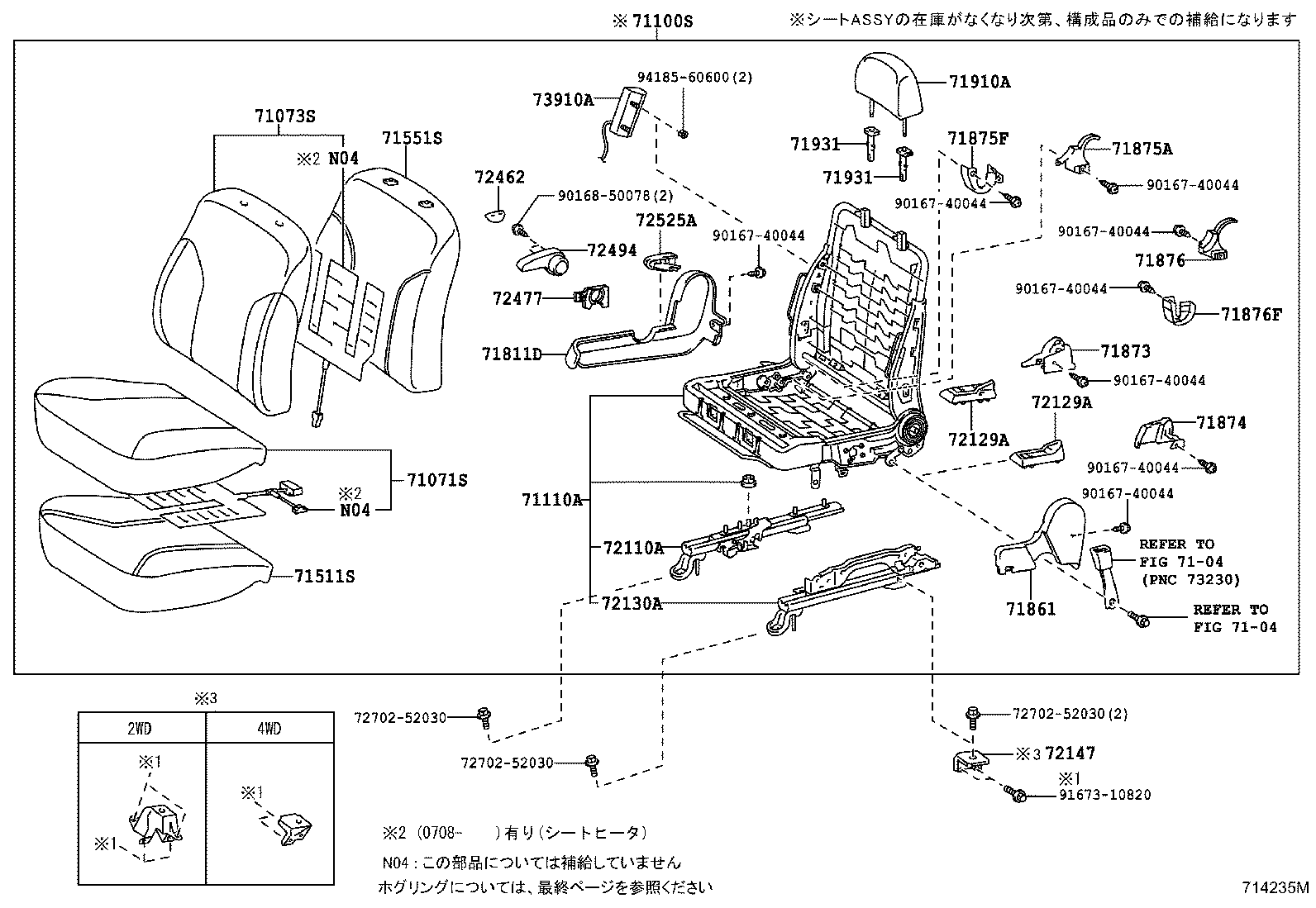

Exploded illustration 714235M 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (9 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (13 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (10 parts) 72477 — SPACER, VERTICAL ADJUSTER (5 parts) 72494 — HANDLE, VERTICAL ADJUSTING, RH (10 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (10 parts) 72462 — COVER, VERTICAL ADJUSTER RH (10 parts) 72147 — BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH (9 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (62 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (62 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (11 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (11 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (10 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (10 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (11 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (15 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (10 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (15 parts) 71910A — HEADREST ASSY, FRONT SEAT (52 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (5 parts) 71100S — SEAT ASSY, FRONT RH (72 parts) 71110A — FRAME ASSY, FRONT SEAT W/ADJUSTER, RH (16 parts) 72110A — TRACK ASSY, FRONT SEAT, OUTER RH (4 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (4 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue
714235M · 27 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
386 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-52B70-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥51,900
71071-52B80-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥51,900
71071-52C60-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥34,700
71071-52C60-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥34,700
71071-52C70-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥80,000
71071-52C60-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥34,700
71071-52C60-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥34,700
71071-52C70-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥80,000
71071-52C71-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥80,000
71071-52E10-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥7,600
71071-52E20-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥4,400
71071-52E30-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥4,400
71071-52F30-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-08 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥4,400
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-52D60-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥67,800
71073-52D70-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥67,800
71073-52E80-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥44,600
71073-52E80-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥44,600
71073-52E90-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥80,000
71073-52E80-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥44,600
71073-52E80-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥44,600
71073-52E90-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥80,000
71073-52E91-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥80,000
71100S — Seat Assy, Front RH
71100-52G90-B3 note Seat Assy, Front RH
2005-01 → 2007-04 ended
KSP90,NCP9#,SCP90 B,F,X ¥223,000
71100-52G90-B3 note Seat Assy, Front RH
2005-01 → 2007-04 ended
KSP90 B,F ¥223,000
71100-52G90-E1 note Seat Assy, Front RH
2005-01 → 2007-04 ended
KSP90,NCP9#,SCP90 B,F,X ¥223,000
71100-52G90-E1 note Seat Assy, Front RH
2005-01 → 2007-04 ended
KSP90 B,F ¥223,000
71100-52J00-B3 note Seat Assy, Front RH
2005-01 → 2007-04 ended
NCP91 RS ¥240,000
71100-52J20-B3 note Seat Assy, Front RH
2005-01 → 2007-04 ended
NCP95,SCP90 U ¥256,000
71100-52J20-E0 note Seat Assy, Front RH
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥256,000
71100-52J20-E1 note Seat Assy, Front RH
2006-03 → 2007-04 ended
NCP95,SCP90 U ¥256,000
71100-52V90-E1 note Seat Assy, Front RH
2005-12 → 2007-04 ended
KSP90,NCP95,SCP90 ILL ¥307,000
71100-5CF80-B0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥223,000
71100-5CF80-B0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
KSP90 B,F ¥223,000
71100-5CF80-E0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥223,000
71100-5CF80-E0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
KSP90 B,F ¥223,000
71100-5CG00-B0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
NCP91 RS ¥240,000
71100-5CG10-B0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
NCP95,SCP90 U ¥256,000
71100-5CG10-E0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
NCP95,SCP90 U ¥256,000
71100-5CG30-E0 note Seat Assy, Front RH
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥307,000
71100-52B30-B1 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90 B,F ¥232,000
71100-52B30-E1 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90 B,F ¥232,000
71100-5CC00-E0 note Seat Assy, Front RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥335,000
71100-5CC20-B1 note Seat Assy, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥239,000
71100-5CC40-B1 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥232,000
71100-5CC40-E2 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥232,000
71100-5CC50-B2 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥255,000
71100-5CC50-E2 note Seat Assy, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥255,000
71100-52B30-B2 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90 B,F ¥232,000
71100-52B30-E2 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90 F ¥232,000
71100-52B30-E2 note Seat Assy, Front RH
2008-08 → 2009-08 ended
KSP90 B ¥232,000
71100-52B31-B0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 B,F ¥232,000
71100-52B31-E0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥232,000
71100-5CC00-E1 note Seat Assy, Front RH
2008-08 → 2010-03 ended
NCP9#,SCP90 ILL ¥335,000
71100-5CC01-E0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP9#,SCP90 ILL ¥335,000
71100-5CC02-E0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥335,000
71100-5CC20-B2 note Seat Assy, Front RH
2008-09 → 2010-03 ended
NCP91,SCP90 RS ¥239,000
71100-5CC21-B0 note Seat Assy, Front RH
2010-04 → 2010-12 ended
NCP91,SCP90 RS ¥239,000
71100-5CC40-B2 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90,NCP95,SCP90 B,F ¥232,000
71100-5CC40-E3 note Seat Assy, Front RH
2008-08 → 2009-08 ended
KSP90 B ¥232,000
71100-5CC40-E3 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥232,000
71100-5CC41-B0 note Seat Assy, Front RH
2010-04 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥232,000
71100-5CC41-E0 note Seat Assy, Front RH
2010-04 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥232,000
71100-5CC50-B3 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90,NCP9#,SCP90 U ¥255,000
71100-5CC50-E3 note Seat Assy, Front RH
2008-08 → 2010-03 ended
KSP90,NCP9#,SCP90 U ¥255,000
71100-5CC51-B0 note Seat Assy, Front RH
2010-04 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥289,000
71100-5CC51-E0 note Seat Assy, Front RH
2010-04 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥289,000
71100-5CD31-B1 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 B ¥232,000
71100-5CD31-B1 note Seat Assy, Front RH
2010-08 → 2010-12 ended
KSP90 B ¥232,000
71100-5CT40-E2 note Seat Assy, Front RH
2009-02 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CT41-E0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-B0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-B0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-B0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-E0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-E0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU10-E0 note Seat Assy, Front RH
2009-08 → 2010-03 ended
KSP90,NCP95,SCP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU11-B0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-09 ended
NCP95,SCP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU11-E0 note Seat Assy, Front RH
2010-04 → 2010-08 ended
KSP90 F ¥239,000
71100-5CU12-B0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71100-5CU12-B0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71100-5CU12-B0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71100-5CU12-E0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71100-5CU12-E0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71100-5CU12-E0 note Seat Assy, Front RH
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥239,000
71110A — Frame Assy, Front Seat W/Adjuster, RH
71110-52210 Frame Assy, Front Seat W/Adjuster, RH
2005-01 → 2007-04 ended
NCP91 RS ¥45,800
71110-52350 Frame Assy, Front Seat W/Adjuster, RH
2005-01 → 2007-04 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥42,600
71110-52480 note Frame Assy, Front Seat W/Adjuster, RH
2005-12 → 2007-04 ended
KSP90,NCP95,SCP90 ILL ¥68,000
71110-52660 Frame Assy, Front Seat W/Adjuster, RH
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥42,500
71110-52670 Frame Assy, Front Seat W/Adjuster, RH
2007-05 → 2007-08 ended
NCP91 RS ¥45,700
71110-52680 note Frame Assy, Front Seat W/Adjuster, RH
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥68,100
71110-52660 Frame Assy, Front Seat W/Adjuster, RH
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥42,500
71110-52670 Frame Assy, Front Seat W/Adjuster, RH
2007-08 → 2008-08 ended
NCP91,SCP90 RS ¥45,700
71110-52670 note Frame Assy, Front Seat W/Adjuster, RH
2008-08 → 2008-09 ended
NCP91 5F ¥45,700
71110-52680 Frame Assy, Front Seat W/Adjuster, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥68,100
71110-52660 Frame Assy, Front Seat W/Adjuster, RH
2008-08 → 2010-01 ended
KSP90,NCP95,SCP90 B,F ¥42,500
71110-52661 Frame Assy, Front Seat W/Adjuster, RH
2010-02 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥42,500
71110-52670 Frame Assy, Front Seat W/Adjuster, RH
2008-09 → 2010-01 ended
NCP91,SCP90 RS ¥45,700
71110-52671 Frame Assy, Front Seat W/Adjuster, RH
2010-02 → 2010-12 ended
NCP91,SCP90 RS ¥45,700
71110-52680 Frame Assy, Front Seat W/Adjuster, RH
2008-08 → 2010-01 ended
KSP90,NCP9#,SCP90 ILL,U ¥68,100
71110-52681 Frame Assy, Front Seat W/Adjuster, RH
2010-02 → 2010-12 ended
NCP95 ILL;KSP90,NCP91,SCP90 ILL,U ¥68,100
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-52460 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥16,100
71511-52460 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥16,100
71511-52460 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ILL,U ¥16,100
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-52500 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥13,300
71551-52510 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥13,200
71551-52510 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥13,200
71551-52510 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ILL,U ¥13,200
71811D — Shield, Front Seat Cushion, RH
71811-52210-B0 note Shield, Front Seat Cushion, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥4,850
71811-52210-B0 note Shield, Front Seat Cushion, RH
2005-01 → 2007-08 ended
NCP91 RS ¥4,850
71811-52210-B0 note Shield, Front Seat Cushion, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥4,850
71811-52210-B0 note Shield, Front Seat Cushion, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥4,850
71811-52210-B0 note Shield, Front Seat Cushion, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,850
71811-52210-E0 note Shield, Front Seat Cushion, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥4,850
71811-52210-E0 note Shield, Front Seat Cushion, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥4,850
71811-52210-B0 note Shield, Front Seat Cushion, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥4,850
71811-52210-E0 note Shield, Front Seat Cushion, RH
2008-08 → 2009-08 ended
KSP90 B ¥4,850
71811-52210-E0 note Shield, Front Seat Cushion, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥4,850
71861 — Shield, Front Seat Cushion, Inner RH
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,790
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,790
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,790
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,790
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,790
71861-52200-E0 note Shield, Front Seat Cushion, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,790
71861-52200-E0 note Shield, Front Seat Cushion, Inner RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥2,790
71861-52200-B0 note Shield, Front Seat Cushion, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,790
71861-52200-E0 note Shield, Front Seat Cushion, Inner RH
2008-08 → 2009-08 ended
KSP90 B ¥2,790
71861-52200-E0 note Shield, Front Seat Cushion, Inner RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥2,790
71873 — Shield, Front Seat Cushion, Lower RH
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥940
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥940
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2005-01 → 2007-08 ended
NCP91 RS ¥940
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥940
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥940
71873-52090-E0 note Shield, Front Seat Cushion, Lower RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥940
71873-52090-E0 note Shield, Front Seat Cushion, Lower RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥940
71873-52090-B0 note Shield, Front Seat Cushion, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥940
71873-52090-E0 note Shield, Front Seat Cushion, Lower RH
2008-08 → 2009-08 ended
KSP90 B ¥940
71873-52090-E0 note Shield, Front Seat Cushion, Lower RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥940
71874 — Shield, Front Seat Cushion, Lower LH
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,090
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,090
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2005-01 → 2007-08 ended
NCP91 RS ¥1,090
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,090
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,090
71874-52110-E1 note Shield, Front Seat Cushion, Lower LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥1,090
71874-52110-E1 note Shield, Front Seat Cushion, Lower LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥1,090
71874-52110-B0 note Shield, Front Seat Cushion, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,090
71874-52110-E1 note Shield, Front Seat Cushion, Lower LH
2008-08 → 2009-08 ended
KSP90 B ¥1,090
71874-52110-E1 note Shield, Front Seat Cushion, Lower LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥1,090
71875A — Cover, Reclining Adjuster Inside, RH
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥480
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP91 RS ¥480
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥480
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥480
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥480
71875-52090-E1 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥480
71875-52090-E1 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥480
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71875-52090-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2009-08 ended
KSP90 B ¥480
71875-52090-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥480
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥780
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2005-01 → 2007-08 ended
NCP91 RS ¥780
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥780
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥780
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-08 → 2008-09 ended
NCP91 5F ¥780
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥780
71875-52170-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥940
71875-52170-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥940
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥780
71875-52170-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-08 → 2009-08 ended
KSP90 B ¥940
71875-52170-E0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥940
71876 — Cover, Reclining Adjuster Inside, LH
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP91 RS ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-09 ended
NCP91 5F ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥480
71876-52090-E1 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥480
71876-52090-E1 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥480
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71876-52090-E1 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2009-08 ended
KSP90 B ¥480
71876-52090-E1 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥480
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥780
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2005-01 → 2007-08 ended
NCP91 RS ¥780
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥780
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥780
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-08 → 2008-09 ended
NCP91 5F ¥780
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥780
71876-52160-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥940
71876-52160-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥940
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥780
71876-52160-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-08 → 2009-08 ended
KSP90 B ¥940
71876-52160-E0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥940
71910A — Headrest Assy, Front Seat
71910-52510-C0 note Headrest Assy, Front Seat
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52510-C0 note Headrest Assy, Front Seat
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52510-C0 note Headrest Assy, Front Seat
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥27,600
71910-52510-E0 note Headrest Assy, Front Seat
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52510-E0 note Headrest Assy, Front Seat
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,X ¥27,600
71910-52510-E0 note Headrest Assy, Front Seat
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52520-C0 note Headrest Assy, Front Seat
2005-01 → 2007-08 ended
NCP91 RS ¥27,600
71910-52530-C0 note Headrest Assy, Front Seat
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71910-52530-E0 note Headrest Assy, Front Seat
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥27,600
71910-52530-E1 note Headrest Assy, Front Seat
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71910-52620-E1 note Headrest Assy, Front Seat
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥14,100
71910-52660-C0 note Headrest Assy, Front Seat
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52760-B0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥27,600
71910-52760-E0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥27,600
71910-52770-E0 note Headrest Assy, Front Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥14,100
71910-52660-C0 note Headrest Assy, Front Seat
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2009-08 → 2010-08 ended
KSP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2009-08 → 2010-08 ended
KSP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 B,F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥27,600
71910-52670-C0 note Headrest Assy, Front Seat
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2008-08 → 2009-08 ended
KSP90 B ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2009-08 → 2010-09 ended
NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2009-08 → 2010-08 ended
KSP90 F ¥27,600
71910-52670-E1 note Headrest Assy, Front Seat
2009-08 → 2010-08 ended
KSP90 F ¥27,600
71910-52671-C0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52671-C0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52671-C0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥27,600
71910-52671-C0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥27,600
71910-52671-C0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 B,F ¥27,600
71910-52671-E1 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52671-E1 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥27,600
71910-52671-E1 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52671-E1 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
NCP95,SCP90 F ¥27,600
71910-52671-E1 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥27,600
71910-52760-B0 note Headrest Assy, Front Seat
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥27,600
71910-52760-E0 note Headrest Assy, Front Seat
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥27,600
71910-52770-E0 note Headrest Assy, Front Seat
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥14,100
71910-52771-E0 note Headrest Assy, Front Seat
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥14,100
71910-52B70-E0 note Headrest Assy, Front Seat
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥27,600
71931 — Support, Front Seat Headrest
71930-44020-B0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-05 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-04 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥1,260
71930-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-04 ended
KSP90,NCP95,SCP90 F ¥1,260
71930-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-04 ended
KSP90,NCP95,SCP90 F ¥1,260
71930-47010-E3 note Support, Front Seat Headrest
2005-08 → 2007-04 ended
KSP90,NCP95,SCP90 F ¥1,260
71930-47010-E3 note Support, Front Seat Headrest
2005-08 → 2007-04 ended
KSP90,NCP95,SCP90 F ¥1,260
71930-47010-E3 note Support, Front Seat Headrest
2005-08 → 2007-04 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥1,260
71930-47010-E3 note Support, Front Seat Headrest
2005-12 → 2007-04 ended
NCP95,SCP90 U ¥1,260
71931-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥640
71931-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-E4 note Support, Front Seat Headrest
2005-12 → 2007-08 ended
NCP95,SCP90 U ¥530
71931-47010-E4 note Support, Front Seat Headrest
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,X ¥530
71931-47010-E4 note Support, Front Seat Headrest
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥530
71930-44020-B0 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,040
71931-47010-B2 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥640
71931-47010-E4 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥530
71930-44020-B0 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥1,040
71930-44020-B0 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥1,040
71930-44020-E0 note Support, Front Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥1,040
71931-47010-B2 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥640
71931-47010-B2 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥640
71931-47010-B2 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥640
71931-47010-E4 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥530
71931-47010-E4 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥530
71931-47010-E4 note Support, Front Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥530
71931-47010-E4 note Support, Front Seat Headrest
2009-08 → 2010-08 ended
KSP90 F ¥530
72110A — Track Assy, Front Seat, Outer RH
72110-52020 Track Assy, Front Seat, Outer RH
2005-01 → 2007-07 ended
KSP90,NCP9#,SCP90 ¥10,000
72110-52020 Track Assy, Front Seat, Outer RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥10,000
72110-52020 Track Assy, Front Seat, Outer RH
2008-08 → 2010-01 ended
KSP90,NCP9#,SCP90 ¥10,000
72110-52021 Track Assy, Front Seat, Outer RH
2010-02 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,000
72129A — Protector, Seat Track Lower Rail, NO.2
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 Protector, Seat Track Lower Rail, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 Protector, Seat Track Lower Rail, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2010-08 → 2010-12 ended
KSP90 B ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥4,110
72129-52030 Protector, Seat Track Lower Rail, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2008-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2010-04 → 2010-08 ended
KSP90 B ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2009-08 → 2010-08 ended
KSP90 F ¥4,110
72129-52030 note Protector, Seat Track Lower Rail, NO.2
2009-08 → 2010-08 ended
KSP90 F ¥4,110
72130A — Track Assy, Front Seat, Inner RH
72130-52110 Track Assy, Front Seat, Inner RH
2005-01 → 2007-07 ended
KSP90,NCP9#,SCP90 ¥12,000
72130-52110 Track Assy, Front Seat, Inner RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥12,000
72130-52110 Track Assy, Front Seat, Inner RH
2008-08 → 2010-01 ended
KSP90,NCP9#,SCP90 ¥12,000
72130-52112 Track Assy, Front Seat, Inner RH
2010-02 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥12,000
72147 — Bracket, Front Inner Seat Track, Lower Rear RH
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥2,190
72147-52030 Bracket, Front Inner Seat Track, Lower Rear RH
2005-01 → 2007-08 ended
NCP95 ¥1,280
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥2,190
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,190
72147-52020 note Bracket, Front Inner Seat Track, Lower Rear RH
2007-08 → —
NCP91 5F ¥2,190
72147-52030 Bracket, Front Inner Seat Track, Lower Rear RH
2007-08 → 2008-08 ended
NCP95 ¥1,280
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2008-08 → —
KSP90,NCP91,SCP90 CVFC ¥2,190
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2008-08 → 2010-08 ended
NCP91 5F ¥2,190
72147-52030 Bracket, Front Inner Seat Track, Lower Rear RH
2008-08 → —
NCP95 ¥1,280
72462 — Cover, Vertical Adjuster RH
72462-58010-B0 note Cover, Vertical Adjuster RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥920
72462-58010-B0 note Cover, Vertical Adjuster RH
2005-01 → 2007-08 ended
NCP91 RS ¥920
72462-58010-B0 note Cover, Vertical Adjuster RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥920
72462-58010-B0 note Cover, Vertical Adjuster RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥920
72462-58010-B0 note Cover, Vertical Adjuster RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥920
72462-58010-E3 note Cover, Vertical Adjuster RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥900
72462-58010-E3 note Cover, Vertical Adjuster RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥900
72462-58010-B0 note Cover, Vertical Adjuster RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥920
72462-58010-E3 note Cover, Vertical Adjuster RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥900
72462-58010-E3 note Cover, Vertical Adjuster RH
2008-08 → 2009-08 ended
KSP90 B ¥900
72477 — Spacer, Vertical Adjuster
72477-58010 Spacer, Vertical Adjuster
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥410
72477-58010 Spacer, Vertical Adjuster
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥410
72477-58010 note Spacer, Vertical Adjuster
2010-04 → 2010-08 ended
KSP90 B ¥410
72477-58010 Spacer, Vertical Adjuster
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥410
72477-58010 note Spacer, Vertical Adjuster
2010-08 → 2010-12 ended
KSP90 B ¥410
72494 — Handle, Vertical Adjusting, RH
72494-52020-B0 note Handle, Vertical Adjusting, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,690
72494-52020-B0 note Handle, Vertical Adjusting, RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,690
72494-52020-B0 note Handle, Vertical Adjusting, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,690
72494-52020-B0 note Handle, Vertical Adjusting, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,690
72494-52020-B0 note Handle, Vertical Adjusting, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,690
72494-52020-E1 note Handle, Vertical Adjusting, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,690
72494-52020-E1 note Handle, Vertical Adjusting, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥2,690
72494-52020-B0 note Handle, Vertical Adjusting, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥2,690
72494-52020-E1 note Handle, Vertical Adjusting, RH
2008-08 → 2009-08 ended
KSP90 B ¥2,690
72494-52020-E1 note Handle, Vertical Adjusting, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥2,690
72525A — Handle, Reclining Adjuster Release, RH
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥870
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2005-01 → 2007-08 ended
NCP91 RS ¥870
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥870
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥870
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥870
72525-58030-E3 note Handle, Reclining Adjuster Release, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥870
72525-58030-E3 note Handle, Reclining Adjuster Release, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥870
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥870
72525-58030-E3 note Handle, Reclining Adjuster Release, RH
2008-08 → 2009-08 ended
KSP90 B ¥870
72525-58030-E3 note Handle, Reclining Adjuster Release, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥870
73910A — Airbag Assy, Front Seat, RH
73910-52060 Airbag Assy, Front Seat, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥32,000
73910-52060 note Airbag Assy, Front Seat, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥32,000
73910-52060 note Airbag Assy, Front Seat, RH
2005-01 → 2007-08 ended
KSP90 B,F ¥32,000
73910-52060 Airbag Assy, Front Seat, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥32,000
73910-52150 Airbag Assy, Front Seat, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥31,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
