Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

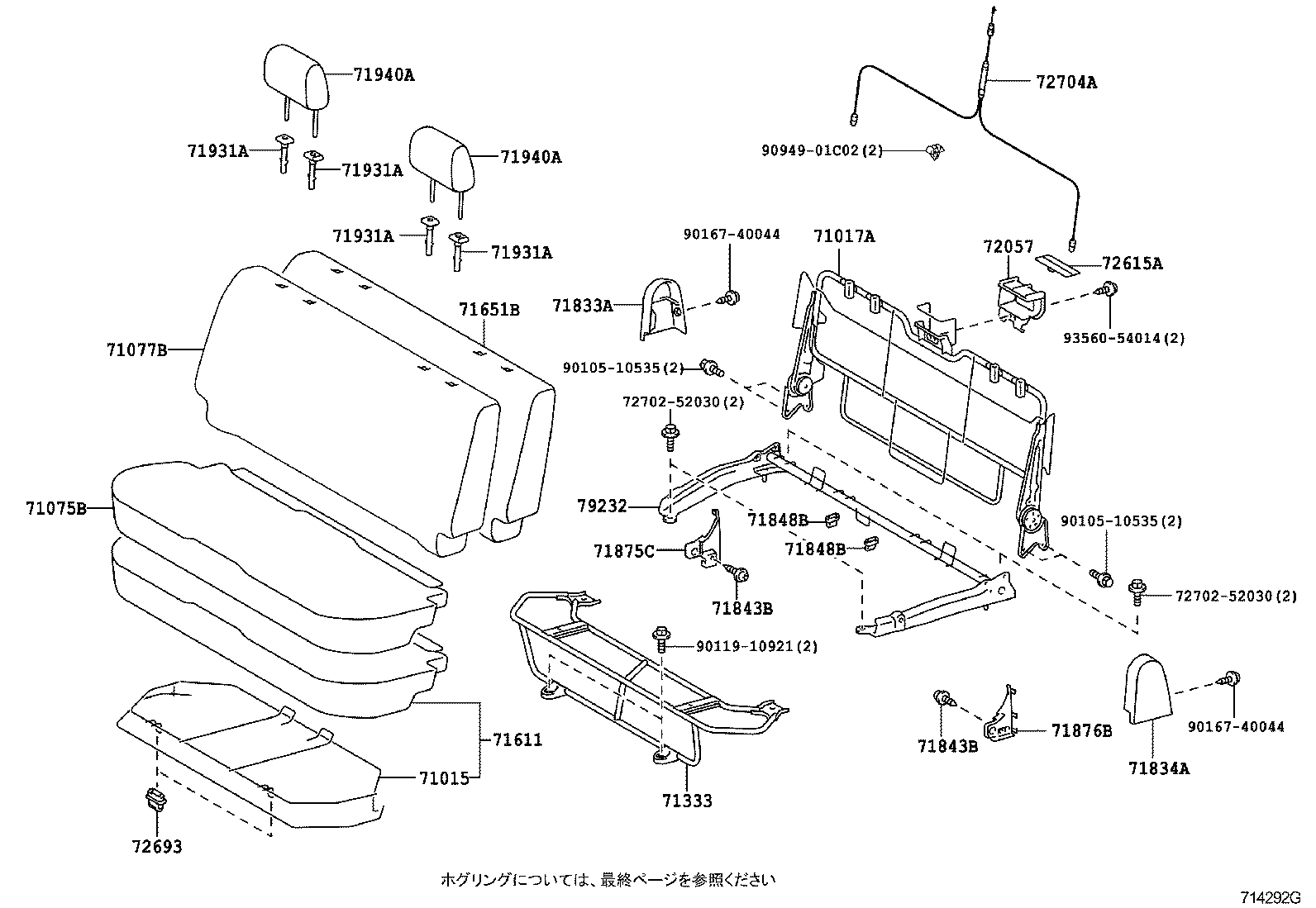

Exploded illustration 714292G 71017A — FRAME SUB-ASSY, REAR SEATBACK (4 parts) 71848B — CAP, SEAT ADJUSTER COVER, RH (5 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (1 parts) 71611 — PAD, REAR SEAT CUSHION (1 parts) 71015 — FRAME SUB-ASSY, REAR SEAT CUSHION (1 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (5 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (1 parts) 71651B — PAD, REAR SEATBACK(FOR BENCH TYPE) (1 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (27 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (27 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (27 parts) 71876B — COVER, RECLINING ADJUSTER INSIDE, LH (23 parts) 71940A — HEADREST ASSY, REAR SEAT (45 parts) 71940A — HEADREST ASSY, REAR SEAT (45 parts) 72057 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH (18 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (6 parts) 7270252030 — not listed in this catalogue 9010510535 — not listed in this catalogue 9010510535 — not listed in this catalogue 9011910921 — not listed in this catalogue 9356054014 — not listed in this catalogue 72615A — COVER, REAR SEATBACK LOCK STRIKER, RH (13 parts) 9094901C02 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 7270252030 — not listed in this catalogue 79232 — LEG, REAR NO.2 SEAT, RH (8 parts) 71848B — CAP, SEAT ADJUSTER COVER, RH (5 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71333 — LEG, REAR SEAT CUSHION, NO.1 (6 parts) 71843B — CLIP, REAR SEAT RECLINING COVER (15 parts) 71843B — CLIP, REAR SEAT RECLINING COVER (15 parts)
714292G · 26 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
259 parts on this figure
Part number Description Fitment Price
71015 — Frame Sub-assy, Rear Seat Cushion
71015-52390 Frame Sub-assy, Rear Seat Cushion
2005-12 → 2007-08 ended
KSP90 ILL —
71017A — Frame Sub-assy, Rear Seatback
71017-52360 Frame Sub-assy, Rear Seatback
2005-01 → 2005-11 ended
KSP90,NCP91 B,F,RS ¥24,600
71017-52361 Frame Sub-assy, Rear Seatback
2005-12 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥24,600
71017-52361 Frame Sub-assy, Rear Seatback
2007-08 → 2008-08 ended
KSP90 B,F ¥24,600
71017-52361 Frame Sub-assy, Rear Seatback
2008-08 → 2010-12 ended
KSP90 B,F ¥24,600
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-52C20-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2005-12 → 2007-08 ended
KSP90 ILL ¥71,500
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71077-52D00-E0 note Cover, Rear Seatback (FOR BENCH TYPE)
2005-12 → 2007-08 ended
KSP90 ILL ¥75,500
71333 — Leg, Rear Seat Cushion, NO.1
71333-52010 Leg, Rear Seat Cushion, NO.1
2005-01 → 2005-12 ended
KSP90,NCP91 B,F,RS ¥12,200
71333-52040 Leg, Rear Seat Cushion, NO.1
2005-12 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥12,400
71333-52040 Leg, Rear Seat Cushion, NO.1
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥12,400
71333-52040 Leg, Rear Seat Cushion, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥12,400
71333-52040 Leg, Rear Seat Cushion, NO.1
2008-08 → 2010-08 ended
NCP91 5F ¥12,400
71333-52040 Leg, Rear Seat Cushion, NO.1
2008-08 → —
KSP90;NCP91,SCP90 CVFC (F,RS) ¥12,400
71611 — Pad, Rear Seat Cushion
71503-52380 Pad, Rear Seat Cushion
2005-12 → 2007-08 ended
KSP90 ILL ¥38,900
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
71651-52500 Pad, Rear Seatback(FOR BENCH TYPE)
2005-12 → 2007-08 ended
KSP90 ILL ¥21,100
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
KSP90 ILL ¥2,100
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
KSP90 B,F ¥2,100
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,100
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP95 F,U ¥2,330
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
NCP95 ILL ¥2,330
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,780
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,780
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,100
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,900
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,330
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,110
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 ILL ¥2,110
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,260
71833-52110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 B,F ¥2,100
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 F ¥1,900
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2009-08 ended
KSP90 B ¥1,900
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP95 F,U ¥2,330
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP95 ¥2,110
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,780
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥2,260
71833-52110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥2,260
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
KSP90 B,F ¥2,100
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP91 RS ¥2,100
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
KSP90 ILL ¥2,100
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP95 F,U ¥2,330
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
NCP95 ILL ¥2,330
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,780
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,780
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,100
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,900
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,330
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,110
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 ILL ¥2,110
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,260
71834-52110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 B,F ¥2,100
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2009-08 ended
KSP90 B ¥1,900
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 F ¥1,900
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP95 F,U ¥2,330
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP95 ¥2,110
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,780
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥2,260
71834-52110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥2,260
71843B — Clip, Rear Seat Reclining Cover
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2005-01 → 2005-08 ended
KSP90,NCP95 B,F ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2005-01 → 2007-08 ended
NCP95 U ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2005-01 → 2007-08 ended
NCP91 RS ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2005-08 → 2007-08 ended
KSP90,NCP95 B,F ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2005-12 → 2007-08 ended
KSP90,NCP95 ILL ¥160
90467-08104-E2 note Clip, Rear Seat Reclining Cover
2005-01 → 2005-08 ended
KSP90,NCP95 B,F ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2007-08 → 2008-08 ended
NCP95 ILL ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2009-08 → 2010-12 ended
KSP90 B ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2008-08 → 2010-12 ended
SCP90 F;KSP90,NCP95 F,U ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2009-02 → 2010-08 ended
KSP90 F ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2008-08 → 2009-08 ended
KSP90 B ¥160
90467-08104-B2 note Clip, Rear Seat Reclining Cover
2008-08 → 2010-12 ended
NCP95 ILL ¥160
71848B — Cap, Seat Adjuster Cover, RH
71848-52030 Cap, Seat Adjuster Cover, RH
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥210
71848-52030 Cap, Seat Adjuster Cover, RH
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥210
71848-52030 Cap, Seat Adjuster Cover, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥210
71848-52030 Cap, Seat Adjuster Cover, RH
2008-08 → 2010-08 ended
NCP91 5F ¥210
71848-52030 Cap, Seat Adjuster Cover, RH
2008-08 → —
KSP90;NCP91,SCP90 CVFC (F,RS) ¥210
71875C — Cover, Reclining Adjuster Inside, RH
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
KSP90 B,F ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP91 RS ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
KSP90 ILL ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2006-09 ended
SCP90 ILL ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
NCP95 ILL ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP95 F,U ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2006-09 ended
NCP91,SCP90 F,U,X ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2006-09 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2006-09 → 2007-08 ended
SCP90 ILL ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥940
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥850
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
71875-52320-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 B,F ¥940
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2009-08 ended
KSP90 B ¥850
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 F ¥850
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 F ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
SCP90 ILL;NCP9# F,ILL ¥940
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥740
71875-52320-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥740
71876B — Cover, Reclining Adjuster Inside, LH
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
KSP90 B,F ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP91 RS ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
KSP90 ILL ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2006-09 ended
NCP91,SCP90 F,U,X ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2006-09 ended
SCP90 ILL ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥940
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
SCP90 ILL ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥940
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥850
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥940
71876-52121-E1 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
71876-52290-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 B,F ¥940
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2009-08 ended
KSP90 B ¥850
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 F ¥850
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 U;NCP9# F,U ¥940
71876-52121-E1 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥740
71876-52290-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥740
71931A — Support, Rear Seat Headrest
71930-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥1,260
71930-47010-E3 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥1,260
71930-52030-B0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥640
71931-47010-E4 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥530
71930-52030-B0 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥640
71930-52030-B0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥1,040
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥640
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥640
71940A — Headrest Assy, Rear Seat
71940-52240-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52240-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52260-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52260-E0 note Headrest Assy, Rear Seat
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥27,600
71940-52260-E1 note Headrest Assy, Rear Seat
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-06 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-01 → 2005-06 ended
KSP90 ¥27,600
71940-52270-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52280-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP91 RS ¥27,600
71940-52430-E1 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
NCP95,SCP90 ILL ¥14,100
71940-52480-E0 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
KSP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52561-C1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52561-E2 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52651-C0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52651-E0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2009-08 ended
KSP90 B ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥14,100
71940-52681-E1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥14,100
71940-52A10-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
KSP90 F ¥27,600
71940-52A20-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
SCP90 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2010-04 → 2010-08 ended
NCP95 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-04 ended
NCP95 F ¥27,600
72057 — Lever Sub-assy, Rear Seat Lock Control, RH
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,X ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-12 → 2007-08 ended
SCP90 U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,290
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-12 → 2007-08 ended
KSP90,NCP95 ILL ¥1,290
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥1,290
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP95 ILL ¥1,290
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 F,RS;KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2009-08 ended
KSP90 B ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
SCP90 F;KSP90,NCP95 F,ILL,U ¥1,290
72615A — Cover, Rear Seatback Lock Striker, RH
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,RS,U,X ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-08 → 2007-08 ended
SCP90 F,ILL;KSP90,NCP9# ILL,X ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-12 → 2007-08 ended
SCP90 U ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
NCP95 ILL;NCP91,SCP90 U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2009-08 ended
KSP90 B ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥360
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥220
72693-12080 Hook, Rear Seat Cushion Lock
2007-08 → 2008-08 ended
KSP90;SCP90 F ¥220
72693-12080 Hook, Rear Seat Cushion Lock
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥220
72693-12080 Hook, Rear Seat Cushion Lock
2008-08 → 2010-08 ended
NCP91 5F ¥220
72693-12080 Hook, Rear Seat Cushion Lock
2008-08 → —
KSP90;NCP91,SCP90 CVFC (F,RS) ¥220
72704A — Cable, Rear Seat Reclining Control
72704-52020 Cable, Rear Seat Reclining Control
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2005-01 → 2007-08 ended
NCP9#,SCP90 F,ILL,U,X ¥2,530
72704-52020 Cable, Rear Seat Reclining Control
2007-08 → 2008-08 ended
KSP90 B,F ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2007-08 → 2008-09 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,530
72704-52020 Cable, Rear Seat Reclining Control
2008-08 → 2010-12 ended
KSP90 B,F ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2008-08 → 2010-12 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,530
79232 — Leg, Rear NO.2 Seat, RH
79232-52010 Leg, Rear NO.2 Seat, RH
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥6,300
79232-52020 Leg, Rear NO.2 Seat, RH
2005-01 → 2007-08 ended
NCP95 ¥6,300
79232-52010 Leg, Rear NO.2 Seat, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥6,300
79232-52020 Leg, Rear NO.2 Seat, RH
2007-08 → 2008-08 ended
NCP95 ¥6,300
79232-52050 Leg, Rear NO.2 Seat, RH
2007-08 → 2008-09 ended
KSP90 U;NCP91,SCP90 F,RS ¥10,900
79232-52010 Leg, Rear NO.2 Seat, RH
2008-08 → 2010-12 ended
KSP90 B,F ¥6,300
79232-52020 Leg, Rear NO.2 Seat, RH
2008-08 → 2010-12 ended
NCP95 ¥6,300
79232-52050 Leg, Rear NO.2 Seat, RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥10,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
