Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

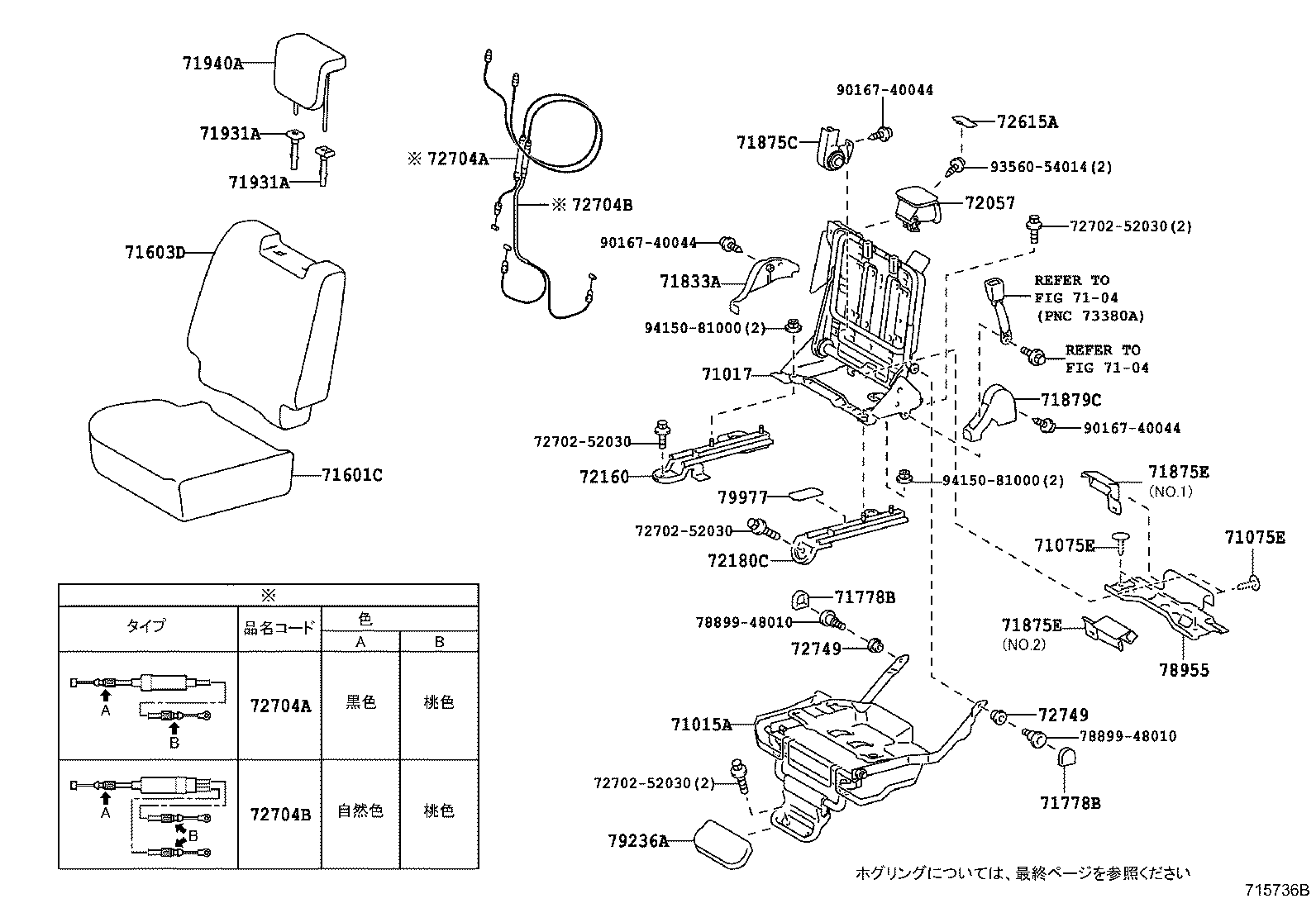

Exploded illustration 715736B 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71601C — PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH (35 parts) 71603D — PAD SUB-ASSY, REAR SEATBACK W/COVER, RH (58 parts) 71940A — HEADREST ASSY, REAR SEAT (45 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (6 parts) 72704B — CABLE, REAR SEAT RECLINING CONTROL, NO.2 (3 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (9 parts) 79236A — COVER, NO.2 SEAT LEG (6 parts) 72749 — SPACER, REAR SEAT RECLINING (3 parts) 72749 — SPACER, REAR SEAT RECLINING (3 parts) 72180C — TRACK ASSY, REAR SEAT, INNER RH (3 parts) 79977 — FELT, SEATBACK (2 parts) 72160 — TRACK ASSY, REAR SEAT, OUTER RH (3 parts) 71875E — COVER, RECLINING ADJUSTER INSIDE, RH (31 parts) 71875E — COVER, RECLINING ADJUSTER INSIDE, RH (31 parts) 78955 — COVER, REAR SEAT UNDER TRAY RH (7 parts) 71075E — CLIP(FOR REAR SEAT) (7 parts) 71075E — CLIP(FOR REAR SEAT) (7 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (27 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (27 parts) 71879C — COVER, REAR SEAT RECLINING, INNER LH (14 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (10 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (9 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (6 parts) 7270252030 — not listed in this catalogue 7889948010 — not listed in this catalogue 7889948010 — not listed in this catalogue 7270252030 — not listed in this catalogue 7270252030 — not listed in this catalogue 9415081000 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 7270252030 — not listed in this catalogue 9415081000 — not listed in this catalogue 72704A — CABLE, REAR SEAT RECLINING CONTROL (6 parts) 72704B — CABLE, REAR SEAT RECLINING CONTROL, NO.2 (3 parts) 72057 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH (18 parts) 72615A — COVER, REAR SEATBACK LOCK STRIKER, RH (13 parts) 9356054014 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue
715736B · 29 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
358 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71015-52310 Frame Sub-assy, Rear Seat Cushion, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥19,400
71015-52320 Frame Sub-assy, Rear Seat Cushion, RH
2005-01 → 2007-08 ended
NCP95 ¥7,500
71015-52310 Frame Sub-assy, Rear Seat Cushion, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥19,400
71015-52320 Frame Sub-assy, Rear Seat Cushion, RH
2007-08 → 2008-08 ended
NCP95 ¥7,500
71015-52310 Frame Sub-assy, Rear Seat Cushion, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥19,400
71015-52320 Frame Sub-assy, Rear Seat Cushion, RH
2008-08 → 2010-12 ended
NCP95 ¥7,500
71017 — Frame Sub-assy, Rear Seatback, RH
71017-52400 Frame Sub-assy, Rear Seatback, RH
2005-01 → 2005-11 ended
NCP91,SCP90 F,U,X ¥22,900
71017-52401 Frame Sub-assy, Rear Seatback, RH
2005-12 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥22,900
71017-52410 Frame Sub-assy, Rear Seatback, RH
2005-01 → 2005-11 ended
NCP95 ¥19,300
71017-52411 Frame Sub-assy, Rear Seatback, RH
2005-12 → 2007-08 ended
NCP95 ¥19,300
71017-52401 Frame Sub-assy, Rear Seatback, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥22,900
71017-52411 Frame Sub-assy, Rear Seatback, RH
2007-08 → 2008-08 ended
NCP95 ¥19,300
71017-52570 Frame Sub-assy, Rear Seatback, RH
2007-08 → 2008-09 ended
KSP90 U;NCP91,SCP90 F,RS ¥19,300
71017-52401 Frame Sub-assy, Rear Seatback, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥22,900
71017-52411 Frame Sub-assy, Rear Seatback, RH
2008-08 → 2010-12 ended
NCP95 ¥19,300
71017-52570 Frame Sub-assy, Rear Seatback, RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥19,300
71075E — Clip(FOR REAR SEAT)
90467-06085-B2 note Clip(FOR REAR SEAT)
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥130
90467-06085-B2 note Clip(FOR REAR SEAT)
2005-12 → 2007-08 ended
SCP90 ILL ¥130
90467-06085-B2 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥130
90467-06085-E1 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥120
90467-06085-E1 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥120
90467-06085-B2 note Clip(FOR REAR SEAT)
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥130
90467-06085-E1 note Clip(FOR REAR SEAT)
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥120
71601C — Pad Sub-assy, Rear Seat Cushion W/Cover, RH
71601-52B00-C2 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,X ¥30,300
71601-52B00-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,X ¥30,300
71601-52B20-C2 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-01 → 2007-08 ended
SCP90 U ¥33,300
71601-52B20-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-12 → 2006-03 ended
SCP90 U ¥33,300
71601-52B20-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2006-03 → 2007-08 ended
SCP90 U ¥33,300
71601-52B30-C3 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-01 → 2007-08 ended
NCP95 F ¥30,300
71601-52B30-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-01 → 2007-08 ended
NCP95 F ¥30,300
71601-52B40-C3 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-01 → 2007-08 ended
NCP95 U ¥33,300
71601-52B40-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2005-12 → 2006-03 ended
NCP95 U ¥33,300
71601-52B40-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2006-03 → 2007-08 ended
NCP95 U ¥33,300
71601-52G40-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP95 F ¥30,200
71601-52G40-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP95 F ¥30,200
71601-52J10-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥33,100
71601-52J10-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥33,100
71601-52J20-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP95 U ¥33,100
71601-52J20-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-08 → 2008-08 ended
NCP95 U ¥33,100
71601-52G40-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP95 F ¥30,200
71601-52G40-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP95 F ¥30,200
71601-52J10-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥33,100
71601-52J10-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥33,100
71601-52J20-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP95 U ¥33,100
71601-52J20-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-08 → 2010-12 ended
NCP95 U ¥33,100
71601-52M00-H0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-02 → 2010-08 ended
NCP95 F ¥30,200
71601-52M80-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M80-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M80-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M80-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M80-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M80-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥30,200
71601-52M81-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71601-52M81-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71601-52M81-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71601-52M81-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71601-52M81-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71601-52M81-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥30,200
71603D — Pad Sub-assy, Rear Seatback W/Cover, RH
71603-52A90-C2 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,X ¥30,700
71603-52A90-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,X ¥30,700
71603-52B10-C2 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-01 → 2007-08 ended
NCP95 F ¥29,600
71603-52B10-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-08 → 2007-08 ended
NCP95 F ¥29,600
71603-52B20-C2 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-01 → 2007-08 ended
NCP95 U ¥32,700
71603-52B20-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-12 → 2006-03 ended
NCP95 U ¥32,700
71603-52B20-E1 note Pad Sub-assy, Rear Seatback W/Cover, RH
2006-03 → 2007-08 ended
NCP95 U ¥32,700
71603-52B50-C2 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-01 → 2007-08 ended
SCP90 U ¥32,700
71603-52B50-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2005-12 → 2006-03 ended
SCP90 U ¥32,700
71603-52B50-E1 note Pad Sub-assy, Rear Seatback W/Cover, RH
2006-03 → 2007-08 ended
SCP90 U ¥32,700
71603-52K00-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP95 F ¥29,600
71603-52K00-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP95 F ¥29,600
71603-52K30-C0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥30,400
71603-52K40-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
SCP90 F ¥30,700
71603-52K40-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
SCP90 F ¥30,700
71603-52K90-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP95 U ¥32,700
71603-52K90-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP95 U ¥32,700
71603-52L00-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥32,700
71603-52L00-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥32,700
71603-52L10-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
KSP90 U ¥32,700
71603-52L10-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-08 → 2008-08 ended
KSP90 U ¥32,700
71603-52K00-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP95 F ¥29,600
71603-52K00-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP95 F ¥29,600
71603-52K30-C0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥30,400
71603-52K40-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
SCP90 F ¥30,700
71603-52K40-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
SCP90 F ¥30,700
71603-52K90-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP95 U ¥32,700
71603-52K90-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP95 U ¥32,700
71603-52L00-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥32,700
71603-52L00-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥32,700
71603-52L10-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
KSP90 U ¥32,700
71603-52L10-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-08 → 2010-12 ended
KSP90 U ¥32,700
71603-52R30-H0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-02 → 2010-08 ended
SCP90 F ¥30,400
71603-52R40-H0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-02 → 2010-08 ended
NCP95 F ¥29,600
71603-52S40-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S40-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S40-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S40-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S40-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S40-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
SCP90 F ¥30,700
71603-52S41-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S41-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S41-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S41-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S41-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S41-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
SCP90 F ¥30,700
71603-52S50-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S50-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S50-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S50-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S50-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S50-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-08 → 2010-09 ended
NCP95 F ¥29,600
71603-52S51-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71603-52S51-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71603-52S51-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71603-52S51-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71603-52S51-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71603-52S51-E0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-10 → 2010-12 ended
NCP95 F ¥29,600
71778B — Cover, Rear Seat Side Hinge Male, RH
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
SCP90 F ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
SCP90 F ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-12 → 2007-08 ended
SCP90 ILL ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥360
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
KSP90 B,F ¥2,100
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,100
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
KSP90 ILL ¥2,100
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP95 F,U ¥2,330
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
NCP95 ILL ¥2,330
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,780
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,780
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,100
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,900
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,330
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,110
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP95 ILL ¥2,110
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,260
71833-52110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71833-52040-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 B,F ¥2,100
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 F ¥1,900
71833-52040-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2009-08 ended
KSP90 B ¥1,900
71833-52050-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP95 F,U ¥2,330
71833-52050-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP95 ¥2,110
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,780
71833-52060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,780
71833-52110-B0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥2,260
71833-52110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥2,260
71875C — Cover, Reclining Adjuster Inside, RH
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
KSP90 B,F ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
KSP90 ILL ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP91 RS ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2006-09 ended
SCP90 ILL ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP95 F,U ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2006-09 ended
NCP91,SCP90 F,U,X ¥940
71875-52120-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
NCP95 ILL ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2006-09 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2006-09 → 2007-08 ended
SCP90 ILL ¥940
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥940
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥850
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
71875-52320-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71875-52100-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 B,F ¥940
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 F ¥850
71875-52100-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2009-08 ended
KSP90 B ¥850
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 F ¥940
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥940
71875-52121-E1 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
SCP90 ILL;NCP9# F,ILL ¥940
71875-52320-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥740
71875-52320-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥740
71875E — Cover, Reclining Adjuster Inside, RH
71875-52130-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,530
71875-52130-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,530
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP95 F,U ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
NCP95 ILL ¥740
71876-52140-B0 note Cover, Reclining Adjuster Inside, RH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,010
71876-52140-B0 note Cover, Reclining Adjuster Inside, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,010
71875-52130-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,530
71875-52130-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,530
71875-52130-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,530
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP95 F,U ¥740
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP95 ILL ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP95 F,U ¥650
71876-52140-B0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,010
71876-52140-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,010
71876-52140-E0 note Cover, Reclining Adjuster Inside, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,010
71875-52130-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,530
71875-52130-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,530
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 U ¥740
71875-52230-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 F ¥740
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 U ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP95 F,ILL ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2009-02 → 2010-08 ended
NCP95 F ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥650
71875-52230-E0 note Cover, Reclining Adjuster Inside, RH
2009-08 → 2010-12 ended
NCP95 F ¥650
71876-52140-B0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,010
71876-52140-E0 note Cover, Reclining Adjuster Inside, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,010
71879C — Cover, Rear Seat Reclining, Inner LH
71879-52080-B1 note Cover, Rear Seat Reclining, Inner LH
2005-01 → 2007-08 ended
NCP95 F,U ¥1,780
71879-52080-B1 note Cover, Rear Seat Reclining, Inner LH
2005-12 → 2007-08 ended
NCP95 ILL ¥1,780
71879-52090-B2 note Cover, Rear Seat Reclining, Inner LH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,540
71879-52090-B2 note Cover, Rear Seat Reclining, Inner LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,540
71879-52080-B1 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP95 F,U ¥1,780
71879-52080-E0 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP95 F,U ¥1,600
71879-52080-E0 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP95 ILL ¥1,600
71879-52090-B2 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,540
71879-52090-E0 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,540
71879-52090-E0 note Cover, Rear Seat Reclining, Inner LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,540
71879-52080-B1 note Cover, Rear Seat Reclining, Inner LH
2008-08 → 2010-12 ended
NCP95 F,U ¥1,780
71879-52080-E0 note Cover, Rear Seat Reclining, Inner LH
2008-08 → 2010-12 ended
NCP95 ¥1,600
71879-52090-B2 note Cover, Rear Seat Reclining, Inner LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,540
71879-52090-E0 note Cover, Rear Seat Reclining, Inner LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,540
71931A — Support, Rear Seat Headrest
71930-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥1,260
71930-47010-E3 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥1,260
71930-52030-B0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥640
71931-47010-E4 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥530
71930-52030-B0 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥640
71930-52030-B0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥1,040
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥640
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥640
71940A — Headrest Assy, Rear Seat
71940-52240-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52240-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52260-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52260-E0 note Headrest Assy, Rear Seat
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥27,600
71940-52260-E1 note Headrest Assy, Rear Seat
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-01 → 2005-06 ended
KSP90 ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-06 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52270-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52280-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP91 RS ¥27,600
71940-52430-E1 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
NCP95,SCP90 ILL ¥14,100
71940-52480-E0 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
KSP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52561-C1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52561-E2 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52651-C0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52651-E0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2009-08 ended
KSP90 B ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 F ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥14,100
71940-52681-E1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥14,100
71940-52A10-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
KSP90 F ¥27,600
71940-52A20-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
SCP90 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2010-04 → 2010-08 ended
NCP95 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-04 ended
NCP95 F ¥27,600
72057 — Lever Sub-assy, Rear Seat Lock Control, RH
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,X ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-12 → 2007-08 ended
SCP90 U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,290
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-12 → 2007-08 ended
KSP90,NCP95 ILL ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥1,290
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥1,290
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
NCP95 ILL ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥1,290
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,430
72057-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,430
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
NCP91,SCP90 F,RS;KSP90,NCP95 B,F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2009-08 ended
KSP90 B ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, RH
2008-08 → 2010-12 ended
SCP90 F;KSP90,NCP95 F,ILL,U ¥1,290
72160 — Track Assy, Rear Seat, Outer RH
72160-52020 Track Assy, Rear Seat, Outer RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥10,000
72160-52020 Track Assy, Rear Seat, Outer RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥10,000
72160-52020 Track Assy, Rear Seat, Outer RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥10,000
72180C — Track Assy, Rear Seat, Inner RH
72160-52030 Track Assy, Rear Seat, Inner RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥18,700
72160-52030 Track Assy, Rear Seat, Inner RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥18,700
72160-52030 Track Assy, Rear Seat, Inner RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥18,700
72615A — Cover, Rear Seatback Lock Striker, RH
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,RS,U,X ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-01 → 2007-08 ended
KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-08 → 2007-08 ended
SCP90 F,ILL;KSP90,NCP9# ILL,X ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2005-12 → 2007-08 ended
SCP90 U ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS,U ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
SCP90 F;KSP90,NCP95 B,F,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
NCP95 ILL;NCP91,SCP90 U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥360
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2009-08 ended
KSP90 B ¥360
72615-52070-E1 note Cover, Rear Seatback Lock Striker, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥360
72704A — Cable, Rear Seat Reclining Control
72704-52020 Cable, Rear Seat Reclining Control
2005-01 → 2007-08 ended
KSP90,NCP91 B,F,ILL,RS ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2005-01 → 2007-08 ended
NCP9#,SCP90 F,ILL,U,X ¥2,530
72704-52020 Cable, Rear Seat Reclining Control
2007-08 → 2008-08 ended
KSP90 B,F ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2007-08 → 2008-09 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,530
72704-52020 Cable, Rear Seat Reclining Control
2008-08 → 2010-12 ended
KSP90 B,F ¥2,530
72704-52030 Cable, Rear Seat Reclining Control
2008-08 → 2010-12 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,530
72704B — Cable, Rear Seat Reclining Control, NO.2
72704-52050 Cable, Rear Seat Reclining Control, NO.2
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥3,150
72704-52050 Cable, Rear Seat Reclining Control, NO.2
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,150
72704-52050 Cable, Rear Seat Reclining Control, NO.2
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,150
72749 — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥90
72749-48010 Spacer, Rear Seat Reclining
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥90
72749-48010 Spacer, Rear Seat Reclining
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥90
78955 — Cover, Rear Seat Under Tray RH
78955-52010-B0 note Cover, Rear Seat Under Tray RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥390
78955-52010-E0 note Cover, Rear Seat Under Tray RH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,X ¥390
78955-52010-E0 note Cover, Rear Seat Under Tray RH
2005-12 → 2007-08 ended
SCP90 U ¥390
78955-52010 Cover, Rear Seat Under Tray RH
2008-02 → 2008-08 ended
NCP91,SCP90 ILL,U ¥390
78955-52010-B0 note Cover, Rear Seat Under Tray RH
2007-08 → 2008-02 ended
NCP91,SCP90 U ¥390
78955-52010-E0 note Cover, Rear Seat Under Tray RH
2007-08 → 2008-02 ended
NCP91,SCP90 ILL,U ¥390
78955-52010 Cover, Rear Seat Under Tray RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥390
79236A — Cover, NO.2 Seat Leg
79236-52020-C0 note Cover, NO.2 Seat Leg
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2005-12 → 2007-08 ended
SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥2,030
79977 — Felt, Seatback
79977-52060 Felt, Seatback
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥220
79977-52060 Felt, Seatback
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
