Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

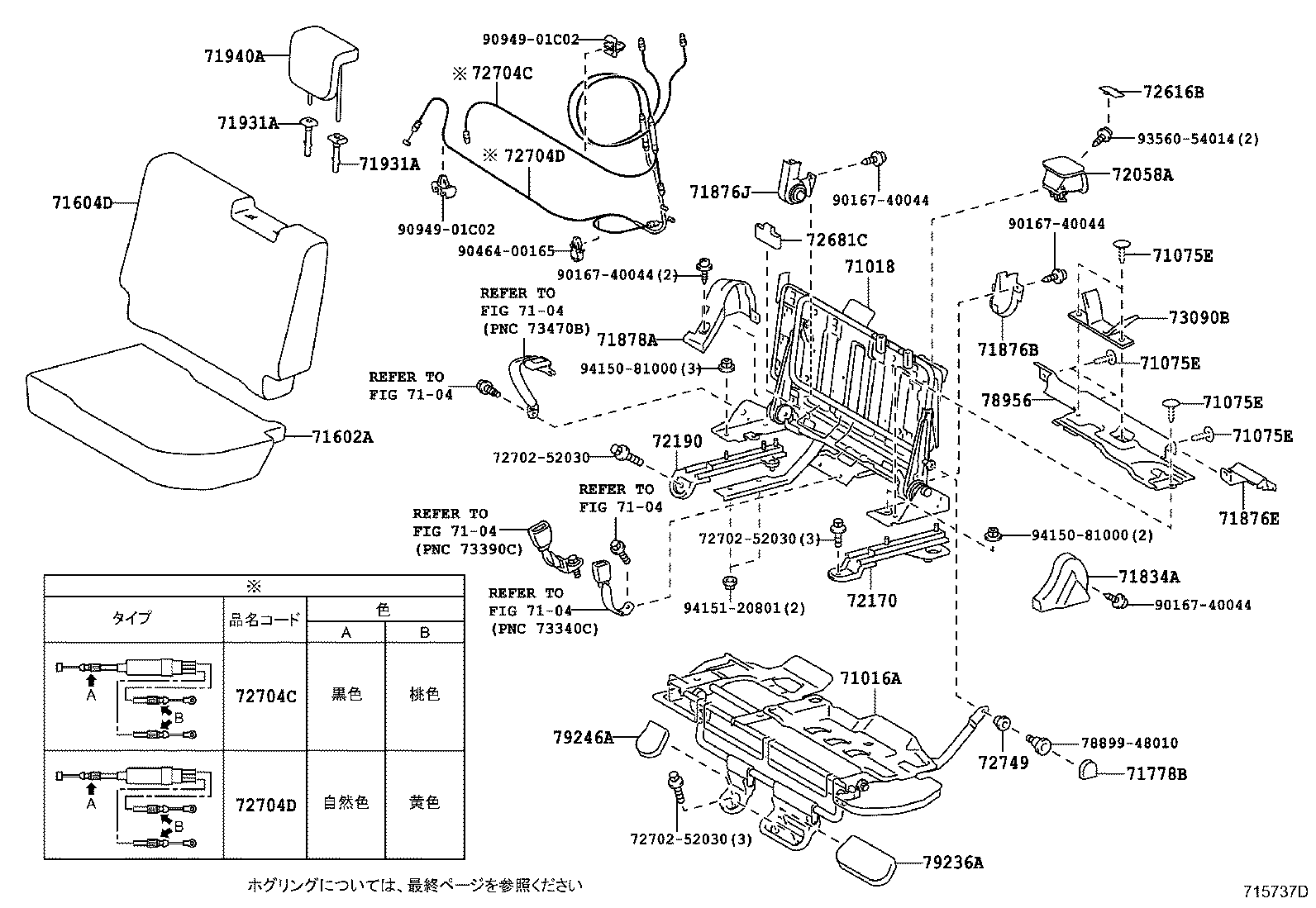

Exploded illustration 715737D 9356054014 — not listed in this catalogue 72704C — CABLE, REAR NO.2 SEAT RECLINING CONTROL (3 parts) 72704D — CABLE, REAR NO.2 SEAT RECLINING CONTROL (3 parts) 72190 — TRACK ASSY, REAR SEAT INNER, LH (3 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71931A — SUPPORT, REAR SEAT HEADREST (25 parts) 71940A — HEADREST ASSY, REAR SEAT (45 parts) 71604D — PAD SUB-ASSY, REAR SEATBACK W/COVER, LH (58 parts) 71602A — PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH (35 parts) 79236A — COVER, NO.2 SEAT LEG (6 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (9 parts) 71016A — FRAME SUB-ASSY, REAR SEAT CUSHION, LH (6 parts) 79246A — COVER, NO.2 SEAT LEG, NO.2 (6 parts) 72749 — SPACER, REAR SEAT RECLINING (3 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (3 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (10 parts) 71876J — COVER, RECLINING ADJUSTER INSIDE, LH (15 parts) 71878A — COVER, REAR SEAT RECLINING, INNER RH (14 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (27 parts) 72058A — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH (16 parts) 72616B — COVER, REAR SEAT LOCK STRIKER (11 parts) 9094901C02 — not listed in this catalogue 9094901C02 — not listed in this catalogue 7270252030 — not listed in this catalogue 7889948010 — not listed in this catalogue 7270252030 — not listed in this catalogue 9415120801 — not listed in this catalogue 9415081000 — not listed in this catalogue 9415081000 — not listed in this catalogue 7270252030 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9046400165 — not listed in this catalogue 9016740044 — not listed in this catalogue 72681C — HOOK, REAR SEATBACK LOCK, LOWER (3 parts) 71876E — COVER, RECLINING ADJUSTER INSIDE, LH (21 parts) 78956 — COVER, REAR SEAT UNDER TRAY LH (6 parts) 71876B — COVER, RECLINING ADJUSTER INSIDE, LH (23 parts) 9016740044 — not listed in this catalogue 71075E — CLIP(FOR REAR SEAT) (7 parts) 73090B — PLATE ASSY, SEAT BELT ANCHOR (3 parts) 71075E — CLIP(FOR REAR SEAT) (7 parts) 71075E — CLIP(FOR REAR SEAT) (7 parts) 71075E — CLIP(FOR REAR SEAT) (7 parts) 72704C — CABLE, REAR NO.2 SEAT RECLINING CONTROL (3 parts) 72704D — CABLE, REAR NO.2 SEAT RECLINING CONTROL (3 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue
715737D · 31 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
361 parts on this figure
Part number Description Fitment Price
71016A — Frame Sub-assy, Rear Seat Cushion, LH
71016-52060 Frame Sub-assy, Rear Seat Cushion, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥22,300
71016-52070 Frame Sub-assy, Rear Seat Cushion, LH
2005-01 → 2007-08 ended
NCP95 ¥8,700
71016-52060 Frame Sub-assy, Rear Seat Cushion, LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥22,300
71016-52070 Frame Sub-assy, Rear Seat Cushion, LH
2007-08 → 2008-08 ended
NCP95 ¥8,700
71016-52060 Frame Sub-assy, Rear Seat Cushion, LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥22,300
71016-52070 Frame Sub-assy, Rear Seat Cushion, LH
2008-08 → 2010-12 ended
NCP95 ¥8,700
71018 — Frame Sub-assy, Rear Seatback, LH
71018-52320 Frame Sub-assy, Rear Seatback, LH
2005-01 → 2005-12 ended
NCP95 ¥24,300
71018-52321 Frame Sub-assy, Rear Seatback, LH
2005-12 → 2007-08 ended
NCP95 ¥24,400
71018-52330 Frame Sub-assy, Rear Seatback, LH
2005-01 → 2005-12 ended
NCP91,SCP90 F,U,X ¥35,400
71018-52331 Frame Sub-assy, Rear Seatback, LH
2005-12 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥35,500
71018-52321 Frame Sub-assy, Rear Seatback, LH
2007-08 → 2008-08 ended
NCP95 ¥24,400
71018-52331 Frame Sub-assy, Rear Seatback, LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥35,500
71018-52430 Frame Sub-assy, Rear Seatback, LH
2007-08 → 2008-09 ended
KSP90 U;NCP91,SCP90 F,RS ¥24,400
71018-52321 Frame Sub-assy, Rear Seatback, LH
2008-08 → 2010-12 ended
NCP95 ¥24,400
71018-52331 Frame Sub-assy, Rear Seatback, LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥35,500
71018-52430 Frame Sub-assy, Rear Seatback, LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥24,400
71075E — Clip(FOR REAR SEAT)
90467-06085-B2 note Clip(FOR REAR SEAT)
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥130
90467-06085-B2 note Clip(FOR REAR SEAT)
2005-12 → 2007-08 ended
SCP90 ILL ¥130
90467-06085-B2 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥130
90467-06085-E1 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥120
90467-06085-E1 note Clip(FOR REAR SEAT)
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥120
90467-06085-B2 note Clip(FOR REAR SEAT)
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥130
90467-06085-E1 note Clip(FOR REAR SEAT)
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥120
71602A — Pad Sub-assy, Rear Seat Cushion W/Cover, LH
71602-52200-C2 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,X ¥41,500
71602-52200-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-08 → 2007-08 ended
NCP91,SCP90 F,X ¥41,500
71602-52220-C2 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-01 → 2007-08 ended
SCP90 U ¥45,100
71602-52220-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-12 → 2006-03 ended
SCP90 U ¥45,100
71602-52220-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2006-03 → 2007-08 ended
SCP90 U ¥45,100
71602-52230-C3 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-01 → 2007-08 ended
NCP95 F ¥42,800
71602-52230-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-01 → 2007-08 ended
NCP95 F ¥42,800
71602-52240-C3 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-01 → 2007-08 ended
NCP95 U ¥46,400
71602-52240-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2005-12 → 2006-03 ended
NCP95 U ¥46,400
71602-52240-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2006-03 → 2007-08 ended
NCP95 U ¥46,400
71602-52470-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP95 F ¥42,700
71602-52470-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP95 F ¥42,700
71602-52480-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥45,100
71602-52480-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥45,100
71602-52490-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP95 U ¥46,400
71602-52490-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-08 → 2008-08 ended
NCP95 U ¥46,400
71602-52470-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP95 F ¥42,700
71602-52470-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP95 F ¥42,700
71602-52480-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥45,100
71602-52480-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥45,100
71602-52490-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP95 U ¥46,400
71602-52490-E1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-08 → 2010-12 ended
NCP95 U ¥46,400
71602-52660-H0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-02 → 2010-08 ended
NCP95 F ¥42,700
71602-52680-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52680-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52680-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52680-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52680-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52680-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥42,700
71602-52681-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71602-52681-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71602-52681-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71602-52681-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71602-52681-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71602-52681-E0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥42,700
71604D — Pad Sub-assy, Rear Seatback W/Cover, LH
71604-52A50-C2 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,X ¥40,100
71604-52A50-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-08 → 2007-08 ended
NCP91,SCP90 F,X ¥40,100
71604-52A70-C2 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-01 → 2007-08 ended
SCP90 U ¥44,100
71604-52A70-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-12 → 2006-03 ended
SCP90 U ¥44,100
71604-52A70-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2006-03 → 2007-08 ended
SCP90 U ¥44,100
71604-52A80-C2 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-01 → 2007-08 ended
NCP95 F ¥40,100
71604-52A80-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-08 → 2007-08 ended
NCP95 F ¥40,100
71604-52A90-C2 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-01 → 2007-08 ended
NCP95 U ¥44,100
71604-52A90-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2005-12 → 2006-03 ended
NCP95 U ¥44,100
71604-52A90-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2006-03 → 2007-08 ended
NCP95 U ¥44,100
71604-52G50-C0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥40,100
71604-52G60-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
SCP90 F ¥40,100
71604-52G60-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
SCP90 F ¥40,100
71604-52G70-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP95 F ¥40,100
71604-52G70-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP95 F ¥40,100
71604-52J00-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
KSP90 U ¥44,000
71604-52J00-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
KSP90 U ¥44,000
71604-52J10-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥44,000
71604-52J10-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥44,000
71604-52J20-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP95 U ¥44,000
71604-52J20-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-08 → 2008-08 ended
NCP95 U ¥44,000
71604-52G50-C0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥40,100
71604-52G60-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
SCP90 F ¥40,100
71604-52G60-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
SCP90 F ¥40,100
71604-52G70-B1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP95 F ¥40,100
71604-52G70-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP95 F ¥40,100
71604-52J00-B1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
KSP90 U ¥44,000
71604-52J00-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
KSP90 U ¥44,000
71604-52J10-B1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥44,000
71604-52J10-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥44,000
71604-52J20-B1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP95 U ¥44,000
71604-52J20-E1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-08 → 2010-12 ended
NCP95 U ¥44,000
71604-52M80-H0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-02 → 2010-08 ended
SCP90 F ¥40,100
71604-52M90-H0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-02 → 2010-08 ended
NCP95 F ¥40,100
71604-52N50-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N50-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N50-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N50-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N50-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N50-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
SCP90 F ¥40,100
71604-52N51-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N51-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N51-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N51-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N51-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N51-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
SCP90 F ¥40,100
71604-52N60-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N60-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N60-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N60-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N60-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N60-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-08 → 2010-09 ended
NCP95 F ¥40,100
71604-52N61-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71604-52N61-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71604-52N61-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71604-52N61-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71604-52N61-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71604-52N61-E0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-10 → 2010-12 ended
NCP95 F ¥40,100
71778B — Cover, Rear Seat Side Hinge Male, RH
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
SCP90 F ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
SCP90 F ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2005-12 → 2007-08 ended
SCP90 ILL ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥360
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥360
71778-52010-E0 note Cover, Rear Seat Side Hinge Male, RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥360
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
KSP90 B,F ¥2,100
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP91 RS ¥2,100
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
KSP90 ILL ¥2,100
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP95 F,U ¥2,330
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
NCP95 ILL ¥2,330
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,780
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,780
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,100
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 B,F ¥1,900
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,330
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,110
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP95 ILL ¥2,110
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,780
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,260
71834-52110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥2,260
71834-52040-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 B,F ¥2,100
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 F ¥1,900
71834-52040-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2009-08 ended
KSP90 B ¥1,900
71834-52050-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP95 F,U ¥2,330
71834-52050-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP95 ¥2,110
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,780
71834-52060-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,780
71834-52110-B0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥2,260
71834-52110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥2,260
71876B — Cover, Reclining Adjuster Inside, LH
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
KSP90 B,F ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
KSP90 ILL ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP91 RS ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2006-09 ended
SCP90 ILL ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2006-09 ended
NCP91,SCP90 F,U,X ¥940
71876-52120-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥940
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
SCP90 ILL ¥940
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥940
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥850
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥940
71876-52121-E1 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥740
71876-52290-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥740
71876-52100-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 B,F ¥940
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2009-08 ended
KSP90 B ¥850
71876-52100-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 F ¥850
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 U;NCP9# F,U ¥940
71876-52121-E1 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71876-52290-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥740
71876-52290-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥740
71876E — Cover, Reclining Adjuster Inside, LH
71875-52210-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥630
71875-52210-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥630
71876-52130-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,530
71876-52130-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
SCP90 ILL ¥1,530
71876-52230-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥740
71876-52230-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥740
71875-52210-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 F,U ¥630
71875-52210-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 ILL ¥580
71875-52210-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 F,U ¥580
71876-52130-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,530
71876-52130-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,530
71876-52130-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,530
71876-52230-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 F,U ¥740
71876-52230-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 F,U ¥650
71876-52230-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
NCP95 ILL ¥650
71875-52210-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP95 F,U ¥630
71875-52210-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP95 ¥580
71876-52130-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,530
71876-52130-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥1,530
71876-52230-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP95 F,U ¥740
71876-52230-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
NCP95 ¥650
71876J — Cover, Reclining Adjuster Inside, LH
71875-52140-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2006-09 ended
NCP91,SCP90 F,U,X ¥940
71875-52140-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2006-09 ended
SCP90 ILL ¥940
71875-52140-B0 note Cover, Reclining Adjuster Inside, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥940
71875-52140-B0 note Cover, Reclining Adjuster Inside, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥940
71875-52141-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
71875-52141-B0 note Cover, Reclining Adjuster Inside, LH
2006-09 → 2007-08 ended
SCP90 ILL ¥940
71875-52141-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 U;NCP9# F,U ¥940
71875-52141-E1 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71875-52340-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥1,070
71875-52340-B0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,070
71875-52340-E0 note Cover, Reclining Adjuster Inside, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F ¥1,070
71875-52141-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 U;NCP9# F,U ¥940
71875-52141-E1 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
SCP90 ILL,U;NCP9# F,ILL,U ¥940
71875-52340-B0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;NCP91,SCP90 F,RS ¥1,070
71875-52340-E0 note Cover, Reclining Adjuster Inside, LH
2008-08 → 2010-12 ended
KSP90 U;SCP90 F ¥1,070
71878A — Cover, Rear Seat Reclining, Inner RH
71878-52070-B2 note Cover, Rear Seat Reclining, Inner RH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥2,400
71878-52070-B2 note Cover, Rear Seat Reclining, Inner RH
2005-12 → 2007-08 ended
SCP90 ILL ¥2,400
71878-52080-B1 note Cover, Rear Seat Reclining, Inner RH
2005-01 → 2007-08 ended
NCP95 F,U ¥2,330
71878-52080-B1 note Cover, Rear Seat Reclining, Inner RH
2005-12 → 2007-08 ended
NCP95 ILL ¥2,330
71878-52070-B2 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥2,400
71878-52070-E0 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥2,400
71878-52070-E0 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥2,400
71878-52080-B1 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,330
71878-52080-E0 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP95 F,U ¥2,110
71878-52080-E0 note Cover, Rear Seat Reclining, Inner RH
2007-08 → 2008-08 ended
NCP95 ILL ¥2,110
71878-52070-B2 note Cover, Rear Seat Reclining, Inner RH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥2,400
71878-52070-E0 note Cover, Rear Seat Reclining, Inner RH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥2,400
71878-52080-B1 note Cover, Rear Seat Reclining, Inner RH
2008-08 → 2010-12 ended
NCP95 F,U ¥2,330
71878-52080-E0 note Cover, Rear Seat Reclining, Inner RH
2008-08 → 2010-12 ended
NCP95 ¥2,110
71931A — Support, Rear Seat Headrest
71930-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-06 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,260
71930-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥1,260
71930-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥1,260
71930-47010-E3 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥1,260
71930-52030-B0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-06 ended
KSP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-06 → 2005-12 ended
KSP90 ¥640
71931-47010-B2 note Support, Rear Seat Headrest
2005-01 → 2005-12 ended
NCP9#,SCP90 ¥640
71931-47010-E4 note Support, Rear Seat Headrest
2005-08 → 2005-12 ended
KSP90,NCP9#,SCP90 B,F,X ¥530
71930-52030-B0 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥640
71930-52030-B0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥790
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥1,040
71930-52030-E0 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥1,040
71931-42020-B4 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥480
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥640
71931-42020-E1 note Support, Rear Seat Headrest
2008-08 → 2009-08 ended
KSP90 B ¥640
71940A — Headrest Assy, Rear Seat
71940-52240-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52240-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
NCP9#,SCP90 F,X ¥27,600
71940-52260-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52260-E0 note Headrest Assy, Rear Seat
2005-12 → 2006-03 ended
NCP95,SCP90 U ¥27,600
71940-52260-E1 note Headrest Assy, Rear Seat
2006-03 → 2007-08 ended
NCP95,SCP90 U ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-01 → 2005-06 ended
KSP90 ¥27,600
71940-52270-C0 note Headrest Assy, Rear Seat
2005-06 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52270-E0 note Headrest Assy, Rear Seat
2005-08 → 2007-08 ended
KSP90 B,F ¥27,600
71940-52280-C0 note Headrest Assy, Rear Seat
2005-01 → 2007-08 ended
NCP91 RS ¥27,600
71940-52430-E1 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
NCP95,SCP90 ILL ¥14,100
71940-52480-E0 note Headrest Assy, Rear Seat
2005-12 → 2007-08 ended
KSP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
KSP90 B,F ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥14,100
71940-52550-C1 note Headrest Assy, Rear Seat
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥27,600
71940-52560-C1 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52560-E2 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP95 F ¥27,600
71940-52561-C1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52561-E2 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP95 F ¥27,600
71940-52640-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52640-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 U ¥27,600
71940-52650-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52650-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
SCP90 F ¥27,600
71940-52651-C0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52651-E0 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
SCP90 F ¥27,600
71940-52660-C0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 B,F ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2009-08 ended
KSP90 B ¥27,600
71940-52660-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
KSP90 F ¥27,600
71940-52670-B0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52670-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-12 ended
NCP9#,SCP90 U ¥27,600
71940-52680-E0 note Headrest Assy, Rear Seat
2008-08 → 2010-09 ended
NCP9#,SCP90 ILL ¥14,100
71940-52681-E1 note Headrest Assy, Rear Seat
2010-10 → 2010-12 ended
NCP9#,SCP90 ILL ¥14,100
71940-52A10-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
KSP90 F ¥27,600
71940-52A20-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-08 ended
SCP90 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-04 ended
NCP95 F ¥27,600
71940-52A30-E0 note Headrest Assy, Rear Seat
2010-04 → 2010-08 ended
NCP95 F ¥27,600
72058A — Lever Sub-assy, Rear Seat Lock Control, LH
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-01 → 2007-08 ended
NCP95 F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-12 → 2007-08 ended
NCP95 ILL ¥1,290
72058-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥3,350
72058-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-08 → 2007-08 ended
NCP91,SCP90 F,ILL,X ¥3,350
72058-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2005-12 → 2007-08 ended
SCP90 U ¥3,350
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F;NCP95 F,U ¥1,290
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-08 ended
KSP90 U;SCP90 F;NCP95 F,U ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-08 ended
NCP95 ILL ¥1,290
72058-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥3,350
72058-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,350
72057-52020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2008-08 → 2010-12 ended
KSP90 U;NCP95 F,U;NCP91,SCP90 F,RS ¥1,290
72057-52020-E1 note Lever Sub-assy, Rear Seat Lock Control, LH
2008-08 → 2010-12 ended
NCP95;KSP90 U;SCP90 F ¥1,290
72058-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥3,350
72058-52010-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,350
72170 — Track Assy, Rear Seat, Outer LH
72170-52030 Track Assy, Rear Seat, Outer LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥18,700
72170-52030 Track Assy, Rear Seat, Outer LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥18,700
72170-52030 Track Assy, Rear Seat, Outer LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥18,700
72190 — Track Assy, Rear Seat Inner, LH
72170-52020 Track Assy, Rear Seat Inner, LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥10,000
72170-52020 Track Assy, Rear Seat Inner, LH
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥10,000
72170-52020 Track Assy, Rear Seat Inner, LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥10,000
72616B — Cover, Rear Seat Lock Striker
72615-52070-B0 note Cover, Rear Seat Lock Striker
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥360
72615-52070-B0 note Cover, Rear Seat Lock Striker
2005-01 → 2007-08 ended
NCP95 F,U ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2005-08 → 2007-08 ended
NCP9# ILL,X;SCP90 F,ILL ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2005-12 → 2007-08 ended
SCP90 U ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2005-01 → 2007-08 ended
NCP95 F,U ¥360
72615-52070-B0 note Cover, Rear Seat Lock Striker
2007-08 → 2008-08 ended
KSP90 U;SCP90 F;NCP95 F,U ¥360
72615-52070-B0 note Cover, Rear Seat Lock Striker
2007-08 → 2008-09 ended
NCP91,SCP90 RS,U ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2007-08 → 2008-08 ended
NCP95 ILL;NCP91,SCP90 U ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2007-08 → 2008-08 ended
KSP90 U;SCP90 F;NCP95 F,U ¥360
72615-52070-B0 note Cover, Rear Seat Lock Striker
2008-08 → 2010-12 ended
KSP90,NCP91 RS,U;NCP95,SCP90 F,RS,U ¥360
72615-52070-E1 note Cover, Rear Seat Lock Striker
2008-08 → 2010-12 ended
KSP90,NCP91 ILL,U;NCP95,SCP90 F,ILL,U ¥360
72681C — Hook, Rear Seatback Lock, Lower
72681-52010 Hook, Rear Seatback Lock, Lower
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥260
72681-52010 Hook, Rear Seatback Lock, Lower
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥260
72681-52010 Hook, Rear Seatback Lock, Lower
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥260
72704C — Cable, Rear NO.2 Seat Reclining Control
72704-52040 Cable, Rear NO.2 Seat Reclining Control
2005-01 → 2007-08 ended
NCP9#,SCP90 F,ILL,U,X ¥2,730
72704-52040 Cable, Rear NO.2 Seat Reclining Control
2007-08 → 2008-09 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,730
72704-52040 Cable, Rear NO.2 Seat Reclining Control
2008-08 → 2010-12 ended
NCP95,SCP90;KSP90,NCP91 ILL,RS,U ¥2,730
72704D — Cable, Rear NO.2 Seat Reclining Control
72704-52060 Cable, Rear NO.2 Seat Reclining Control
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥3,340
72704-52060 Cable, Rear NO.2 Seat Reclining Control
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥3,340
72704-52060 Cable, Rear NO.2 Seat Reclining Control
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥3,340
72749 — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥90
72749-48010 Spacer, Rear Seat Reclining
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥90
72749-48010 Spacer, Rear Seat Reclining
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥90
73090B — Plate Assy, Seat Belt Anchor
73090-52010 Plate Assy, Seat Belt Anchor
2005-01 → 2007-08 ended
NCP91,SCP90 F,ILL,U,X ¥450
73090-52010 Plate Assy, Seat Belt Anchor
2007-08 → 2008-08 ended
NCP91,SCP90 ILL,U ¥450
73090-52010 Plate Assy, Seat Belt Anchor
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥450
78956 — Cover, Rear Seat Under Tray LH
78955-52020-B0 note Cover, Rear Seat Under Tray LH
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥940
78955-52020-B0 note Cover, Rear Seat Under Tray LH
2005-12 → 2007-08 ended
SCP90 ILL ¥940
78955-52020 Cover, Rear Seat Under Tray LH
2008-02 → 2008-08 ended
NCP91,SCP90 ILL,U ¥940
78955-52020-B2 note Cover, Rear Seat Under Tray LH
2007-08 → 2008-02 ended
NCP91,SCP90 ILL ¥940
78955-52020-B2 note Cover, Rear Seat Under Tray LH
2007-08 → 2008-02 ended
NCP91,SCP90 U ¥940
78955-52020 Cover, Rear Seat Under Tray LH
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥940
79236A — Cover, NO.2 Seat Leg
79236-52020-C0 note Cover, NO.2 Seat Leg
2005-12 → 2007-08 ended
SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥2,030
79236-52020-C0 note Cover, NO.2 Seat Leg
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥2,030
79246A — Cover, NO.2 Seat Leg, NO.2
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2005-01 → 2007-08 ended
NCP91,SCP90 F,U,X ¥1,460
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2005-12 → 2007-08 ended
SCP90 ILL ¥1,460
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥1,460
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2007-08 → 2008-08 ended
NCP91,SCP90 U ¥1,460
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥1,460
79246-52020-C0 note Cover, NO.2 Seat Leg, NO.2
2008-08 → 2010-12 ended
NCP91,SCP90 U ¥1,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
