Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

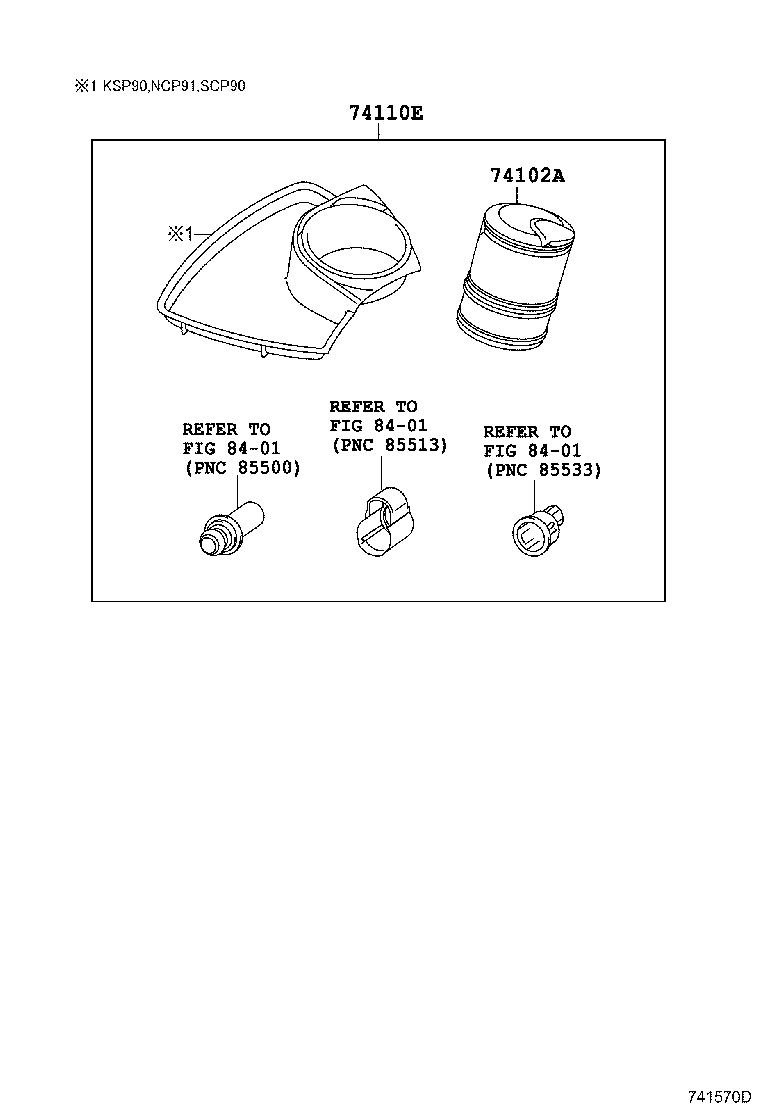

Exploded illustration 741570D 74110E — RECEPTACLE ASSY, FRONT ASH (13 parts) 74102A — RECEPTACLE ASSY, FRONT ASH (5 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
741570D · 2 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
74102A — Receptacle Assy, Front Ash
74130-28040-C0 note Receptacle Assy, Front Ash
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,700
74130-28040-C0 note Receptacle Assy, Front Ash
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,700
74130-28040-C0 note Receptacle Assy, Front Ash
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,700
74130-28040-C0 note Receptacle Assy, Front Ash
2008-08 → 2010-07 ended
NCP91 5F ¥5,700
74130-28040-C0 note Receptacle Assy, Front Ash
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥5,700
74110E — Receptacle Assy, Front Ash
74110-52030-B0 note Receptacle Assy, Front Ash
2005-01 → 2007-08 ended
NCP91 RS ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2005-12 → 2007-08 ended
KSP90,SCP90 ILL ¥3,400
74110-52040 note Receptacle Assy, Front Ash
2005-01 → 2007-08 ended
NCP95 ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,U ¥3,400
74110-52030-E0 note Receptacle Assy, Front Ash
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥3,400
74110-52040 note Receptacle Assy, Front Ash
2007-08 → 2008-08 ended
NCP95 ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2008-08 → 2010-07 ended
NCP91 5F ¥3,400
74110-52030-B0 note Receptacle Assy, Front Ash
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC (B,F,RS,U) ¥3,400
74110-52030-E0 note Receptacle Assy, Front Ash
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥3,400
74110-52040 note Receptacle Assy, Front Ash
2008-08 → 2010-12 ended
NCP95 ¥3,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
