Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

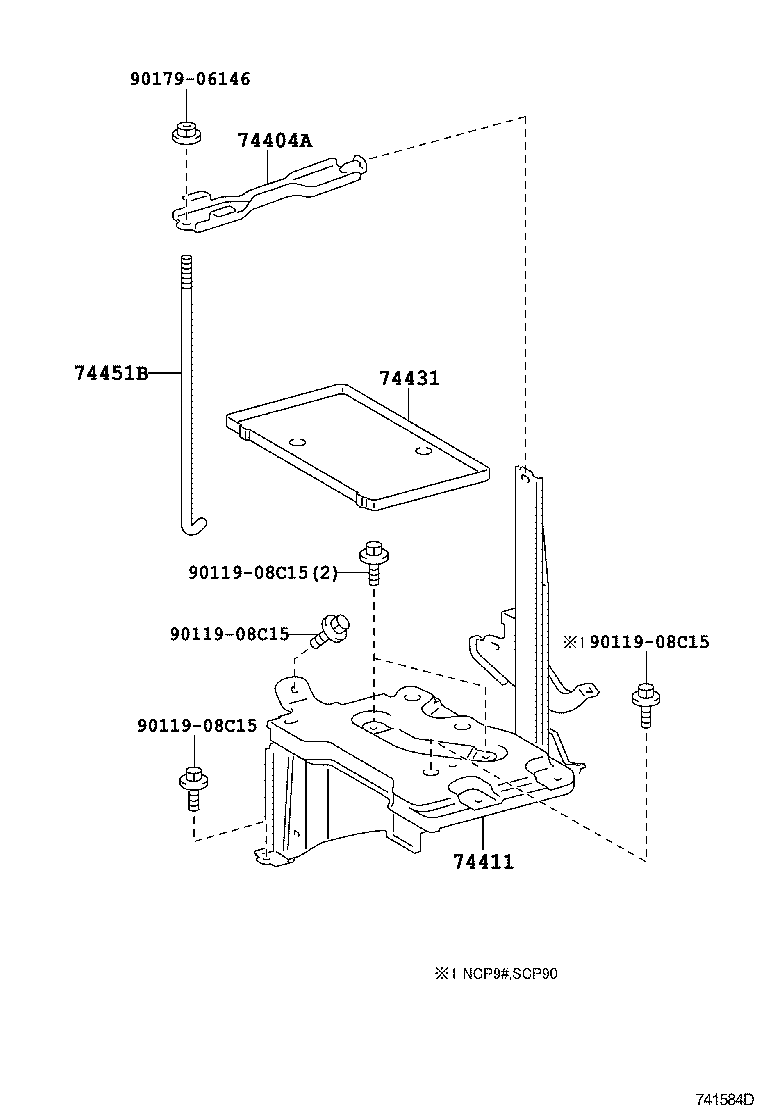

Exploded illustration 741584D 74404A — CLAMP SUB-ASSY, BATTERY (4 parts) 74411 — CARRIER, BATTERY (4 parts) 74431 — TRAY, BATTERY (5 parts) 74451B — BOLT, BATTERY CLAMP (5 parts) 9011908C15 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9017906146 — not listed in this catalogue
741584D · 4 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
74404A — Clamp Sub-assy, Battery
74404-52040 Clamp Sub-assy, Battery
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,180
74404-52040 Clamp Sub-assy, Battery
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,180
74404-52040 Clamp Sub-assy, Battery
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,180
74404-52040 Clamp Sub-assy, Battery
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,180
74411 — Carrier, Battery
74410-52010 Carrier, Battery
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,200
74410-52010 Carrier, Battery
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,200
74410-52010 Carrier, Battery
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,200
74410-52010 Carrier, Battery
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,200
74431 — Tray, Battery
74431-52100 Tray, Battery
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,810
74431-52100 Tray, Battery
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,810
74431-52100 Tray, Battery
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,810
74431-52100 Tray, Battery
2008-08 → 2010-09 ended
KSP90,NCP9#,SCP90 ¥1,810
74431-52101 Tray, Battery
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
74451B — Bolt, Battery Clamp
74451-35080 Bolt, Battery Clamp
2005-01 → 2005-05 ended
KSP90,NCP9#,SCP90 ¥250
74451-52070 Bolt, Battery Clamp
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥260
74451-52070 Bolt, Battery Clamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥260
74451-52070 Bolt, Battery Clamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥260
74451-52070 Bolt, Battery Clamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥260
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
