Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

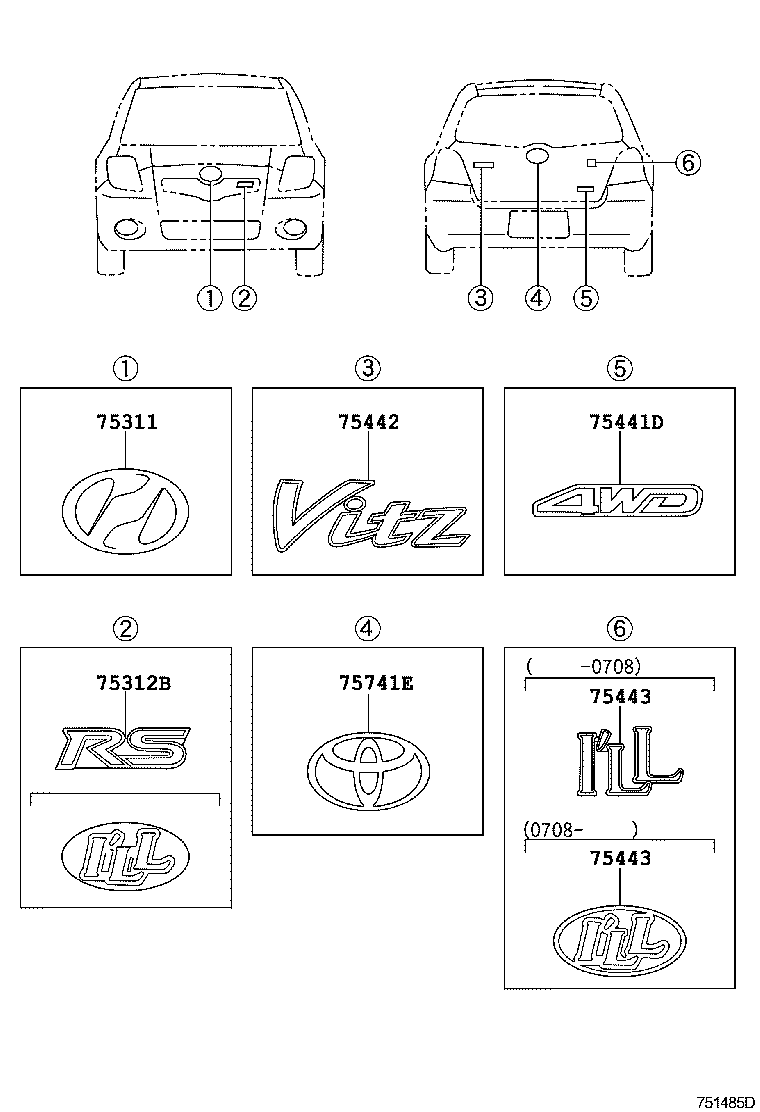

Exploded illustration 751485D 75443 — PLATE, BACK DOOR NAME, NO.3 (3 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (3 parts) 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75312B — EMBLEM, RADIATOR GRILLE, NO.2 (5 parts) 75441D — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 (3 parts) 75442 — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 (4 parts) 75741E — EMBLEM, SYMBOL (4 parts)
751485D · 7 callouts Full size ↗
23 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-52150 Emblem, Radiator Grille (OR FRONT PANEL)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,100
75311-52150 Emblem, Radiator Grille (OR FRONT PANEL)
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥4,100
75301-52070 Emblem, Radiator Grille (OR FRONT PANEL)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,410
75311-52250 Emblem, Radiator Grille (OR FRONT PANEL)
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,410
75312B — Emblem, Radiator Grille, NO.2
75312-52050 Emblem, Radiator Grille, NO.2
2005-01 → 2007-08 ended
NCP91 RS ¥2,280
75312-52050 Emblem, Radiator Grille, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,280
75312-52080 Emblem, Radiator Grille, NO.2
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥2,530
75312-52080 Emblem, Radiator Grille, NO.2
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥2,530
75312-52110 Emblem, Radiator Grille, NO.2
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥2,640
75441D — Plate, Luggage Compartment Door Name, NO.1
75441-16320 note Plate, Luggage Compartment Door Name, NO.1
2005-01 → 2007-08 ended
NCP95 ¥950
75441-16320 note Plate, Luggage Compartment Door Name, NO.1
2007-08 → 2008-08 ended
NCP95 ¥950
75441-16320 note Plate, Luggage Compartment Door Name, NO.1
2008-08 → 2010-12 ended
NCP95 ¥950
75442 — Plate, Luggage Compartment Door Name, NO.2
75442-52220 note Plate, Luggage Compartment Door Name, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,650
75442-52220 note Plate, Luggage Compartment Door Name, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,650
75442-52220 note Plate, Luggage Compartment Door Name, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,650
75442-52220 note Plate, Luggage Compartment Door Name, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,650
75443 — Plate, Back Door Name, NO.3
75443-52160 note Plate, Back Door Name, NO.3
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,660
75443-52170 note Plate, Back Door Name, NO.3
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥2,600
75443-52170 note Plate, Back Door Name, NO.3
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥2,600
75741E — Emblem, Symbol
90975-02072 Emblem, Symbol
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,940
90975-02072 Emblem, Symbol
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,940
90975-02072 Emblem, Symbol
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,940
90975-02072 Emblem, Symbol
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
