Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

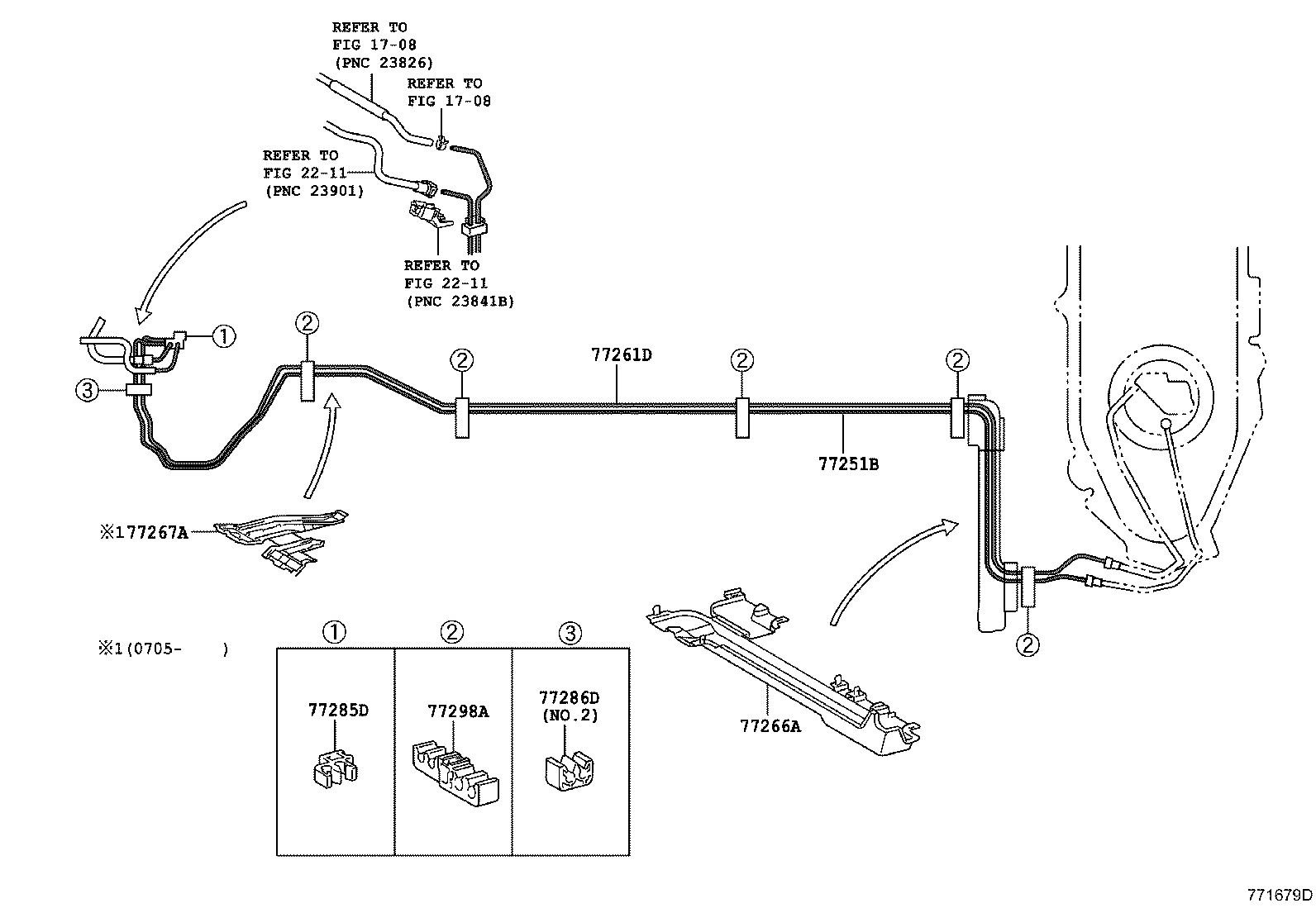

Exploded illustration 771679D 77266A — PROTECTOR, FUEL TUBE, NO.1 (4 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (9 parts) 77261D — TUBE, FUEL TANK TO CANISTER (13 parts) 77251B — TUBE, FUEL MAIN (13 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (10 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (4 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue
771679D · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-52210 Tube, Fuel Main
2005-01 → 2007-08 ended
NCP91,SCP90 ¥5,400
77251-52230 note Tube, Fuel Main
2005-04 → 2007-08 ended
KSP90 B,F ¥5,200
77251-52240 Tube, Fuel Main
2005-01 → 2007-08 ended
NCP95 ¥5,500
77251-52250 Tube, Fuel Main
2005-01 → 2007-08 ended
KSP90 ¥5,500
77251-52210 Tube, Fuel Main
2007-08 → 2008-08 ended
NCP91,SCP90 F,ILL,U ¥5,400
77251-52210 Tube, Fuel Main
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,400
77251-52230 note Tube, Fuel Main
2007-08 → 2008-08 ended
KSP90 B,F ¥5,200
77251-52240 Tube, Fuel Main
2007-08 → 2008-08 ended
NCP95 ¥5,500
77251-52250 Tube, Fuel Main
2007-08 → 2008-08 ended
KSP90 ¥5,500
77251-52210 Tube, Fuel Main
2008-08 → 2010-12 ended
NCP91,SCP90 ¥5,400
77251-52230 note Tube, Fuel Main
2008-08 → 2010-08 ended
KSP90 B,F ¥5,200
77251-52240 Tube, Fuel Main
2008-08 → 2010-12 ended
NCP95 ¥5,500
77251-52250 Tube, Fuel Main
2008-08 → 2010-12 ended
KSP90 ¥5,500
77261D — Tube, Fuel Tank TO Canister
77261-52210 Tube, Fuel Tank TO Canister
2005-01 → 2007-08 ended
NCP91,SCP90 ¥5,700
77261-52220 note Tube, Fuel Tank TO Canister
2005-04 → 2007-08 ended
KSP90 B,F ¥5,100
77261-52240 Tube, Fuel Tank TO Canister
2005-01 → 2007-08 ended
NCP95 ¥5,800
77261-52250 Tube, Fuel Tank TO Canister
2005-01 → 2007-08 ended
KSP90 ¥5,500
77261-52210 Tube, Fuel Tank TO Canister
2007-08 → 2008-08 ended
NCP91,SCP90 F,ILL,U ¥5,700
77261-52210 Tube, Fuel Tank TO Canister
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,700
77261-52220 note Tube, Fuel Tank TO Canister
2007-08 → 2008-08 ended
KSP90 B,F ¥5,100
77261-52240 Tube, Fuel Tank TO Canister
2007-08 → 2008-08 ended
NCP95 ¥5,800
77261-52250 Tube, Fuel Tank TO Canister
2007-08 → 2008-08 ended
KSP90 ¥5,500
77261-52210 Tube, Fuel Tank TO Canister
2008-08 → 2010-12 ended
NCP91,SCP90 ¥5,700
77261-52220 note Tube, Fuel Tank TO Canister
2008-08 → 2010-08 ended
KSP90 B,F ¥5,100
77261-52240 Tube, Fuel Tank TO Canister
2008-08 → 2010-12 ended
NCP95 ¥5,800
77261-52250 Tube, Fuel Tank TO Canister
2008-08 → 2010-12 ended
KSP90 ¥5,500
77266A — Protector, Fuel Tube, NO.1
77266-52070 Protector, Fuel Tube, NO.1
2005-01 → 2007-08 ended
NCP95 ¥1,150
77266-52070 Protector, Fuel Tube, NO.1
2007-08 → 2008-07 ended
NCP95 ¥1,150
77266-52070 Protector, Fuel Tube, NO.1
2008-08 → 2008-09 ended
NCP95 ¥1,150
77266-52071 Protector, Fuel Tube, NO.1
2008-10 → 2010-12 ended
NCP95 ¥810
77267A — Protector, Fuel Tube, NO.2
77267-52050 Protector, Fuel Tube, NO.2
2007-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,140
77267-52050 Protector, Fuel Tube, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,140
77267-52050 Protector, Fuel Tube, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,140
77267-52050 Protector, Fuel Tube, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,140
77285D — Clamp, Fuel Tube, NO.1
77285-52060 Clamp, Fuel Tube, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥330
77285-52060 Clamp, Fuel Tube, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥330
77285-52060 Clamp, Fuel Tube, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥330
77285-52060 Clamp, Fuel Tube, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥330
77286D — Clamp, Fuel Tube, NO.2
77286-52080 note Clamp, Fuel Tube, NO.2
2005-01 → 2005-08 ended
NCP95 ¥730
77286-52081 note Clamp, Fuel Tube, NO.2
2005-09 → 2007-08 ended
NCP95 ¥530
77286-52100 note Clamp, Fuel Tube, NO.2
2005-01 → 2007-08 ended
NCP95 ¥240
77286-52100 Clamp, Fuel Tube, NO.2
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥240
77286-52081 note Clamp, Fuel Tube, NO.2
2007-08 → 2008-08 ended
NCP95 ¥530
77286-52100 note Clamp, Fuel Tube, NO.2
2007-08 → 2008-08 ended
NCP95 ¥240
77286-52100 Clamp, Fuel Tube, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
77286-52100 Clamp, Fuel Tube, NO.2
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥240
77286-52081 note Clamp, Fuel Tube, NO.2
2008-08 → 2010-12 ended
NCP95 ¥530
77286-52100 Clamp, Fuel Tube, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
77298A — Clamp, Fuel Tube, NO.4
77298-52070 Clamp, Fuel Tube, NO.4
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥470
77298-52070 Clamp, Fuel Tube, NO.4
2005-01 → 2007-08 ended
NCP95 ¥470
77298-52070 note Clamp, Fuel Tube, NO.4
2005-04 → 2007-08 ended
KSP90 B,F ¥470
77298-52070 note Clamp, Fuel Tube, NO.4
2007-08 → 2008-08 ended
KSP90 B,F ¥470
77298-52070 Clamp, Fuel Tube, NO.4
2007-08 → 2008-08 ended
NCP95 ¥470
77298-52070 Clamp, Fuel Tube, NO.4
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥470
77298-52070 note Clamp, Fuel Tube, NO.4
2008-08 → 2010-08 ended
KSP90 B,F ¥470
77298-52070 Clamp, Fuel Tube, NO.4
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥470
77298-52070 Clamp, Fuel Tube, NO.4
2008-08 → 2010-12 ended
NCP95 ¥470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
