Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

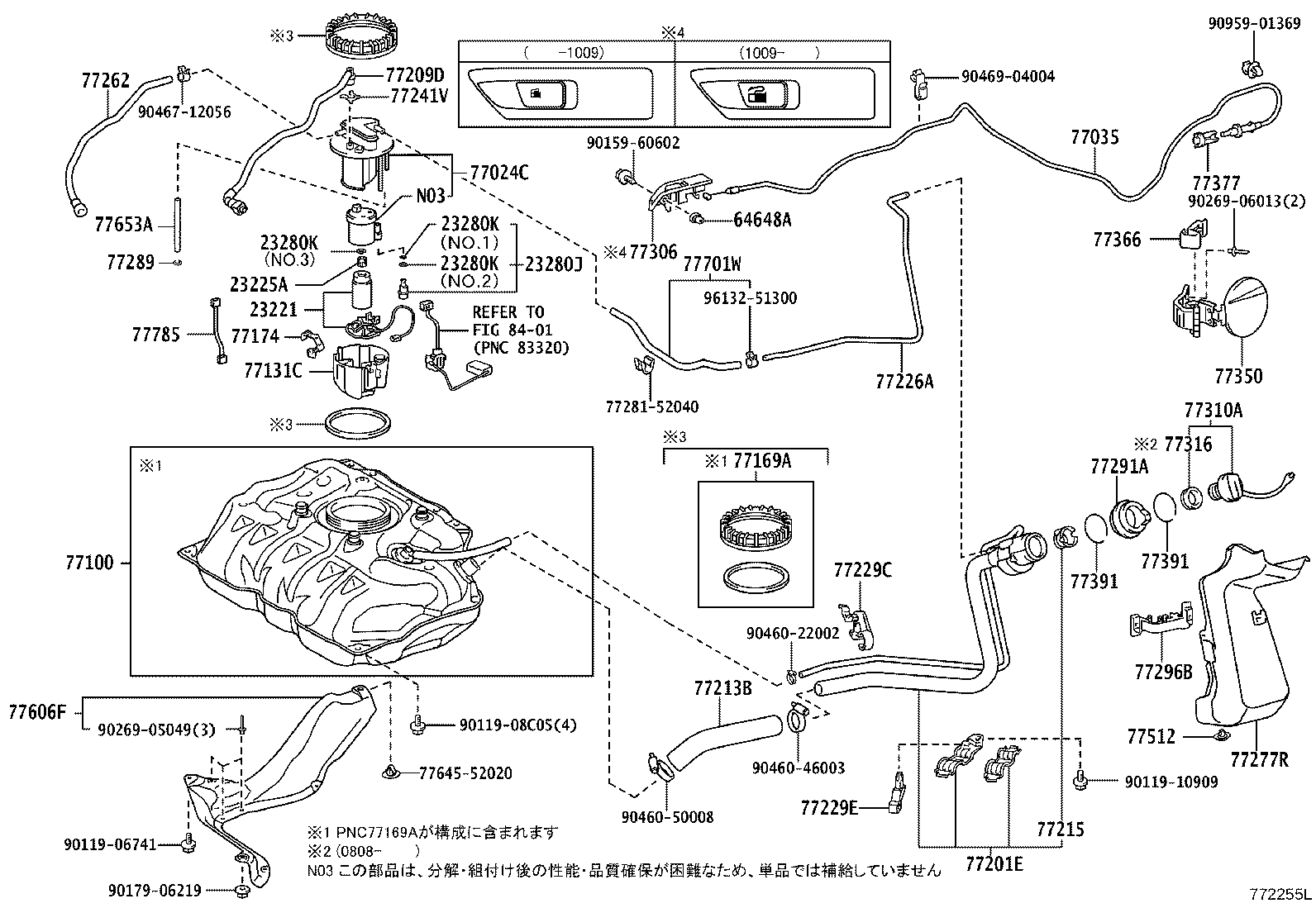

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23221 — Pump, Fuel | ||||
| 23220-21131 |
Pump, Fuel
2005-01 → 2006-08
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 | ¥38,200 | |
| 23220-21132 |
Pump, Fuel
2006-09 → 2007-08
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 | ¥38,100 | |
| 23220-21141 |
Pump, Fuel
2005-01 → 2006-08
ended
|
2NZFE NCP95 | ¥38,200 | |
| 23220-21142 |
Pump, Fuel
2006-09 → 2007-08
ended
|
2NZFE NCP95 | ¥38,100 | |
| 23220-23050 note |
Pump, Fuel
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥38,200 | |
| 23220-21210 |
Pump, Fuel
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 B,F,ILL,U | ¥38,100 | |
| 23220-21210 |
Pump, Fuel
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥38,100 | |
| 23220-21220 |
Pump, Fuel
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥38,100 | |
| 23220-37080 note |
Pump, Fuel
2007-11 → 2008-09
ended
|
1NZFE NCP91 5F | ¥37,900 | |
| 23220-21200 |
Pump, Fuel
2009-04 → 2010-12
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 | ¥38,100 | |
| 23220-21210 |
Pump, Fuel
2008-08 → 2009-03
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 | ¥38,100 | |
| 23220-21220 |
Pump, Fuel
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥38,100 | |
| 23220-37100 note |
Pump, Fuel
2008-09 → —
|
1NZFE NCP91 5F | ¥38,100 | |
| 23220-37100 note |
Pump, Fuel
2008-09 → —
|
1NZFE NCP91 5F | ¥38,100 | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-23010 note |
Spacer, Fuel Pump
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥40 | |
| 23225-21020 |
Spacer, Fuel Pump
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥120 | |
| 23225-21020 |
Spacer, Fuel Pump
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥120 | |
| 23225-21020 |
Spacer, Fuel Pump
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥120 | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-21010 note |
Regulator Assy, Fuel Pressure
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥6,000 | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2005-01 → 2007-08
ended
|
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 | ¥6,000 | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥6,000 | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥6,000 | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥6,000 | |
| 23280-21010 |
Regulator Assy, Fuel Pressure
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥6,000 | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2005-01 → 2007-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥140 | |
| 90301-08019 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥200 | |
| 90301-08020 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2005-01 → 2007-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥250 | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2005-01 → 2007-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥140 | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥140 | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥140 | |
| 90301-08020 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥250 | |
| 90301-08020 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥250 | |
| 90301-08022 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-08 → 2007-10
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥250 | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥140 | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥140 | |
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥140 | |
| 90301-08020 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥250 | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥140 | |
| 64648A — Grommet, Luggage Door Lock Opener | ||||
| 64648-32020 |
Grommet, Luggage Door Lock Opener
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥100 | |
| 64648-32020 |
Grommet, Luggage Door Lock Opener
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥100 | |
| 64648-32020 |
Grommet, Luggage Door Lock Opener
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥100 | |
| 64648-32020 |
Grommet, Luggage Door Lock Opener
2008-08 → 2010-07
ended
|
NCP91 5F | ¥100 | |
| 64648-32020 |
Grommet, Luggage Door Lock Opener
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥100 | |
| 77024C — Plate Sub-assy, Fuel Suction W/Fuel Filter | ||||
| 77024-52120 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2005-01 → 2007-04
ended
|
KSP90,NCP91,SCP90 | ¥14,700 | |
| 77024-52121 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2007-05 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥14,600 | |
| 77024-52140 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2005-01 → 2007-04
ended
|
NCP95 | ¥14,700 | |
| 77024-52141 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2007-05 → 2007-08
ended
|
NCP95 | ¥14,600 | |
| 77024-52160 note |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2005-08 → 2007-04
ended
|
KSP90 B,F | ¥17,200 | |
| 77024-52161 note |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2007-05 → 2007-08
ended
|
KSP90 B,F | ¥17,200 | |
| 77024-52170 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2007-08 → 2008-09
ended
|
KSP90,NCP91,SCP90 | ¥14,600 | |
| 77024-52190 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2007-08 → 2008-08
ended
|
NCP95 | ¥14,600 | |
| 77024-52170 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2008-08 → 2009-10
ended
|
KSP90,NCP91,SCP90 | ¥14,600 | |
| 77024-52171 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2009-10 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥14,600 | |
| 77024-52190 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2008-08 → 2009-10
ended
|
NCP95 | ¥14,600 | |
| 77024-52191 |
Plate Sub-assy, Fuel Suction W/Fuel Filter
2009-10 → 2010-12
ended
|
NCP95 | ¥10,100 | |
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-52161 |
Cable Sub-assy, Fuel Lid Lock Control
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,720 | |
| 77035-52161 |
Cable Sub-assy, Fuel Lid Lock Control
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,720 | |
| 77035-52161 |
Cable Sub-assy, Fuel Lid Lock Control
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,720 | |
| 77035-52161 |
Cable Sub-assy, Fuel Lid Lock Control
2008-08 → 2010-07
ended
|
NCP91 5F | ¥1,720 | |
| 77035-52161 |
Cable Sub-assy, Fuel Lid Lock Control
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥1,720 | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-52160 |
Tank Assy, Fuel
2005-01 → 2007-08
ended
|
NCP95 | ¥37,800 | |
| 77001-52200 |
Tank Assy, Fuel
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥37,900 | |
| 77001-52160 |
Tank Assy, Fuel
2007-08 → 2008-08
ended
|
NCP95 | ¥37,800 | |
| 77001-52200 |
Tank Assy, Fuel
2007-08 → 2007-10
ended
|
KSP90,NCP91,SCP90 | ¥37,900 | |
| 77001-52201 |
Tank Assy, Fuel
2007-10 → 2008-09
ended
|
KSP90,NCP91,SCP90 | ¥37,800 | |
| 77001-52160 |
Tank Assy, Fuel
2008-08 → 2008-09
ended
|
NCP95 | ¥37,800 | |
| 77001-52161 |
Tank Assy, Fuel
2008-10 → 2010-12
ended
|
NCP95 | ¥23,700 | |
| 77001-52201 |
Tank Assy, Fuel
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥37,800 | |
| 77131C — Sub-tank, Fuel, NO.1 | ||||
| 77131-52070 |
Sub-tank, Fuel, NO.1
2005-01 → 2005-07
ended
|
KSP90,NCP91,SCP90 | ¥1,750 | |
| 77131-52071 |
Sub-tank, Fuel, NO.1
2005-08 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,200 | |
| 77131-52080 |
Sub-tank, Fuel, NO.1
2005-01 → 2005-07
ended
|
NCP95 | ¥1,750 | |
| 77131-52081 |
Sub-tank, Fuel, NO.1
2005-08 → 2006-10
ended
|
NCP95 | ¥1,720 | |
| 77131-52082 |
Sub-tank, Fuel, NO.1
2006-11 → 2007-08
ended
|
NCP95 | ¥1,080 | |
| 77131-52090 note |
Sub-tank, Fuel, NO.1
2005-08 → 2007-08
ended
|
KSP90 B,F | ¥1,720 | |
| 77131-52071 |
Sub-tank, Fuel, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,200 | |
| 77131-52071 |
Sub-tank, Fuel, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,200 | |
| 77131-52082 |
Sub-tank, Fuel, NO.1
2007-08 → 2008-08
ended
|
NCP95 | ¥1,080 | |
| 77131-52071 |
Sub-tank, Fuel, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,200 | |
| 77131-52082 |
Sub-tank, Fuel, NO.1
2008-08 → 2010-12
ended
|
NCP95 | ¥1,080 | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-52010 |
Gasket, Fuel Suction Tube Set
2005-01 → 2007-08
ended
|
NCP95 | ¥280 | |
| 77169-52040 |
Gasket, Fuel Suction Tube Set
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77169-52010 |
Gasket, Fuel Suction Tube Set
2007-08 → 2008-08
ended
|
NCP95 | ¥280 | |
| 77169-52040 |
Gasket, Fuel Suction Tube Set
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77169-52010 |
Gasket, Fuel Suction Tube Set
2008-08 → 2010-12
ended
|
NCP95 | ¥280 | |
| 77169-52040 |
Gasket, Fuel Suction Tube Set
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77174 — Support, Fuel Suction, NO.1 | ||||
| 77174-52050 |
Support, Fuel Suction, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥910 | |
| 77174-52060 note |
Support, Fuel Suction, NO.1
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥910 | |
| 77174-52050 note |
Support, Fuel Suction, NO.1
2007-11 → —
|
1NZFE NCP91 5F | ¥910 | |
| 77174-52070 |
Support, Fuel Suction, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥570 | |
| 77174-52070 |
Support, Fuel Suction, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥570 | |
| 77174-52070 |
Support, Fuel Suction, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥570 | |
| 77201E — Pipe Sub-assy, Fuel Tank Filler | ||||
| 77201-52210 |
Pipe Sub-assy, Fuel Tank Filler
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥11,700 | |
| 77201-52240 |
Pipe Sub-assy, Fuel Tank Filler
2005-01 → 2007-08
ended
|
NCP95 | ¥12,400 | |
| 77201-52210 |
Pipe Sub-assy, Fuel Tank Filler
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥11,700 | |
| 77201-52211 |
Pipe Sub-assy, Fuel Tank Filler
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥10,700 | |
| 77201-52211 |
Pipe Sub-assy, Fuel Tank Filler
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥10,700 | |
| 77201-52240 |
Pipe Sub-assy, Fuel Tank Filler
2007-08 → 2008-01
ended
|
NCP95 | ¥12,400 | |
| 77201-52241 |
Pipe Sub-assy, Fuel Tank Filler
2008-01 → 2008-08
ended
|
NCP95 | ¥10,900 | |
| 77201-52211 |
Pipe Sub-assy, Fuel Tank Filler
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥10,700 | |
| 77201-52241 |
Pipe Sub-assy, Fuel Tank Filler
2008-08 → 2010-12
ended
|
NCP95 | ¥10,900 | |
| 77209D — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-52090 |
Tube Sub-assy, Fuel Tank Main
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77209-52110 |
Tube Sub-assy, Fuel Tank Main
2005-01 → 2007-08
ended
|
NCP95 | ¥1,020 | |
| 77209-52090 |
Tube Sub-assy, Fuel Tank Main
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77209-52091 |
Tube Sub-assy, Fuel Tank Main
2008-02 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,470 | |
| 77209-52091 |
Tube Sub-assy, Fuel Tank Main
2008-02 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,470 | |
| 77209-52110 |
Tube Sub-assy, Fuel Tank Main
2007-08 → 2008-08
ended
|
NCP95 | ¥1,020 | |
| 77209-52091 |
Tube Sub-assy, Fuel Tank Main
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,470 | |
| 77209-52110 |
Tube Sub-assy, Fuel Tank Main
2008-08 → 2010-12
ended
|
NCP95 | ¥1,020 | |
| 77213B — Hose, Fuel Tank TO Filler Pipe | ||||
| 77213-52130 |
Hose, Fuel Tank TO Filler Pipe
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥3,370 | |
| 77213-52150 |
Hose, Fuel Tank TO Filler Pipe
2005-01 → 2007-08
ended
|
NCP95 | ¥1,580 | |
| 77213-52130 |
Hose, Fuel Tank TO Filler Pipe
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥3,370 | |
| 77213-52130 |
Hose, Fuel Tank TO Filler Pipe
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥3,370 | |
| 77213-52130 |
Hose, Fuel Tank TO Filler Pipe
2007-08 → 2007-12
ended
|
KSP90,NCP91,SCP90 | ¥3,370 | |
| 77213-52150 |
Hose, Fuel Tank TO Filler Pipe
2008-01 → 2008-08
ended
|
NCP95 | ¥1,580 | |
| 77213-52150 |
Hose, Fuel Tank TO Filler Pipe
2007-08 → 2007-12
ended
|
NCP95 | ¥1,580 | |
| 77213-52130 |
Hose, Fuel Tank TO Filler Pipe
2008-08 → 2009-08
ended
|
KSP90,NCP91,SCP90 | ¥3,370 | |
| 77213-52150 |
Hose, Fuel Tank TO Filler Pipe
2008-08 → 2010-12
ended
|
NCP95 | ¥1,580 | |
| 77213-52190 |
Hose, Fuel Tank TO Filler Pipe
2009-09 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥3,380 | |
| 77215 — Plate, Fuel Tank Filler Pipe Flange | ||||
| 77215-51010 |
Plate, Fuel Tank Filler Pipe Flange
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥360 | |
| 77215-51010 |
Plate, Fuel Tank Filler Pipe Flange
2007-08 → 2007-12
ended
|
KSP90,NCP91,SCP90 | ¥360 | |
| 77215-51010 |
Plate, Fuel Tank Filler Pipe Flange
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥360 | |
| 77215-51010 |
Plate, Fuel Tank Filler Pipe Flange
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 77215-51010 |
Plate, Fuel Tank Filler Pipe Flange
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥360 | |
| 77226A — Tube, Fuel Tank Breather, NO.6 | ||||
| 77226-52050 |
Tube, Fuel Tank Breather, NO.6
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,970 | |
| 77226-52050 |
Tube, Fuel Tank Breather, NO.6
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥1,970 | |
| 77226-52051 |
Tube, Fuel Tank Breather, NO.6
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥4,490 | |
| 77226-52051 |
Tube, Fuel Tank Breather, NO.6
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥4,490 | |
| 77226-52051 |
Tube, Fuel Tank Breather, NO.6
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥4,490 | |
| 77229C — Clamp, Breather Tube | ||||
| 77285-52080 |
Clamp, Breather Tube
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥550 | |
| 77285-52080 |
Clamp, Breather Tube
2007-08 → 2007-12
ended
|
KSP90,NCP91,SCP90 | ¥550 | |
| 77285-52080 |
Clamp, Breather Tube
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥550 | |
| 77285-52080 |
Clamp, Breather Tube
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥550 | |
| 77285-52080 |
Clamp, Breather Tube
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥550 | |
| 77229E — Clamp, Breather Tube | ||||
| 77229-52040 |
Clamp, Breather Tube
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥400 | |
| 77229-52040 |
Clamp, Breather Tube
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥400 | |
| 77229-52040 |
Clamp, Breather Tube
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥400 | |
| 77241V — Clip, Tube Joint | ||||
| 77241-32060 |
Clip, Tube Joint
2005-01 → 2007-08
ended
|
NCP95 | ¥80 | |
| 77241-60320 |
Clip, Tube Joint
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥130 | |
| 77241-32060 |
Clip, Tube Joint
2007-08 → 2008-08
ended
|
NCP95 | ¥80 | |
| 77241-60320 |
Clip, Tube Joint
2008-02 → 2008-09
ended
|
NCP91,SCP90 RS | ¥130 | |
| 77241-60320 |
Clip, Tube Joint
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥130 | |
| 77241-60320 |
Clip, Tube Joint
2008-02 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥130 | |
| 77241-32060 |
Clip, Tube Joint
2008-08 → 2010-12
ended
|
NCP95 | ¥80 | |
| 77241-33011 |
Clip, Tube Joint
2010-05 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥80 | |
| 77241-60320 |
Clip, Tube Joint
2008-08 → 2010-04
ended
|
KSP90,NCP91,SCP90 | ¥130 | |
| 77262 — Tube, Fuel Emission, NO.2 | ||||
| 77028-52010 |
Tube, Fuel Emission, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,170 | |
| 77028-52010 |
Tube, Fuel Emission, NO.2
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥1,170 | |
| 77028-52010 |
Tube, Fuel Emission, NO.2
2008-02 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,170 | |
| 77028-52010 |
Tube, Fuel Emission, NO.2
2008-02 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,170 | |
| 77028-52010 |
Tube, Fuel Emission, NO.2
2008-08 → 2010-11
ended
|
KSP90,NCP91,SCP90 | ¥1,170 | |
| 77028-52020 |
Tube, Fuel Emission, NO.2
2010-11 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥750 | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-52030 |
Protector, Fuel Tank Filler Pipe
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥5,300 | |
| 77277-52030 |
Protector, Fuel Tank Filler Pipe
2007-08 → 2008-01
ended
|
KSP90,NCP9#,SCP90 | ¥5,300 | |
| 77277-52031 |
Protector, Fuel Tank Filler Pipe
2008-01 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥4,190 | |
| 77277-52031 |
Protector, Fuel Tank Filler Pipe
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥4,190 | |
| 77277-52031 |
Protector, Fuel Tank Filler Pipe
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥4,190 | |
| 77289 — Holder, Fuel Tank Pipe Setting | ||||
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥230 | |
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥230 | |
| 77289-52110 |
Holder, Fuel Tank Pipe Setting
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-52010 |
Shield, Fuel Tank Filler Pipe
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,020 | |
| 77291-52010 |
Shield, Fuel Tank Filler Pipe
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,020 | |
| 77291-52010 |
Shield, Fuel Tank Filler Pipe
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,020 | |
| 77291-52010 |
Shield, Fuel Tank Filler Pipe
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,020 | |
| 77296B — Support, Fuel Tube Protector, NO.1 | ||||
| 77296-52020 |
Support, Fuel Tube Protector, NO.1
2005-01 → 2007-08
ended
|
NCP95 | ¥820 | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥960 | |
| 77296-52020 |
Support, Fuel Tube Protector, NO.1
2008-01 → 2008-08
ended
|
NCP95 | ¥820 | |
| 77296-52020 |
Support, Fuel Tube Protector, NO.1
2007-08 → 2007-12
ended
|
NCP95 | ¥820 | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2007-08 → 2007-12
ended
|
KSP90,NCP91,SCP90 | ¥960 | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥960 | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2008-01 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥960 | |
| 77296-52020 |
Support, Fuel Tube Protector, NO.1
2008-08 → 2010-12
ended
|
NCP95 | ¥820 | |
| 77296-52030 |
Support, Fuel Tube Protector, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥960 | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,640 | |
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,640 | |
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,640 | |
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2008-08 → 2010-07
ended
|
NCP91 5F | ¥2,640 | |
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2008-08 → 2010-09
ended
|
KSP90,NCP9#,SCP90 ATM | ¥2,640 | |
| 77306-52050 |
Lever Sub-assy, Fuel Lid Lock Open
2010-09 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,850 | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-52030 |
Cap Assy, Fuel Tank
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,560 | |
| 77300-52030 |
Cap Assy, Fuel Tank
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,560 | |
| 77300-52030 |
Cap Assy, Fuel Tank
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,560 | |
| 77300-52030 |
Cap Assy, Fuel Tank
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,560 | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52020 |
Gasket, Fuel Tank Cap
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 | ¥390 | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-52130 |
Lid Assy, Fuel Filler Opening
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥3,080 | |
| 77350-52130 |
Lid Assy, Fuel Filler Opening
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥3,080 | |
| 77350-52130 |
Lid Assy, Fuel Filler Opening
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥3,080 | |
| 77350-52130 |
Lid Assy, Fuel Filler Opening
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥3,080 | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥60 | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥60 | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥60 | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥60 | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-52020 |
Retainer, Fuel Filler Opening Lid Lock
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥360 | |
| 77377-52020 |
Retainer, Fuel Filler Opening Lid Lock
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 77377-52020 |
Retainer, Fuel Filler Opening Lid Lock
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥360 | |
| 77377-52020 |
Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2010-07
ended
|
NCP91 5F | ¥360 | |
| 77377-52020 |
Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥360 | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥180 | |
| 77391-12020 |
Ring, Fuel Inlet Box
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥180 | |
| 77391-12020 |
Ring, Fuel Inlet Box
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥180 | |
| 77391-12020 |
Ring, Fuel Inlet Box
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥180 | |
| 77512 — Bracket, Fuel Tank, Rear | ||||
| 77512-35140 |
Bracket, Fuel Tank, Rear
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2007-08 → 2007-12
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2008-01 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2008-01 → 2008-09
ended
|
NCP91,SCP90 RS | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank, Rear
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥230 | |
| 77606F — Case Sub-assy, Fuel Tank Cover Vent | ||||
| 77606-52060 |
Case Sub-assy, Fuel Tank Cover Vent
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥3,240 | |
| 77606-52060 |
Case Sub-assy, Fuel Tank Cover Vent
2007-08 → 2008-09
ended
|
KSP90,NCP91,SCP90 | ¥3,240 | |
| 77606-52060 |
Case Sub-assy, Fuel Tank Cover Vent
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥3,240 | |
| 77653A — Cushion, Fuel Tank, NO.3 | ||||
| 77652-52040 |
Cushion, Fuel Tank, NO.3
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥330 | |
| 77652-52040 |
Cushion, Fuel Tank, NO.3
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥330 | |
| 77652-52040 |
Cushion, Fuel Tank, NO.3
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥330 | |
| 77652-52040 |
Cushion, Fuel Tank, NO.3
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥330 | |
| 77701W — Hose Sub-assy, Canister Outlet, NO.1 | ||||
| 77701-52010 |
Hose Sub-assy, Canister Outlet, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 | ¥1,720 | |
| 77701-52010 |
Hose Sub-assy, Canister Outlet, NO.1
2007-08 → 2008-01
ended
|
KSP90,NCP91,SCP90 | ¥1,720 | |
| 77701-52010 |
Hose Sub-assy, Canister Outlet, NO.1
2008-02 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥1,720 | |
| 77701-52010 |
Hose Sub-assy, Canister Outlet, NO.1
2008-02 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,720 | |
| 77701-52010 |
Hose Sub-assy, Canister Outlet, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 | ¥1,720 | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-52060 |
Harness, Fuel Pump
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥870 | |
| 77785-52070 note |
Harness, Fuel Pump
2005-10 → 2007-08
ended
|
KSP90 B,F | ¥1,350 | |
| 77785-52060 |
Harness, Fuel Pump
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥870 | |
| 77785-52060 |
Harness, Fuel Pump
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥870 | |
| 77785-52060 |
Harness, Fuel Pump
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥870 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
