Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 813150D 81240 — LAMP ASSY, ROOM, NO.1 (9 parts) 81260A — LAMP ASSY, MAP (38 parts) 81366C — BASE, ROOM LAMP SWITCH (3 parts) 81240B — BULB, ROOM LAMP, NO.1 (4 parts) 81250 — LAMP ASSY, ROOM, NO.2 (5 parts) 81250B — BULB, ROOM LAMP, NO.2 (5 parts) 81260C — BULB(FOR MAP LAMP) (4 parts) 81260C — BULB(FOR MAP LAMP) (4 parts) 81265C — LENS, MAP LAMP, NO.1 (4 parts) 81266D — LENS, MAP LAMP, NO.2 (4 parts) 8603 — not listed in this catalogue 5501 — not listed in this catalogue 5501 — not listed in this catalogue

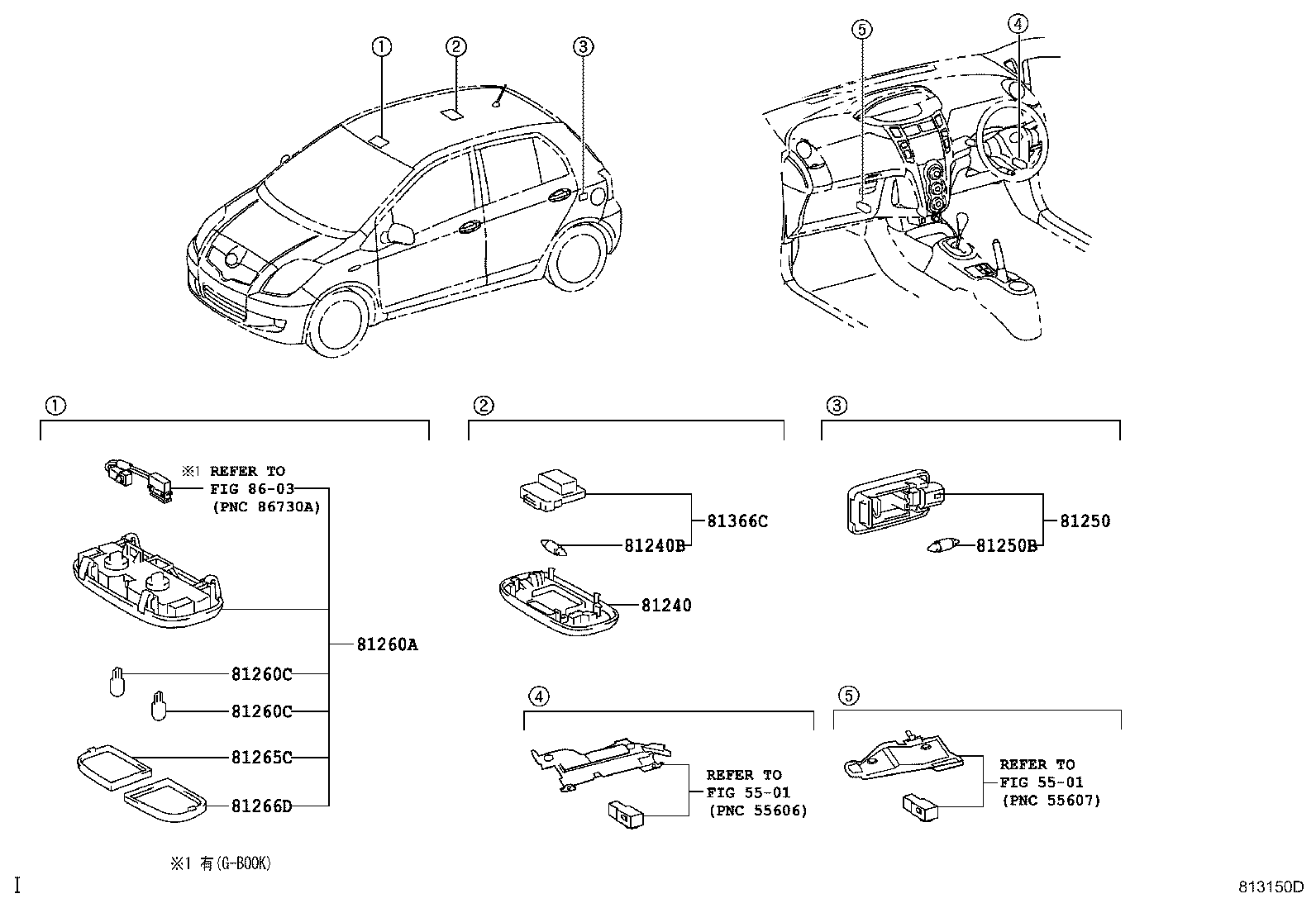

813150D · 10 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
81240 — Lamp Assy, Room, NO.1
81240-52040-B0 note Lamp Assy, Room, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,560
81240-52040-C0 note Lamp Assy, Room, NO.1
2005-01 → 2007-08 ended
NCP91 RS ¥3,560
81240-52040-E0 note Lamp Assy, Room, NO.1
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,960
81240-52040-B0 note Lamp Assy, Room, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,560
81240-52040-C0 note Lamp Assy, Room, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,560
81240-52040-E0 note Lamp Assy, Room, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,960
81240-52040-B0 note Lamp Assy, Room, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥3,560
81240-52040-C0 note Lamp Assy, Room, NO.1
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,560
81240-52040-E0 note Lamp Assy, Room, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,960
81240B — Bulb, Room Lamp, NO.1
90981-14011 note Bulb, Room Lamp, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥180
90981-14011 note Bulb, Room Lamp, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥180
90981-14011 note Bulb, Room Lamp, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥180
90981-14011 note Bulb, Room Lamp, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥180
81250 — Lamp Assy, Room, NO.2
81330-05021 Lamp Assy, Room, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥2,910
81330-05021 Lamp Assy, Room, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥2,910
81330-05021 Lamp Assy, Room, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,910
81250-05040 Lamp Assy, Room, NO.2
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥1,590
81330-05021 Lamp Assy, Room, NO.2
2008-08 → 2010-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥2,910
81250B — Bulb, Room Lamp, NO.2
90981-WE002 note Bulb, Room Lamp, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥180
90981-WE002 note Bulb, Room Lamp, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥180
90981-WE002 note Bulb, Room Lamp, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥180
90981-WE002 note Bulb, Room Lamp, NO.2
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥180
90981-WE003 note Bulb, Room Lamp, NO.2
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥180
81260A — Lamp Assy, Map
81260-52030-B0 note Lamp Assy, Map
2005-01 → 2005-07 ended
NCP91 RS ¥7,600
81260-52030-B0 note Lamp Assy, Map
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥7,600
81260-52030-C0 note Lamp Assy, Map
2005-01 → 2005-07 ended
NCP91 RS ¥7,600
81260-52030-C0 note Lamp Assy, Map
2005-07 → 2007-08 ended
NCP91 RS ¥7,600
81260-52030-E0 note Lamp Assy, Map
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥7,600
81260-52040-B0 note Lamp Assy, Map
2005-12 → 2007-08 ended
NCP9#,SCP90 U,X ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-12 → 2007-08 ended
NCP91 X ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-07 → 2007-08 ended
NCP95,SCP90 U ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-07 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-07 → 2005-12 ended
NCP91 X ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,X ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-01 → 2005-12 ended
NCP95,SCP90 U ¥17,200
81260-52040-B0 note Lamp Assy, Map
2005-01 → 2005-07 ended
NCP91 RS ¥17,200
81260-52040-C0 note Lamp Assy, Map
2005-07 → 2005-12 ended
NCP91 RS ¥17,200
81260-52040-C0 note Lamp Assy, Map
2005-07 → 2007-08 ended
NCP91 RS ¥17,200
81260-52040-C0 note Lamp Assy, Map
2005-01 → 2005-07 ended
NCP91 RS ¥17,200
81260-52040-C0 note Lamp Assy, Map
2005-12 → 2007-08 ended
NCP91 RS ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-07 → 2005-12 ended
KSP90,NCP9#,SCP90 F,X ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-07 → 2005-12 ended
NCP91 X ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-12 → 2007-08 ended
NCP9#,SCP90 U,X ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 F,ILL ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-12 → 2007-08 ended
NCP91 X ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-07 → 2007-08 ended
NCP95,SCP90 U ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-07 → 2007-08 ended
KSP90,NCP95,SCP90 F,ILL ¥17,200
81260-52040-E0 note Lamp Assy, Map
2005-07 → 2005-12 ended
NCP95,SCP90 U ¥17,200
81260-52030-B0 note Lamp Assy, Map
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,600
81260-52030-C0 note Lamp Assy, Map
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,600
81260-52030-E0 note Lamp Assy, Map
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,600
81260-52040-B0 note Lamp Assy, Map
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥17,200
81260-52040-C0 note Lamp Assy, Map
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥17,200
81260-52040-E0 note Lamp Assy, Map
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥17,200
81260-52030-B0 note Lamp Assy, Map
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥7,600
81260-52030-C0 note Lamp Assy, Map
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,600
81260-52030-E0 note Lamp Assy, Map
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,600
81260-52041-B0 note Lamp Assy, Map
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥17,200
81260-52041-C0 note Lamp Assy, Map
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥17,200
81260-52041-E0 note Lamp Assy, Map
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥17,200
81260C — Bulb(FOR MAP LAMP)
90981-11062 note Bulb(FOR MAP LAMP)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥340
90981-11062 note Bulb(FOR MAP LAMP)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥340
90981-11062 note Bulb(FOR MAP LAMP)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥340
90981-11062 note Bulb(FOR MAP LAMP)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥340
81265C — Lens, Map Lamp, NO.1
81265-52020 Lens, Map Lamp, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥190
81265-52020 Lens, Map Lamp, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥190
81265-52020 Lens, Map Lamp, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥190
81265-52020 Lens, Map Lamp, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥190
81266D — Lens, Map Lamp, NO.2
81266-52020 Lens, Map Lamp, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥190
81266-52020 Lens, Map Lamp, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥190
81266-52020 Lens, Map Lamp, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥190
81266-52020 Lens, Map Lamp, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥190
81366C — Base, Room Lamp Switch
81366-68010 Base, Room Lamp Switch
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥860
81366-68010 Base, Room Lamp Switch
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥860
81366-68010 Base, Room Lamp Switch
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
