Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

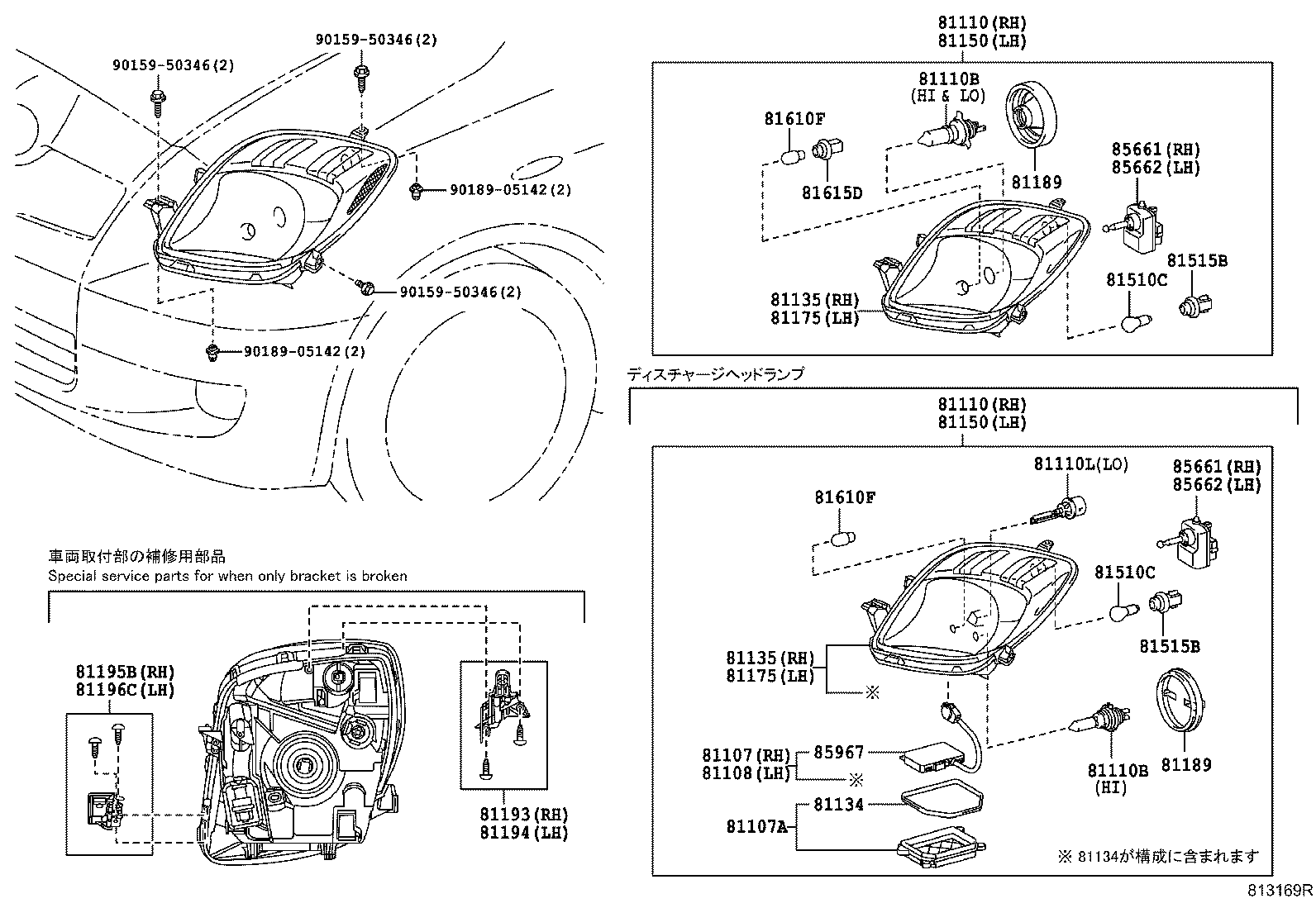

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81107 — Computer Sub-assy, Headlamp Light Control, RH | ||||
| 81107-52620 note |
Computer Sub-assy, Headlamp Light Control, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥55,700 | |
| 81107-52620 |
Computer Sub-assy, Headlamp Light Control, RH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52620 |
Computer Sub-assy, Headlamp Light Control, RH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52620 note |
Computer Sub-assy, Headlamp Light Control, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥55,700 | |
| 81107-52A00 |
Computer Sub-assy, Headlamp Light Control, RH
2008-09 → 2010-01
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, RH
2008-08 → 2010-01
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, RH
2008-09 → 2010-01
ended
|
SCP90 RS | ¥55,700 | |
| 81107-52A01 |
Computer Sub-assy, Headlamp Light Control, RH
2010-01 → 2010-12
ended
|
NCP91 RS | ¥46,400 | |
| 81107-52A01 note |
Computer Sub-assy, Headlamp Light Control, RH
2010-01 → 2010-12
ended
|
SCP90 RS | ¥46,400 | |
| 81107-52A01 note |
Computer Sub-assy, Headlamp Light Control, RH
2010-01 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥46,400 | |
| 81107A — Cover, Headlamp Light Control Computer | ||||
| 81139-13290 |
Cover, Headlamp Light Control Computer
2005-01 → 2007-08
ended
|
NCP91 RS | ¥1,070 | |
| 81139-13290 note |
Cover, Headlamp Light Control Computer
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥1,070 | |
| 81139-13290 |
Cover, Headlamp Light Control Computer
2007-08 → 2008-09
ended
|
NCP91 RS | ¥1,070 | |
| 81139-13290 note |
Cover, Headlamp Light Control Computer
2007-08 → 2008-09
ended
|
SCP90 RS | ¥1,070 | |
| 81108 — Computer Sub-assy, Headlamp Light Control, LH | ||||
| 81107-52620 |
Computer Sub-assy, Headlamp Light Control, LH
2005-01 → 2007-08
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52620 note |
Computer Sub-assy, Headlamp Light Control, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥55,700 | |
| 81107-52620 |
Computer Sub-assy, Headlamp Light Control, LH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52620 note |
Computer Sub-assy, Headlamp Light Control, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, LH
2008-08 → 2010-01
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥55,700 | |
| 81107-52A00 |
Computer Sub-assy, Headlamp Light Control, LH
2008-09 → 2010-01
ended
|
NCP91 RS | ¥55,700 | |
| 81107-52A00 note |
Computer Sub-assy, Headlamp Light Control, LH
2008-09 → 2010-01
ended
|
SCP90 RS | ¥55,700 | |
| 81107-52A01 |
Computer Sub-assy, Headlamp Light Control, LH
2010-01 → 2010-12
ended
|
NCP91 RS | ¥46,400 | |
| 81107-52A01 note |
Computer Sub-assy, Headlamp Light Control, LH
2010-01 → 2010-12
ended
|
SCP90 RS | ¥46,400 | |
| 81107-52A01 note |
Computer Sub-assy, Headlamp Light Control, LH
2010-01 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥46,400 | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-52570 |
Headlamp Assy, RH
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥25,400 | |
| 81110-52590 |
Headlamp Assy, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥32,500 | |
| 81110-52620 |
Headlamp Assy, RH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥71,700 | |
| 81110-52621 note |
Headlamp Assy, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥71,700 | |
| 81110-52621 |
Headlamp Assy, RH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥71,700 | |
| 81110-52820 |
Headlamp Assy, RH
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥32,500 | |
| 81110-52621 |
Headlamp Assy, RH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥71,700 | |
| 81110-52621 note |
Headlamp Assy, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥71,700 | |
| 81110-52860 |
Headlamp Assy, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥32,500 | |
| 81110-52A00 note |
Headlamp Assy, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81110-52A10 |
Headlamp Assy, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥32,500 | |
| 81110-52A20 |
Headlamp Assy, RH
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥32,500 | |
| 81110-52A00 note |
Headlamp Assy, RH
2008-08 → 2009-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81110-52A01 note |
Headlamp Assy, RH
2010-01 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81110-52A10 |
Headlamp Assy, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥32,500 | |
| 81110-52A20 |
Headlamp Assy, RH
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥32,500 | |
| 81110-52B90 |
Headlamp Assy, RH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥32,500 | |
| 81110-52C00 note |
Headlamp Assy, RH
2008-09 → 2009-12
ended
|
SCP90 RS | ¥71,700 | |
| 81110-52C00 |
Headlamp Assy, RH
2008-09 → 2009-12
ended
|
NCP91 RS | ¥71,700 | |
| 81110-52C01 |
Headlamp Assy, RH
2010-01 → 2010-12
ended
|
NCP91 RS | ¥71,700 | |
| 81110-52C01 note |
Headlamp Assy, RH
2010-01 → 2010-12
ended
|
SCP90 RS | ¥71,700 | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 note |
Bulb(FOR HEADLAMP, NO.1)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥2,000 | |
| 90981-13079 note |
Bulb(FOR HEADLAMP, NO.1)
2005-01 → 2007-08
ended
|
NCP91 RS | ¥2,000 | |
| 90981-13079 note |
Bulb(FOR HEADLAMP, NO.1)
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥2,000 | |
| 90981-13058 note |
Bulb(FOR HEADLAMP, NO.1)
2007-08 → 2008-09
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥2,000 | |
| 90981-13079 note |
Bulb(FOR HEADLAMP, NO.1)
2007-08 → 2008-09
ended
|
NCP91 RS | ¥2,000 | |
| 90981-13079 note |
Bulb(FOR HEADLAMP, NO.1)
2007-08 → 2008-09
ended
|
SCP90 RS | ¥2,000 | |
| 90981-13082 note |
Bulb(FOR HEADLAMP, NO.1)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥1,800 | |
| 90981-13058 note |
Bulb(FOR HEADLAMP, NO.1)
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥2,000 | |
| 90981-13082 note |
Bulb(FOR HEADLAMP, NO.1)
2008-09 → 2009-08
ended
|
NCP91 RS | ¥1,800 | |
| 90981-13082 note |
Bulb(FOR HEADLAMP, NO.1)
2008-08 → 2009-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥1,800 | |
| 90981-13082 note |
Bulb(FOR HEADLAMP, NO.1)
2008-09 → 2009-08
ended
|
SCP90 RS | ¥1,800 | |
| 90981-13087 note |
Bulb(FOR HEADLAMP, NO.1)
2009-09 → 2010-12
ended
|
SCP90 RS | ¥1,800 | |
| 90981-13087 note |
Bulb(FOR HEADLAMP, NO.1)
2009-09 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥1,800 | |
| 90981-13087 note |
Bulb(FOR HEADLAMP, NO.1)
2009-09 → 2010-12
ended
|
NCP91 RS | ¥1,800 | |
| 81110L — Bulb, Discharge Headlamp | ||||
| 90981-20009 note |
Bulb, Discharge Headlamp
2005-01 → 2007-08
ended
|
NCP91 RS | ¥13,000 | |
| 90981-20009 note |
Bulb, Discharge Headlamp
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥13,000 | |
| 90981-20009 note |
Bulb, Discharge Headlamp
2007-08 → 2008-09
ended
|
NCP91 RS | ¥13,000 | |
| 90981-20009 note |
Bulb, Discharge Headlamp
2007-08 → 2008-09
ended
|
SCP90 RS | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2007-08 → 2008-01
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2008-01 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2009-02 → 2009-06
ended
|
NCP91 RS | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2009-02 → 2009-06
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2009-02 → 2009-06
ended
|
SCP90 RS | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2008-09 → 2009-02
ended
|
SCP90 RS | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2008-09 → 2009-02
ended
|
NCP91 RS | ¥13,000 | |
| 90981-20014 note |
Bulb, Discharge Headlamp
2008-08 → 2009-02
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥13,000 | |
| 90981-20030 note |
Bulb, Discharge Headlamp
2009-06 → 2010-12
ended
|
NCP91 RS | ¥13,000 | |
| 90981-20030 note |
Bulb, Discharge Headlamp
2009-06 → 2010-12
ended
|
SCP90 RS | ¥13,000 | |
| 90981-20030 note |
Bulb, Discharge Headlamp
2009-06 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥13,000 | |
| 81134 — Gasket, Headlamp | ||||
| 81134-52280 |
Gasket, Headlamp
2005-01 → 2007-08
ended
|
NCP91 RS | ¥670 | |
| 81134-52280 note |
Gasket, Headlamp
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥670 | |
| 81134-52280 |
Gasket, Headlamp
2007-08 → 2008-09
ended
|
NCP91 RS | ¥670 | |
| 81134-52280 note |
Gasket, Headlamp
2007-08 → 2008-09
ended
|
SCP90 RS | ¥670 | |
| 90075-68007 note |
Gasket, Headlamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥810 | |
| 90075-68007 note |
Gasket, Headlamp
2008-09 → 2010-12
ended
|
SCP90 RS | ¥810 | |
| 90075-68007 |
Gasket, Headlamp
2008-09 → 2010-12
ended
|
NCP91 RS | ¥810 | |
| 90075-68007 note |
Gasket, Headlamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥810 | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-52570 |
Unit Assy, Headlamp, RH
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥19,000 | |
| 81130-52590 |
Unit Assy, Headlamp, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥19,000 | |
| 81130-52820 |
Unit Assy, Headlamp, RH
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥19,000 | |
| 81145-52620 |
Unit Assy, Headlamp, RH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥29,000 | |
| 81145-52621 |
Unit Assy, Headlamp, RH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥29,000 | |
| 81145-52621 note |
Unit Assy, Headlamp, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥29,000 | |
| 81130-52860 |
Unit Assy, Headlamp, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥19,000 | |
| 81130-52A10 |
Unit Assy, Headlamp, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥26,600 | |
| 81130-52A20 |
Unit Assy, Headlamp, RH
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥26,600 | |
| 81145-52621 note |
Unit Assy, Headlamp, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥29,000 | |
| 81145-52621 |
Unit Assy, Headlamp, RH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥29,000 | |
| 81145-52A00 note |
Unit Assy, Headlamp, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥29,000 | |
| 81130-52A10 |
Unit Assy, Headlamp, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥26,600 | |
| 81130-52A20 |
Unit Assy, Headlamp, RH
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥26,600 | |
| 81130-52B90 |
Unit Assy, Headlamp, RH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥26,600 | |
| 81145-52A00 note |
Unit Assy, Headlamp, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥29,000 | |
| 81145-52C00 |
Unit Assy, Headlamp, RH
2008-09 → 2010-12
ended
|
NCP91 RS | ¥29,000 | |
| 81145-52C00 note |
Unit Assy, Headlamp, RH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥29,000 | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-52560 |
Headlamp Assy, LH
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥25,400 | |
| 81150-52580 |
Headlamp Assy, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥32,500 | |
| 81150-52610 |
Headlamp Assy, LH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥71,700 | |
| 81150-52611 |
Headlamp Assy, LH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥71,700 | |
| 81150-52611 note |
Headlamp Assy, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥71,700 | |
| 81150-52810 |
Headlamp Assy, LH
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥32,500 | |
| 81150-52611 |
Headlamp Assy, LH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥71,700 | |
| 81150-52611 note |
Headlamp Assy, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥71,700 | |
| 81150-52850 |
Headlamp Assy, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥32,500 | |
| 81150-52890 note |
Headlamp Assy, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81150-52A00 |
Headlamp Assy, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥32,500 | |
| 81150-52A10 |
Headlamp Assy, LH
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥32,500 | |
| 81150-52890 note |
Headlamp Assy, LH
2008-08 → 2009-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81150-52891 note |
Headlamp Assy, LH
2010-01 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥71,700 | |
| 81150-52A00 |
Headlamp Assy, LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥32,500 | |
| 81150-52A10 |
Headlamp Assy, LH
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥32,500 | |
| 81150-52B80 |
Headlamp Assy, LH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥32,500 | |
| 81150-52B90 |
Headlamp Assy, LH
2008-09 → 2009-12
ended
|
NCP91 RS | ¥71,700 | |
| 81150-52B90 note |
Headlamp Assy, LH
2008-09 → 2009-12
ended
|
SCP90 RS | ¥71,700 | |
| 81150-52B91 |
Headlamp Assy, LH
2010-01 → 2010-12
ended
|
NCP91 RS | ¥71,700 | |
| 81150-52B91 note |
Headlamp Assy, LH
2010-01 → 2010-12
ended
|
SCP90 RS | ¥71,700 | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-52560 |
Unit Assy, Headlamp, LH
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥19,000 | |
| 81170-52580 |
Unit Assy, Headlamp, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥19,000 | |
| 81170-52810 |
Unit Assy, Headlamp, LH
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥19,000 | |
| 81185-52610 |
Unit Assy, Headlamp, LH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥29,000 | |
| 81185-52611 |
Unit Assy, Headlamp, LH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥29,000 | |
| 81185-52611 note |
Unit Assy, Headlamp, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥29,000 | |
| 81170-52850 |
Unit Assy, Headlamp, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥19,000 | |
| 81170-52A00 |
Unit Assy, Headlamp, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥26,600 | |
| 81170-52A10 |
Unit Assy, Headlamp, LH
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥26,600 | |
| 81185-52611 |
Unit Assy, Headlamp, LH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥29,000 | |
| 81185-52611 note |
Unit Assy, Headlamp, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥29,000 | |
| 81185-52890 note |
Unit Assy, Headlamp, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥29,000 | |
| 81170-52A00 |
Unit Assy, Headlamp, LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥26,600 | |
| 81170-52A10 |
Unit Assy, Headlamp, LH
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥26,600 | |
| 81170-52B80 |
Unit Assy, Headlamp, LH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥26,600 | |
| 81185-52890 note |
Unit Assy, Headlamp, LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥29,000 | |
| 81185-52B90 note |
Unit Assy, Headlamp, LH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥29,000 | |
| 81185-52B90 |
Unit Assy, Headlamp, LH
2008-09 → 2010-12
ended
|
NCP91 RS | ¥29,000 | |
| 81189 — Cover, Headlamp | ||||
| 81135-52620 |
Cover, Headlamp
2005-01 → 2007-08
ended
|
NCP91 RS | ¥1,070 | |
| 81135-52620 note |
Cover, Headlamp
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥1,070 | |
| 81139-52570 |
Cover, Headlamp
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥1,070 | |
| 81135-52620 note |
Cover, Headlamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥1,070 | |
| 81135-52620 |
Cover, Headlamp
2007-08 → 2008-09
ended
|
NCP91 RS | ¥1,070 | |
| 81135-52620 note |
Cover, Headlamp
2007-08 → 2008-09
ended
|
SCP90 RS | ¥1,070 | |
| 81139-52570 |
Cover, Headlamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,070 | |
| 81139-52570 |
Cover, Headlamp
2007-08 → 2008-09
ended
|
SCP90 RS | ¥1,070 | |
| 81135-52620 note |
Cover, Headlamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥1,070 | |
| 81135-52620 |
Cover, Headlamp
2008-09 → 2010-12
ended
|
NCP91 RS | ¥1,070 | |
| 81135-52620 note |
Cover, Headlamp
2008-09 → 2010-12
ended
|
SCP90 RS | ¥1,070 | |
| 81139-52570 |
Cover, Headlamp
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥1,070 | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-52080 |
Retainer, Headlamp Protector, Upper RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,210 | |
| 81193-52080 |
Retainer, Headlamp Protector, Upper RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,210 | |
| 81193-52080 |
Retainer, Headlamp Protector, Upper RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,210 | |
| 81193-52080 |
Retainer, Headlamp Protector, Upper RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,210 | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-52080 |
Retainer, Headlamp Protector, Upper LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,210 | |
| 81194-52080 |
Retainer, Headlamp Protector, Upper LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,210 | |
| 81194-52080 |
Retainer, Headlamp Protector, Upper LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,210 | |
| 81194-52080 |
Retainer, Headlamp Protector, Upper LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,210 | |
| 81195B — Retainer, RH Headlamp Protector, Lower RH | ||||
| 81195-52050 |
Retainer, RH Headlamp Protector, Lower RH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,610 | |
| 81195-52050 |
Retainer, RH Headlamp Protector, Lower RH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,610 | |
| 81195-52110 |
Retainer, RH Headlamp Protector, Lower RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥840 | |
| 81195-52110 |
Retainer, RH Headlamp Protector, Lower RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥840 | |
| 81196C — Retainer, LH Headlamp Protector, Lower LH | ||||
| 81196-52050 |
Retainer, LH Headlamp Protector, Lower LH
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,610 | |
| 81196-52050 |
Retainer, LH Headlamp Protector, Lower LH
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,610 | |
| 81196-52110 |
Retainer, LH Headlamp Protector, Lower LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥840 | |
| 81196-52110 |
Retainer, LH Headlamp Protector, Lower LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥840 | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15020 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 90981-15020 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥350 | |
| 90981-15020 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥350 | |
| 90981-15020 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥350 | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 81515-52570 |
Socket, Front Turn Signal Lamp
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥660 | |
| 81515-52570 |
Socket, Front Turn Signal Lamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥660 | |
| 81515-52570 |
Socket, Front Turn Signal Lamp
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥660 | |
| 81515-52570 |
Socket, Front Turn Signal Lamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥660 | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥110 | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥110 | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥110 | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥110 | |
| 81615D — Socket, Clearance Lamp | ||||
| 81138-52570 |
Socket, Clearance Lamp
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥890 | |
| 81138-52570 |
Socket, Clearance Lamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥890 | |
| 81138-52570 |
Socket, Clearance Lamp
2007-08 → 2008-09
ended
|
SCP90 RS | ¥890 | |
| 81138-52570 |
Socket, Clearance Lamp
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥890 | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-52010 |
Motor, Headlamp Leveling, RH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, RH
2005-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, RH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, RH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, RH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, RH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, RH
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, RH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, RH
2008-09 → 2010-12
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, RH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥6,000 | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-52010 |
Motor, Headlamp Leveling, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, LH
2005-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, LH
2005-01 → 2005-12
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, LH
2005-12 → 2007-08
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, LH
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U,X | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, LH
2007-08 → 2008-09
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, LH
2007-08 → 2008-09
ended
|
SCP90 RS | ¥6,000 | |
| 85661-52010 |
Motor, Headlamp Leveling, LH
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, LH
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥6,000 | |
| 85661-52020 |
Motor, Headlamp Leveling, LH
2008-09 → 2010-12
ended
|
NCP91 RS | ¥6,000 | |
| 85661-52020 note |
Motor, Headlamp Leveling, LH
2008-09 → 2010-12
ended
|
SCP90 RS | ¥6,000 | |
| 85967 — Computer, Light Control | ||||
| 85967-53020 |
Computer, Light Control
2005-01 → 2005-12
ended
|
NCP91 RS | ¥55,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
