Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

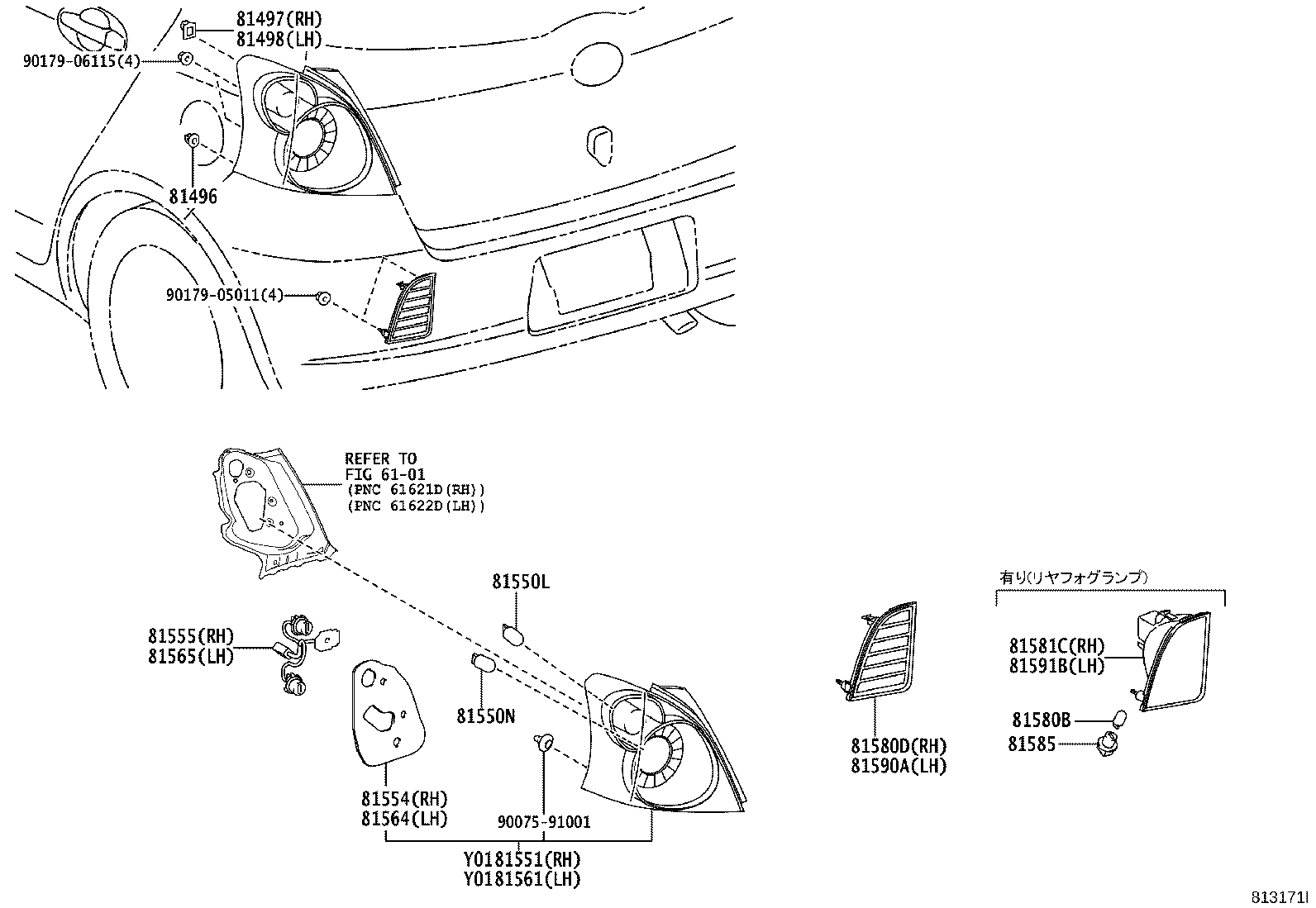

Exploded illustration 813171I 81580B — BULB (FOR REAR LAMP) (3 parts) 81585 — SOCKET & WIRE, REAR LAMP (3 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (6 parts) 81550N — BULB, BACK UP LAMP (11 parts) 9007591001 — not listed in this catalogue 81551 — LENS, REAR COMBINATION LAMP, RH (21 parts) 81561 — LENS, REAR COMBINATION LAMP, LH (14 parts) 81554 — GASKET, REAR COMBINATION LAMP BODY, RH (9 parts) 81564 — GASKET, REAR COMBINATION LAMP BODY, LH (9 parts) 6101 — not listed in this catalogue 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (21 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (14 parts) 81580D — LAMP ASSY, REAR, RH (3 parts) 81590A — LAMP ASSY, REAR, LH (4 parts) 81581C — LENS AND BODY, REAR LAMP, RH (3 parts) 81591B — LENS AND BODY, REAR LAMP, LH (3 parts) 81497 — COVER, REAR COMBINATION LAMP, RH (4 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (4 parts) 81496 — GUIDE, REAR COMBINATION LAMP (4 parts) 9017906115 — not listed in this catalogue 9017905011 — not listed in this catalogue
813171I · 17 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
136 parts on this figure
Part number Description Fitment Price
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥70
81496-52020 Guide, Rear Combination Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥70
81496-52020 Guide, Rear Combination Lamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥70
81496-52020 Guide, Rear Combination Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥70
81497 — Cover, Rear Combination Lamp, RH
81497-52020 Cover, Rear Combination Lamp, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
81497-52020 Cover, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
81497-52020 Cover, Rear Combination Lamp, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
81497-52020 Cover, Rear Combination Lamp, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥120
81498 — Cover, Rear Combination Lamp, LH
81497-52020 Cover, Rear Combination Lamp, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥120
81497-52020 Cover, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥120
81497-52020 Cover, Rear Combination Lamp, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥120
81497-52020 Cover, Rear Combination Lamp, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥120
81550L — Bulb, Rear Turn Signal Lamp
90981-13043 Bulb, Rear Turn Signal Lamp
2005-01 → 2007-08 ended
NCP91 RS ¥220
90981-15009 Bulb, Rear Turn Signal Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥350
90981-13043 Bulb, Rear Turn Signal Lamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥220
99132-11210 Bulb, Rear Turn Signal Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
90981-13043 Bulb, Rear Turn Signal Lamp
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥220
99132-11210 Bulb, Rear Turn Signal Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
81550N — Bulb, Back UP Lamp
90981-13043 Bulb, Back UP Lamp
2005-01 → 2007-08 ended
NCP91 RS ¥220
99132-11210 note Bulb, Back UP Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥170
99132-11210 Bulb, Back UP Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥170
90981-13043 Bulb, Back UP Lamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥220
99132-11210 note Bulb, Back UP Lamp
2007-08 → 2008-08 ended
KSP90 B,F ¥170
99132-11210 note Bulb, Back UP Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
99132-11210 Bulb, Back UP Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
90981-13043 Bulb, Back UP Lamp
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥220
99132-11210 note Bulb, Back UP Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
99132-11210 Bulb, Back UP Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
99132-11210 note Bulb, Back UP Lamp
2008-08 → 2009-07 ended
KSP90 B,F ¥170
81551 — Lens, Rear Combination Lamp, RH
81551-52530 Lens, Rear Combination Lamp, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81551-52530 Lens, Rear Combination Lamp, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81551-52540 note Lens, Rear Combination Lamp, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81551-52540 note Lens, Rear Combination Lamp, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81551-52550 Lens, Rear Combination Lamp, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥17,400
81551-52560 note Lens, Rear Combination Lamp, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥15,900
81551-52570 Lens, Rear Combination Lamp, RH
2005-01 → 2007-08 ended
NCP91 RS ¥23,300
81551-52570 Lens, Rear Combination Lamp, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥23,300
81551-52700 note Lens, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥20,300
81551-52710 note Lens, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥20,300
81551-52720 note Lens, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,500
81551-52730 Lens, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,500
81551-52570 Lens, Rear Combination Lamp, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥23,300
81551-52700 note Lens, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90 B,F ¥20,300
81551-52700 note Lens, Rear Combination Lamp, RH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥20,300
81551-52710 note Lens, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90 B,F ¥20,300
81551-52710 note Lens, Rear Combination Lamp, RH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥20,300
81551-52720 note Lens, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥17,500
81551-52720 note Lens, Rear Combination Lamp, RH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥17,500
81551-52730 note Lens, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥17,500
81551-52730 note Lens, Rear Combination Lamp, RH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥17,500
81554 — Gasket, Rear Combination Lamp Body, RH
81554-52530 Gasket, Rear Combination Lamp Body, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,020
81554-52530 Gasket, Rear Combination Lamp Body, RH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,020
81554-52530 Gasket, Rear Combination Lamp Body, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,020
81554-52570 Gasket, Rear Combination Lamp Body, RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,020
81554-52570 Gasket, Rear Combination Lamp Body, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,020
81554-52710 Gasket, Rear Combination Lamp Body, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,020
81552-52710 Gasket, Rear Combination Lamp Body, RH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
81554-52570 Gasket, Rear Combination Lamp Body, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,020
81554-52710 Gasket, Rear Combination Lamp Body, RH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,020
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-52530 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81555-52530 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81555-52540 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81555-52540 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81555-52550 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,910
81555-52560 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,910
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2005-01 → 2007-08 ended
NCP91 RS ¥2,470
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,470
81555-52700 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,910
81555-52710 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,910
81555-52720 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,910
81555-52730 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,910
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥2,470
81555-52700 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90 B,F ¥2,910
81555-52700 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81555-52710 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90 B,F ¥2,910
81555-52710 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81555-52720 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81555-52720 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥2,910
81555-52730 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81555-52730 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥2,910
81561 — Lens, Rear Combination Lamp, LH
81561-52470 Lens, Rear Combination Lamp, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81561-52470 Lens, Rear Combination Lamp, LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥20,600
81561-52480 Lens, Rear Combination Lamp, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥17,400
81561-52500 Lens, Rear Combination Lamp, LH
2005-01 → 2007-08 ended
NCP91 RS ¥23,300
81561-52500 Lens, Rear Combination Lamp, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥23,300
81561-52630 note Lens, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥20,300
81561-52630 note Lens, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥20,300
81561-52640 Lens, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥17,500
81561-52500 Lens, Rear Combination Lamp, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥23,300
81561-52630 note Lens, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90 B,F ¥20,300
81561-52630 note Lens, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90 B,F ¥20,300
81561-52630 note Lens, Rear Combination Lamp, LH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥20,300
81561-52640 note Lens, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥17,500
81561-52640 note Lens, Rear Combination Lamp, LH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥17,500
81564 — Gasket, Rear Combination Lamp Body, LH
81564-52470 Gasket, Rear Combination Lamp Body, LH
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥1,020
81564-52470 Gasket, Rear Combination Lamp Body, LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,020
81564-52470 Gasket, Rear Combination Lamp Body, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,020
81564-52500 Gasket, Rear Combination Lamp Body, LH
2005-01 → 2007-08 ended
NCP91 RS ¥1,020
81564-52500 Gasket, Rear Combination Lamp Body, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,020
81564-52630 Gasket, Rear Combination Lamp Body, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,020
81562-52630 Gasket, Rear Combination Lamp Body, LH
2010-10 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,010
81564-52500 Gasket, Rear Combination Lamp Body, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥1,020
81564-52630 Gasket, Rear Combination Lamp Body, LH
2008-08 → 2010-10 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,020
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2005-01 → 2007-08 ended
NCP91 RS ¥2,470
81565-52470 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81565-52470 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥1,600
81565-52480 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,910
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,470
81565-52630 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,910
81565-52630 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90 B,F ¥2,910
81565-52640 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,910
81555-52570 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥2,470
81565-52630 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90 B,F ¥2,910
81565-52630 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90 B,F ¥2,910
81565-52630 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2009-07 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81565-52640 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2008-08 → 2009-07 ended
KSP90,SCP90 B,F,ILL,U ¥2,910
81565-52640 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2008-08 → 2010-12 ended
NCP9# F,ILL,U ¥2,910
81580B — Bulb (FOR REAR LAMP)
90981-13043 note Bulb (FOR REAR LAMP)
2005-01 → 2007-08 ended
NCP91 RS ¥220
90981-13043 note Bulb (FOR REAR LAMP)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥220
90981-13043 note Bulb (FOR REAR LAMP)
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥220
81580D — Lamp Assy, Rear, RH
81580-52170 Lamp Assy, Rear, RH
2005-01 → 2007-08 ended
NCP91 RS ¥4,630
81580-52170 Lamp Assy, Rear, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,630
81580-52220 Lamp Assy, Rear, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥4,630
81581C — Lens And Body, Rear Lamp, RH
81581-52160 note Lens And Body, Rear Lamp, RH
2005-01 → 2007-08 ended
NCP91 RS ¥7,600
81581-52160 note Lens And Body, Rear Lamp, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,600
81581-52210 note Lens And Body, Rear Lamp, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥7,200
81585 — Socket & Wire, Rear Lamp
90075-99080 note Socket & Wire, Rear Lamp
2005-01 → 2007-08 ended
NCP91 RS ¥610
90075-99080 note Socket & Wire, Rear Lamp
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥610
90075-99080 note Socket & Wire, Rear Lamp
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥610
81590A — Lamp Assy, Rear, LH
81590-52100 Lamp Assy, Rear, LH
2005-01 → 2007-08 ended
NCP91 RS ¥4,630
81590-52090 note Lamp Assy, Rear, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥8,800
81590-52100 Lamp Assy, Rear, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,630
81590-52120 Lamp Assy, Rear, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥4,630
81591B — Lens And Body, Rear Lamp, LH
81591-52090 note Lens And Body, Rear Lamp, LH
2005-01 → 2007-08 ended
NCP91 RS ¥7,600
81591-52090 note Lens And Body, Rear Lamp, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,600
81591-52110 note Lens And Body, Rear Lamp, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥8,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
