Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

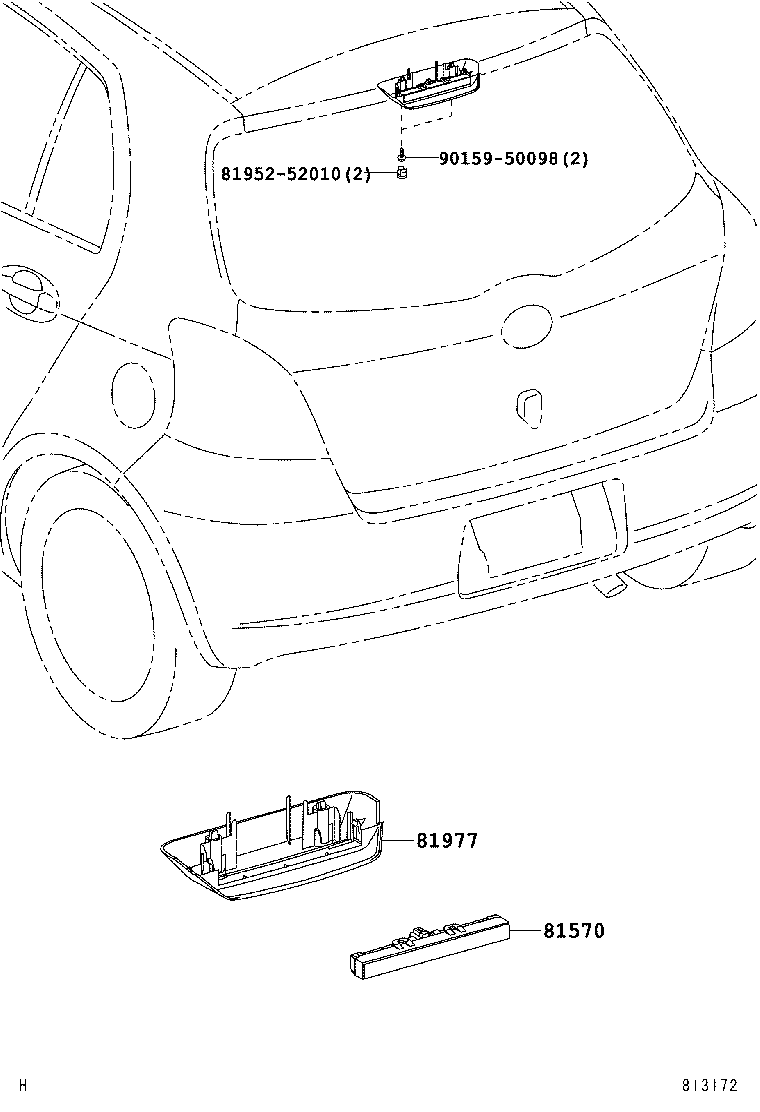

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-22210 |
Lamp Assy, Center Stop
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U,X | ¥12,500 | |
| 81570-52210 |
Lamp Assy, Center Stop
2005-01 → 2007-08
ended
|
KSP90 B | ¥7,400 | |
| 81570-52210 note |
Lamp Assy, Center Stop
2005-12 → 2007-08
ended
|
NCP91 5F | ¥7,400 | |
| 81570-22210 |
Lamp Assy, Center Stop
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥12,500 | |
| 81570-22210 |
Lamp Assy, Center Stop
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥12,500 | |
| 81570-52210 |
Lamp Assy, Center Stop
2007-08 → 2008-08
ended
|
KSP90 B | ¥7,400 | |
| 81570-52210 note |
Lamp Assy, Center Stop
2007-08 → —
|
NCP91 5F | ¥7,400 | |
| 81570-22210 |
Lamp Assy, Center Stop
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥12,500 | |
| 81570-22210 note |
Lamp Assy, Center Stop
2010-08 → 2010-12
ended
|
KSP90 B | ¥12,500 | |
| 81570-52210 |
Lamp Assy, Center Stop
2008-08 → 2010-12
ended
|
KSP90 B | ¥7,400 | |
| 81570-52210 note |
Lamp Assy, Center Stop
2008-09 → —
|
NCP91 5F | ¥7,400 | |
| 81570-52210 note |
Lamp Assy, Center Stop
2008-09 → —
|
NCP91 5F | ¥7,400 | |
| 81977 — Cover, Center Stop Lamp | ||||
| 81977-52100 |
Cover, Center Stop Lamp
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥3,150 | |
| 81977-52100 |
Cover, Center Stop Lamp
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥3,150 | |
| 81977-52100 |
Cover, Center Stop Lamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥3,150 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
