Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

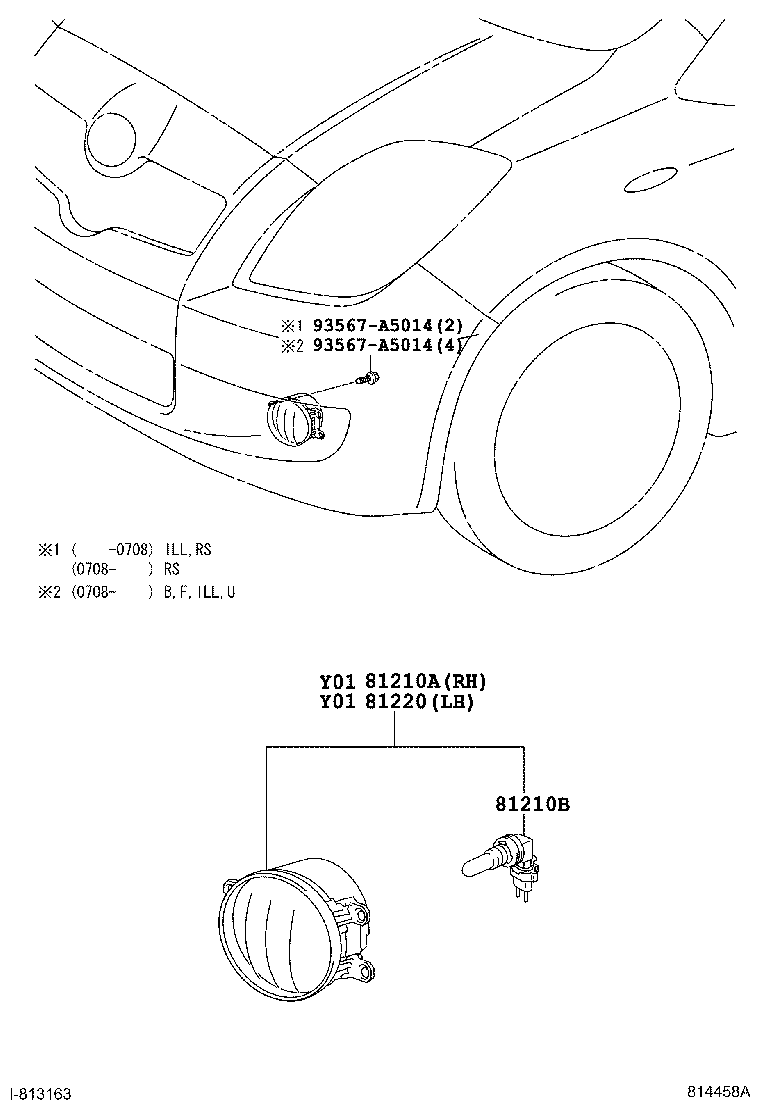

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210A — Lamp Assy, Fog, RH | ||||
| 81210-0D040 |
Lamp Assy, Fog, RH
2005-01 → 2006-11
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥14,600 | |
| 81210-0D041 |
Lamp Assy, Fog, RH
2006-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81210-0D041 note |
Lamp Assy, Fog, RH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥14,400 | |
| 81210-0D041 |
Lamp Assy, Fog, RH
2007-08 → 2008-09
ended
|
NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81210-0D041 |
Lamp Assy, Fog, RH
2008-08 → 2010-03
ended
|
NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81210-0D041 note |
Lamp Assy, Fog, RH
2008-08 → 2010-03
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥14,400 | |
| 81210-0D042 |
Lamp Assy, Fog, RH
2010-04 → 2010-12
ended
|
NCP9#,SCP90 ILL,RS | ¥11,900 | |
| 81210-0D042 note |
Lamp Assy, Fog, RH
2010-04 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥11,900 | |
| 81210B — Bulb, Fog Lamp | ||||
| 90981-13075 note |
Bulb, Fog Lamp
2005-11 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥1,800 | |
| 90981-13081 note |
Bulb, Fog Lamp
2005-11 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥2,000 | |
| 90981-WD011 note |
Bulb, Fog Lamp
2005-01 → 2005-11
ended
|
NCP91 RS | ¥2,300 | |
| 90981-WD012 note |
Bulb, Fog Lamp
2005-01 → 2005-11
ended
|
NCP91 RS | ¥2,300 | |
| 90981-13075 note |
Bulb, Fog Lamp
2007-08 → 2008-09
ended
|
NCP9#,SCP90 ILL,RS | ¥1,800 | |
| 90981-13075 note |
Bulb, Fog Lamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥1,800 | |
| 90981-13081 note |
Bulb, Fog Lamp
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥2,000 | |
| 90981-13081 note |
Bulb, Fog Lamp
2007-08 → 2008-09
ended
|
NCP9#,SCP90 ILL,RS | ¥2,000 | |
| 90981-13075 note |
Bulb, Fog Lamp
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL,RS | ¥1,800 | |
| 90981-13075 note |
Bulb, Fog Lamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥1,800 | |
| 90981-13081 note |
Bulb, Fog Lamp
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL,RS | ¥2,000 | |
| 90981-13081 note |
Bulb, Fog Lamp
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥2,000 | |
| 81220 — Lamp Assy, Fog, LH | ||||
| 81220-0D040 |
Lamp Assy, Fog, LH
2005-01 → 2006-11
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81220-0D041 |
Lamp Assy, Fog, LH
2006-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81220-0D041 note |
Lamp Assy, Fog, LH
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥14,400 | |
| 81220-0D041 |
Lamp Assy, Fog, LH
2007-08 → 2008-09
ended
|
NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81220-0D041 |
Lamp Assy, Fog, LH
2008-08 → 2010-03
ended
|
NCP9#,SCP90 ILL,RS | ¥14,400 | |
| 81220-0D041 note |
Lamp Assy, Fog, LH
2008-08 → 2010-03
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥14,400 | |
| 81220-0D042 |
Lamp Assy, Fog, LH
2010-04 → 2010-12
ended
|
NCP9#,SCP90 ILL,RS | ¥11,900 | |
| 81220-0D042 note |
Lamp Assy, Fog, LH
2010-04 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥11,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
