Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

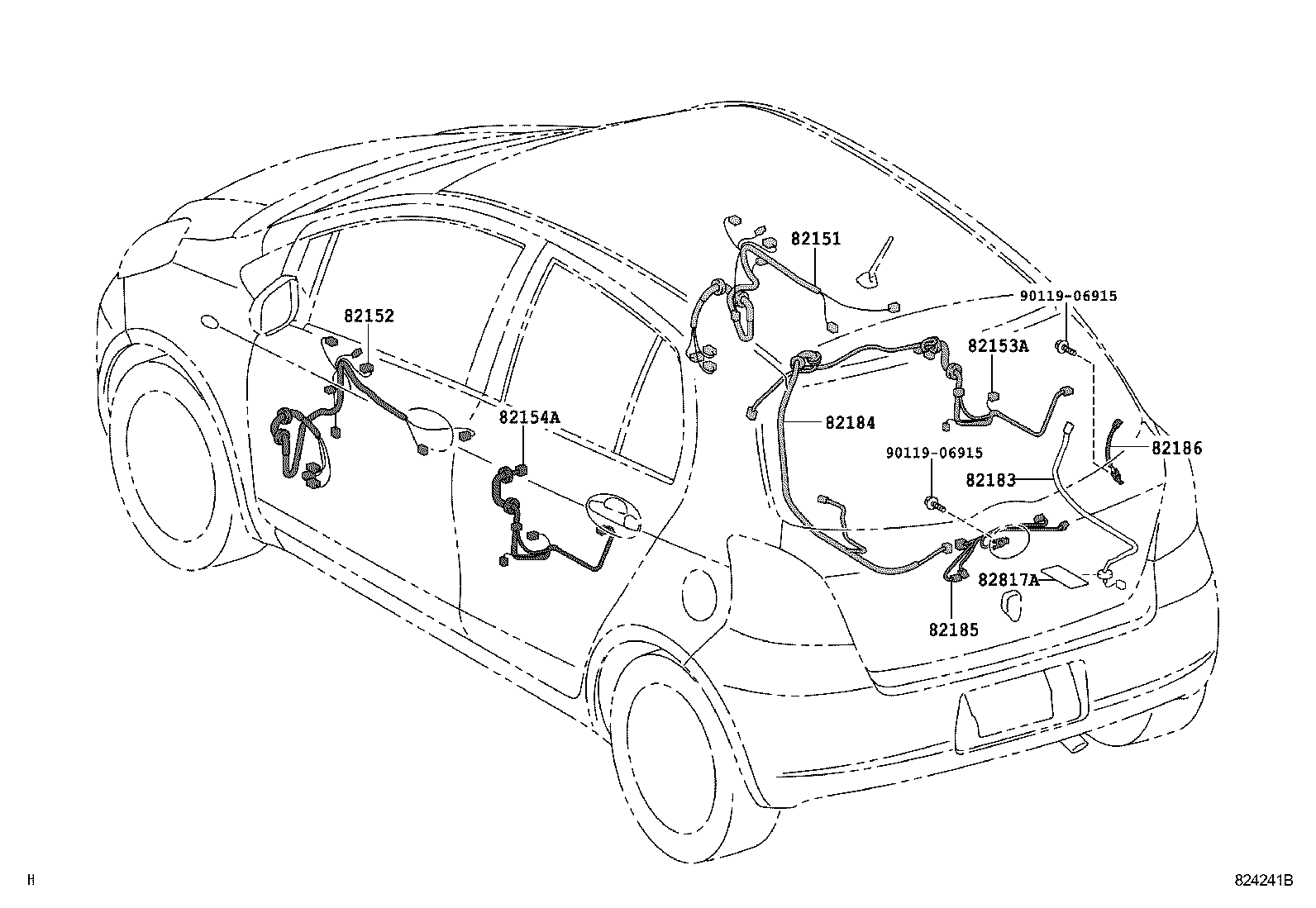

Exploded illustration 824241B 82151 — WIRE, FRONT DOOR, RH (12 parts) 82152 — WIRE, FRONT DOOR, LH (12 parts) 82153A — WIRE, REAR DOOR, RH (3 parts) 82154A — WIRE, REAR DOOR, LH (3 parts) 82184 — WIRE, BACK DOOR, NO.1 (12 parts) 82185 — WIRE, BACK DOOR, NO.2 (15 parts) 82186 — WIRE, REAR WINDOW, NO.1 (3 parts) 9011906915 — not listed in this catalogue 9011906915 — not listed in this catalogue 82183 — WIRE, LUGGAGE ROOM, NO.3 (11 parts) 82817A — PROTECTOR, WIRING HARNESS, NO.2 (28 parts)
824241B · 9 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-52A10 Wire, Front Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥16,200
82151-52A20 Wire, Front Door, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥16,200
82151-52A20 note Wire, Front Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥16,200
82151-52G70 Wire, Front Door, RH
2007-08 → —
KSP90,NCP9#,SCP90 B,F,RS ¥16,100
82151-52G80 Wire, Front Door, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥18,600
82151-52G80 note Wire, Front Door, RH
2007-08 → —
KSP90,NCP9#,SCP90 F,RS ¥18,600
82151-52G70 Wire, Front Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥16,100
82151-52G70 Wire, Front Door, RH
2010-08 → 2010-12 ended
KSP90 U ¥16,100
82151-52G80 Wire, Front Door, RH
2008-08 → 2010-08 ended
KSP90 U ¥18,600
82151-52G80 note Wire, Front Door, RH
2008-08 → 2010-08 ended
KSP90 F ¥18,600
82151-52G80 Wire, Front Door, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥18,600
82151-52G80 note Wire, Front Door, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥18,600
82152 — Wire, Front Door, LH
82152-52620 Wire, Front Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥10,400
82152-52630 Wire, Front Door, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥14,600
82152-52630 note Wire, Front Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥14,600
82152-52D50 Wire, Front Door, LH
2007-08 → —
KSP90,NCP9#,SCP90 B,F,RS ¥10,400
82152-52D60 Wire, Front Door, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥12,600
82152-52D60 note Wire, Front Door, LH
2007-08 → —
KSP90,NCP9#,SCP90 F,RS ¥12,600
82152-52D50 Wire, Front Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥10,400
82152-52D50 Wire, Front Door, LH
2010-08 → 2010-12 ended
KSP90 U ¥10,400
82152-52D60 Wire, Front Door, LH
2008-08 → 2010-08 ended
KSP90 U ¥12,600
82152-52D60 note Wire, Front Door, LH
2008-08 → 2010-08 ended
KSP90 F ¥12,600
82152-52D60 Wire, Front Door, LH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥12,600
82152-52D60 note Wire, Front Door, LH
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥12,600
82153A — Wire, Rear Door, RH
82153-52300 Wire, Rear Door, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,100
82153-52300 Wire, Rear Door, RH
2007-08 → —
KSP90,NCP9#,SCP90 ¥5,100
82153-52300 Wire, Rear Door, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,100
82154A — Wire, Rear Door, LH
82153-52300 Wire, Rear Door, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,100
82153-52300 Wire, Rear Door, LH
2007-08 → —
KSP90,NCP9#,SCP90 ¥5,100
82153-52300 Wire, Rear Door, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,100
82183 — Wire, Luggage Room, NO.3
82183-52010 Wire, Luggage Room, NO.3
2005-12 → 2007-08 ended
NCP91 RS ¥2,290
82183-52010 note Wire, Luggage Room, NO.3
2005-12 → 2007-08 ended
KSP90,NCP91,SCP90 F,ILL,U,X ¥2,290
82183-52020 note Wire, Luggage Room, NO.3
2005-12 → 2007-08 ended
NCP95 ¥2,290
82183-52010 note Wire, Luggage Room, NO.3
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 F,ILL,U ¥2,290
82183-52010 Wire, Luggage Room, NO.3
2007-08 → 2008-09 ended
NCP91 RS ¥2,290
82183-52010 note Wire, Luggage Room, NO.3
2007-08 → 2008-09 ended
SCP90 RS ¥2,290
82183-52020 note Wire, Luggage Room, NO.3
2007-08 → 2008-08 ended
NCP95 ¥2,290
82183-52010 note Wire, Luggage Room, NO.3
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 F,ILL,U ¥2,290
82183-52010 note Wire, Luggage Room, NO.3
2008-09 → 2010-12 ended
SCP90 RS ¥2,290
82183-52010 Wire, Luggage Room, NO.3
2008-09 → 2010-12 ended
NCP91 RS ¥2,290
82183-52020 note Wire, Luggage Room, NO.3
2008-08 → 2010-12 ended
NCP95 ¥2,290
82184 — Wire, Back Door, NO.1
82184-52340 Wire, Back Door, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥7,500
82184-52350 Wire, Back Door, NO.1
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥7,500
82184-52350 note Wire, Back Door, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥7,500
82184-52340 Wire, Back Door, NO.1
2007-08 → —
KSP90,NCP9#,SCP90 B,F,RS ¥7,500
82184-52350 Wire, Back Door, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥7,500
82184-52350 note Wire, Back Door, NO.1
2007-08 → —
KSP90,NCP9#,SCP90 F,RS ¥7,500
82184-52340 Wire, Back Door, NO.1
2010-08 → 2010-12 ended
KSP90 U ¥7,500
82184-52340 Wire, Back Door, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥7,500
82184-52350 Wire, Back Door, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥7,500
82184-52350 note Wire, Back Door, NO.1
2008-08 → 2010-08 ended
KSP90 F ¥7,500
82184-52350 Wire, Back Door, NO.1
2008-08 → 2010-08 ended
KSP90 U ¥7,500
82184-52350 note Wire, Back Door, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥7,500
82185 — Wire, Back Door, NO.2
82185-52290 Wire, Back Door, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥1,710
82185-52300 Wire, Back Door, NO.2
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,710
82185-52300 note Wire, Back Door, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥1,710
82185-52290 Wire, Back Door, NO.2
2007-08 → 2008-06 ended
KSP90,NCP9#,SCP90 B,F,RS ¥1,710
82185-52300 Wire, Back Door, NO.2
2007-08 → 2008-06 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,710
82185-52300 note Wire, Back Door, NO.2
2007-08 → 2008-06 ended
KSP90,NCP9#,SCP90 F,RS ¥1,710
82185-52510 Wire, Back Door, NO.2
2008-06 → —
KSP90,NCP9#,SCP90 B,F,RS ¥1,710
82185-52520 Wire, Back Door, NO.2
2008-06 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,710
82185-52520 note Wire, Back Door, NO.2
2008-06 → —
KSP90,NCP9#,SCP90 F,RS ¥1,710
82185-52510 Wire, Back Door, NO.2
2010-08 → 2010-12 ended
KSP90 U ¥1,710
82185-52510 Wire, Back Door, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥1,710
82185-52520 note Wire, Back Door, NO.2
2008-08 → 2010-08 ended
KSP90 F ¥1,710
82185-52520 note Wire, Back Door, NO.2
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥1,710
82185-52520 Wire, Back Door, NO.2
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥1,710
82185-52520 Wire, Back Door, NO.2
2008-08 → 2010-08 ended
KSP90 U ¥1,710
82186 — Wire, Rear Window, NO.1
82186-52090 Wire, Rear Window, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥310
82186-52090 Wire, Rear Window, NO.1
2007-08 → —
KSP90,NCP9#,SCP90 ¥310
82186-52090 Wire, Rear Window, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥310
82817A — Protector, Wiring Harness, NO.2
82817-16100 Protector, Wiring Harness, NO.2
2005-01 → 2005-11 ended
NCP91 RS ¥410
82817-16100 note Protector, Wiring Harness, NO.2
2005-01 → 2005-10 ended
NCP95 F ¥410
82817-16100 note Protector, Wiring Harness, NO.2
2005-01 → 2005-10 ended
NCP95 F ¥410
82817-16100 Protector, Wiring Harness, NO.2
2005-01 → 2005-10 ended
NCP95 F ¥410
82817-16100 Protector, Wiring Harness, NO.2
2005-01 → 2005-10 ended
KSP90,NCP91,SCP90 B,F,U,X ¥410
82817-16100 Protector, Wiring Harness, NO.2
2005-01 → 2005-10 ended
NCP95 U ¥410
82817-52710 Protector, Wiring Harness, NO.2
2005-11 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥590
82817-52710 Protector, Wiring Harness, NO.2
2005-11 → 2007-08 ended
NCP95 F,ILL ¥590
82817-52710 Protector, Wiring Harness, NO.2
2005-11 → 2007-08 ended
NCP95 U ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2005-11 → 2007-08 ended
NCP95 F,ILL ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2005-11 → 2007-08 ended
NCP95 F,ILL ¥590
82817-52710 Protector, Wiring Harness, NO.2
2005-12 → 2007-08 ended
NCP91 RS ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,U,X ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥590
82817-52710 Protector, Wiring Harness, NO.2
2007-08 → —
NCP91 RS;NCP95 ILL,U ¥590
82817-52710 Protector, Wiring Harness, NO.2
2007-08 → —
SCP90;KSP90,NCP91 B,F,ILL,U ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2007-08 → 2008-09 ended
SCP90 RS ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2007-08 → 2008-08 ended
NCP95 F ¥590
82817-52710 Protector, Wiring Harness, NO.2
2007-08 → 2008-08 ended
NCP95 F ¥590
82817-52710 Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
KSP90 B ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
KSP90 B ¥590
82817-52710 Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
NCP95 F ¥590
82817-52710 Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
NCP91 RS;NCP95 ILL,U ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
NCP95 F ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-08 → 2010-12 ended
NCP95 F;KSP90,NCP91,SCP90 F,ILL,U ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-09 → 2010-12 ended
NCP91 RS ¥590
82817-52710 note Protector, Wiring Harness, NO.2
2008-09 → 2010-12 ended
SCP90 RS ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
