Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

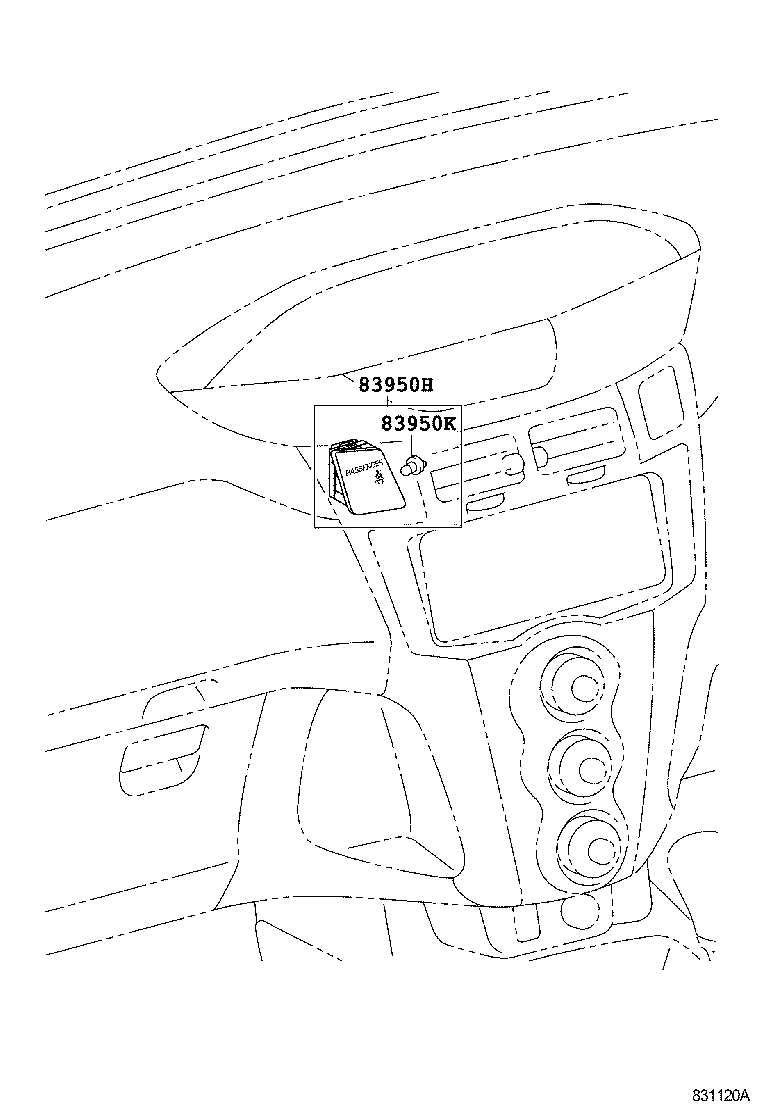

Exploded illustration 831120A 83950H — LAMP ASSY, PASSENGER SEAT BELT WARNING (3 parts) 83950K — BULB, PASSENGER SEAT BELT WARNING LAMP (3 parts)
831120A · 2 callouts Full size ↗
6 parts on this figure
Part number Description Fitment Price
83950H — Lamp Assy, Passenger Seat Belt Warning
83950-52010 Lamp Assy, Passenger Seat Belt Warning
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,800
83950-52010 Lamp Assy, Passenger Seat Belt Warning
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥4,800
83950-52010 Lamp Assy, Passenger Seat Belt Warning
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,800
83950K — Bulb, Passenger Seat Belt Warning Lamp
90010-07011 note Bulb, Passenger Seat Belt Warning Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥390
90010-07011 note Bulb, Passenger Seat Belt Warning Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥390
90010-07011 note Bulb, Passenger Seat Belt Warning Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
