Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

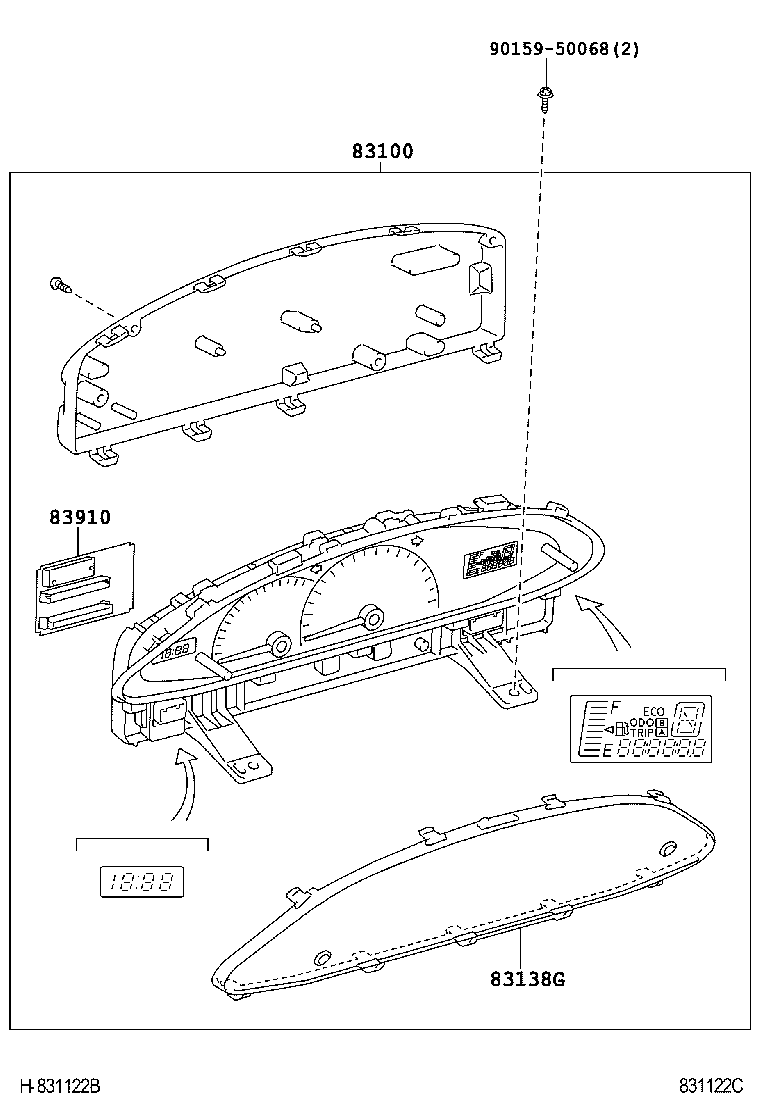

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-52A00 note |
Meter Assy, Combination
2005-04 → 2005-12
ended
|
KSP90 | ¥72,500 | |
| 83800-52A01 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
KSP90 B,F | ¥72,500 | |
| 83800-52A10 note |
Meter Assy, Combination
2005-01 → 2005-12
ended
|
KSP90,SCP90 B,F | ¥72,500 | |
| 83800-52A11 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
KSP90,SCP90 B,F | ¥72,500 | |
| 83800-52A20 note |
Meter Assy, Combination
2005-01 → 2005-12
ended
|
NCP95 F | ¥72,500 | |
| 83800-52A21 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
NCP95 F | ¥72,500 | |
| 83800-52A30 note |
Meter Assy, Combination
2005-01 → 2005-12
ended
|
NCP91,SCP90 U,X | ¥80,400 | |
| 83800-52A31 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
NCP91,SCP90 U,X | ¥80,400 | |
| 83800-52A40 note |
Meter Assy, Combination
2005-01 → 2005-12
ended
|
NCP95 U | ¥80,400 | |
| 83800-52A41 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
NCP95 U | ¥80,400 | |
| 83800-52A50 note |
Meter Assy, Combination
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 CVFC (ILL,RS) | ¥76,200 | |
| 83800-52A60 note |
Meter Assy, Combination
2005-01 → 2007-08
ended
|
NCP91 5F | ¥76,200 | |
| 83800-52K90 note |
Meter Assy, Combination
2005-12 → 2007-08
ended
|
NCP95 ILL | ¥76,200 | |
| 83800-52N30 note |
Meter Assy, Combination
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥72,400 | |
| 83800-52N40 note |
Meter Assy, Combination
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 B,F | ¥72,400 | |
| 83800-52N50 note |
Meter Assy, Combination
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥76,200 | |
| 83800-52N50 note |
Meter Assy, Combination
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥76,200 | |
| 83800-52N31 note |
Meter Assy, Combination
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥72,400 | |
| 83800-52N41 note |
Meter Assy, Combination
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F | ¥72,400 | |
| 83800-52N51 note |
Meter Assy, Combination
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U | ¥76,200 | |
| 83800-52X60 note |
Meter Assy, Combination
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥72,400 | |
| 83138G — Glass, Combination Meter | ||||
| 83852-52A00 |
Glass, Combination Meter
2005-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 B,F | — | |
| 83852-52A30 |
Glass, Combination Meter
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U,X | — | |
| 83852-52A00 |
Glass, Combination Meter
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | — | |
| 83852-52A00 |
Glass, Combination Meter
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | — | |
| 83852-52A00 |
Glass, Combination Meter
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | — | |
| 83910 — Clock Assy | ||||
| 83910-52080 |
Clock Assy
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS,U,X | ¥10,100 | |
| 83910-52090 |
Clock Assy
2005-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 B,F | ¥31,600 | |
| 83910-52130 |
Clock Assy
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 B,F | ¥31,500 | |
| 83910-52100 note |
Clock Assy
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥31,500 | |
| 83910-52130 |
Clock Assy
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F | ¥31,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
