Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

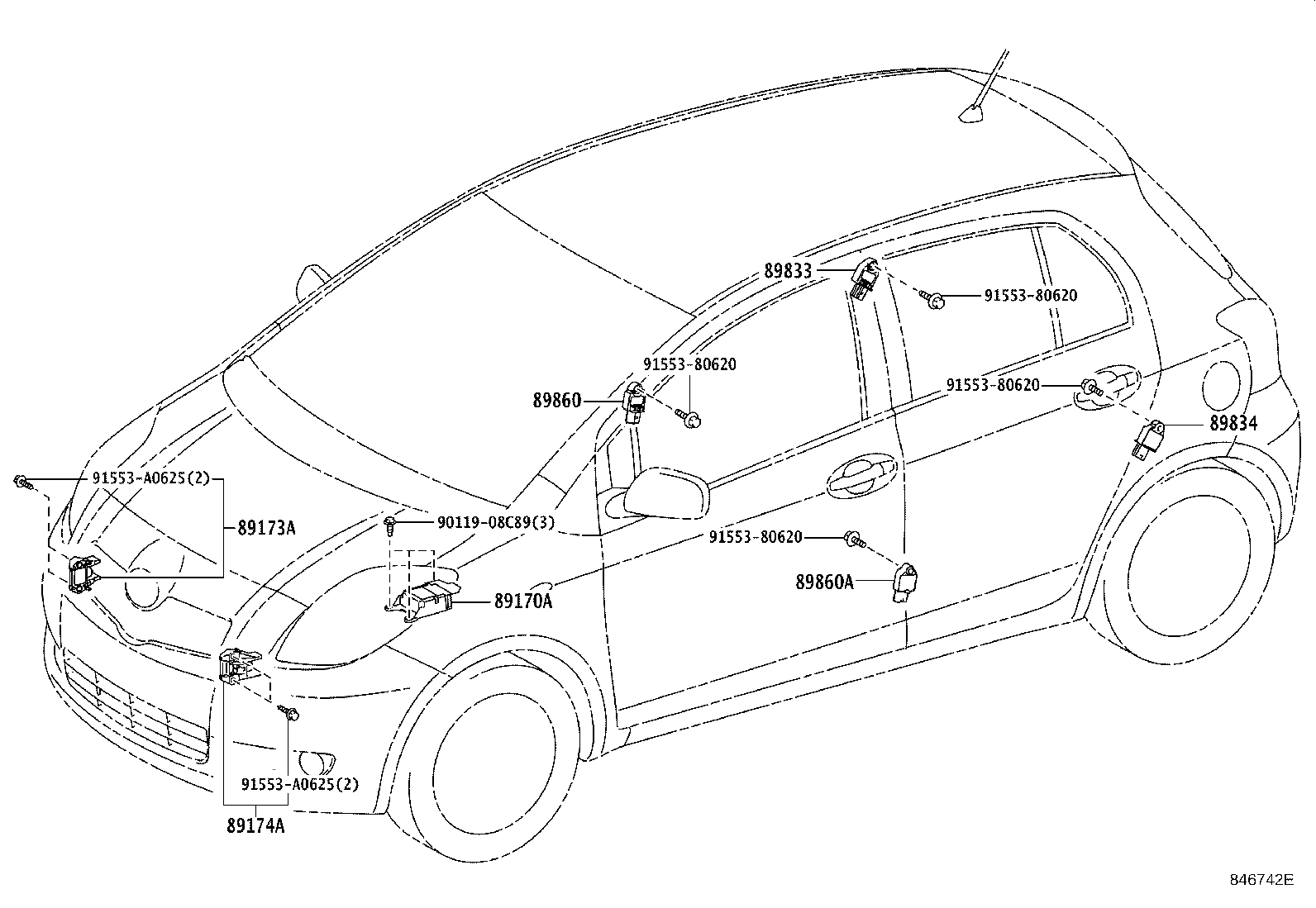

Exploded illustration 846742E 89173A — SENSOR, AIRBAG, FRONT RH (5 parts) 89170A — COMPUTER ASSY, AIRBAG (11 parts) 89174A — SENSOR, AIRBAG, FRONT LH (5 parts) 91553A0625 — not listed in this catalogue 91553A0625 — not listed in this catalogue 9011908C89 — not listed in this catalogue 89833 — SENSOR, AIRBAG, REAR RH (11 parts) 89834 — SENSOR, AIRBAG, REAR LH (11 parts) 9155380620 — not listed in this catalogue 89860A — SENSOR ASSY, SIDE AIRBAG, LH (11 parts) 89860 — SENSOR ASSY, SIDE AIRBAG, RH (11 parts) 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue
846742E · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
65 parts on this figure
Part number Description Fitment Price
89170A — Computer Assy, Airbag
89170-52610 Computer Assy, Airbag
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥64,800
89170-52660 Computer Assy, Airbag
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥64,800
89170-52660 note Computer Assy, Airbag
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥64,800
89170-52B60 note Computer Assy, Airbag
2007-08 → 2008-09 ended
KSP90 B;NCP91 5F ¥65,700
89170-52B70 Computer Assy, Airbag
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥65,700
89170-52B60 note Computer Assy, Airbag
2010-04 → 2010-08 ended
KSP90 B ¥65,700
89170-52B60 note Computer Assy, Airbag
2010-08 → 2010-12 ended
KSP90 B ¥65,700
89170-52B60 note Computer Assy, Airbag
2008-09 → —
NCP91 5F ¥65,700
89170-52B60 note Computer Assy, Airbag
2008-09 → —
NCP91 5F ¥65,700
89170-52B70 Computer Assy, Airbag
2008-08 → 2010-07 ended
NCP91 5F ¥65,700
89170-52B70 Computer Assy, Airbag
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥65,700
89173A — Sensor, Airbag, Front RH
89173-09270 Sensor, Airbag, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,200
89173-39375 Sensor, Airbag, Front RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,900
89173-39375 Sensor, Airbag, Front RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,900
89173-39375 Sensor, Airbag, Front RH
2008-08 → 2010-07 ended
NCP91 5F ¥10,900
89173-39375 Sensor, Airbag, Front RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥10,900
89174A — Sensor, Airbag, Front LH
89173-09270 Sensor, Airbag, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥13,200
89173-39375 Sensor, Airbag, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,900
89173-39375 Sensor, Airbag, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,900
89173-39375 Sensor, Airbag, Front LH
2008-08 → 2010-07 ended
NCP91 5F ¥10,900
89173-39375 Sensor, Airbag, Front LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥10,900
89833 — Sensor, Airbag, Rear RH
89831-04020 Sensor, Airbag, Rear RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥13,200
89831-04020 note Sensor, Airbag, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥13,200
89831-33020 Sensor, Airbag, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,100
89831-33020 note Sensor, Airbag, Rear RH
2007-08 → 2008-08 ended
KSP90 B ¥13,100
89831-33020 Sensor, Airbag, Rear RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,100
89831-33020 note Sensor, Airbag, Rear RH
2007-08 → 2008-09 ended
NCP91 5F ¥13,100
89831-33020 Sensor, Airbag, Rear RH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-33020 note Sensor, Airbag, Rear RH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-33020 Sensor, Airbag, Rear RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥13,100
89831-33020 note Sensor, Airbag, Rear RH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-33020 note Sensor, Airbag, Rear RH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89834 — Sensor, Airbag, Rear LH
89831-04020 Sensor, Airbag, Rear LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥13,200
89831-04020 note Sensor, Airbag, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥13,200
89831-33020 Sensor, Airbag, Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,100
89831-33020 note Sensor, Airbag, Rear LH
2007-08 → 2008-08 ended
KSP90 B ¥13,100
89831-33020 Sensor, Airbag, Rear LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,100
89831-33020 note Sensor, Airbag, Rear LH
2007-08 → 2008-09 ended
NCP91 5F ¥13,100
89831-33020 note Sensor, Airbag, Rear LH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-33020 note Sensor, Airbag, Rear LH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-33020 Sensor, Airbag, Rear LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥13,100
89831-33020 note Sensor, Airbag, Rear LH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-33020 Sensor, Airbag, Rear LH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89860 — Sensor Assy, Side Airbag, RH
89831-0H010 Sensor Assy, Side Airbag, RH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥13,200
89831-0H010 note Sensor Assy, Side Airbag, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥13,200
89831-28020 Sensor Assy, Side Airbag, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,100
89831-28020 note Sensor Assy, Side Airbag, RH
2007-08 → 2008-08 ended
KSP90 B ¥13,100
89831-28020 Sensor Assy, Side Airbag, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,100
89831-28020 note Sensor Assy, Side Airbag, RH
2007-08 → 2008-09 ended
NCP91 5F ¥13,100
89831-28020 Sensor Assy, Side Airbag, RH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-28020 note Sensor Assy, Side Airbag, RH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-28020 note Sensor Assy, Side Airbag, RH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-28020 Sensor Assy, Side Airbag, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥13,100
89831-28020 note Sensor Assy, Side Airbag, RH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89860A — Sensor Assy, Side Airbag, LH
89831-0H010 Sensor Assy, Side Airbag, LH
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥13,200
89831-0H010 note Sensor Assy, Side Airbag, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥13,200
89831-28020 Sensor Assy, Side Airbag, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥13,100
89831-28020 note Sensor Assy, Side Airbag, LH
2007-08 → 2008-08 ended
KSP90 B ¥13,100
89831-28020 Sensor Assy, Side Airbag, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥13,100
89831-28020 note Sensor Assy, Side Airbag, LH
2007-08 → 2008-09 ended
NCP91 5F ¥13,100
89831-28020 Sensor Assy, Side Airbag, LH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-28020 note Sensor Assy, Side Airbag, LH
2008-08 → 2010-07 ended
NCP91 5F ¥13,100
89831-28020 Sensor Assy, Side Airbag, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥13,100
89831-28020 note Sensor Assy, Side Airbag, LH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
89831-28020 note Sensor Assy, Side Airbag, LH
2008-08 → 2010-12 ended
KSP90 B ¥13,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
